The RC-FS20 Dispatch Software unifies multiple radio systems into a single IP-based dispatch solution. Running on a standard Windows™ PC, it provides seamless voice access to IDAS™ digital radios (NXDN™/dPMR™) and Wi-Fi radios through one intuitive interface.

With the VE-PG4 RoIP Gateway, the RC-FS20 connects analog systems, LTE networks, and other radios into a coordinated operation. Optional activation keys enable advanced features such as AVL tracking (available later) and encryption, so you choose the features you need.

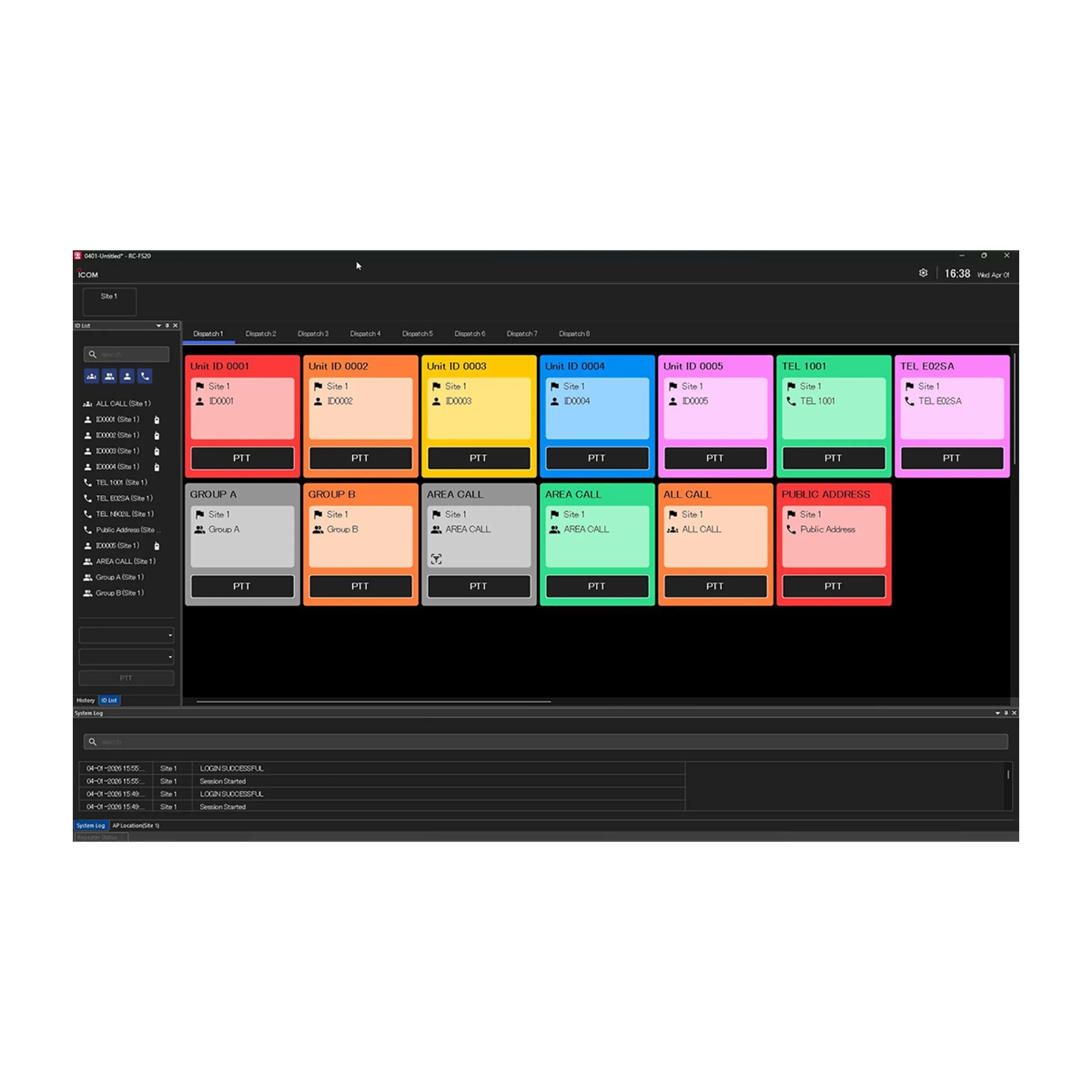

One Console for All Your Radios

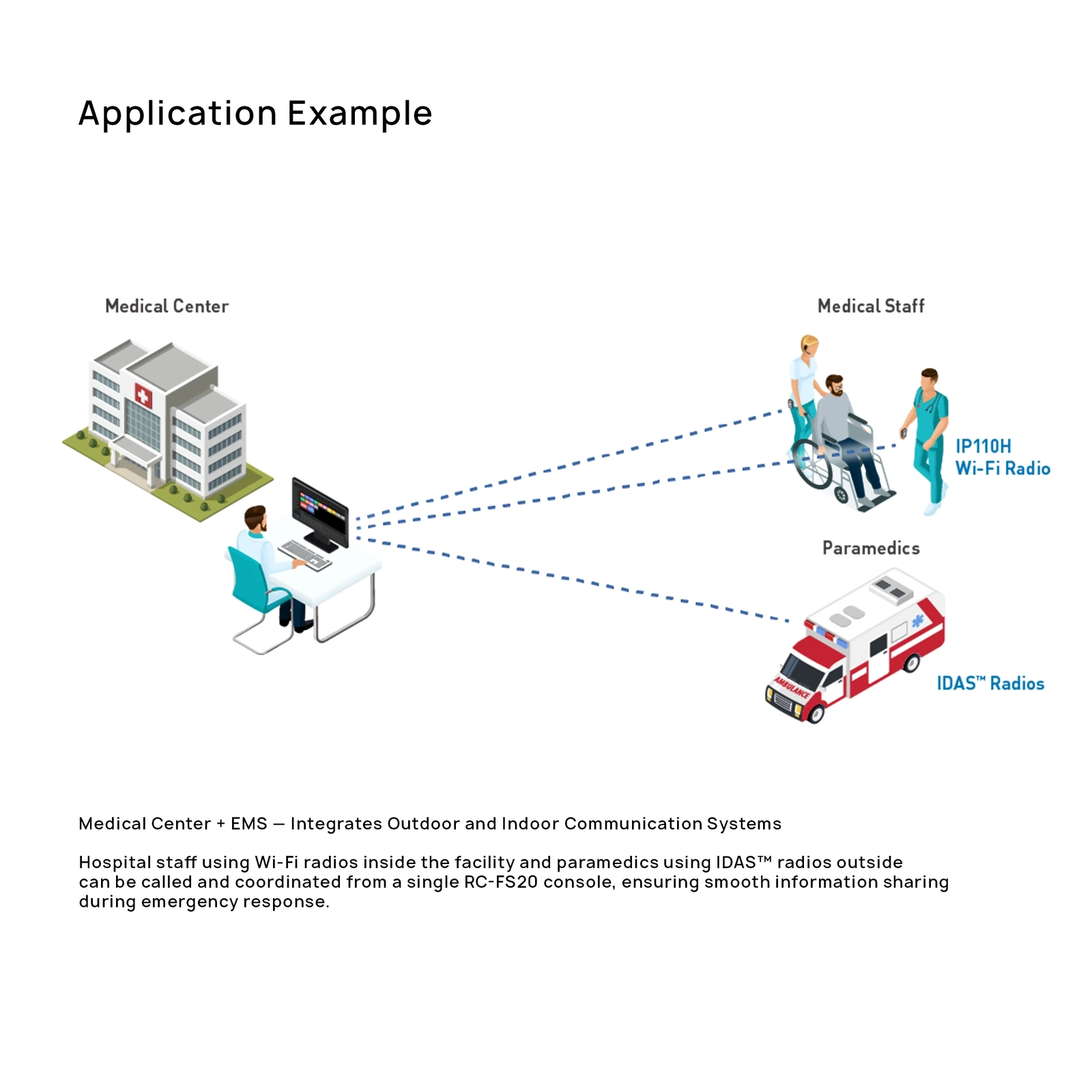

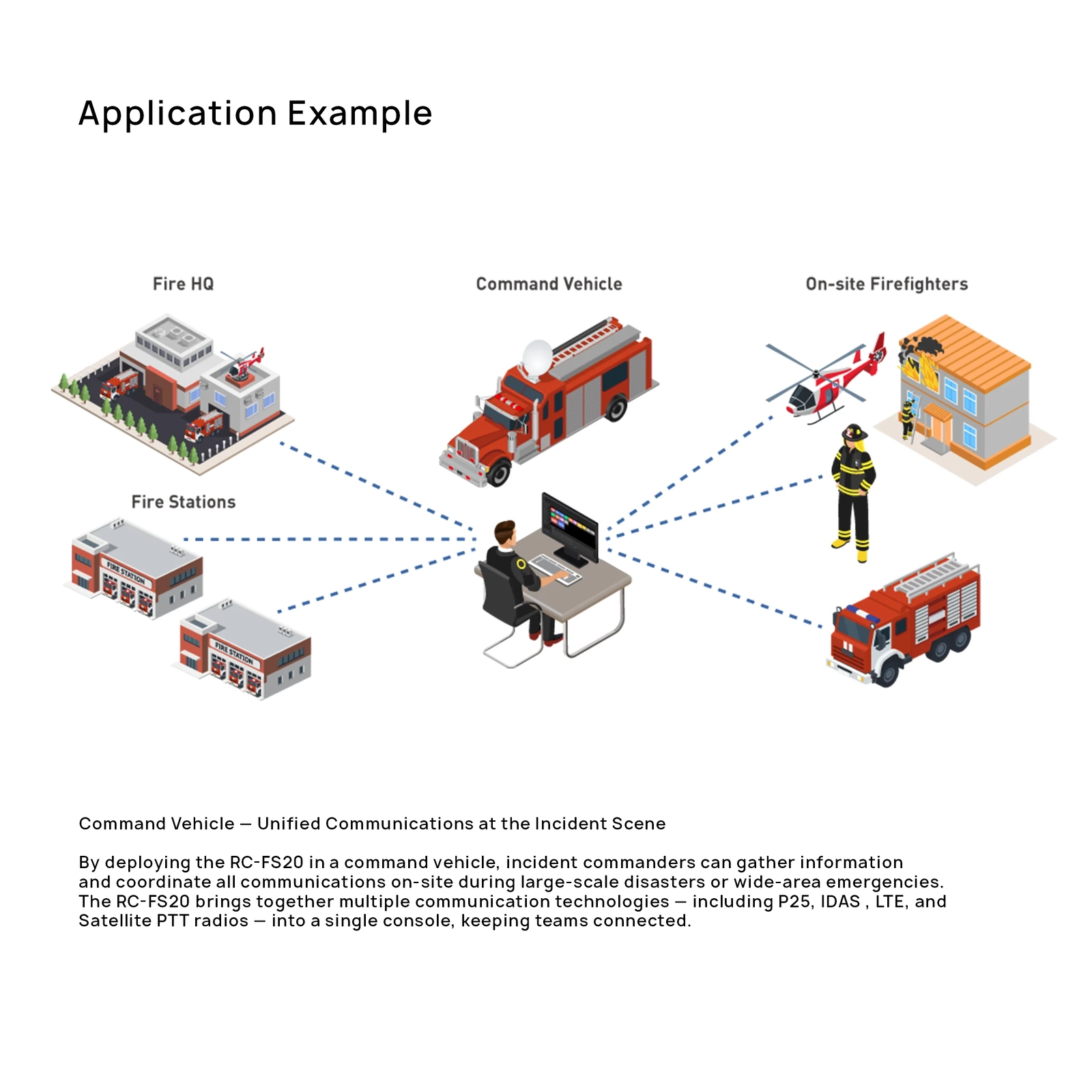

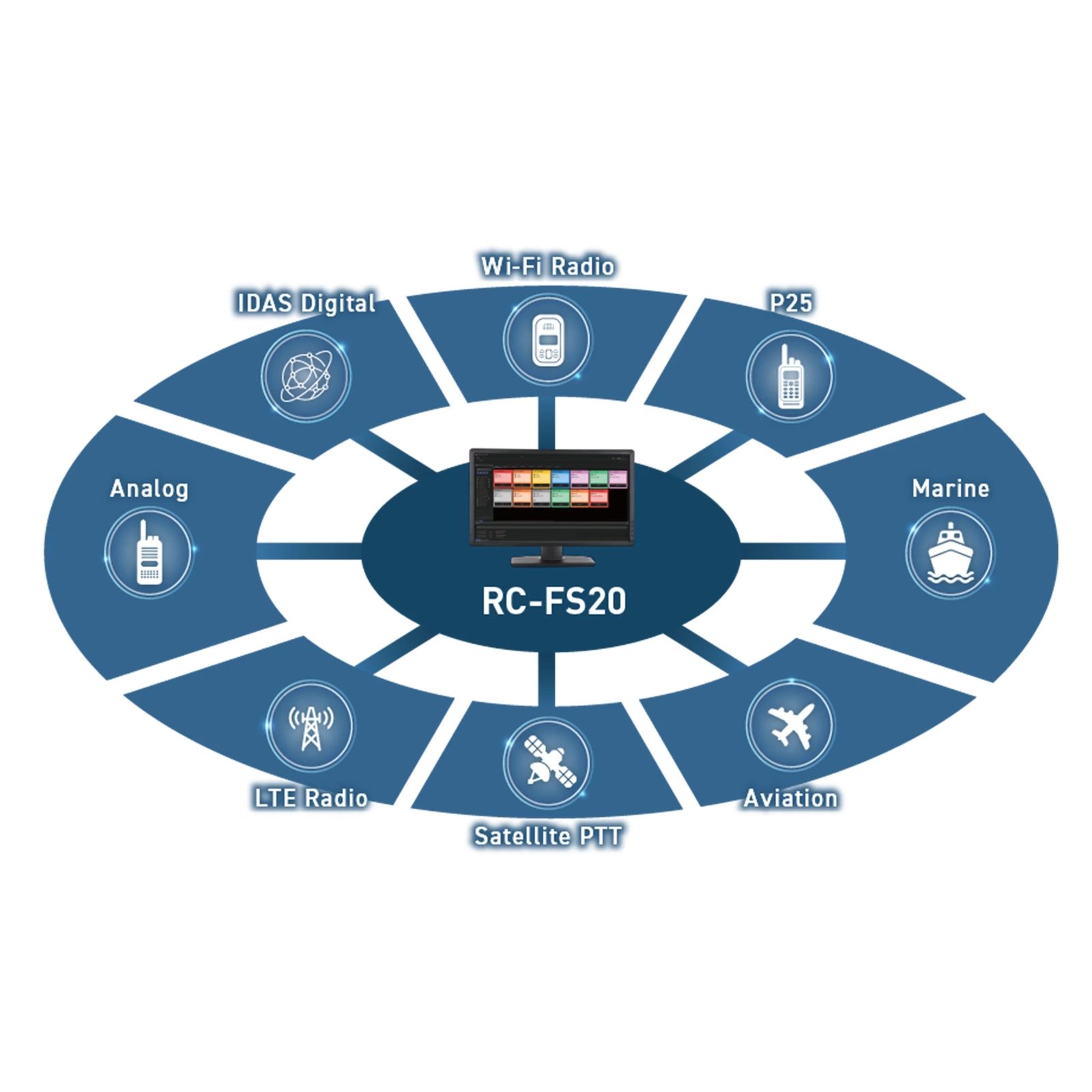

The RC-FS20 seamlessly integrates IDAS™ digital radios and Wi-Fi radio systems into a single platform, eliminating the need to operate separate consoles and keeping your entire team connected. With the VE-PG4 RoIP Gateway, you can extend connectivity beyond IDAS™ to virtually any communication system—including P25, LTE radios, marine VHF, aviation, satellite PTT, analog radios, and IP phones—giving your operators a unified view across every system in the field.

Communication & System Management

The RC-FS20 provides flexible communication and system management tools to keep your operation running smoothly.

• Up to 32 configurable radio systems (IDAS™: NXDN™ conventional/trunking, dPMR™ mode 2*, Wi-Fi radio, and RoIP*)
• All call, group call and individual call functions
• Independent audio volume control per site for focused monitoring
• Online check function to identify active units and their status
• Text messaging to IDAS™ and Wi-Fi radios
• Three user permission levels: Super User, Power User, and User
• Customizable contact cards (size, colors and background image)
• Call history, system log and repeater status monitoring
• SDK (Software Development Kit) available separately for custom feature development

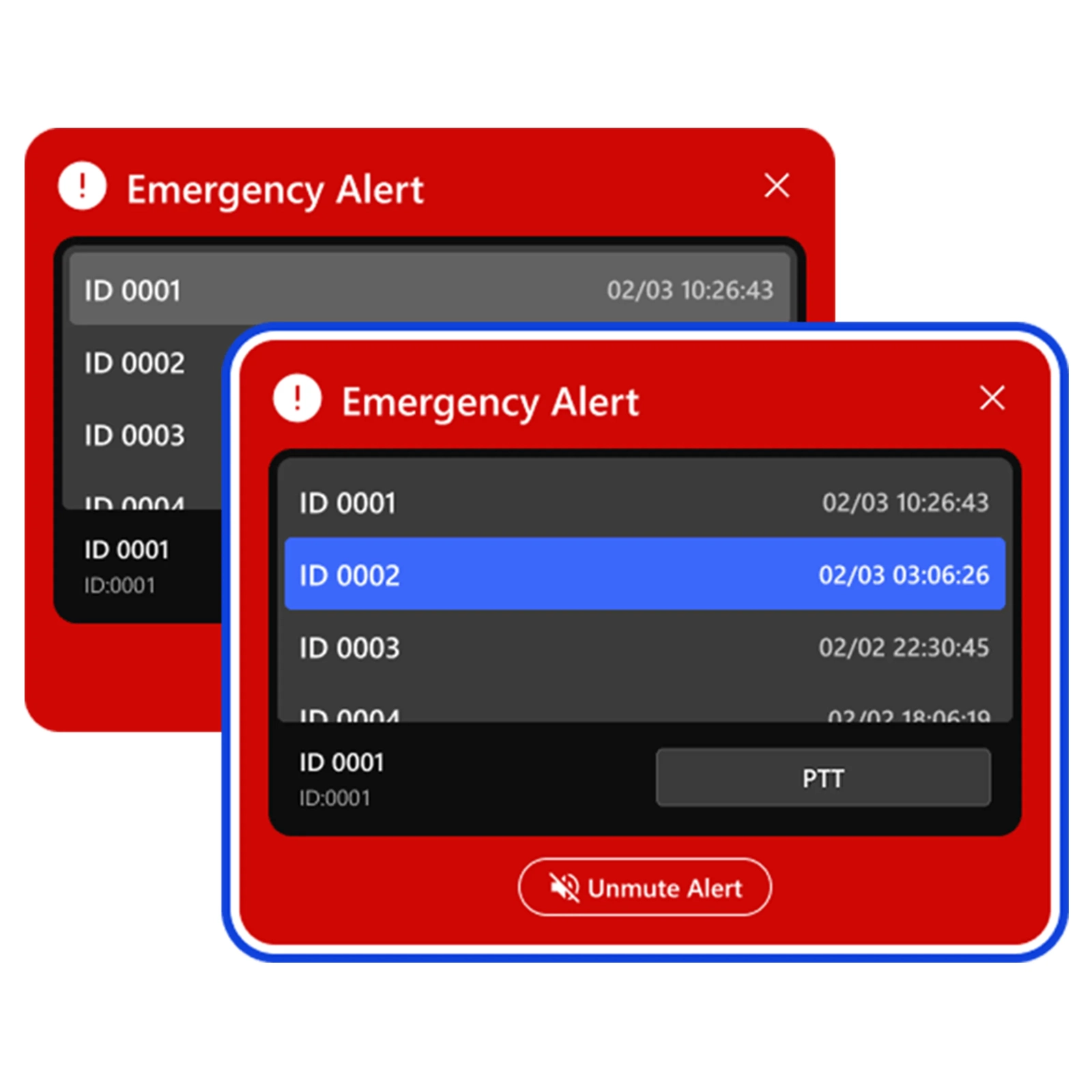

Never Miss an Emergency Activation

A dedicated alert window automatically appears on the dispatcher's screen, enabling a prompt response when personnel safety is at stake.

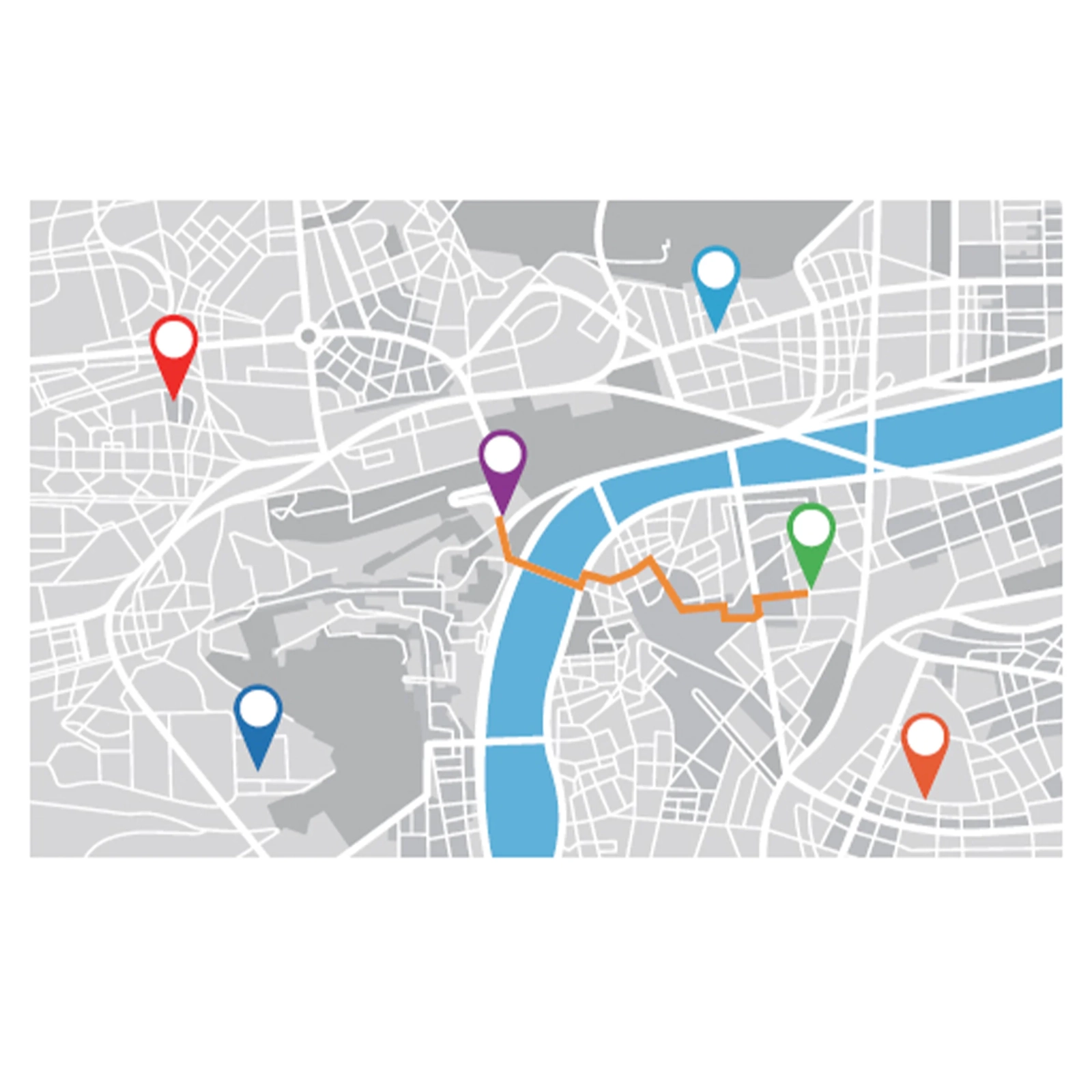

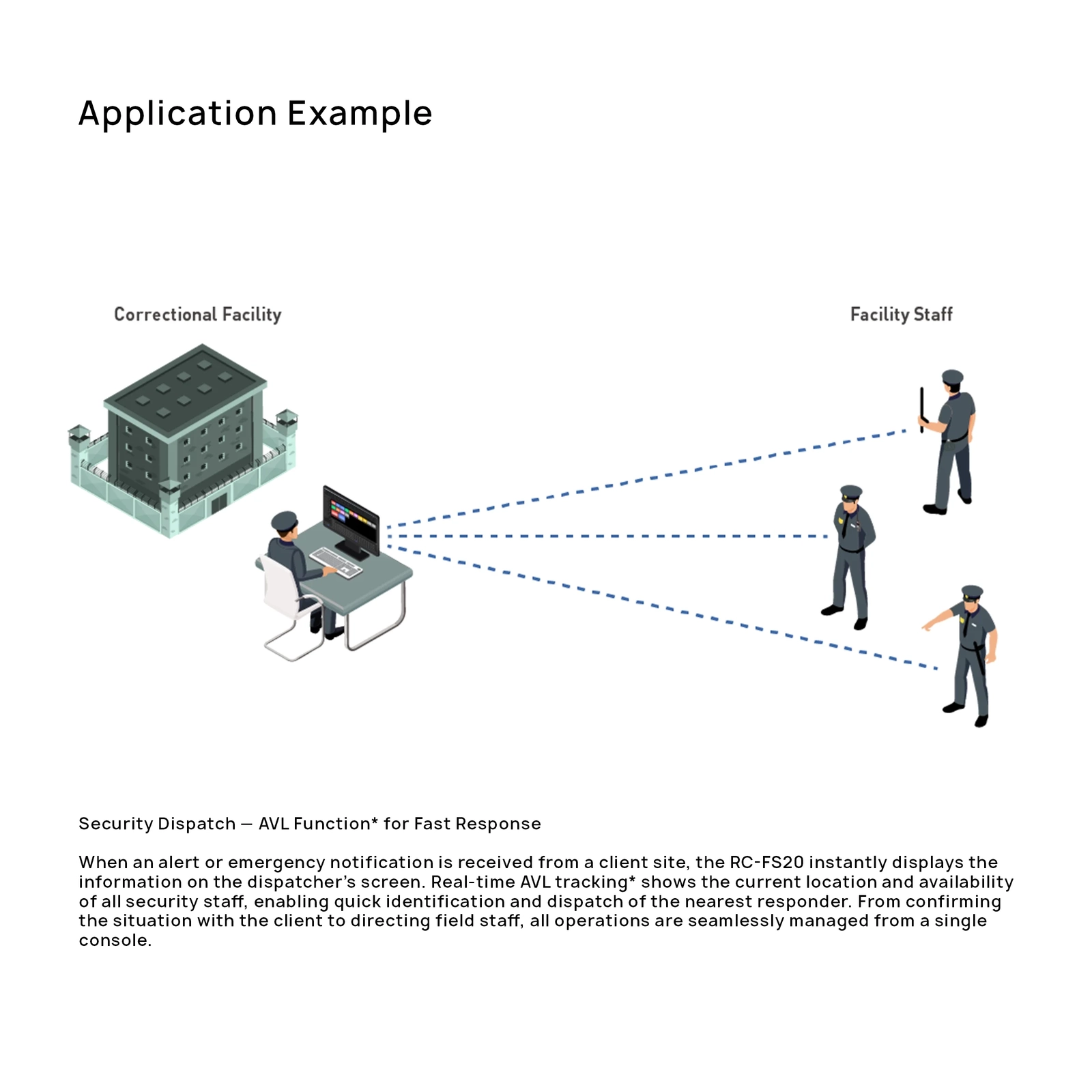

Integrated AVL with GNSS Mapping*

The RC-FS20 displays real-time location data from IDAS™ and LTE radios on an intuitive map interface, giving dispatchers the situational awareness they need to coordinate field operations efficiently.

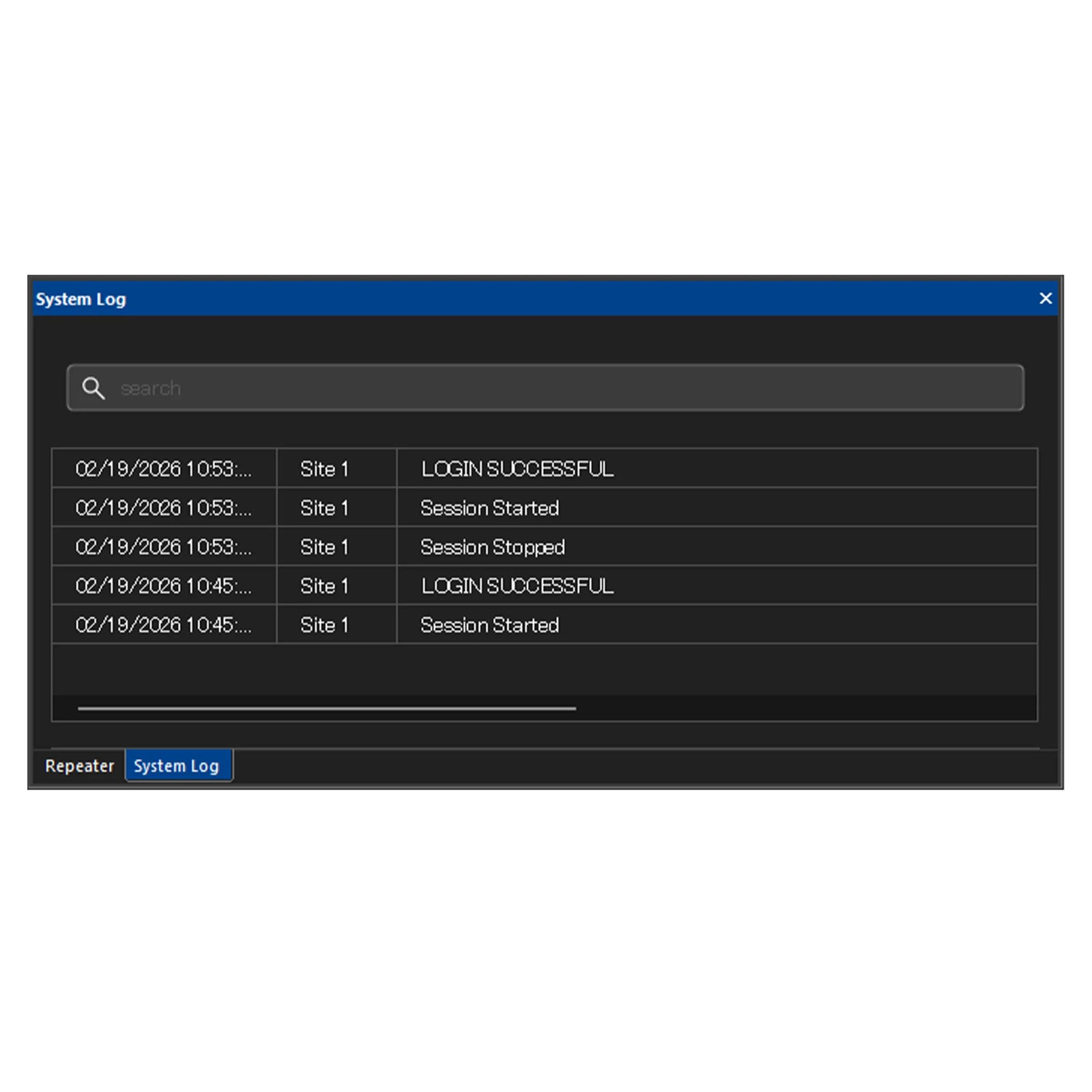

Full Visibility into System and Repeater Status

The RC-FS20 brings together status information from all sites into a single, consolidated view. The System Log displays initialization and operational status across every site, while the Repeater Status screen shows technical parameters — including voltage, temperature, PLL lock status, and fan condition — at a glance.

Emergency Response & Security

• Remote monitor function (forced transmit)
• Digital voice scrambler for IDAS™ radios
• AES/DES encryption for IDAS™ conventional radios (activation key required)
• Radio control commands (STUN/KILL/REVIVE) to prevent unauthorized use
• Priority call for Wi-Fi radios (interrupt ongoing calls)

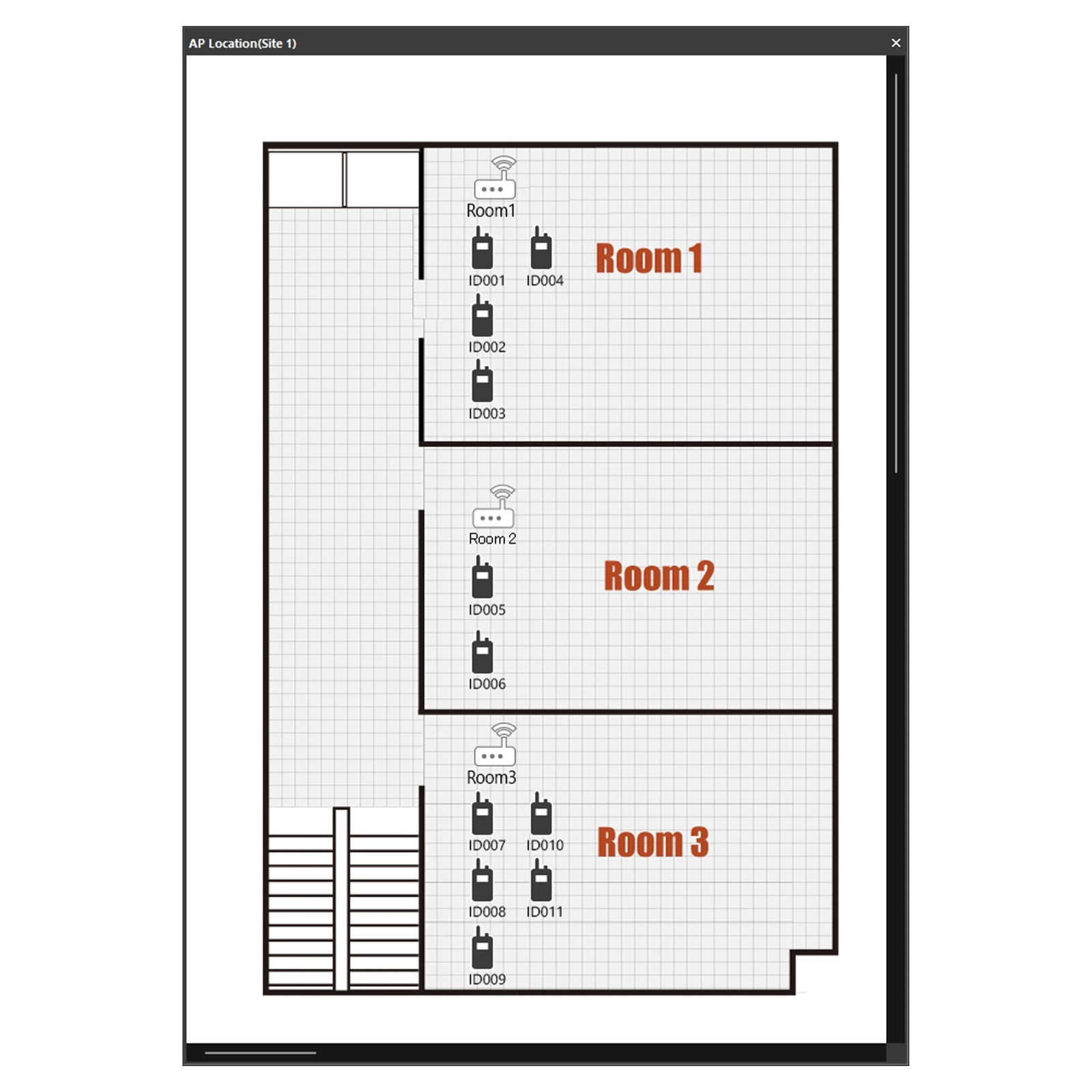

Wi-Fi Location Display & Area Calling

• User locations displayed on facility map (Wi-Fi radios)
• Wi-Fi Area Calling calls users near a selected access point

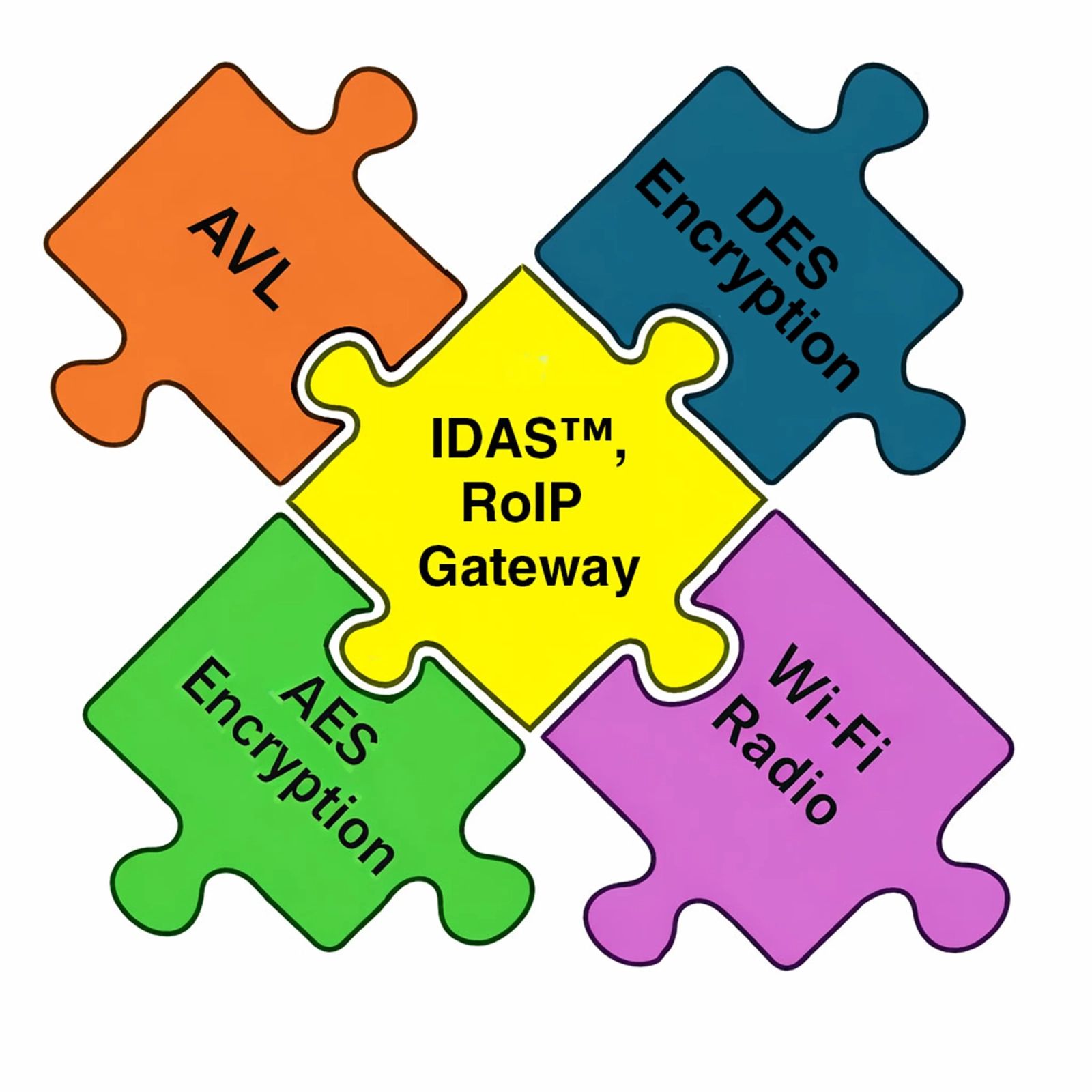

Flexible Licensing — Choose What You Need

To use RC-FS20, download the base software and activate it with a license key. The ISL-AK20IDS is an activation key for IDAS™/RoIP, replacing the previous RC-FS10. The ISL-AK20WLN is an activation key for Wi-Fi radios, replacing the previous IP100FS. A 30-day Trial key is also available.
