Product Description

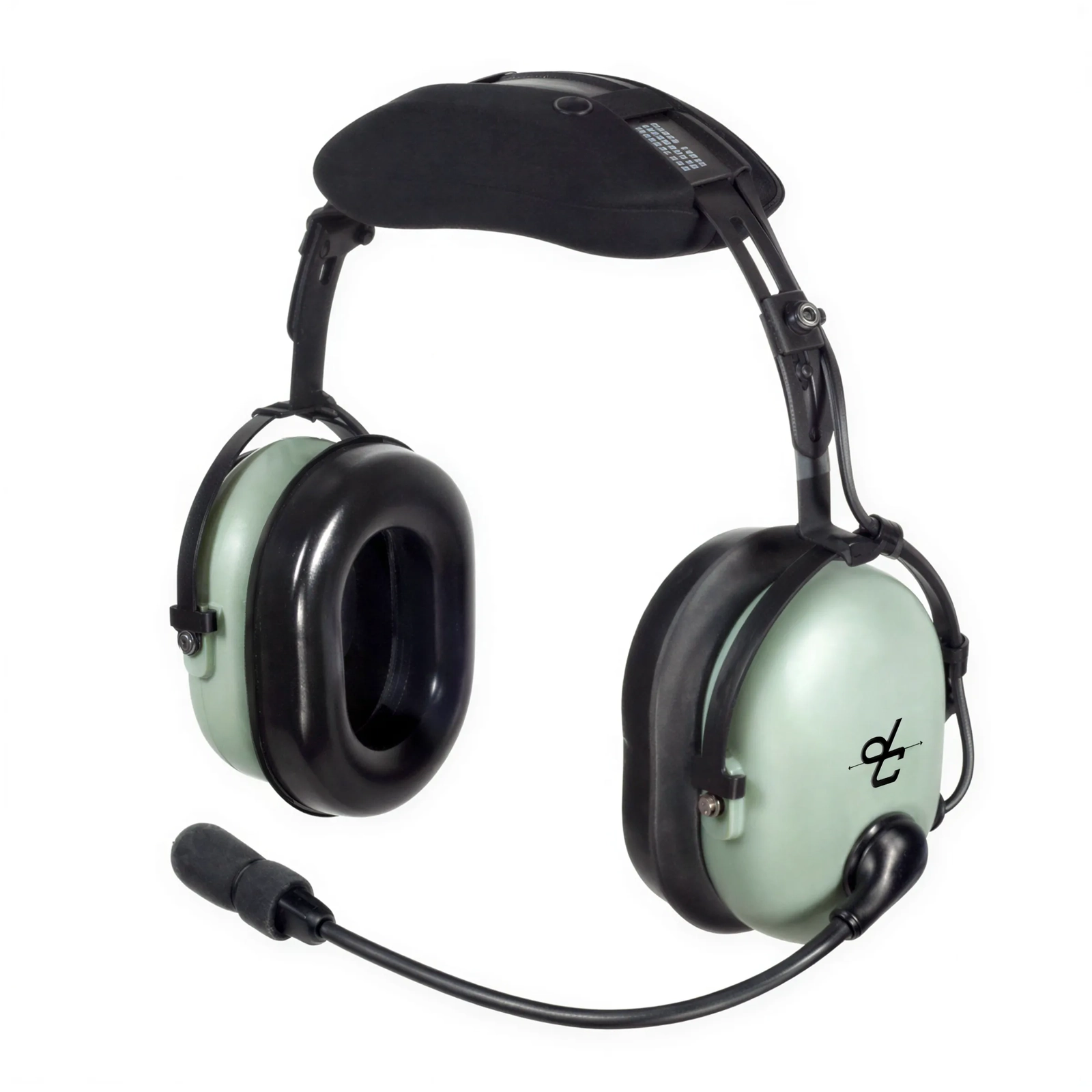

David Clark H8535 Pro Audio Headset - 4 Pin Male XLR Connector
Production teams know that clear communication is critical to performance. Our 8500 Series Headsets are designed to provide the reliable performance and outstanding comfort and durability that production professionalās demand. From sound and lighting engineers, to camera and video personnel, to front-of-house professionals, David Clark has a Pro Audio headset solution to meet your needs.
The Model H8535 is a dual-ear, over-the-head style headset capable of affording comfort and communication clarity over long periods of time. It utilizes the M-2H dynamic noise-cancelling microphone, delivering excellent speech intelligibility.
Durable construction and quality components are found throughout the Series 8500 headsets. Accessories such as undercut ear seals and soft foam head pad provide luxurious comfort over long work shifts.
Noise-attenuating ear cups deliver clear isolated reception, while effectively protecting the userās hearing. David Clark created the worldās first noise attenuating communication headsets, and continue to lead the world in delivering quality communication tools.
KEY FEATURES
- 4 Pin Male XLR Connector
- Crisp, clear communication in demanding environments
- Dual-ear, over-the-head style
- Provides isolated reception and exceptional speech intelligibility
- Universal flex boom assembly, 280Ā° rotational, for perfect microphone placement on left or right side
- Adjustable headband spring assembly for custom fit
- Pivoting stirrup assemblies on both ear cups help ensure a precise fit
- Undercut, āComfort Gelā ear seals cradle the ears to provide superior comfort
- Soft foam head pad with removeable cotton cloth cover provides exceptional comfort.
DOWNLOADS
Specifications
TECHNICAL DATA FOR H8535 / 40689G-01
| Ear Coupling | Around-the-ear (Circumaural) |
| Hardware | Carbon steel, flat black finish |
| Dome Type | Lightweight, ABS Composite |
| Contact Pressure | ~ 1.5 lbs. (6.67 N) |
| Connector Type | 4-Pin XLR Male |
| Connection Cable | 8' extended coil cord with 2 twisted pairs shielded |
| Earphone Type | Dynamic, moving coil |
| Earphone Impedance | 30 Ī© +/- 10% (60 Ī© each; wire in parallel) |
| Earphone Freq Response | 20 - 8,000 Hz |
| Earphone Sensitivity | 125 +/-3 dB SPL @ 1kHz Re: 1mW rms |
| Total harmonic distortion (THD) | <2% @ 1mW 200 - 3,500Hz |
| Certified NRR (3rd Party) | Passive noise attenuation rating of 23 dB |
| Microphone Principle | Dynamic |
| Microphone Impedance | 150ā¦ nominal |
| Microphone Sensitivity | 1.73 mV rms nominal, into 150 ā¦ load re: 104dB SPL Ā¼ā @ 1kHz |
| Microphone Freq Response | 200 - 5,000 Hz |
| Operating Temperature | -20Ā°C to +55Ā°C |
| Storage Temperature | -20Ā°C to 70Ā°C |
| Weight / Headset only | 13.9 oz/396g |
| Noise Attenuation Data | ||||||||||
| NRR 23 dB |
Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 3000 | 4000 | 6000 | 8000 |
| Attenuation (dB) | 16.6 | 20.7 | 27.4 | 33.0 | 30.5 | 36.2 | 38.1 | 36.6 | 36.6 | |
| Standard Deviation | 2.6 | 2.5 | 2.5 | 2.6 | 3.1 | 3.5 | 3.7 | 3.7 | 3.6 | |
| SKU | 40689G-03 |
| Brand | David Clark |
| Shipping Weight | 0.6000kg |
| Unit Of Measure | ea |
