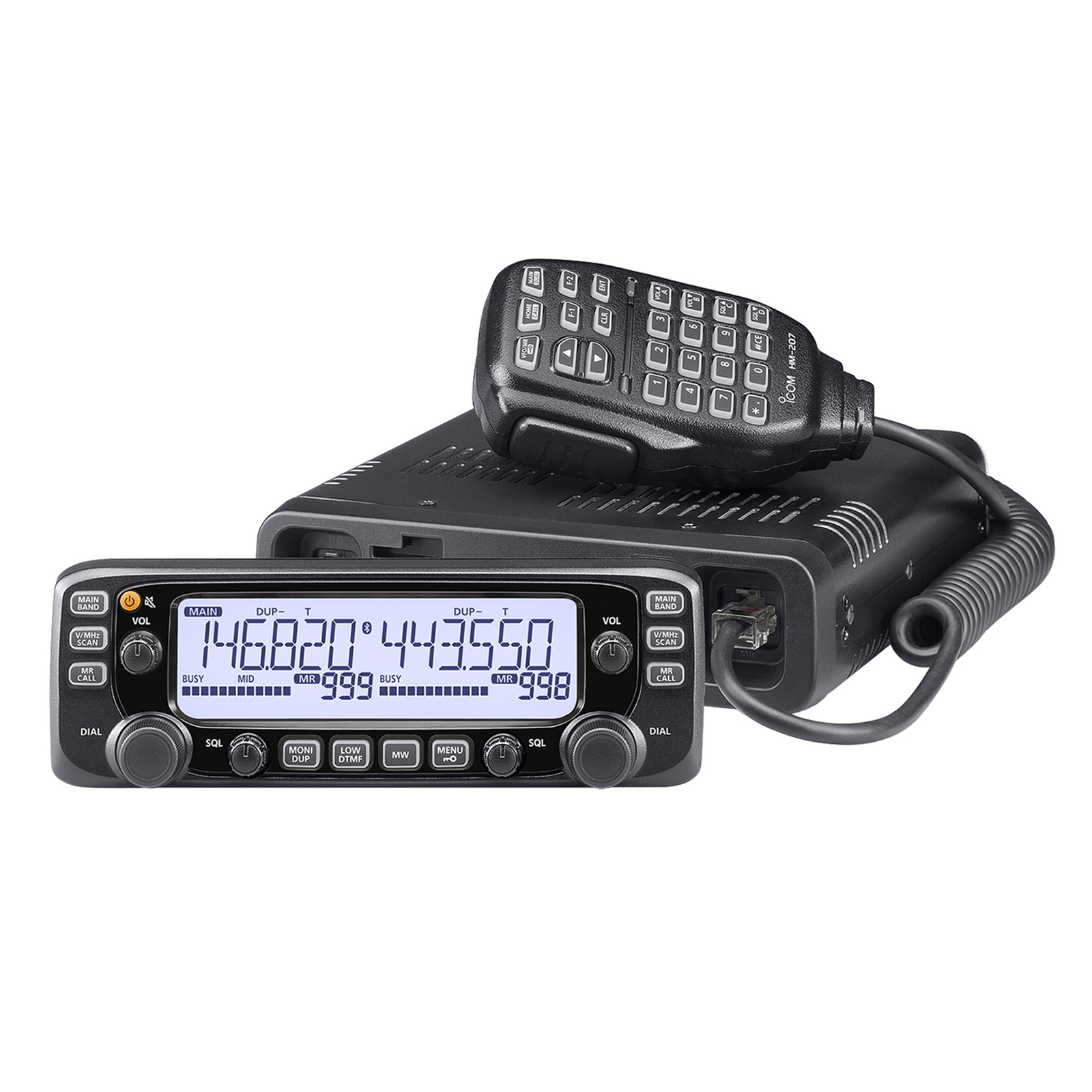

Icom IC-2730A VHF/UHF Dual Band Transceiver
The IC-2730A provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Main dials, volume, squelch knobs and primal buttons are symmetrically laid out for each band.
The display size of the IC-2730A is 1.5 times larger than its predecessor, the IC-2720H. Frequency display and channel names are larger, and the white backlit provides higher contrast.
The IC-2730A employs a durable PA module and delivers 50 watts of high power operation on both VHF and UHF bands.
The CTCSS and DTCS tones are built-in for quiet stand-by and repeater access. The split tone function allows you to set CTCSS/DTCS tones separately for repeater uplink and downlink on a per channel basis.
With the optional MBA-4 combination bracket, the controller can be attached to the main unit. The microphone jacks are mounted on both the controller and main unit.
The IC-2730A covers 118–174 and 375–550MHz. You will be able to listen to aviation, marine, weather channels and other utility communications.
The optional active noise canceling microphone HM-209 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.
- HM-207 remote control microphone
- CS-2730 Free download PC programming software
- Versatile scanning capability
- Squelch delay and squelch attenuator
- Sub band auto mute function
- Sub band busy beep function
- Auto repeater functions (Depending on the transceiver version)
- Auto power off
- Time-out-timer
- 16 DTMF auto dial memories
- Weather channel receive with weather alert (USA version only)
- CI-V remote control capability (through the OPC-478UC)
- Hand microphone, HM-207
- Controller cable
- Microphone hanger
- DC power cable
- Spare fuses
(IC-2730A)
|
|
IC-2730A |
||
|
Frequency Coverage
|
TX |
137–174, 400–470MHz*2 | |
|
RX |
118–174, 375–550MHz*2 | ||
|
Number of Memory Channels |
1052 channels (including 2 call and 50 scan edges) |
||
|
Type of Emission |
F2D, F3E (FM, FM-N) |
||
|
Frequency Stability |
±2.5 ppm |
||
|
Power Supply Requirement |
13.8V DC ±15% |
||
|
Current Drain (approx.) |
TX |
13A |
|
|
RX |
1.8A/1.2A (Max. audio/Stand-by) | ||
|
Antenna Impedance |
50 Ω (SO-239) |
||
|
Operating Temperature Range |
–10°C to +60°C; 14°F to +140°F |
||
|
Dimensions (W x H x D, Projections not included) |
Main Unit |
150x40x151 mm |
|
|
Controller |
150×50×27.2 mm | ||
| Weight (Approximate) | Main Unit |
1.2kg |
|
|
Controller |
140g | ||
*2 144–148, 430–440MHz
|
|
IC-2730A |
|
|---|---|---|
|
Output Power (at 13.8V DC) |
50W, 15W, 5W (TPE version: 25W, 15W, 5W) | |
|
Max. Frequency Deviation |
±5.0kHz/±2.5kHz (W/N) | |
|
Spurious Emissions |
Less than –60 dBc |
|
|
Microphone Impedance |
600Ω (8-pin modular) | |
|
|
IC-2730A |
|
|---|---|---|
|
Intermediate Frequencies |
A Band |
38.85MHz / 450kHz |
| B Band |
46.35MHz / 450kHz |
|
|
Sensitivity (at 12db SINAD) |
Less than 0.18 μV (at 12 dB SINAD) |
|
|
Selectivity |
More than 60dB/55dB (W/N) |
|
|
Spurious Response Rejection |
A Band |
More than 60dB/55dB (V/U) |
| B Band |
More than 60dB/55dB (V/U) |
|
|
Audio Output Power |
More than 2W (10% dist. 8Ω) |
|
|
External Speaker Connector |
2 conductor 3.5 (d) mm (1/8″)/8Ω |
|
|
Receiver Sensitivity (Not guaranteed, for your reference only) |
FM/FM-N |
137–159.995MHz*: Less than 0.32μV |
|
AM/AM-N |
118–136.991MHz: Less than 1μV |
|
| SKU | IC-2730A |
| Brand | Icom |
| Shipping Weight | 1.5000kg |
| Unit Of Measure | ea |
