6% OFF
RRP $880
Product Description

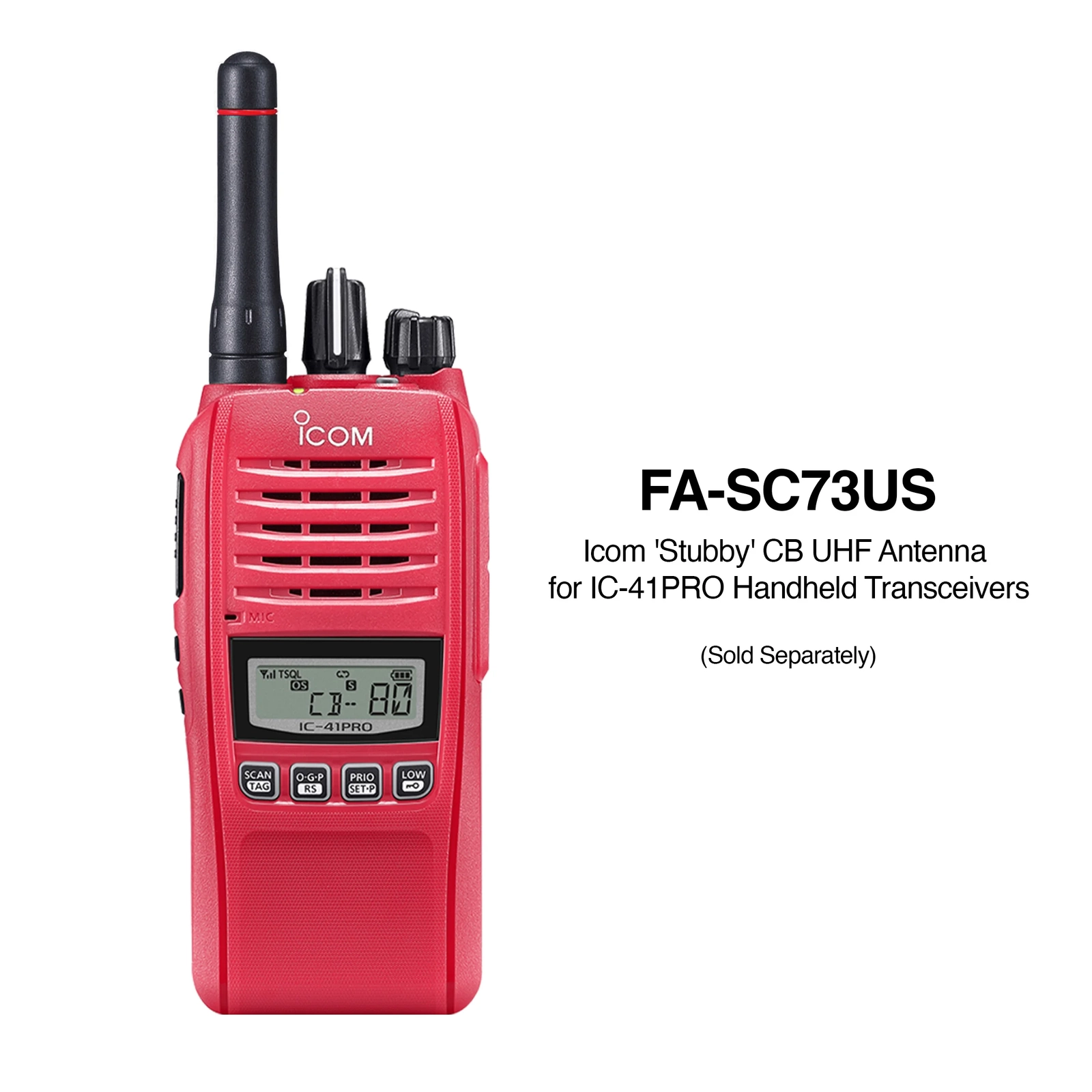

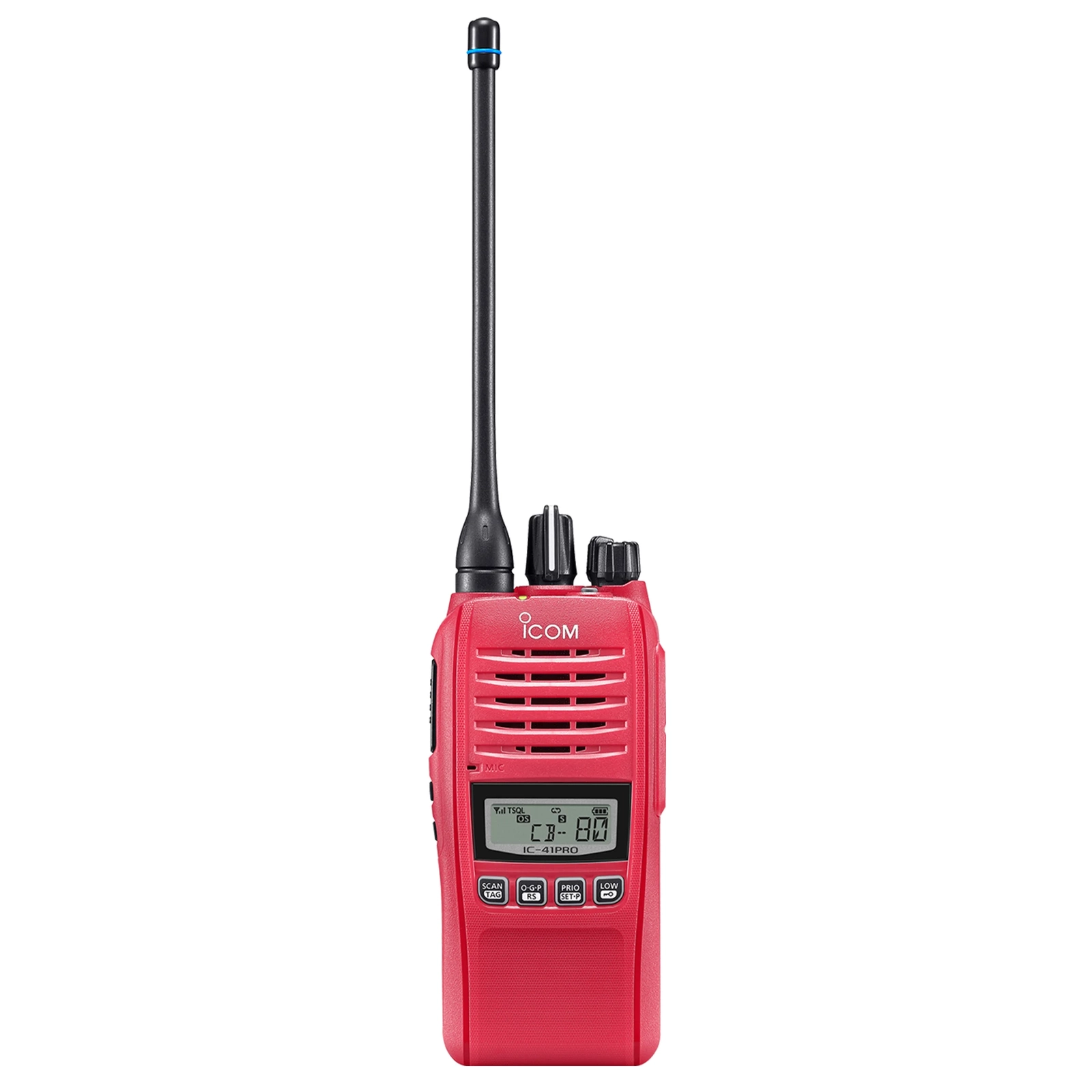

Icom IC-41PRO Waterproof Handheld UHF CB Radio - Red Edition
The Waterproof Handheld UHF CB Radio that features simple operation and a compact IP67 rugged construction based on a commercial handsets. With an output power of 5W and silent stand-by this unit is must for those that respect their tech.
- 80 Channel UHF CB (*)
- Waterproof and dustproof (IP67)
- 5 year warranty on radio
- 18hr typical operating time with BP280
- Simple operation
- New rotary Channel Selector/Squelch control
- Voice announcement of channel number
- VOX capability with optional headset options
- Scrambler capability built in (**)
- Receive only Channels (**) – up to 35
- Unique repeater scan plus open, group and priority scan
- In-range indicator (ATS)
- Output power 5 Watts (low power 1 Watt)
- Built-in CTCSS/DCS (providing silent stand-by)
- Selective Calling (SELCALL)
- Duplex operation, providing repeater access
- Private Channels from 450-520 MHz available for commercial users (dealer programmable), requires FASC72U antenna (frequency between 490-520MHz)
- CS-41PRO User software available for customisation of operation (requires OPC-478UC cable)
*80 Channel UHF CB, 61-63 not present, reserved for future use
** Must be enabled by dealer or via CS-41PRO software
** Must be enabled by dealer or via CS-41PRO software
Specifications
| General | ||
|---|---|---|
|
Frequency coverage
|
476.4250 MHz to 477.4125 MHz AUS CB
450 MHz to 520 MHz Private/Receive Only
|
|
|
Number of channels
|
128 channels
|
|
|
Type of emission
|
W: 16K0F3E (25.0 kHz) AUS CB
N: 8K50F3E (12.5 kHz) AUS CB
|
|
|
Power supply requirement
|
7.5 V DC
|
|
|
Current drain
(approx.) |
Tx High (5W)
|
1.7 A
|
|
Rx Max. audio
|
500 mA (Internal SP)
|
|
|
Antenna impedance
|
50 Ω
|
|
|
Operating temperature range
|
–30°C to +60°C
|
|
|
Dimensions (W × H × D); Projections not included)
|
52.2 × 111.8 × 30.3 mm (With BP-280)
|
|
|
Weight (approx.)
|
270 g (With BP-280)
|
|
| Transmitter | |||
|---|---|---|---|
|
Output power
|
5 W
|
||
|
Maximum permissible deviation
|
± 2.5 kHz (12.5 kHz)
±5.0 kHz (25.0 kHz)
|
||
|
Frequency error
|
±2.5 ppm
|
||
|
Spurious emissions
|
70 dB min.
|
||
|
Adjacent channel power
|
60 dB min.; 69 dB typ. (12.5 kHz)
70 dB min.; 74 dB typ. (25 kHz)
|
||
|
Audio harmonic distortion
|
1.0% typ. (12.5 kHz)
1.5% typ. (25 kHz)
(at AF 1 kHz 40% deviation) |
||
|
FM Hum and Noise
(without CCITT filter) |
34 dB min.; 40 dB typ. (12.5 kHz)
40 dB min.; 46 dB typ. (25 kHz)
|
||
| Receiver | ||
|---|---|---|
|
Sensitivity (at 12dB SINAD)
|
0.25 μV typ.
|
|
|
Adjacent channel selectivity
|
40 dB min.; 56 dB typ. (12.5 kHz),
70 dB min.; 73 dB typ. (25 kHz) |
|
|
Spurious response rejection
|
70 dB min.
|
|
|
Intermodulation rejection
|
70 dB min.; 73 dB typ.
|
|
|
Hum and noise
(without CCITT filter)
|
||
|
34 dB min.; 43 dB typ. (12.5 kHz)
40 dB min.; 49 dB typ. (25 kHz)
|
||
|
Squelch sensitivity
|
0.25 μV typ.
|
|
|
AF output power
(at 5% distortion 8Ω load ) |
Internal SP
|
1500 mW typical
|
|
External SP
|
450 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*) |
|
| SKU | IC-41PRO_RED |
| Brand | Icom |
| Shipping Weight | 1.0000kg |
| Unit Of Measure | ea |
Reviews
Be The First To Review This Product!
Help other Flight Store Pty Ltd users shop smarter by writing reviews for products you have purchased.
Write a product review

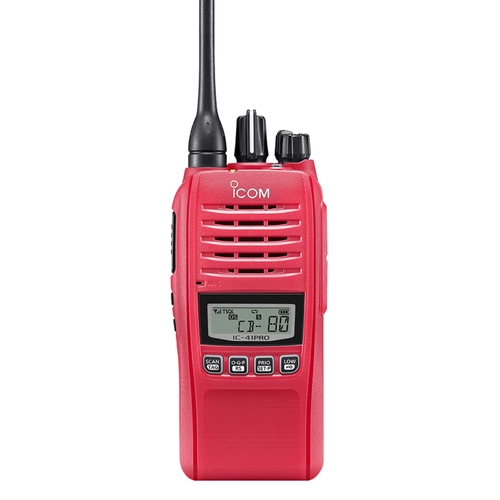

Icom IC-41PRO Waterproof Handheld UHF CB Radio - Red
