Icom IC-A120E Airband VHF Airport Vehicle Kit 3dBi 118-136 Mhz - 900mm Broadband Antenna
Everything you need to set up the IC-A120E Airband VHF Transceiver in your vehicle. Comes with the IC-A120E Radio, DC power cable, fuses, A120E mounting bracket kit, hand microphone and hanger, and our best performing 900mm Mobile Airband VHF Broadband Whip Antenna and Cable Kit.
Note - You will require a mounting bracket of your choice for the antenna (Not Supplied). Choose from Bull Bar, Gutter Mount or Lip Mount or any traditional 'L' or 'Z' type bracket to suit your vehicle.

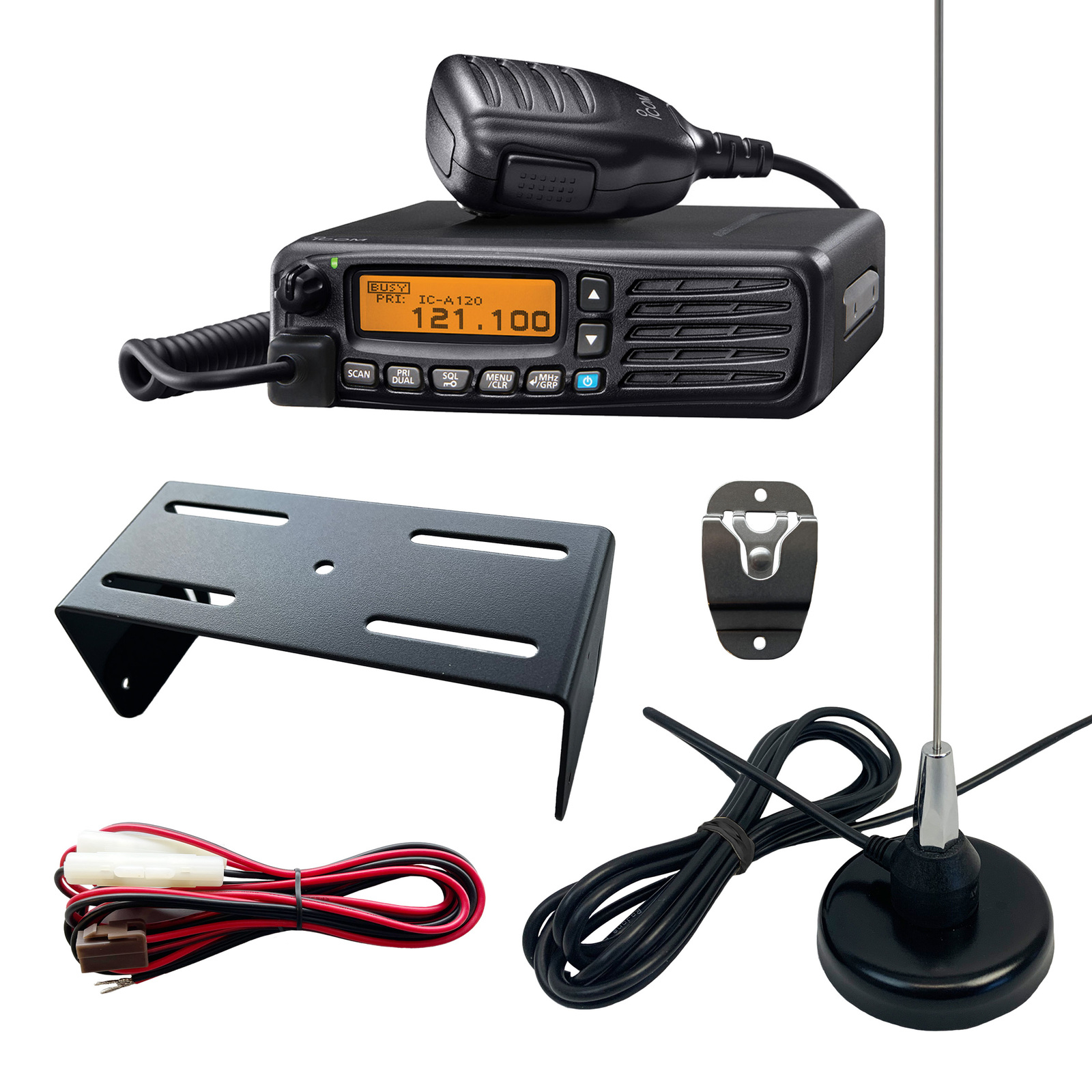

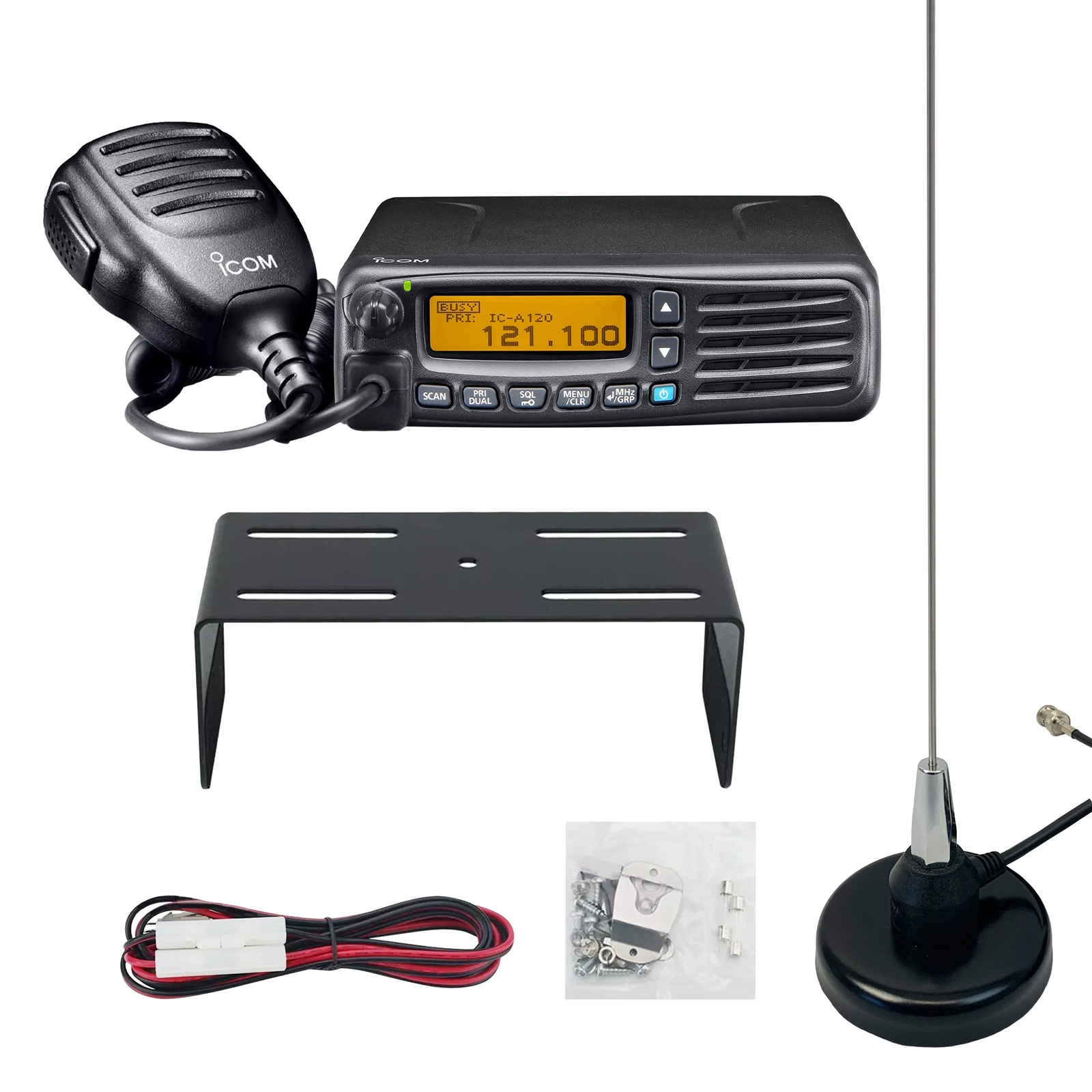

SUPPLIED IN THE KIT
- IC-A120 Mobile VHF Airband Transceiver Unit

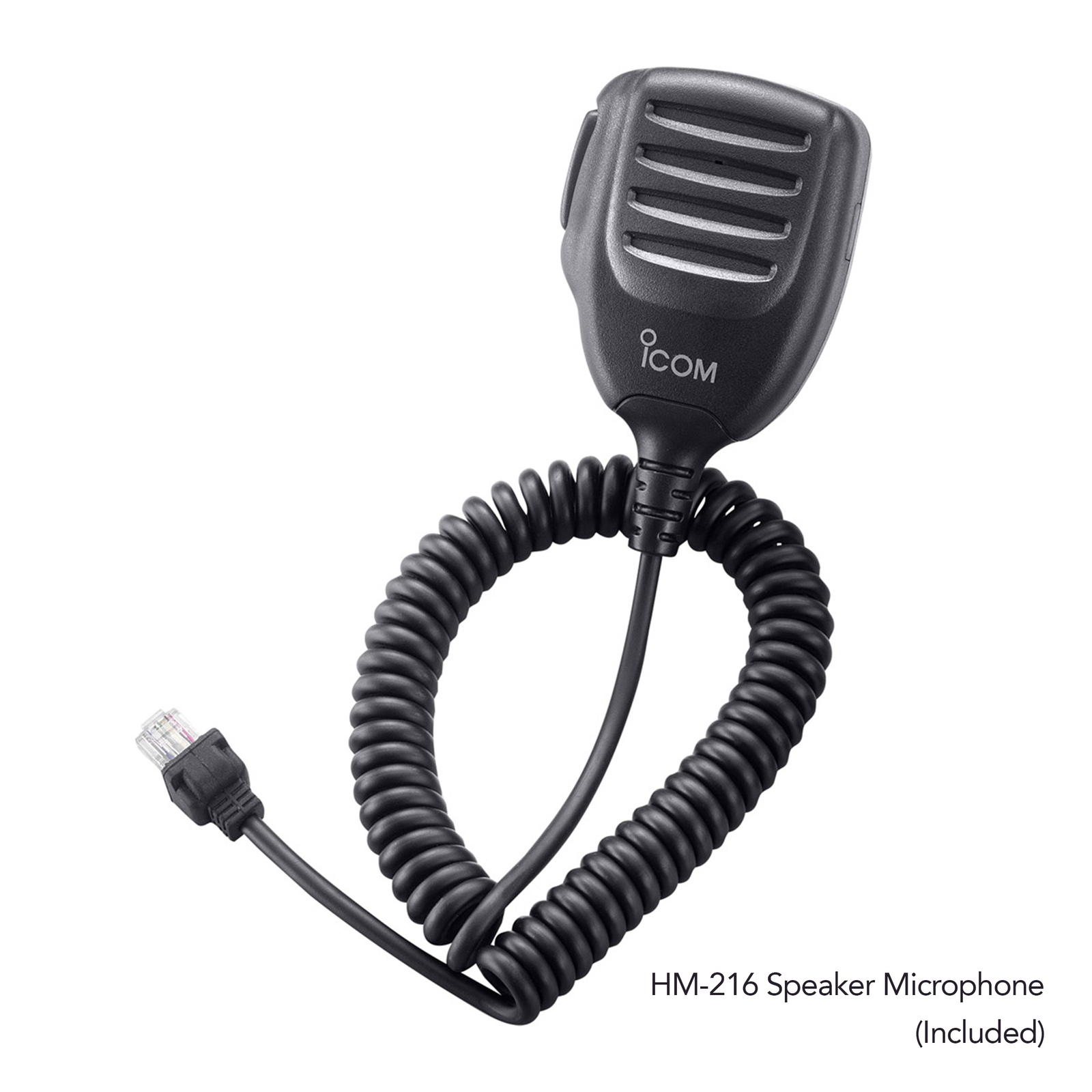

- Hand Microphone, HM-216

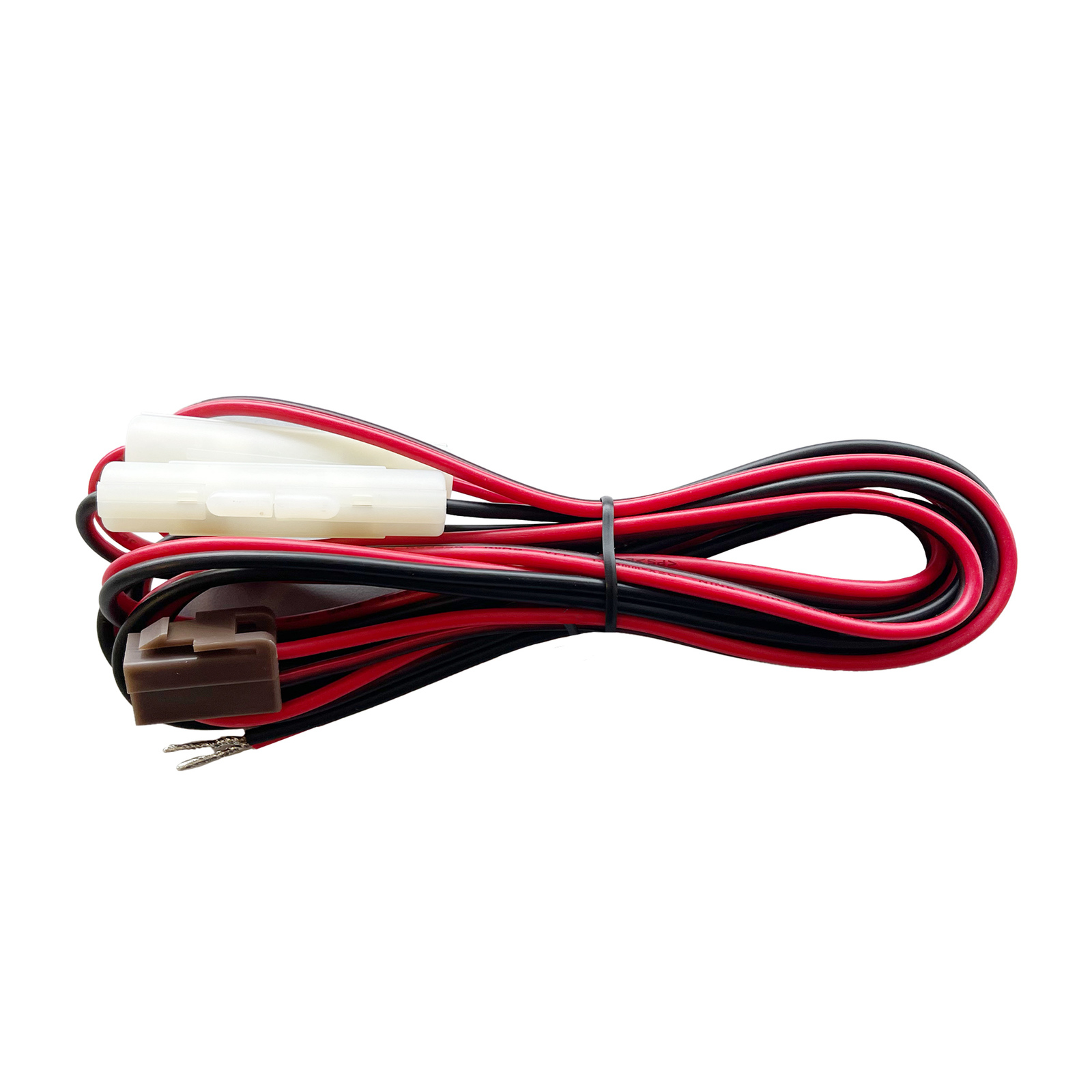

- DC Power Cable Harness for Vehicle Power Hook-Up
- A120E Mounting Bracket Kit

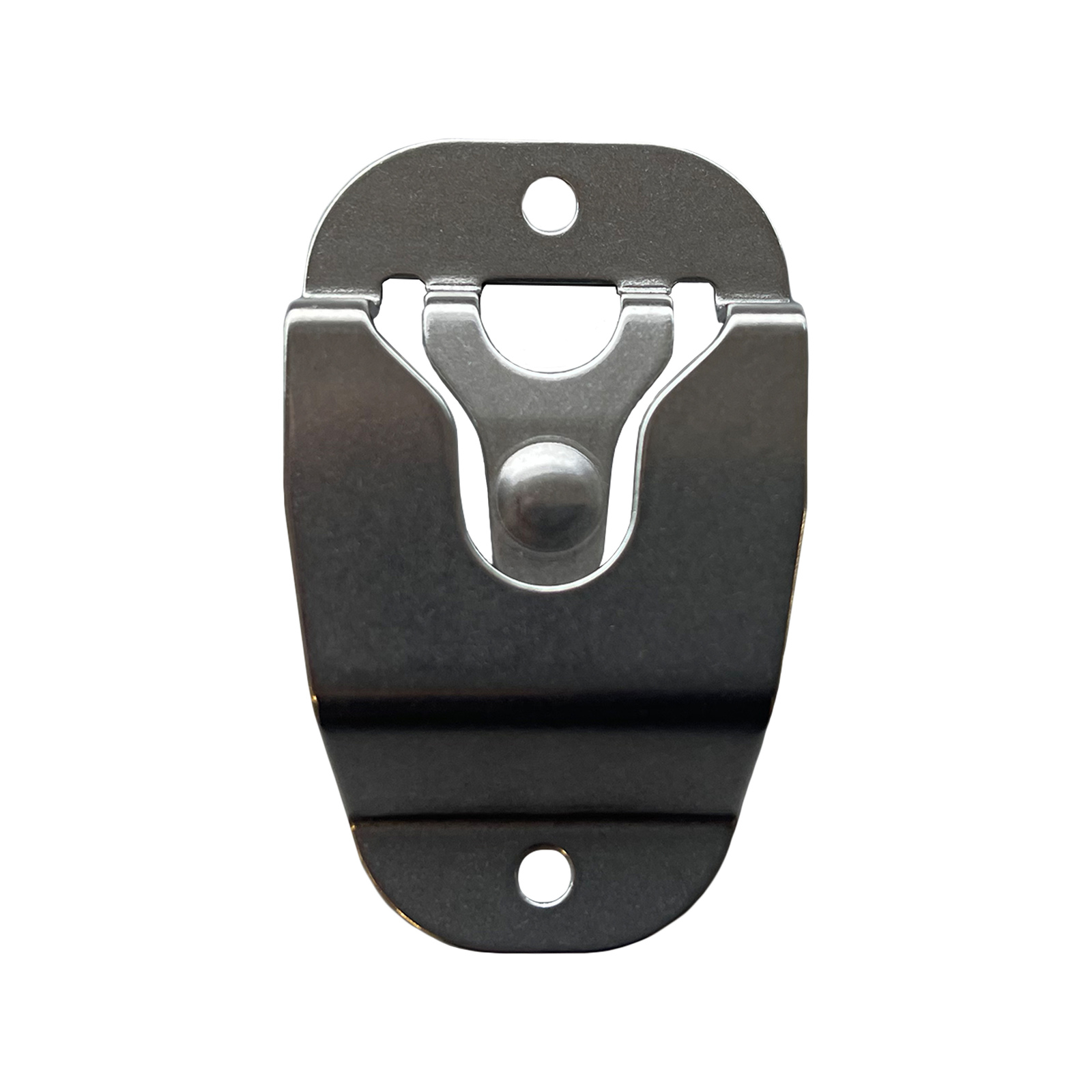

- Microphone Hanger Kit
- Fuses
- CD1836BM Airband VHF Broadband Whip Antenna

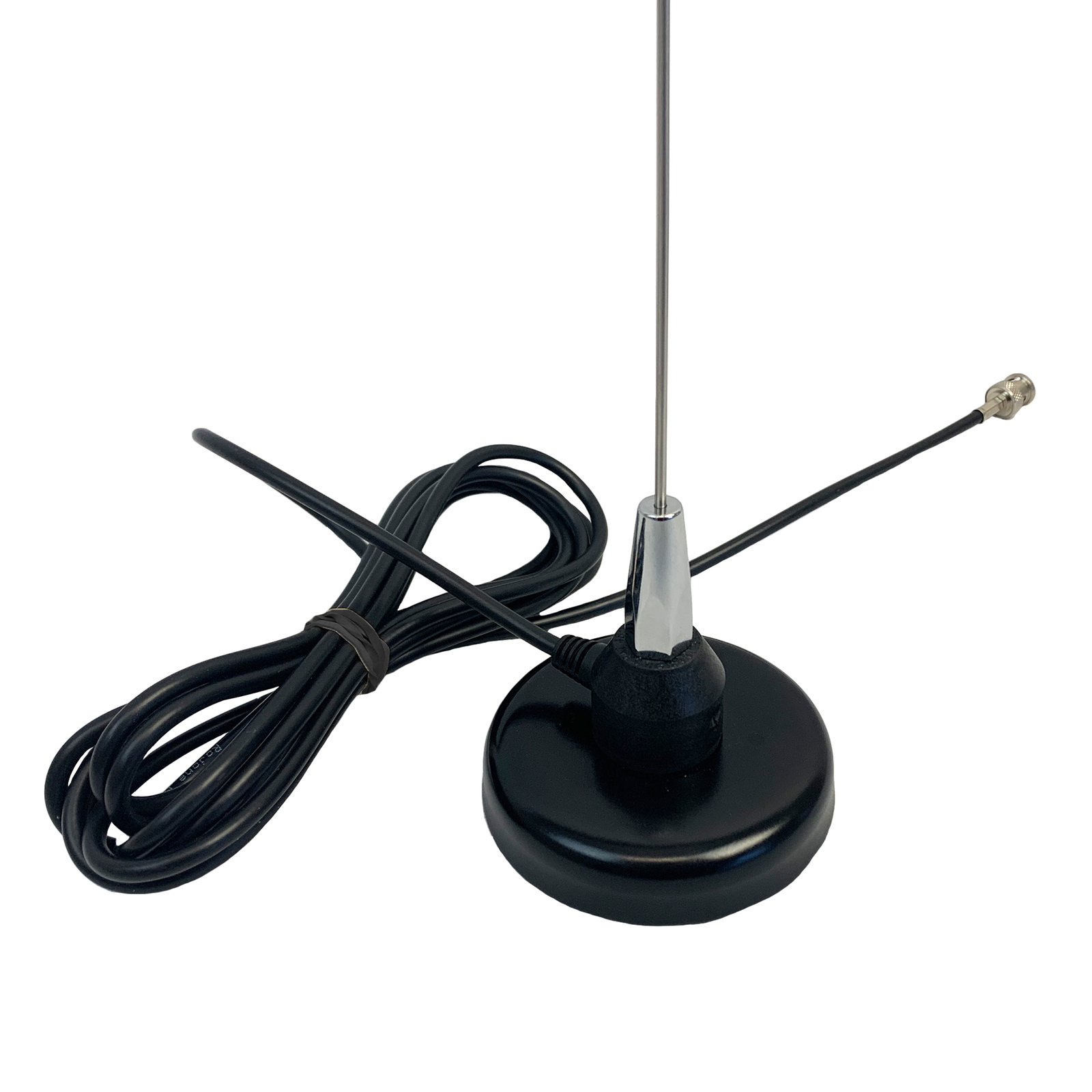

- Antenna Base Mount with 5m Cable Kit and Connectors

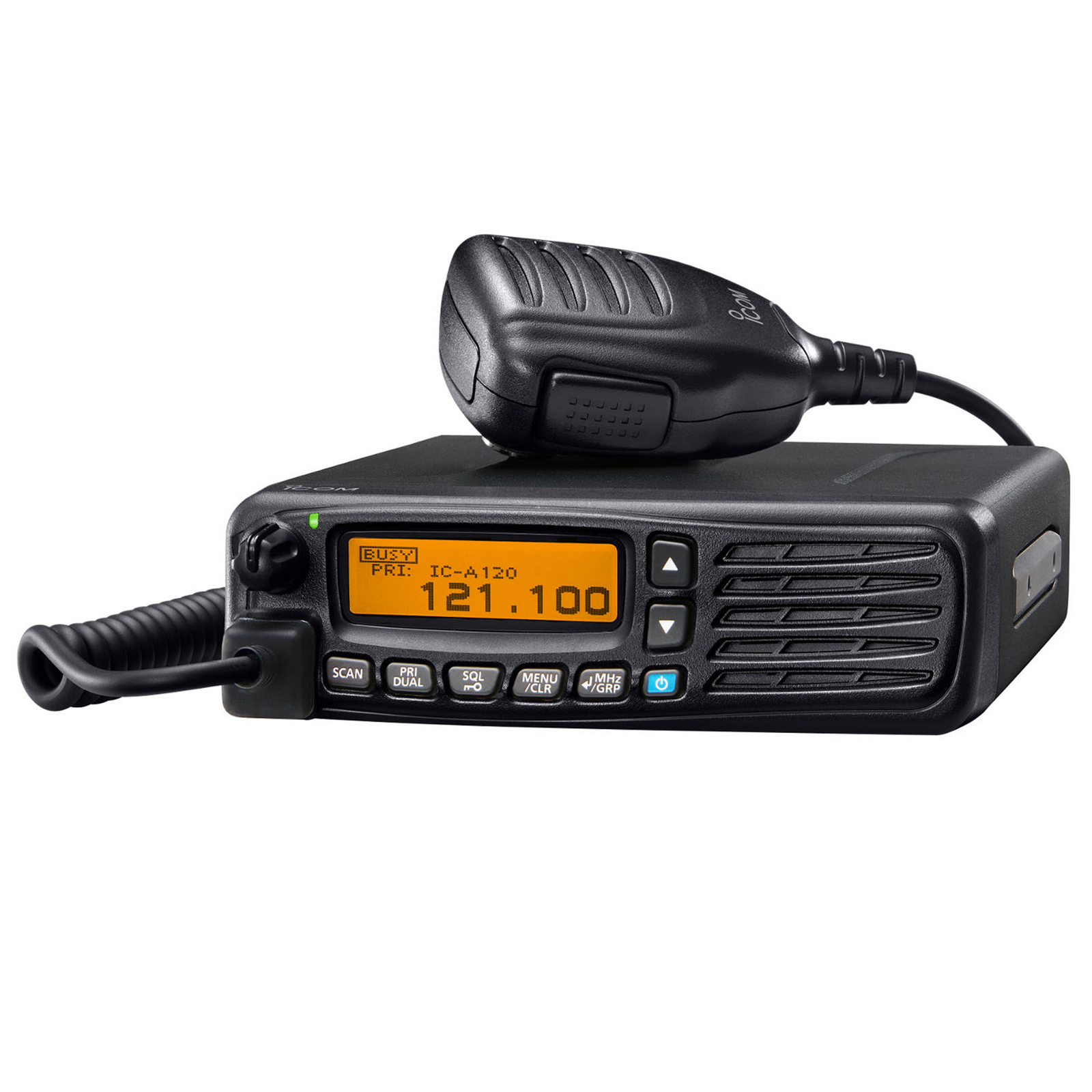

ICOM IC-A120E Airband VHF Mobile Radio
High Visibility, Simple Operation
The full dot-matrix LCD allows for high visibility and clearly shows alphanumeric characters and icons.
Optional BluetoothĀ® Headset Connectivity
With the optional UT-133A BluetoothĀ® unit, the IC-A120E can be used with a third-party wireless BluetoothĀ® headset.
Active Noise Cancelling (ANC)
The newly added built-in ANC reduces background noise in the received and transmitting signals.
IP54 Dust-Protection and Water Resistance
The IC-A120E has IP54 dust-protection and water resistance. This construction allows for use in open-air vehicles.
Dual-watch and ON-Hook Scan Functions
The dualwatch function checks the priority and operating channels alternatively. The ON-Hook scan function scans automatically.
Side Tone Function
Side tone function allows you to monitor your own transmitted voice via the connected headset.

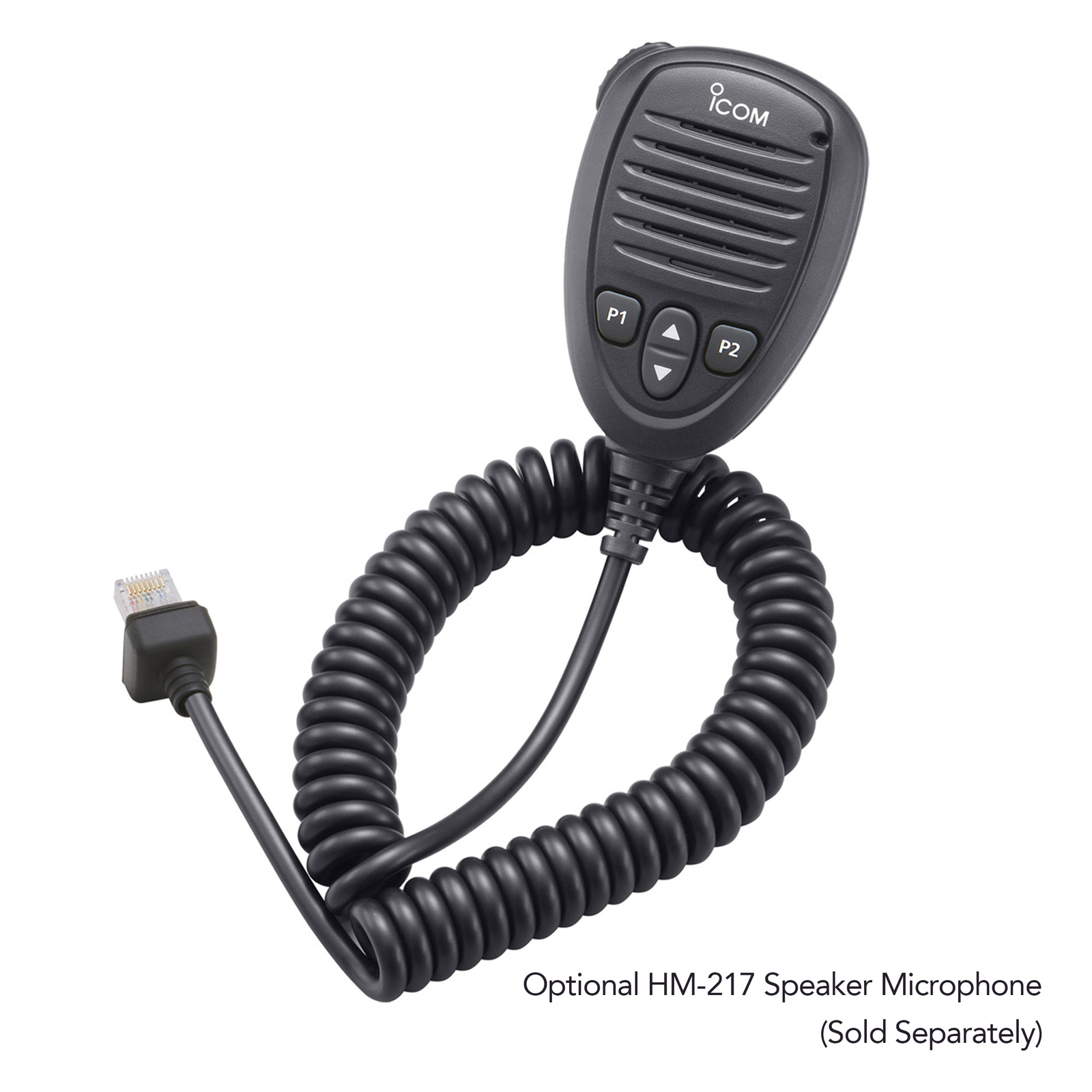

Optional Speaker-Microphone, HM-217
Listen to received audio through the HM-217ās built-in speaker.
KEY FEATURES
- A total of 200 memory channels with 12-character channel names
- Both 12- and 24- volt systems compatible
- 8.33 kHz* and 25 kHz channel spacing
- 9W Output Power (Carrier power)
- Dualwatch and priority channel scan functions
- Power on password protection
- PC programming capability
- CI-V Commands for external control
- VE-PG3 RoIP gateway for interconnect with other radio devices
- Compliant with European E-marking for installation in vehicles
SUPPLIED WITH THE A120E
- IC-A120 Mobile VHF Airband Transceiver Unit
- Hand Microphone, HM-216
- DC Power Cable Harness for Vehicle Power Hook-Up
- A120E Mounting Bracket Kit
- Microphone Hanger Kit
- Fuses

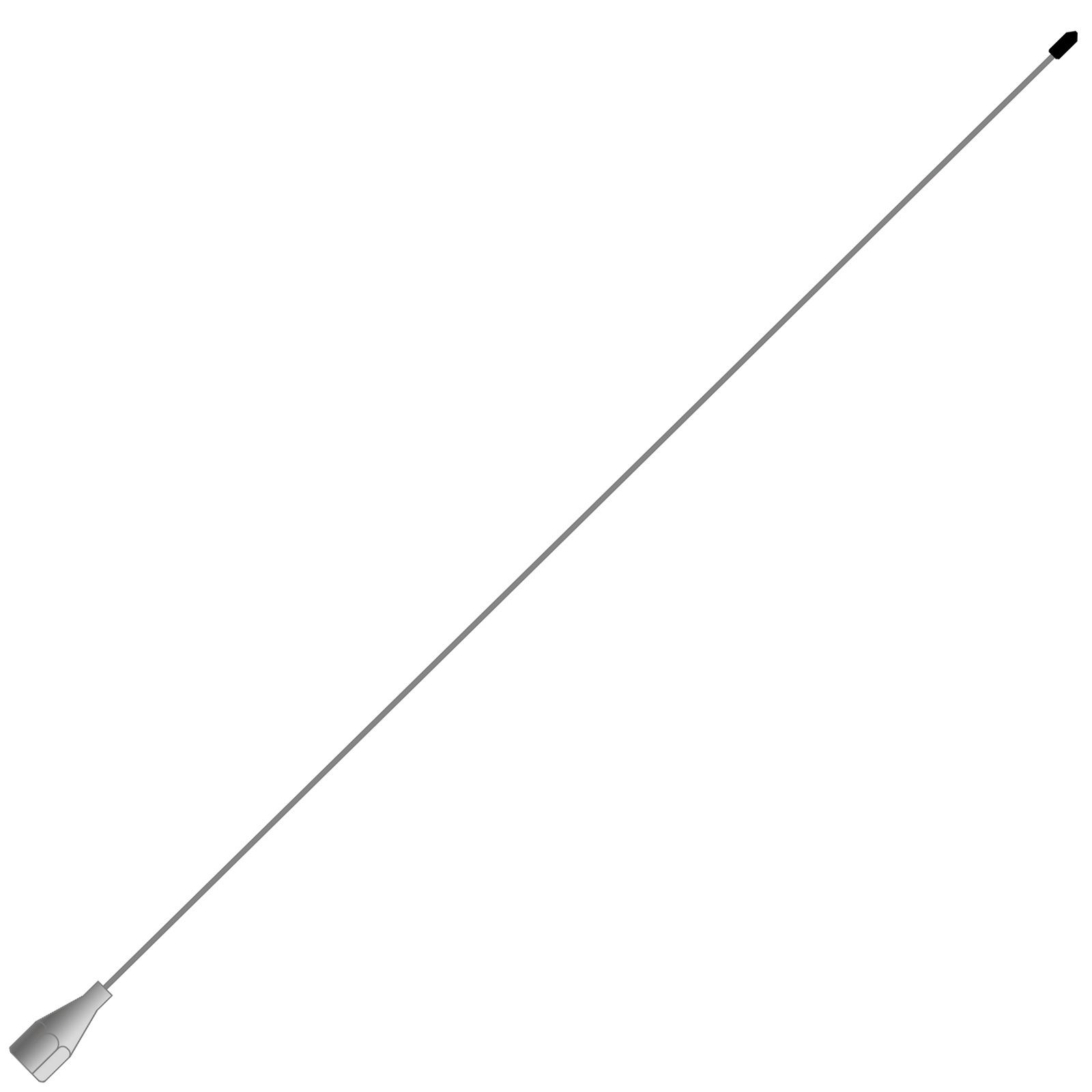

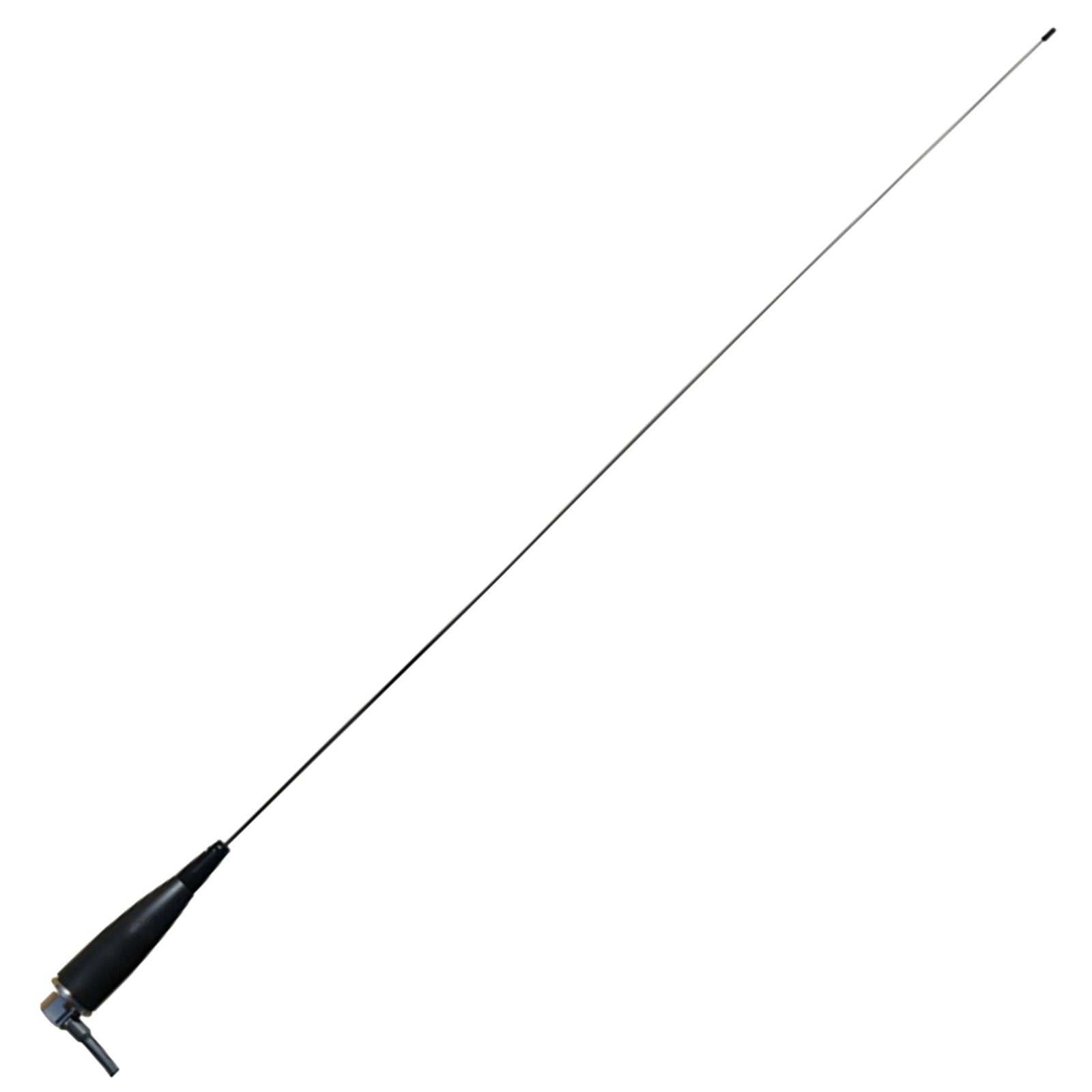

Mobile Airband VHF Broadband Whip Antenna 118-136Mhz 3dbi - 900mm
The CD1836 Series Antennas provide greater bandwidth coverage without sacrificing antenna performance. Their no tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while improving overall coverage of the desired frequencies.
CD1836 is a fully ground independant design so it eliminates many positioning considerations. It is perfectly suited to all Airport Vehicle applications and is simply the best all round performing Antenna option for mobile applications. It's broadband monopole design has a very low VSWR of less than 1:8:1 across the entire VHF Airband 118-136 Mhz.
The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered stainless steel highly flexible whip. The CD1836 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades.
KEY FEATURES
KEY FEATURES
- Ground Independent design allows many alternative mounting locations without compromising performance
- Perfect for Bull Bar, Lip or Gutter Mounting. Works with just about any Standard Antenna Mount bracket
- Ultra Broadband Coverage means no tuning in the field
- Highly Flexible Tapered Stainless Steel Whip
- Base is Virtually Indestructible. No Spring Required
- Supplied ready to use with cabling and connectors, no complex tuning or connection requirements
- Designed and manufactured in Australia
INCLUDED
- Mobile Airband VHF Broadband Whip Antenna 118-136Mhz 3dbi - 900mm
- MBC Antenna Base with 5m RG58 Low Loss Coaxial Cable pre terminated with FME connector
- FME to BNC Adapter
- FME to PL259 (UHF) Adapter
DOWNLOADS
Specifications
General
|
Frequency range (TX/RX)
|
118.000ā136.992 MHz
|
||
|
Channel spacing
|
25 kHz/8.33 kHz
|
||
|
Type of emission
|
6K00A3E, 5K60A3E (FCC/EXP)
6K00A3E (Industry Canada) |
||
|
Operating temperature range
|
ā30ĖC to +60ĖC; ā22ĖF to +140ĖF
|
||
|
Frequency stability
|
Ā±5 ppm (ā30ĖC to +60ĖC)
|
||
|
Antenna connector
|
SO-239 (50 Ī©)
|
||
|
Number of memory channels
|
200 channels
|
||
|
Power supply requirements
|
13.75 V/27.5 V DC
|
||
|
Current drain
(at 13.75 V) |
TX
|
5.0 A (maximum)
|
|
|
RX
|
Stand-by
|
0.5 A
|
|
| RX |
Max. audio
|
4.0 A
|
|
|
Dimensions (WĆHĆD)
(Projections are not included) |
161Ć45Ć175 (mm)
6.34Ć1.77Ć6.89 (in) (approximately) |
||
|
Weight (approximately)ć
|
1.5 kg; 3.3 lb (main unit)
|
||
Transmitter
|
Output power (at 13.75 V)
(Carrier Power) |
9.0 W typical
10.0 W maximum |
|
Spurious emissions
|
Less than ā60 dBc
|
|
Modulation
|
70% to 100%
|
|
Microphone impedance
|
600 Ī©
|
Receiver
|
Intermediate frequencies
|
38.85 MHz/450 kHz (1st/2nd)
|
|
|
Sensitivity (at 6 dB S/N)
|
Less than 1 Ī¼V
|
|
|
Selectivity
|
8.33 kHz
|
2.778/7.37 kHz (6 dB/60 dB)
|
|
25 kHz
|
8/25 kHz (6 dB/60 dB)
|
|
|
Spurious response rejection
|
More than 74 dBĪ¼
|
|
|
Audio output power
(at 10% distortion, 60% modulation) |
Internal SP
(8 Ī© load) |
1.5 W typical
|
|
External SP
(8 Ī© load) |
More than 10 W
|
|
|
Headphone
(500 Ī© load) |
More than 100 mW
|
|
| SKU | IC-A120-MOBILE-KIT |
| Brand | Icom |
| Shipping Weight | 6.0000kg |
| Unit Of Measure | ea |
