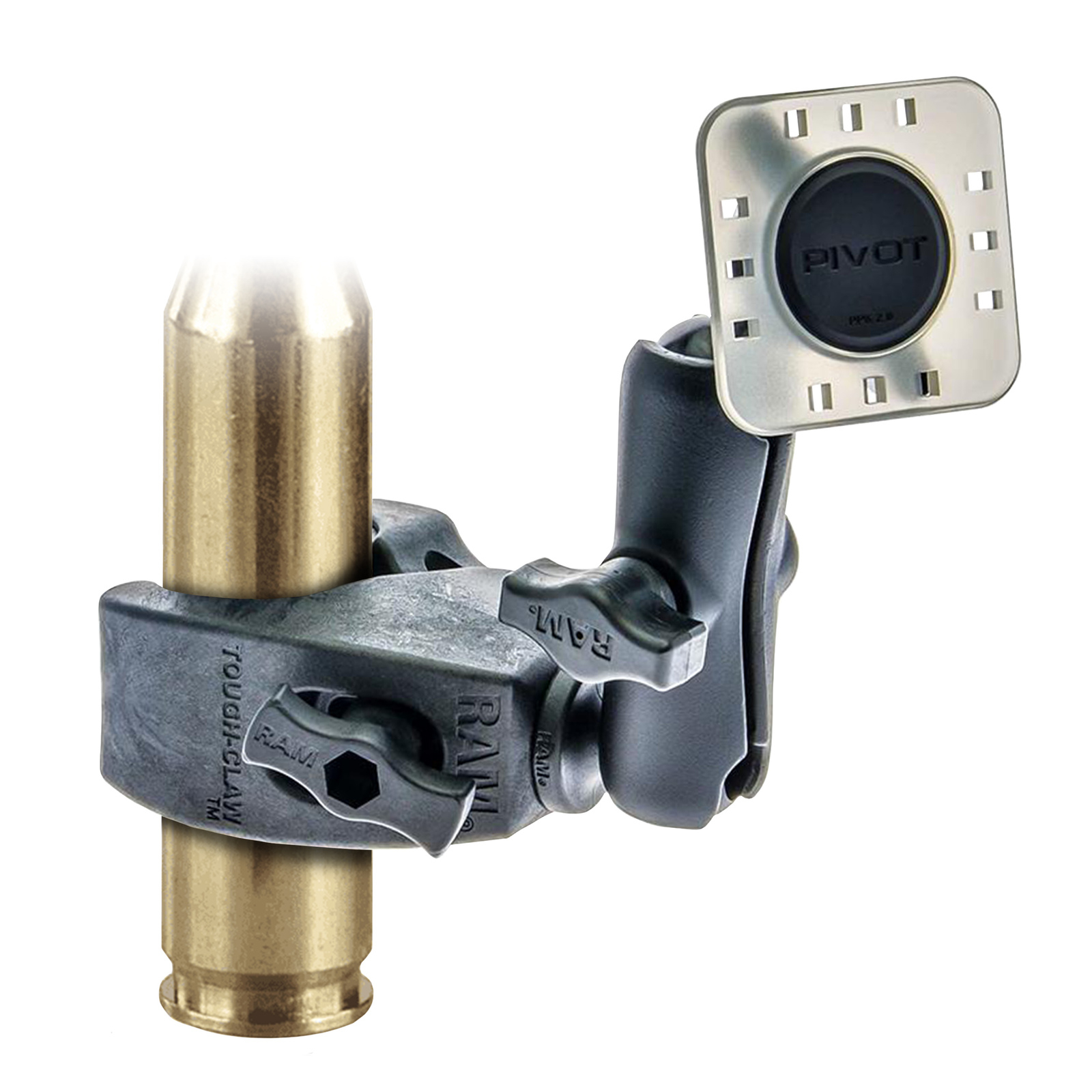

PIVOT Claw / Yoke Mount - Medium

PIVOT Claw Mount - Medium Clamp

With incredible clamping power from the Tough-Claw Clamp, the PIVOT Claw Mount will not lose its grip, ensuring that your device remains exactly where you mounted it regardless of flight conditions. The clamp works on round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness. High strength composite and stainless-steel hardware for durability and reliability in the most demanding environments. Ideal for applications where space is at a premium.

Caution: Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke.

KEY FEATURES

Tough-Claw Clamp: Designed to clamp to round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness
High strength composite and stainless-steel hardware for durability and reliability in the most demanding environments. Ideal for applications where space is at a premium
Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, or other location where the clamp can be attached
PIVOT Click-Connect: Quickly and securely attaches to any PIVOT case

SPECIFICATIONS

Claw Clamp Dimensions

Clamping Range (Rail/Tube Surfaces): 1" to 1.875" (25.4mm - 47.6mm)

Clamping Range (Flat Surfaces): 0" to 1.6" (40.5mm)

Claw Physical Dimensions

Height: 4.25" (108mm)

Width: 1.56" (40mm)

Materials

Tough-Claw: High-strength Composite Polycarbonate

Double-Socket Arm: Marine-grade Aluminum

Double-Ball Adapter: Marine-grade Aluminum

PIVOT PPK Mounting Plate: High-strength Polycarbonate
