RAM® 'B' Size 1" Ball Adapter with AMPS Plate to Suit Garmin AERA GPS

$16.00
In Stock

RAM® 'B' Size 1" Ball Adapter with AMPS Plate to Suit Garmin AERA GPS

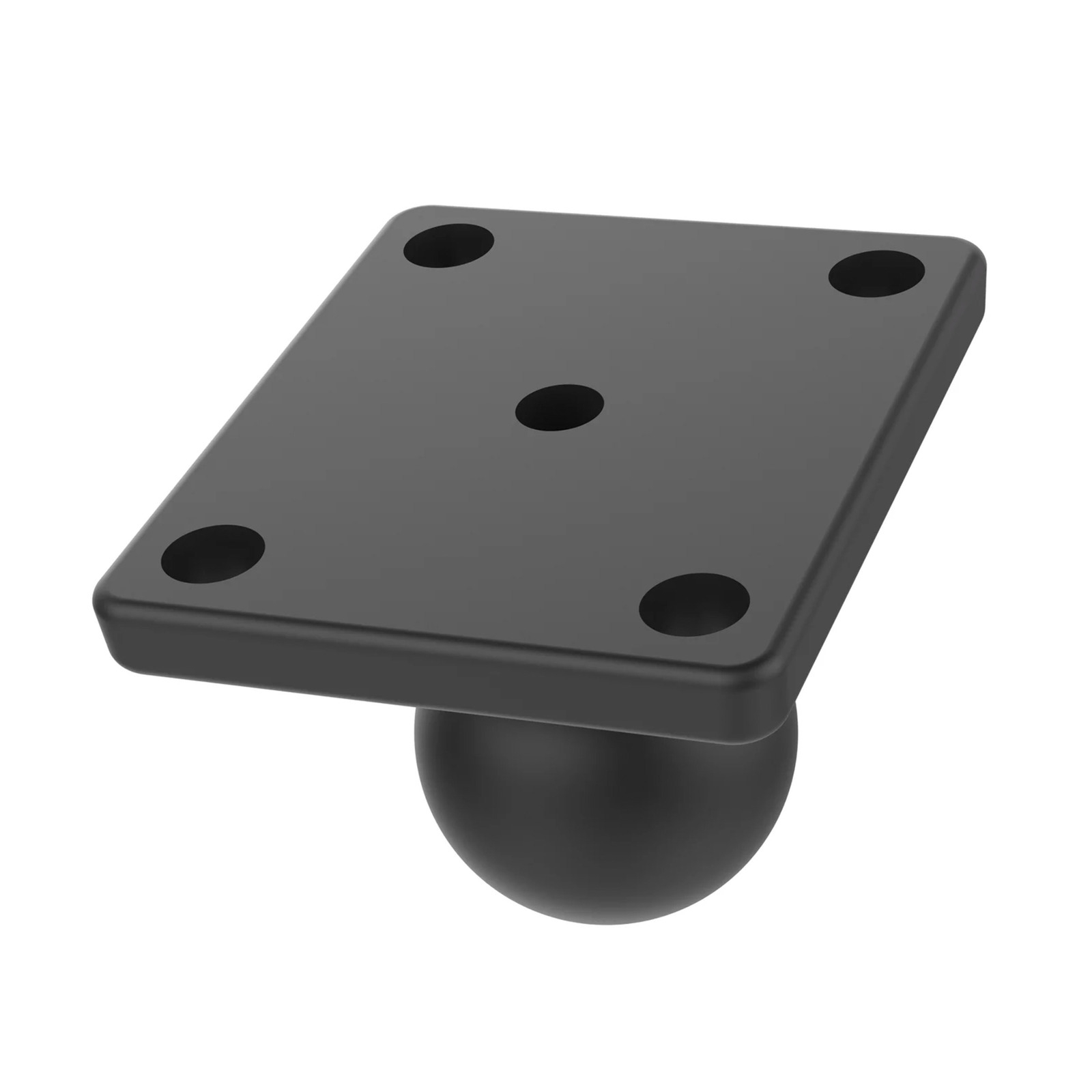

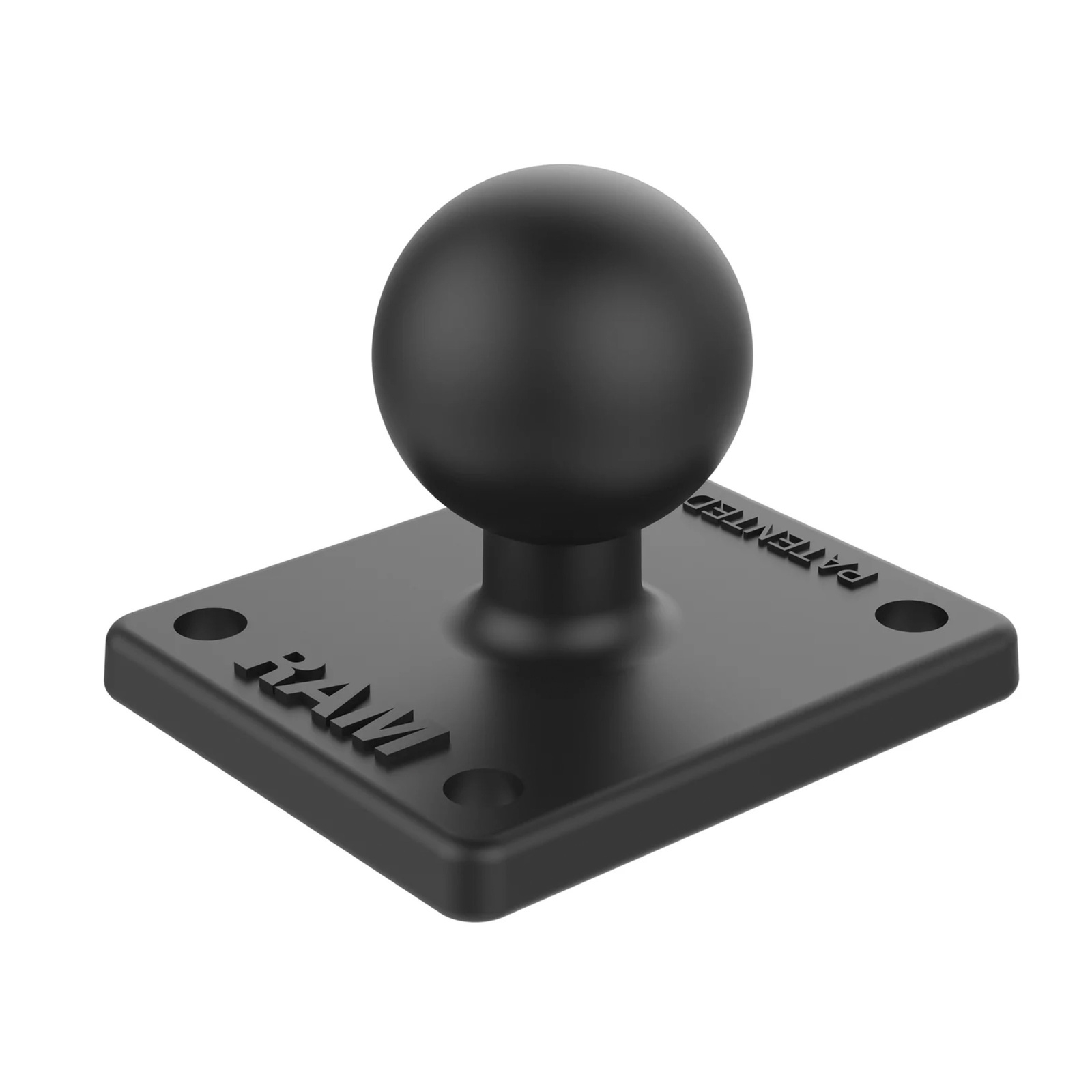

The RAM-B-347U consists of a B size 1" diameter rubber ball connected at right angles to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, making the universal AMPS hole pattern..

KEY FEATURES

  • 2" x 1.7" square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
  • Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

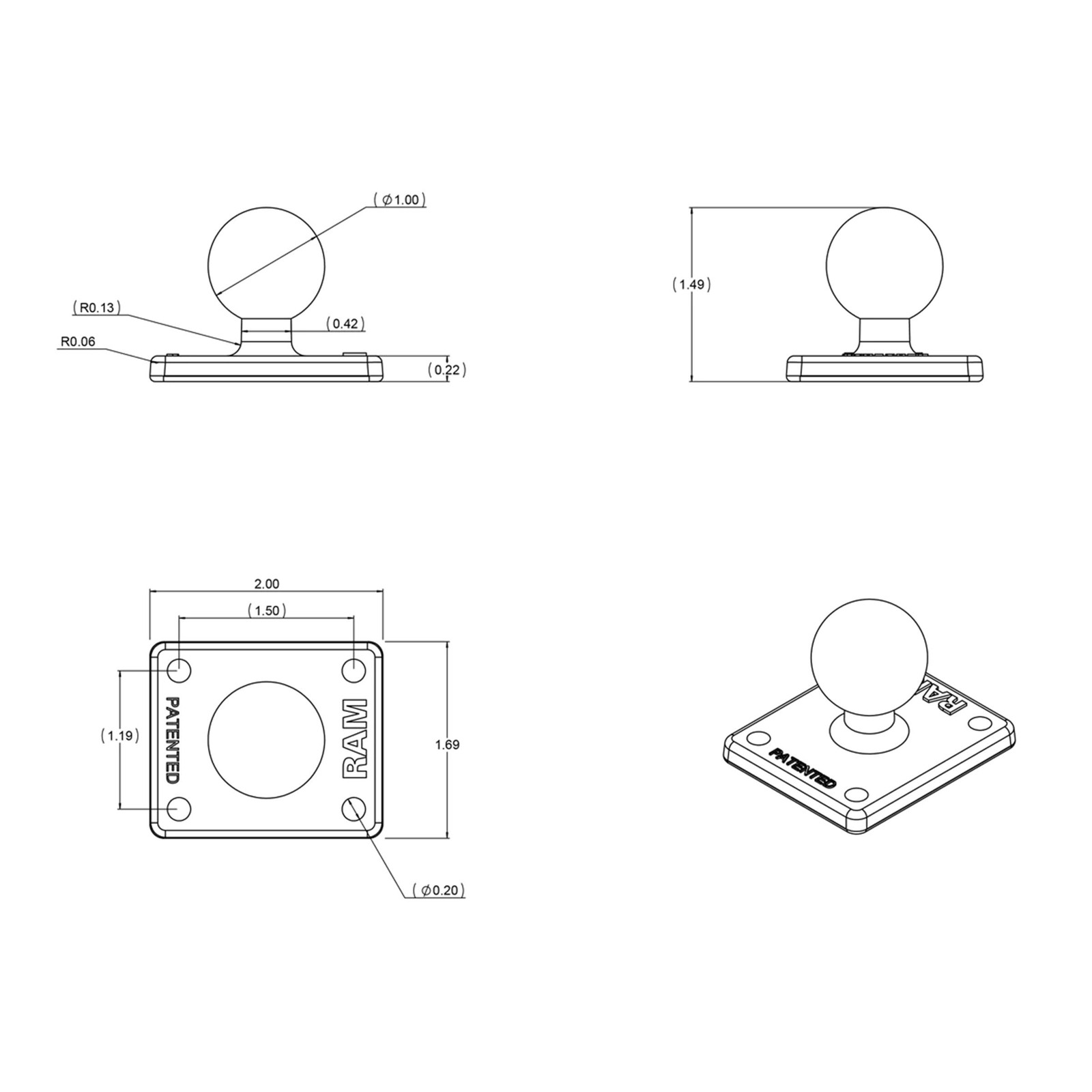

SPECIFICATIONS

OVERALL HEIGHT 30mm / 1.49"
COMPATABILITY Garmin AERA
THREAD PITCH
1/4"-20
HOLE PATTERN 4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE 1.69" x 2" / 43mm x 51mm
BALL SIZE B Size (1")
WEIGHT CAPACITY Standard Use: 1.81kg / 4 lbs
Heavy-Duty Use: 1.36kg / 3 lbs
MATERIALS Marine-grade aluminum
WEIGHT 60g


(RAM-B-347U)

SKU RAM-B-347U
Barcode # 793442907623
Brand Ram Mounts
Shipping Weight 0.1000kg
Unit Of Measure ea
