Product Description

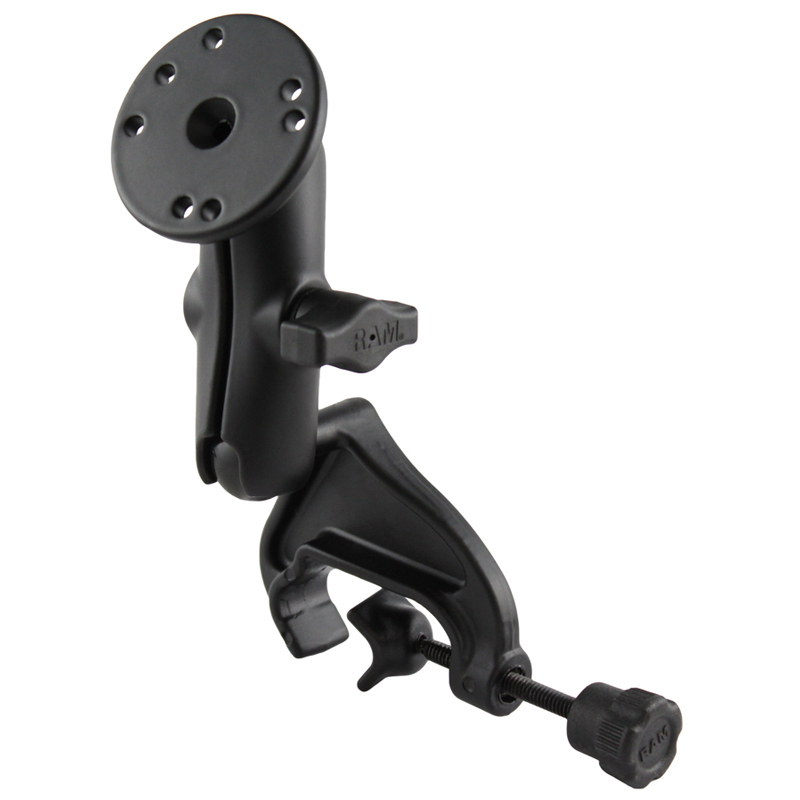

The RAM-B-121-202U consists of a yoke clamp base, standard length double socket arm and round 2.5" base that contains the universal AMPs hole pattern.
The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
KEY FEATURES
- Yoke clamp base fits rails from .625" to 1.25" in diameter
- Round plate features industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
SPECIFICATIONS
| CLAMP RANGE: | 0.625" - 1.25" |
| SOCKET-TO-SOCKET LENGTH: | 3" (7.62cm) |
| HOLE PATTERN: | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
| BALL SIZE: | B Size (1") |
| WEIGHT CAPACITY: | Standard Use: 907g Heavy-Duty Use: 453g |
| MATERIALS: | Marine-grade aluminum |
| PACKAGING TYPE: | Retail Bag |
| WEIGHT: | 325g |
Specifications
| SKU | RAM-B-121-202U |
| Barcode # | 793442902741 |
| Brand | Ram Mounts |
| Shipping Weight | 0.5000kg |
| Unit Of Measure | ea |
Reviews
Be The First To Review This Product!
Help other Flight Store Pty Ltd users shop smarter by writing reviews for products you have purchased.
Write a product review
RAM® Double Ball Yoke Clamp Mount with Round Plate
In Stock
$105.00
inc GST
RAM® Double Ball Yoke Clamp Mount with Round Plate
$105.00
inc GST
