RAM® Tab-Tite™ Universal Cradle for Apple 11" iPad Pro with Case + iPad Gen 1-4 with Case + More

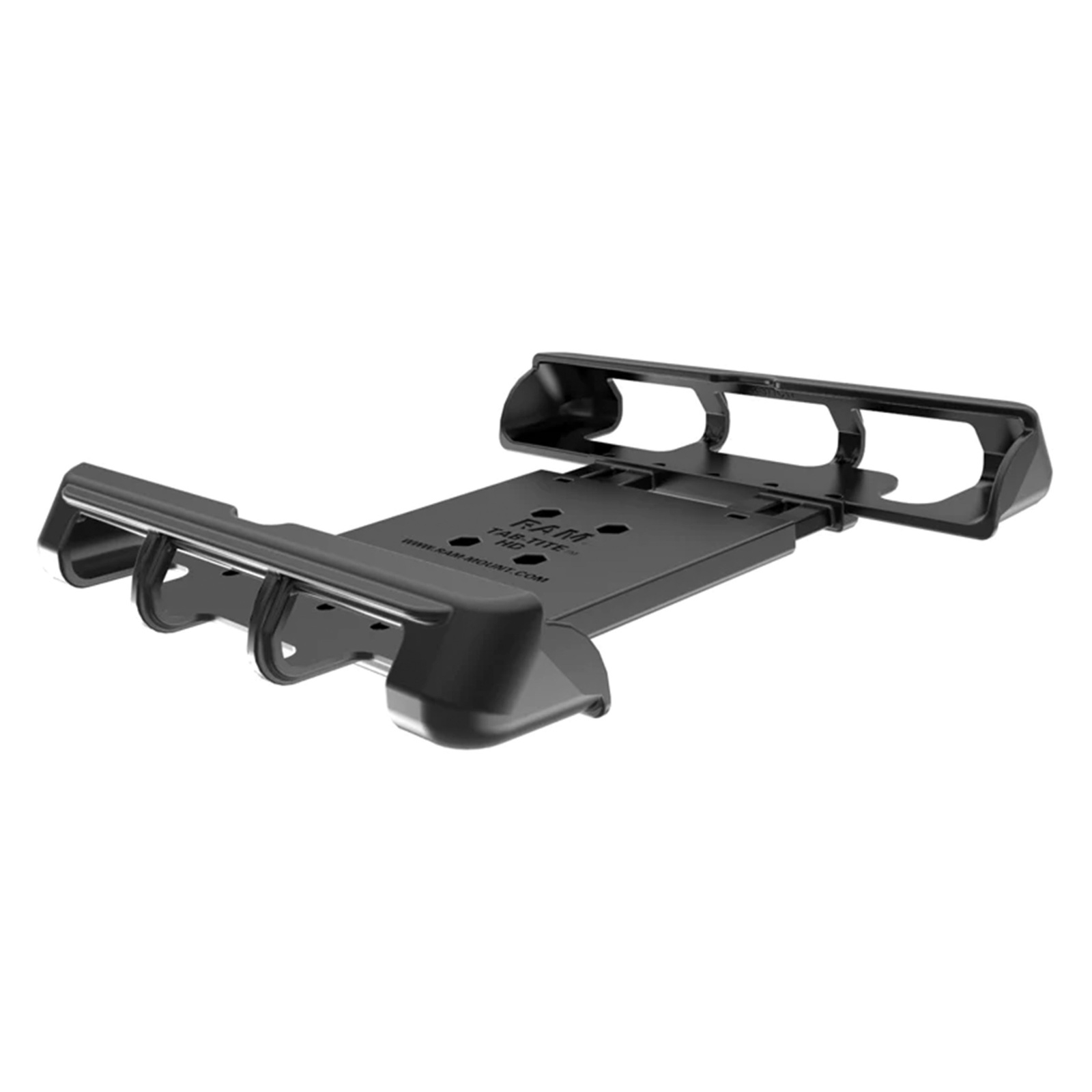

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
KEY FEATURES
COMPATIBILITY
Apple
| iPad (1st Generation) with Case |
iPad (2nd Generation) with Case |
| iPad (3rd Generation) with Case |
iPad (4th Generation) with Case |
| |
|
| iPad Air 4 with Case |
iPad Air 5 with Case |
| iPad Air 11 (M2) with Case |
iPad Air 11 (M3) with Case |
| |
|
| iPad Pro 11" with Case |
iPad Pro 11" (2020) with Case |
| iPad Pro 11" (2021) with Case |
iPad Pro 11" (2022) with Case |
| |
|
| iPad Pro 11" (M4) (2024) with Case |
iPad Pro 11" (M5) (2025) with Case |
HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
HOLDER DIMENSIONS
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
WEIGHT
0.31kg
