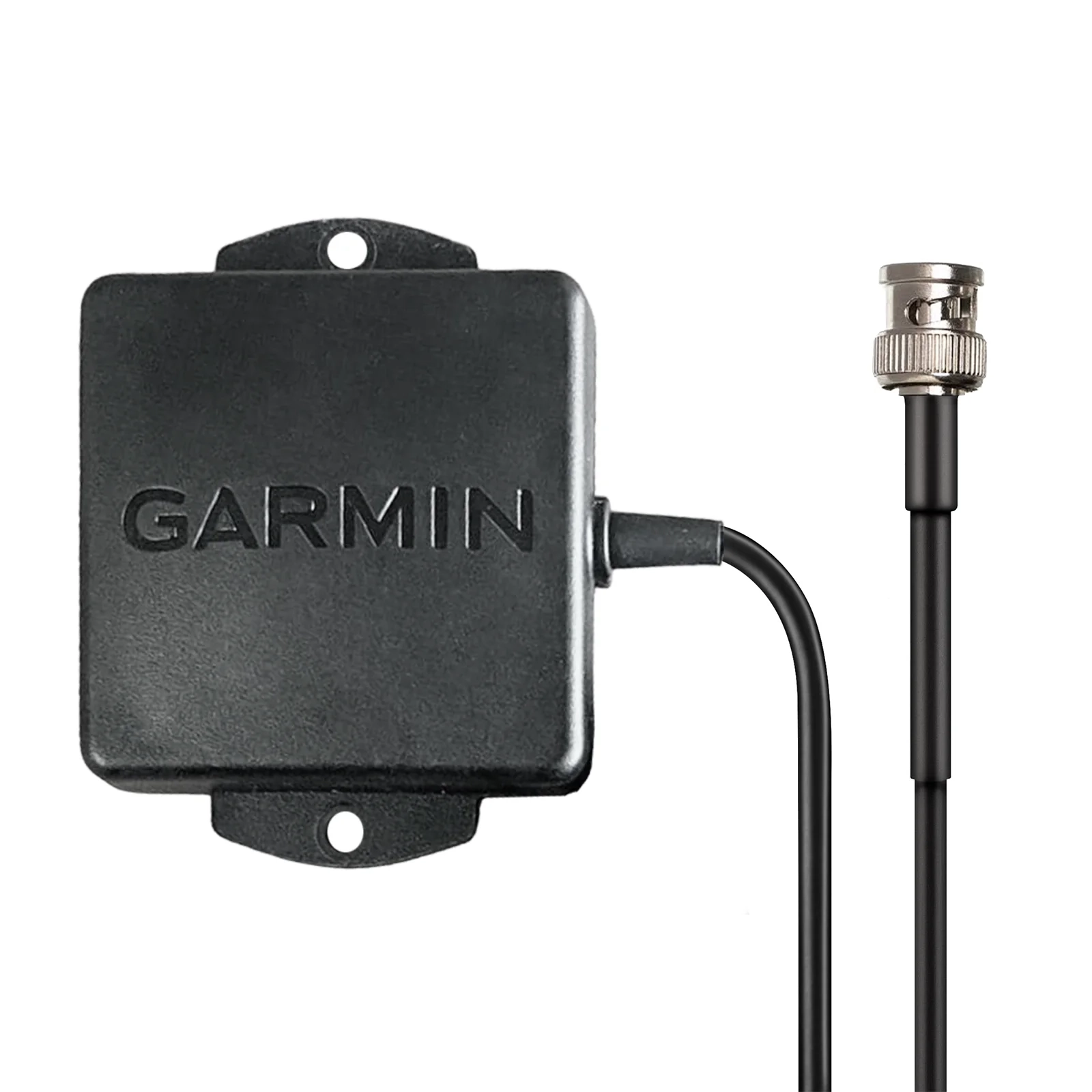

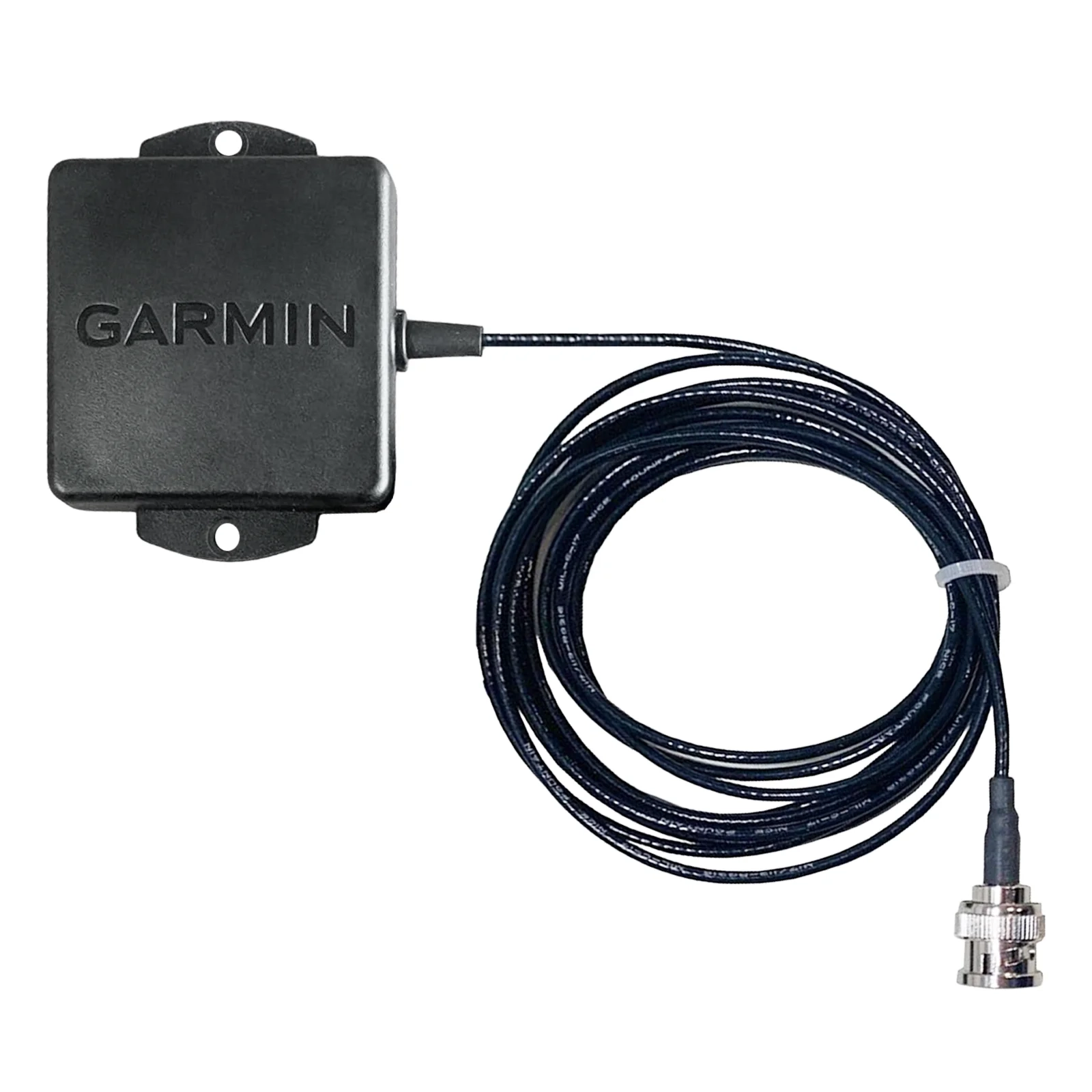

Garmin GA26X GPS Antenna Kit (BNC, Cabin / Glareshield Mount)

Enhance your satellite tracking with the genuine Garmin GA 26X Low-Profile Remote GPS Antenna.

This external active antenna runs on a lower voltage to minimize battery drain while optimizing signal reception in vehicle and aircraft interiors. Versatile mounting features include a magnetic outer mount or a suction cup window setup, complete with 8 feet (2.4m) of durable cable and a standard BNC connector. It is the perfect compact solution for experimental avionics, portables, G5, and G3X lines.

SPECIFICATIONS

Weight

• Antenna Unit Weight: 0.20 kg (approx. 7 oz).
• Packaged/Shipping Weight: 0.29 kg (0.65 lbs) when bundled with its heavy-duty 8-foot (2.4m) coaxial cable, suction window hardware, and packaging box.

Physical Dimensions

The GA 26X features a tiny, mouse-like low-profile layout:

• Length: 7.0 cm (2.75 inches)
• Width: 5.1 cm (2.00 inches)
• Height: 1.9 cm (0.75 inches)

Cable and Connection Setup

• Attached Cable: Features an integrated 2.4-metre (8 ft) low-loss coaxial cable built right into the base housing.
• Connector: Terminated with a fixed Male BNC connector designed to snap straight onto the back of portable docks, G5 indicator units, or G3X avionics trays.
• Mounting Profiles: It can be anchored via its internal high-grip magnet for temporary external placement, or pressed onto glass utilizing the included interior suction-cup bracket.
