Garmin GA35S GPS/WAAS Antenna (Thru-Mount, Tear Drop Form Factor) White

$645.00

inc GST

Product Description

Garmin GA35S GPS/WAAS Antenna (Thru-Mount, Tear Drop Form Factor) White

Upgrade your navigation hardware with the genuine Garmin GA 35S GPS/WAAS Antenna.

Certified to TSO-C144, this external active antenna delivers exceptional satellite reception for advanced WAAS panel-mount systems.

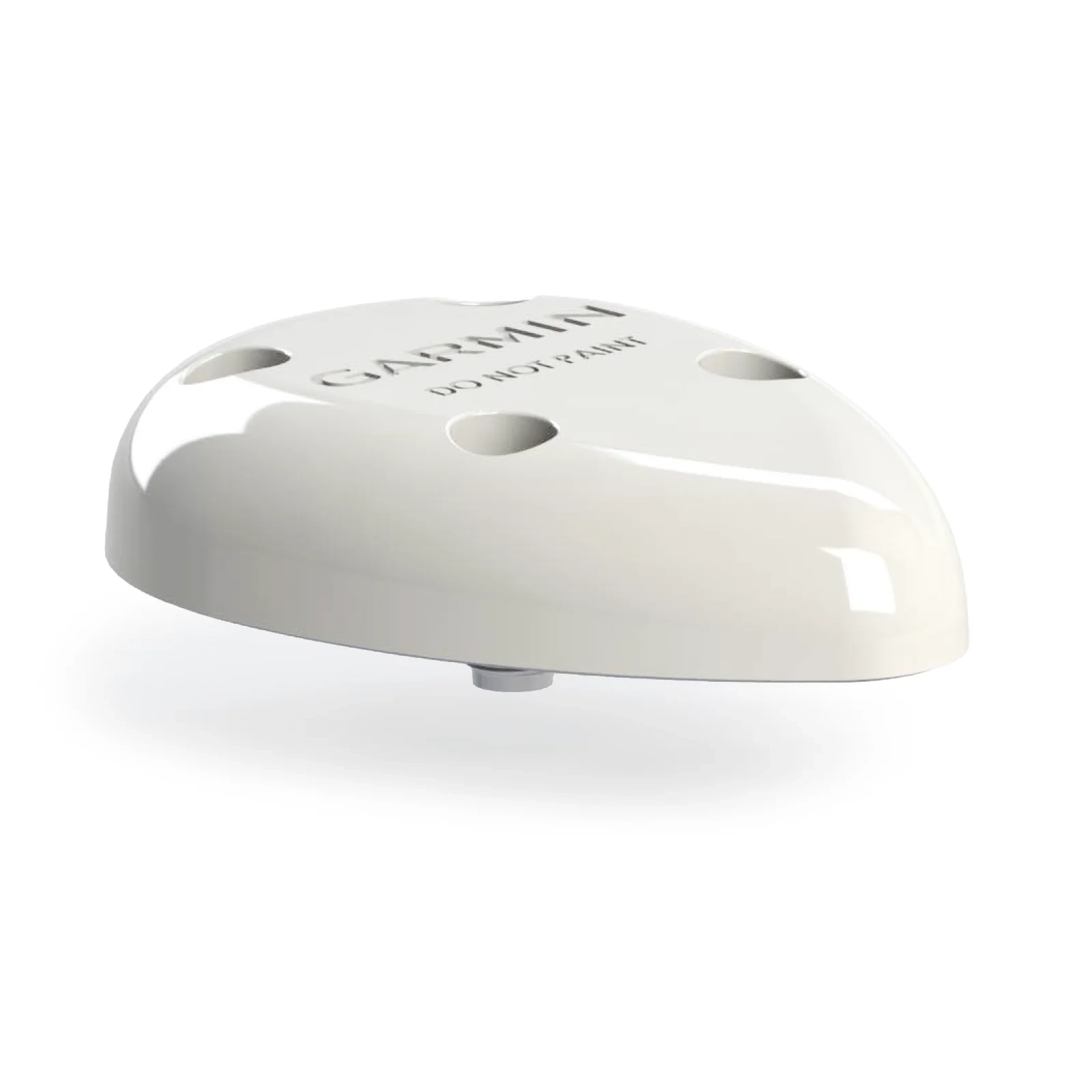

It features a low-profile, aerodynamic teardrop design engineered to reduce drag on your fuselage. Designed for easy retrofitting, it shares the exact same screw-hole mounting pattern as the legacy GA 56 antenna. Connects via a robust female TNC output. Perfect for GTN and GNS WAAS series.

This external, active GPS antenna is suitable for all WAAS panel-mount GPS systems.
The low-profile, teardrop antenna provides excellent reception, and it attaches through the fuselage via screw mount, sharing the same hole pattern with the GA 56 antenna.
Reference the G3X™ / AXIS installation manual for detailed instructions.

MOUNTING FOOTPRINT

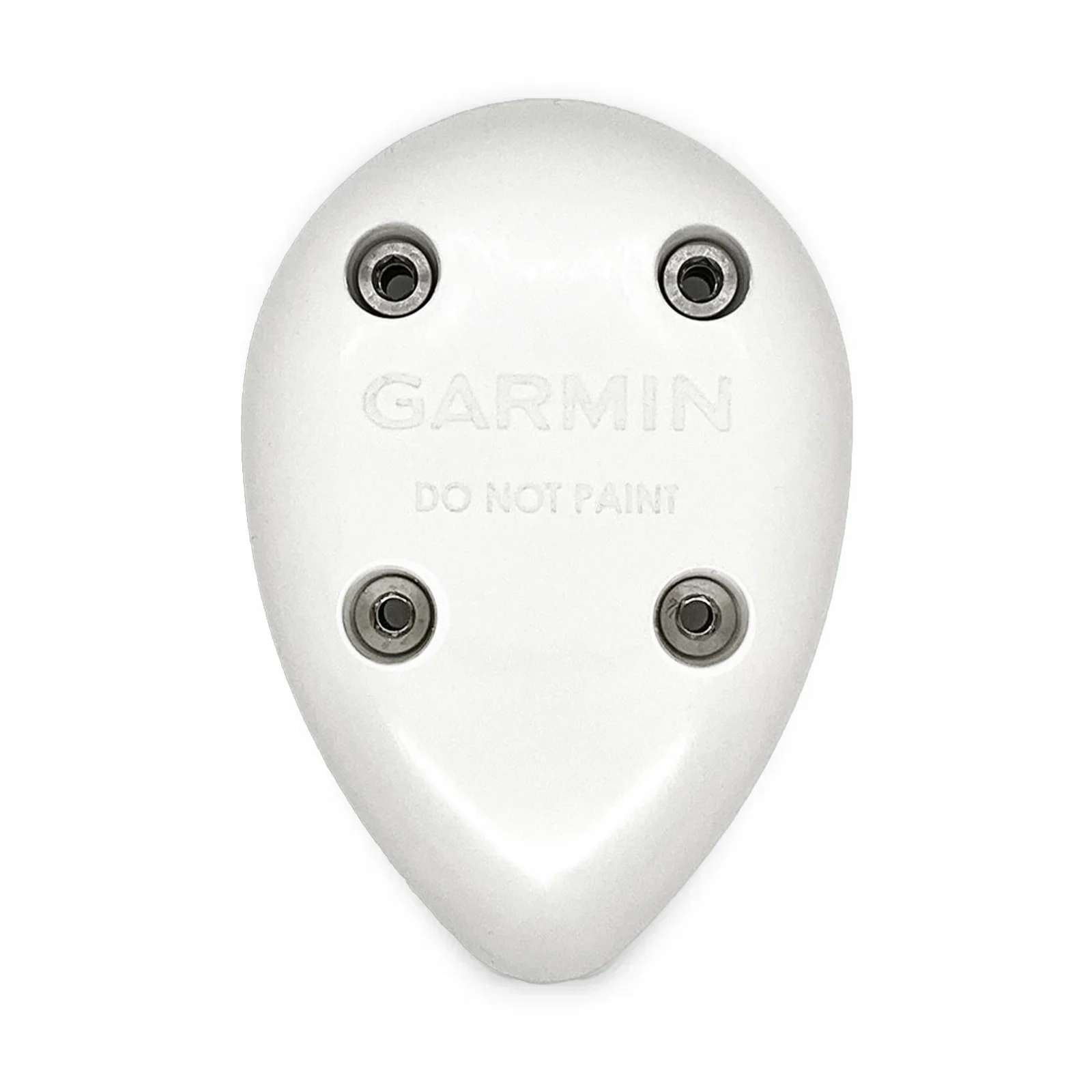

Screw-Hole Compatibility: It features the exact same 4-hole layout pattern as the legacy GA 56 antenna, meaning you will not need to drill new mounting holes through your aircraft skin to upgrade.

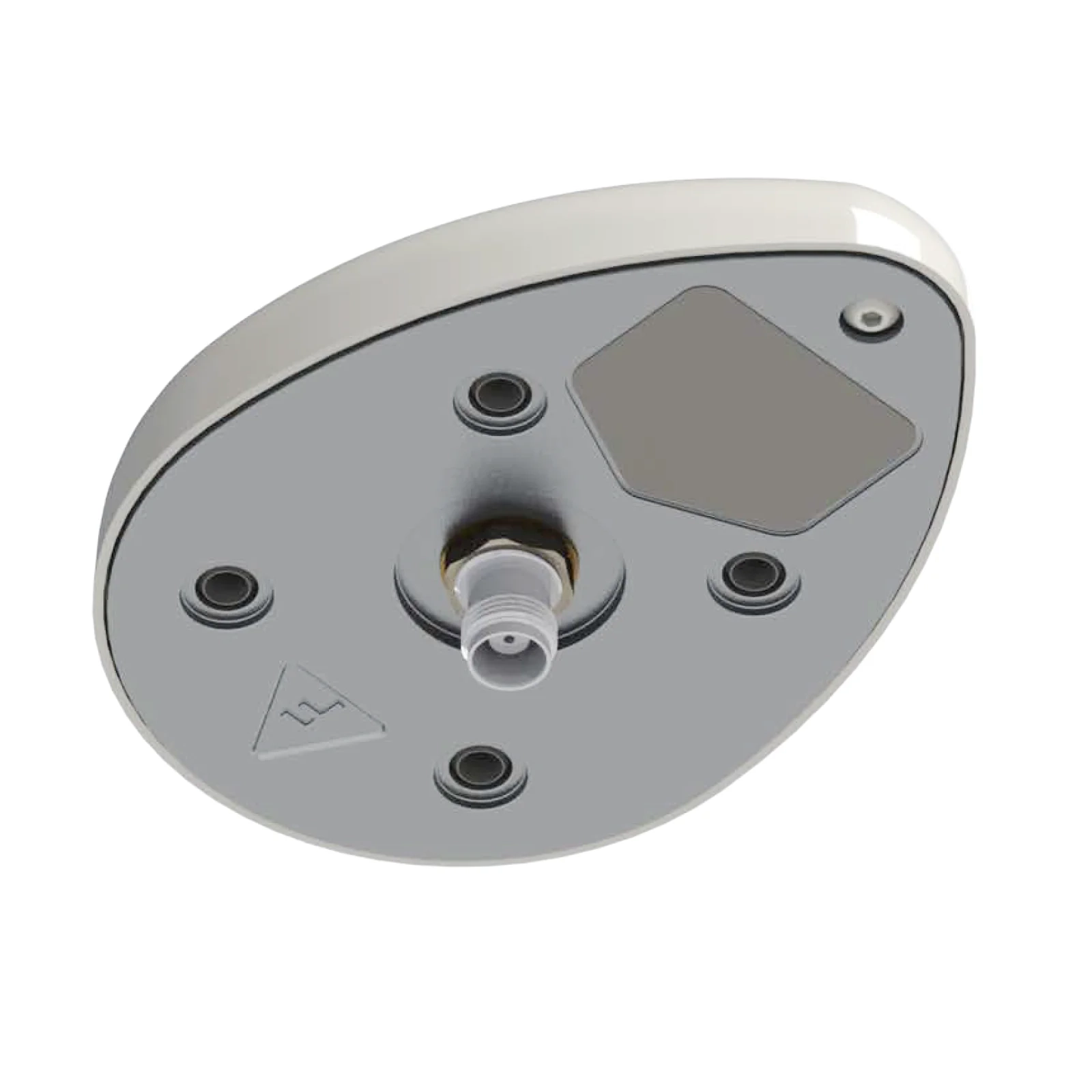

Connector Clearance: It features a female TNC output connector extending from the base. This means if you are upgrading from a GA 56 layout, you will need to swap the old BNC coaxial cable connector out for a TNC connector to lock onto the GA 35S base.

SPECIFICATIONS

Width: 7.6 cm (3.00 inches)

Length: 11.9 cm (4.68 inches)

Height (Profile off fuselage): 2.1 cm (0.81 inches)

Color: White
