Base Station Airband VHF Ground Plane Antenna Kit w/Fibreglass Antenna 118.00 to 136.00mhz

$245.00

inc GST

Product Description

Base Station Airband VHF Ground Plane Antenna Kit w/Fibreglass Antenna

Airband Ground Plane VHF Antenna Kit

Aircraft positioned directly overhead a Vertical High Gain Antenna often experience a 'blackspot' in communications that inhibit clear and effective radio transmissions until they have passed by. The GP124 eliminates this shadowed area keeping VHF signal strength at a maximum for both transmitting and receiving.

The GP124 is a omnidirectional unity gain ground plane Airband antenna ideal for local area coverage when a high gain antenna is not suitable. The broad vertical beamwidth offers excellent null fill for consistent signal coverage.

DESCRIPTION

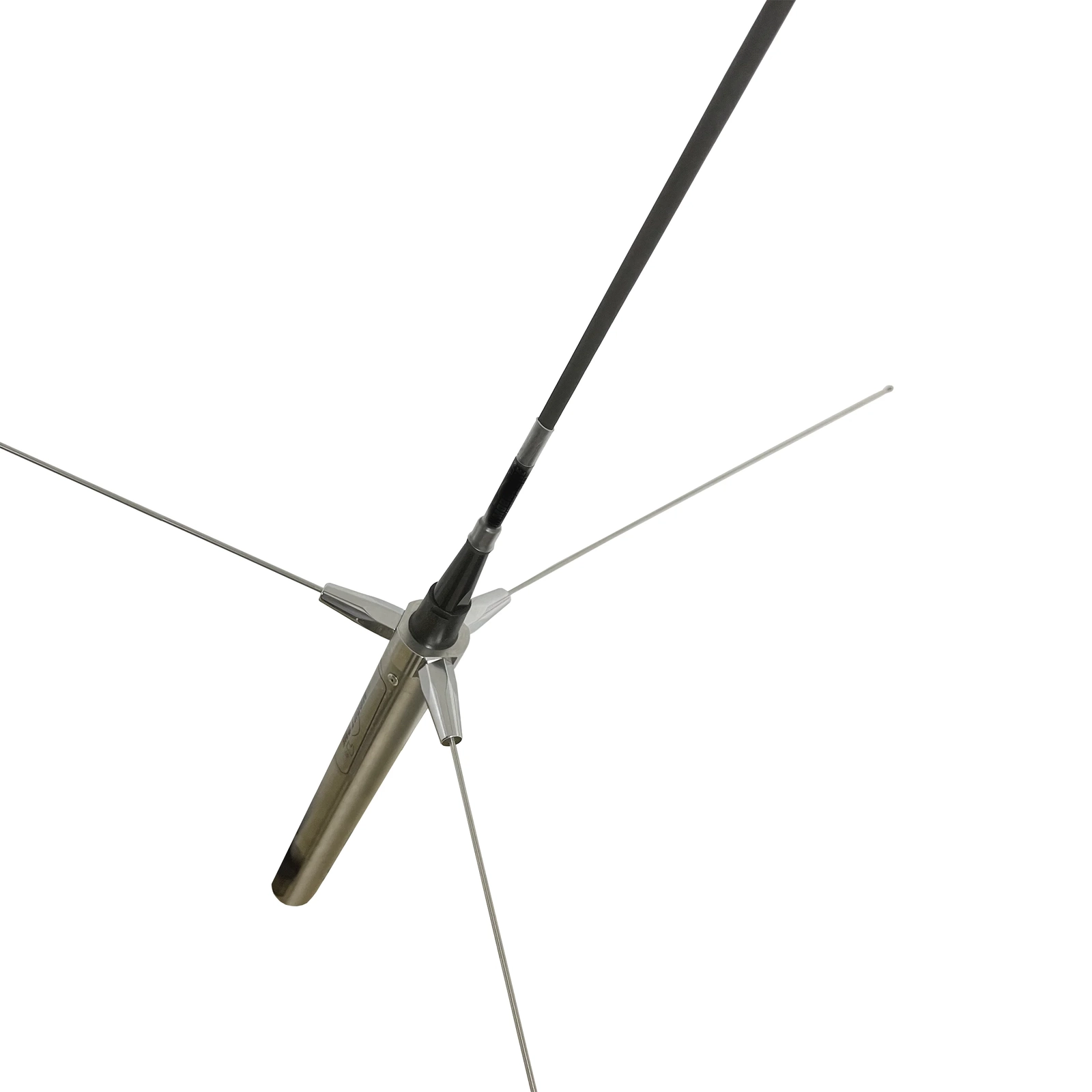

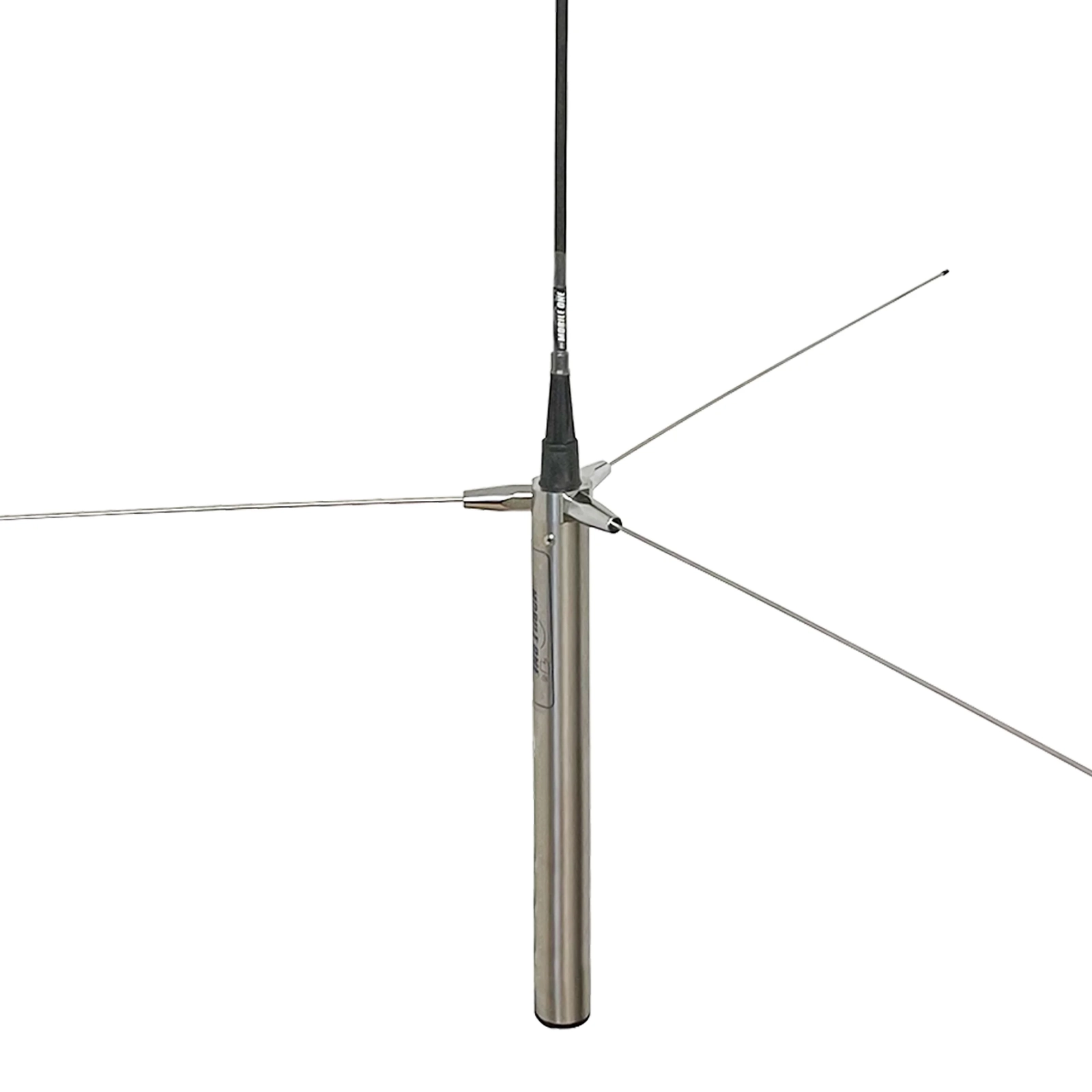

The GP124 is a 0.85 meter 1/4 Wave Fibreglass Whip Antenna with three perpendicularly mounted 1/4 Wave Stainless Steel Whip Antennas that has a 300mm x 20mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 200mm Coaxial pigtail featuring a waterproof FME Male Connector.

Included in the kit is a 10m feed cable with waterproof FME Female Connectors on both ends. There are two types of FME adapters supplied for connection to either a handheld VHF radio or a base station VHF transceiver.

Electrically, the GP124 antenna is a quarter wave radiating element with three radials acting as a counterpoise. The three radial Stainless Steel Whip Antennas utilise a single bolt screw attachment design. The antenna is DC grounded for superior lightning protection and the reduction of precipitation static noise.

APPLICATIONS

Airfield VHF Pilot Activated Runway Lighting Systems
Close Contact Airfield Operations
Ground Communications for Aircraft in the Circuit Pattern

PROS

Very broadband
Covers the entire Airband 118 to 136MHz
Ideal for scanning the Airwaves
Waterproof Connectors
Stainless Steel Base

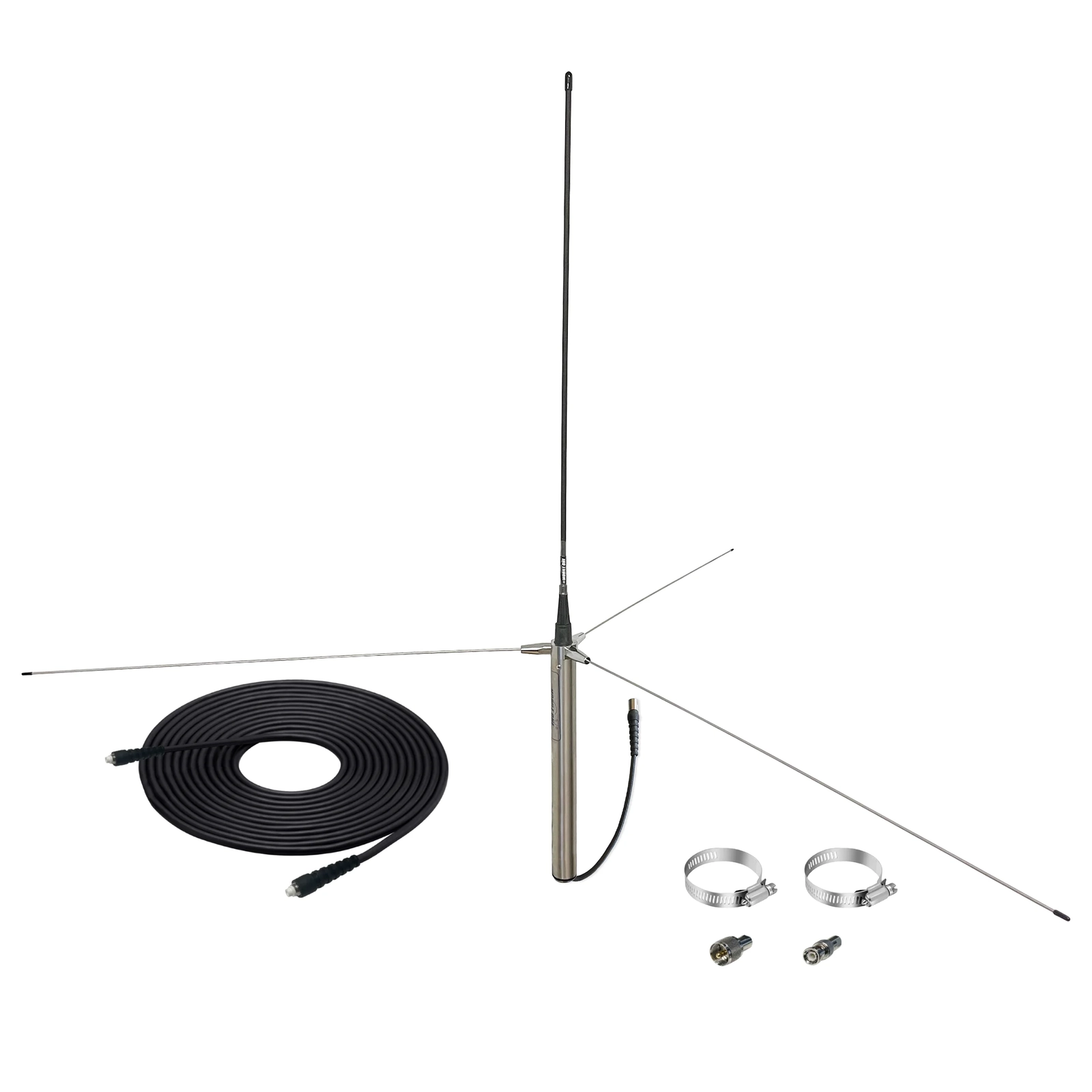

KIT INCLUDES

1/4 Wave VHF Fibreglass Whip Antenna

1/4 Wave VHF Stainless Steel Whip Antennas (x3)

4-Way Ground Plane VHF Antenna Base Mount with Coaxial Pigtail

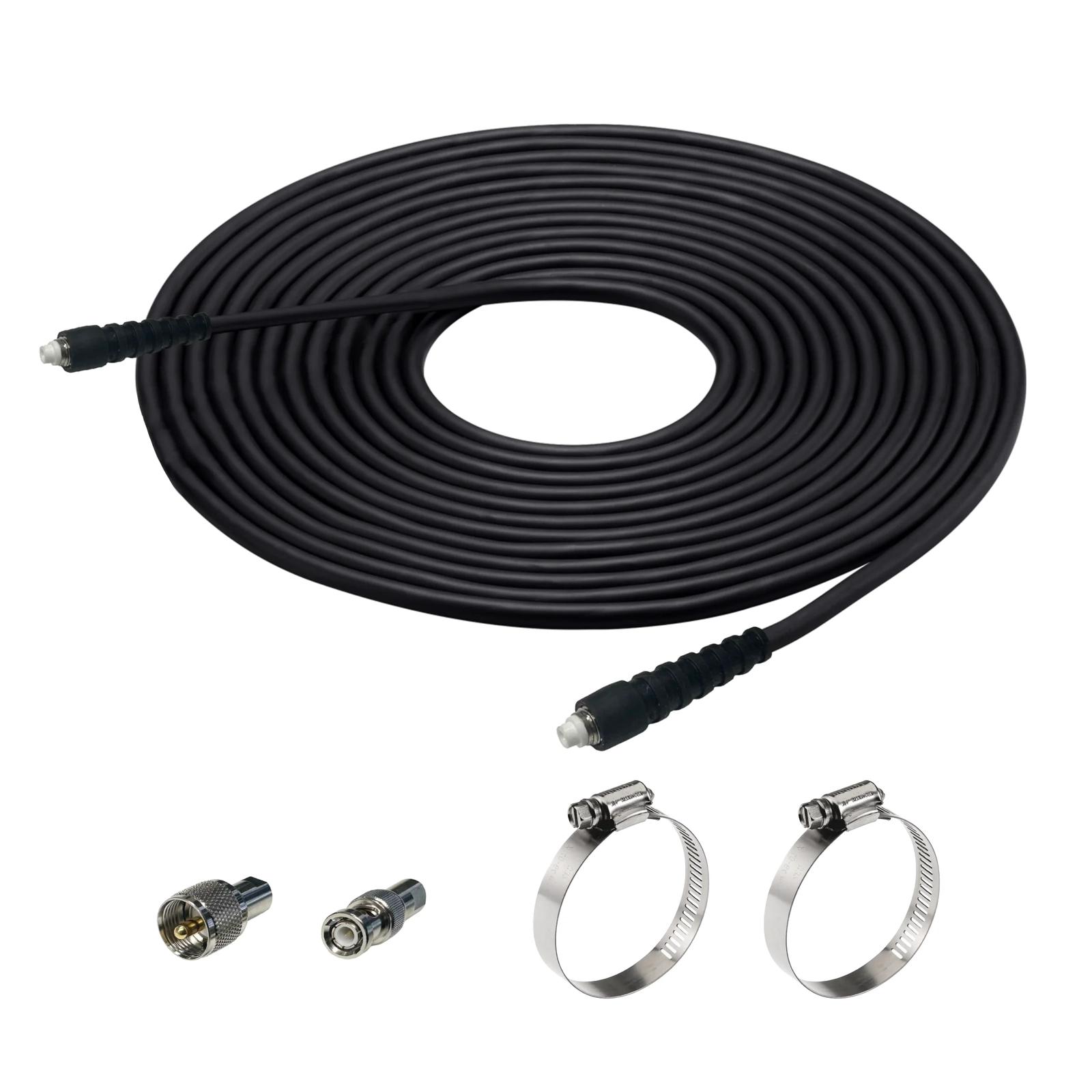

RG58/CU Coaxial Cable FME Female Connectors (10m)

FME Male to BNC Male Adapter

FME Male to PL259 Male Adapter

Worm Drive Clamps - 85mm Stainless Steel for mast mounting (x2)

MAST MOUNTING

The M1GP124KIT can be mounted onto any vertical mast using worm drive hose clamps.

NOTE: Longer Feed Cables are available as a Special Order. Call 07 5536 8694 to enquire.

Specifications

Antenna Vertical	Polyfin Fibreglass 550mm
Antennas Horizontal	3x Stainless Steel 545mm
Antenna Fittings	5/16" Screw type
Overall Height	850mm
Base Length	300mm
Base Diameter	20mm
Base Material	Stainless Steel Tube
Base Pigtail	200mm Coaxial Pigtail FME Male
Antenna Weight	750g
Cable Length	10 meters
Cable Type	RG58/CU Coaxial Cable
Cable Connectors	FME Female
Adapters	FME BNC Male / FME PL259 Male
VSWR	1.5:1 from 118-128 Mhz
VSWR	2:1 from 117-133 Mhz
Gain	+3dBi
Waterproof	Pigtail, Cable and Connectors
Manufactured	Made in Australia
