Product Description
Fibreglass VHF HD Antenna - Stainless Steel Base with Coaxial Pigtail
The M1CDB124 can be mounted onto any vertical mast using worm drive hose clamps.
NOTE: Phone 07 5536 8694 to enquire
Heavy Duty Base Station Airband VHF Antenna Kit w/Fibreglass Antenna + 30m HD Lead
This product is most suitable for FBO (Fixed Base Operator) or Airfield Lighting applications.

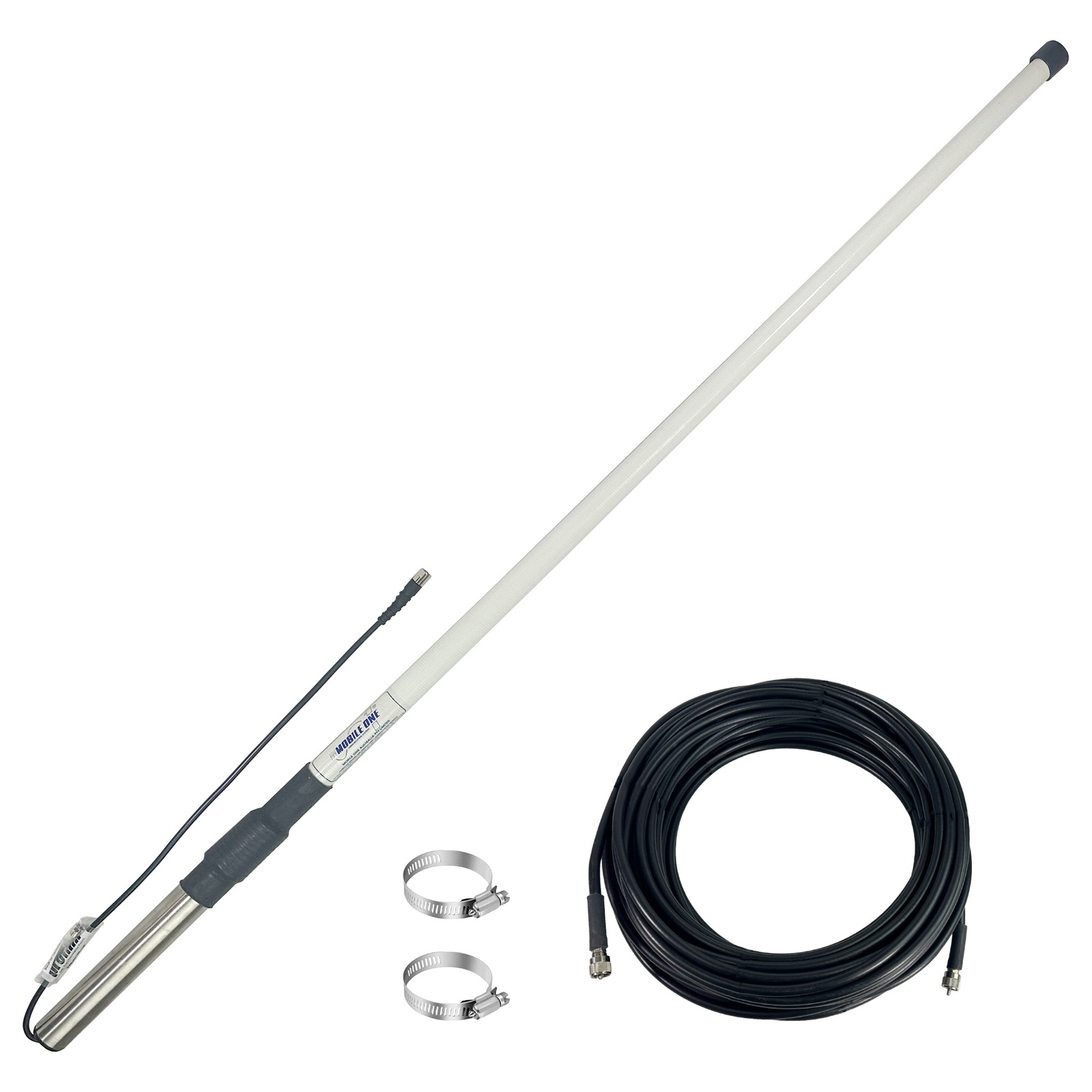

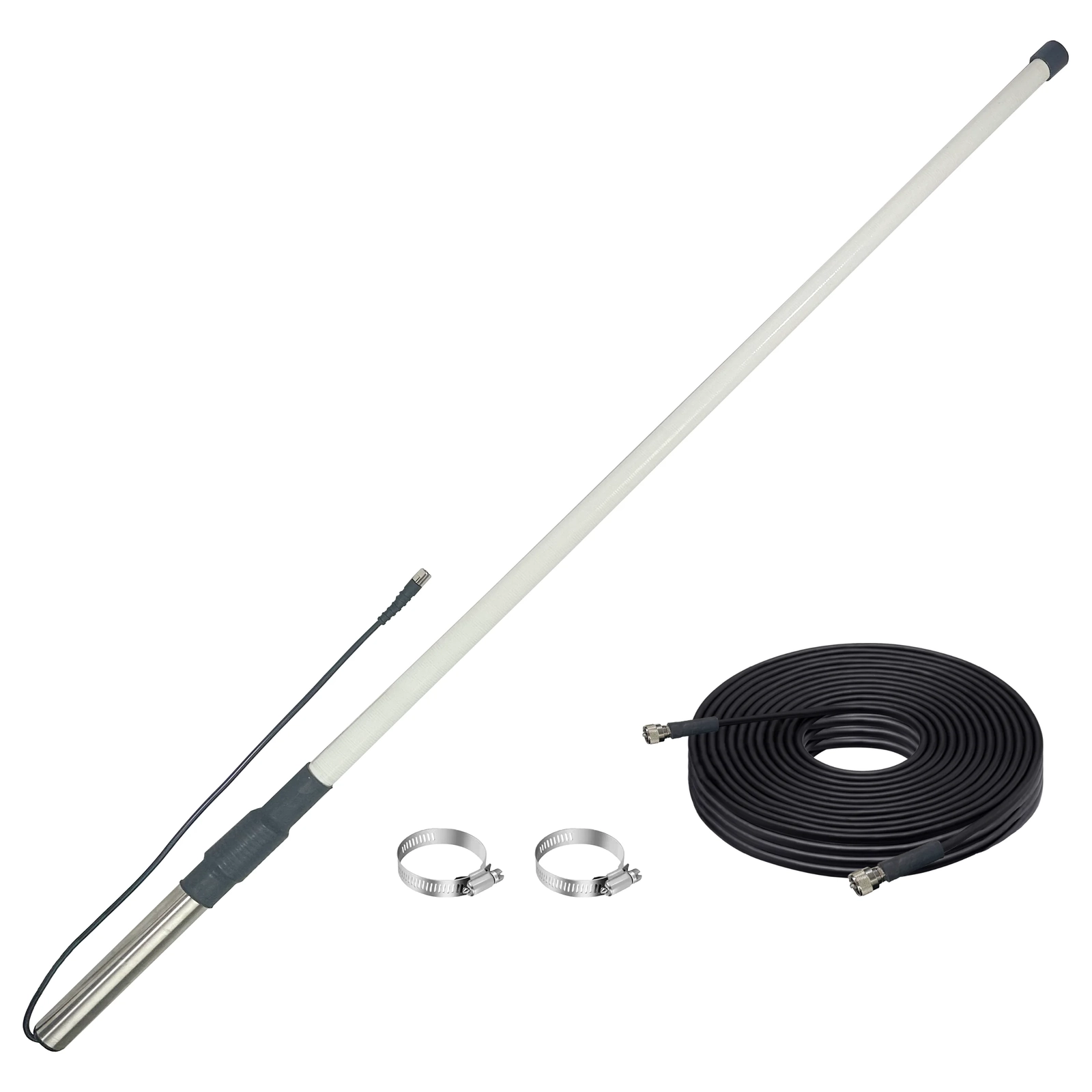

The M1CDB124HD is a 1.23 meter Ground Independent Coaxial Dipole Heavy Duty Fibreglass Base Antenna that has a 200mm x 32mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 500mm Coaxial pigtail featuring a waterproof inline SO239 Connector. Included in the kit is a Heavy Duty 30m feed cable with heatshrink sealed waterproof PL259 Male Connectors on both ends. There are 2 stainless steel wormdrive clamps included for mounting.
The M1CDB124HD is broadband antenna that covers the entire Aviation Air Band Frequency Range from 118MHz to 136MHz without the need for tuning.
This product is most suitable for FBO (Fixed Base Operator) or Airfield Lighting applications.
The M1CDB124HD is a 1.23 meter Ground Independent Coaxial Dipole Heavy Duty Fibreglass Base Antenna that has a 200mm x 32mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 500mm Coaxial pigtail featuring a waterproof inline SO239 Connector. Included in the kit is a Heavy Duty 30m feed cable with heatshrink sealed waterproof PL259 Male Connectors on both ends. There are 2 stainless steel wormdrive clamps included for mounting.
The M1CDB124HD is broadband antenna that covers the entire Aviation Air Band Frequency Range from 118MHz to 136MHz without the need for tuning.
Antenna Center Frequency tuned to 124MHz
Voltage Standing Wave Ratio or VSWR = less than 1.5:1 from 119-129 Mhz (10Mhz) / VSWR = less than 2:1 from 118-136 Mhz (20Mhz)
Voltage Standing Wave Ratio or VSWR = less than 1.5:1 from 119-129 Mhz (10Mhz) / VSWR = less than 2:1 from 118-136 Mhz (20Mhz)
PROS
- Very broadband
- Covers the entire Airband 118 to 136MHz
- Ideal for scanning the Airwaves
- Waterproof Connectors
- Stainless Steel Base
CONS
- Not suitable for mobile use and should be mounted as high as possible to get the best performance

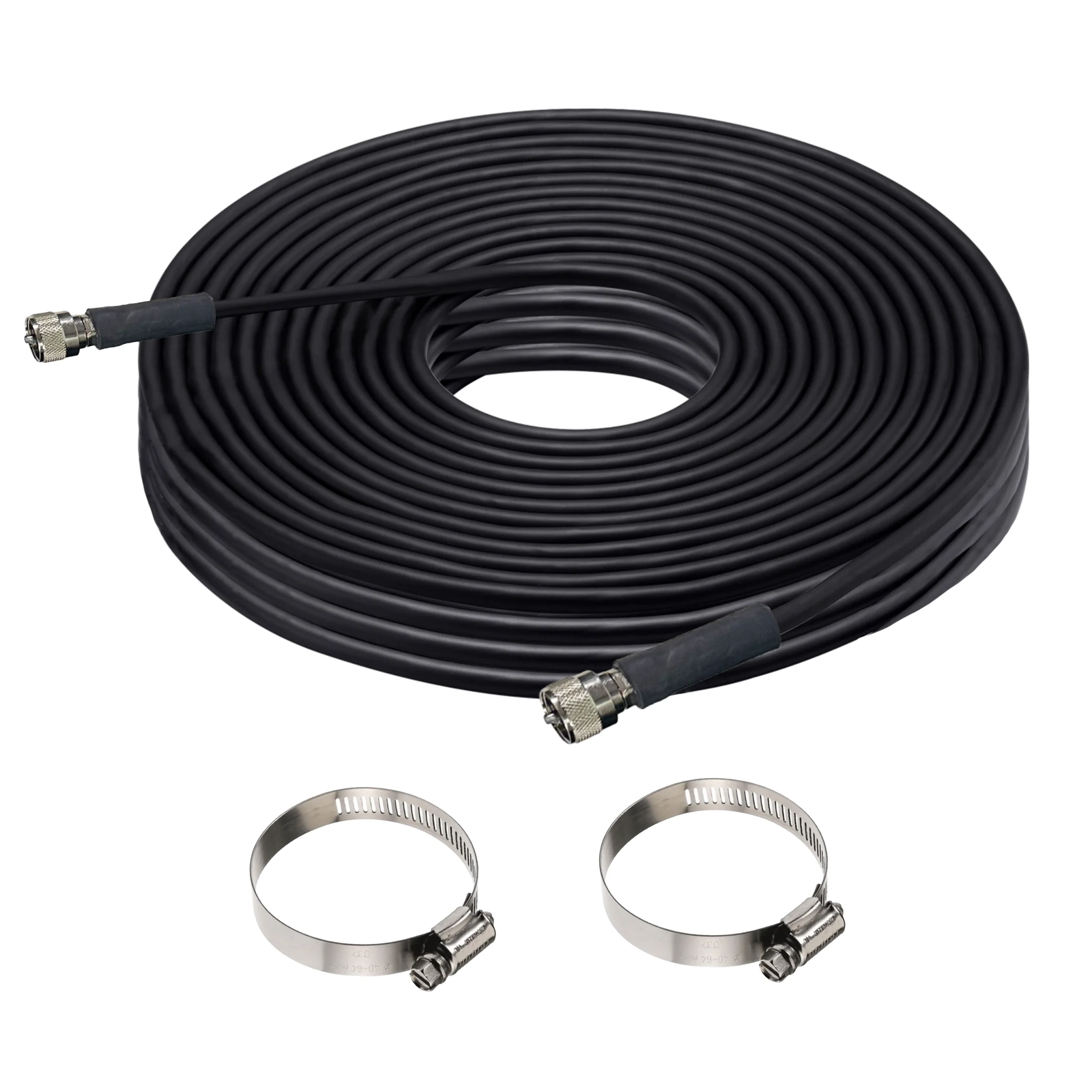

KIT INCLUDES

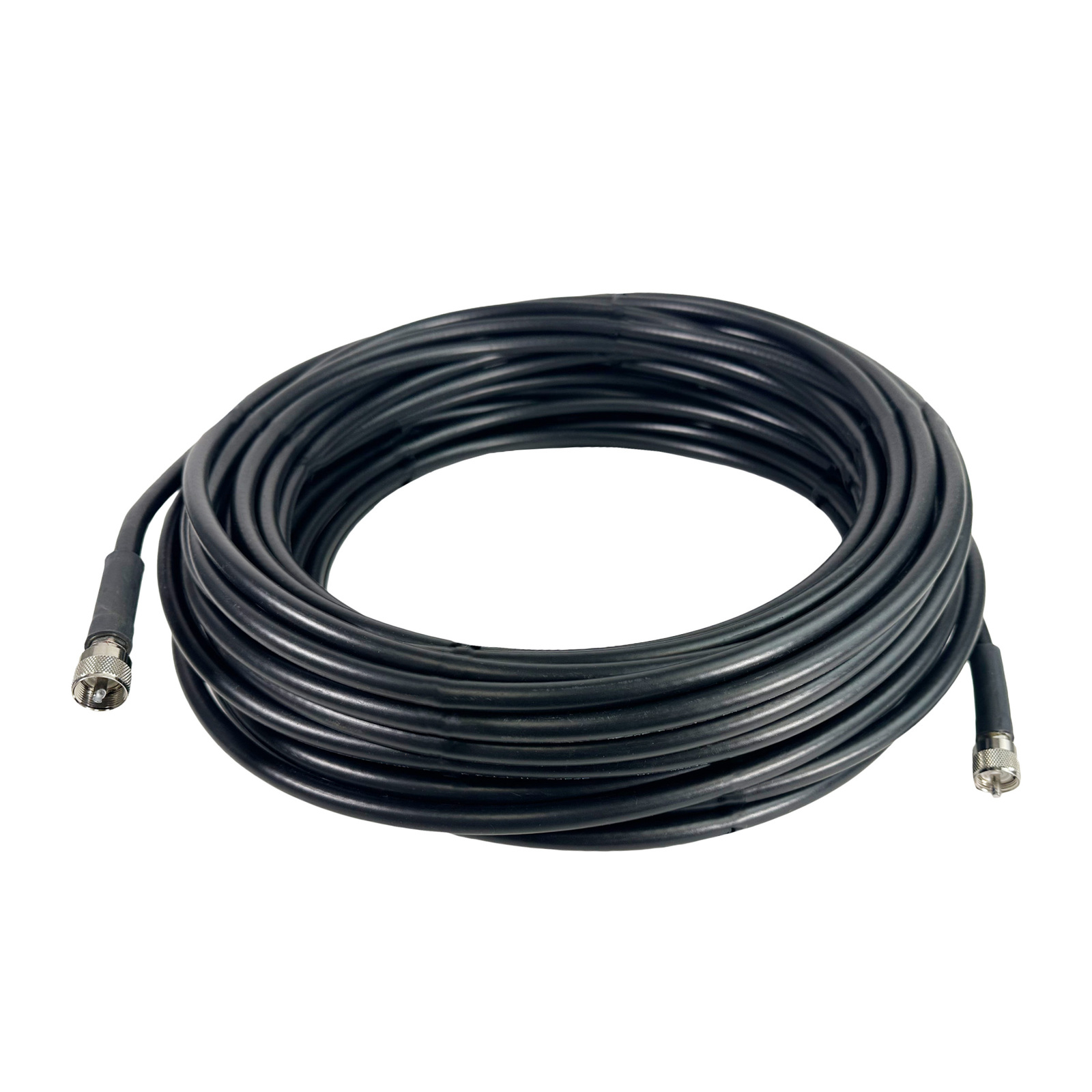

Heavy Duty LMR400 Coaxial Cable PL259 Connectors (30m)
Worm Drive Clamps - 85mm Stainless Steel for mast mounting (x2)
Worm Drive Clamps - 85mm Stainless Steel for mast mounting (x2)
Amalgum Tape to waterproof wrap connectors once fitted
MAST MOUNTING
MAST MOUNTING
The M1CDB124 can be mounted onto any vertical mast using worm drive hose clamps.
NOTE: Phone 07 5536 8694 to enquire
- Longer Feed Cables are available as a Special Order
- SOCBNC - SO239 (Icom IC-A120) to BNC (Icom IC-A16) adapter avalable upon request
Specifications
| Antenna Length | 970mm (38") |
| Overall Length | 1230mm (48") |
| Base Length | 200mm |
| Base Diameter | 32mm |
| Base Material | Stainless Steel Tube |
| Base Pigtail | 500mm Coaxial Pigtail FME Male |
| Antenna Weight | 350g |
| Cable Length | 30 meters |
| Cable Type | LMR400 Heavy Duty Coaxial Cable |
| Construction |
Foam Insulated / Solid Core Center
|
| Cable Connectors | PL259 Male |
|
VSWR
|
1.5:1 from 118-128 Mhz
|
| VSWR | 2:1 from 117-133 Mhz |
| Gain | +3dBi​ |
| Waterproof | Pigtail, Cable and Connectors |
| Manufactured | Made in Australia |
| SKU | M1CDB124HDKIT |
| Brand | FlightStore |
| Shipping Weight | 5.0000kg |
| Unit Of Measure | ea |
Reviews
Be The First To Review This Product!
Help other Flight Store Pty Ltd users shop smarter by writing reviews for products you have purchased.
Write a product review
Base Station Airband VHF Heavy Duty Antenna Kit w/Fibreglass Antenna + 30m HD Lead 118.00 to 136.00mhz
In Stock
$495.00
inc GST
Base Station Airband VHF Heavy Duty Antenna Kit w/Fibreglass Antenna + 30m HD Lead 118.00 to 136.00mhz
$495.00
inc GST
