11% OFF
RRP $785
Product Description
MAST MOUNTING
The M1GP124KIT can be mounted onto any vertical mast using worm drive hose clamps.
NOTE: Longer Feed Cables are available as a Special Order. Call 07 5536 8694 to enquire.
Base Station Airband VHF Fibreglass Ground Plane Antenna Kits 118.00 to 136.00 MHz
Airband Ground Plane VHF Antenna Kits
Choose from one of the kits below -
1. Standard Range - Base Station Airband VHF Fibreglass Ground Plane Antenna Kit
2. Long Range - Base Station Airband VHF Fibreglass Ground Plane Antenna Kit
2. Long Range - Base Station Airband VHF Fibreglass Ground Plane Antenna Kit
GROUND PLANE ANTENNAS
Aircraft positioned directly overhead a Vertical High Gain Antenna often experience a 'blackspot' in communications that inhibit clear and effective radio transmissions until they have passed by. The GP124 eliminates this shadowed area keeping VHF signal strength at a maximum for both transmitting and receiving.
The GP124 is a omnidirectional unity gain ground plane Airband antenna ideal for local area coverage when a high gain antenna is not suitable. The broad vertical beamwidth offers excellent null fill for consistent signal coverage.
DESCRIPTION

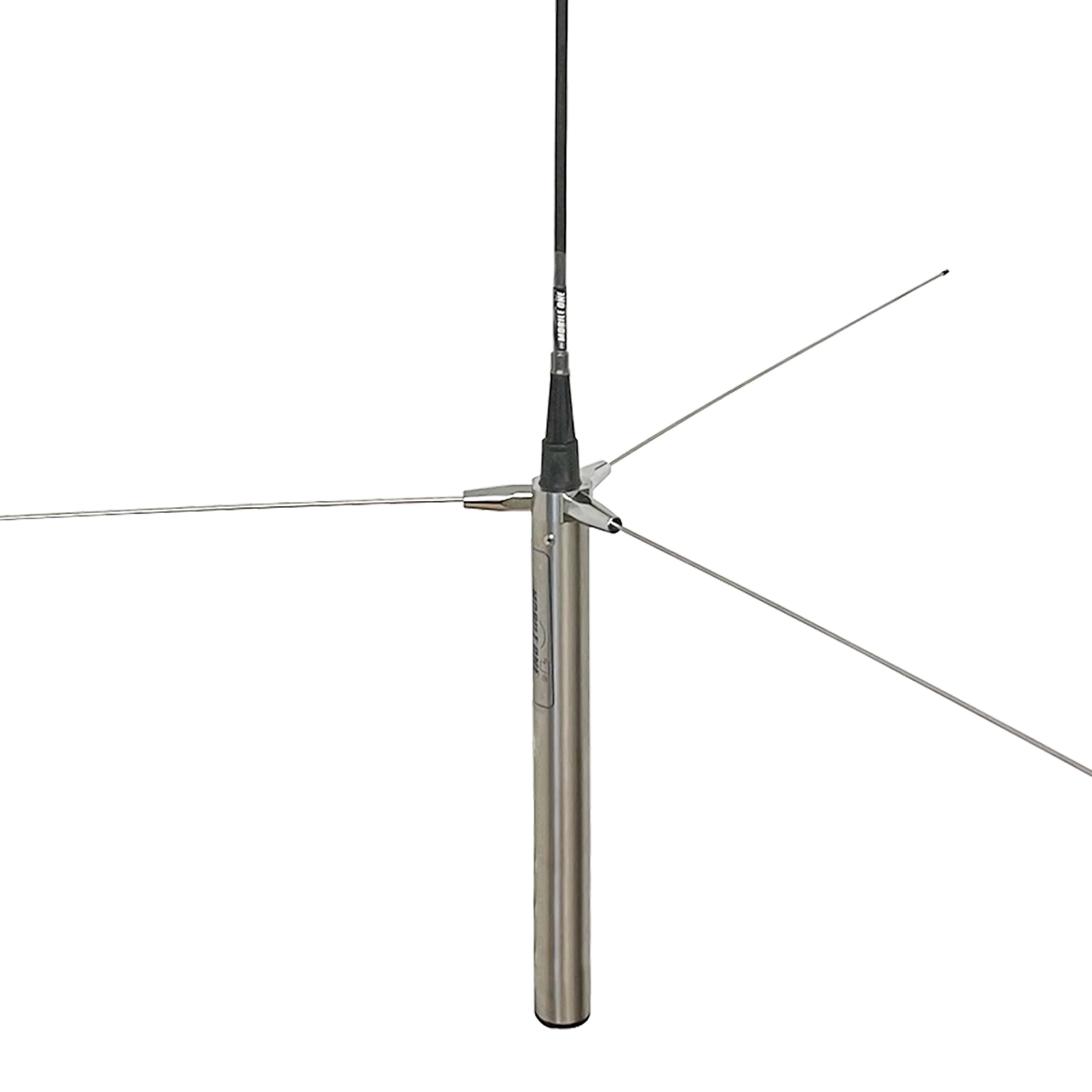

The GP124 is a 0.85 meter 1/4 Wave Fibreglass Whip Antenna with three perpendicularly mounted 1/4 Wave Stainless Steel Whip Antennas that has a 300mm x 20mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 200mm Coaxial pigtail featuring a waterproof FME Male Connector.

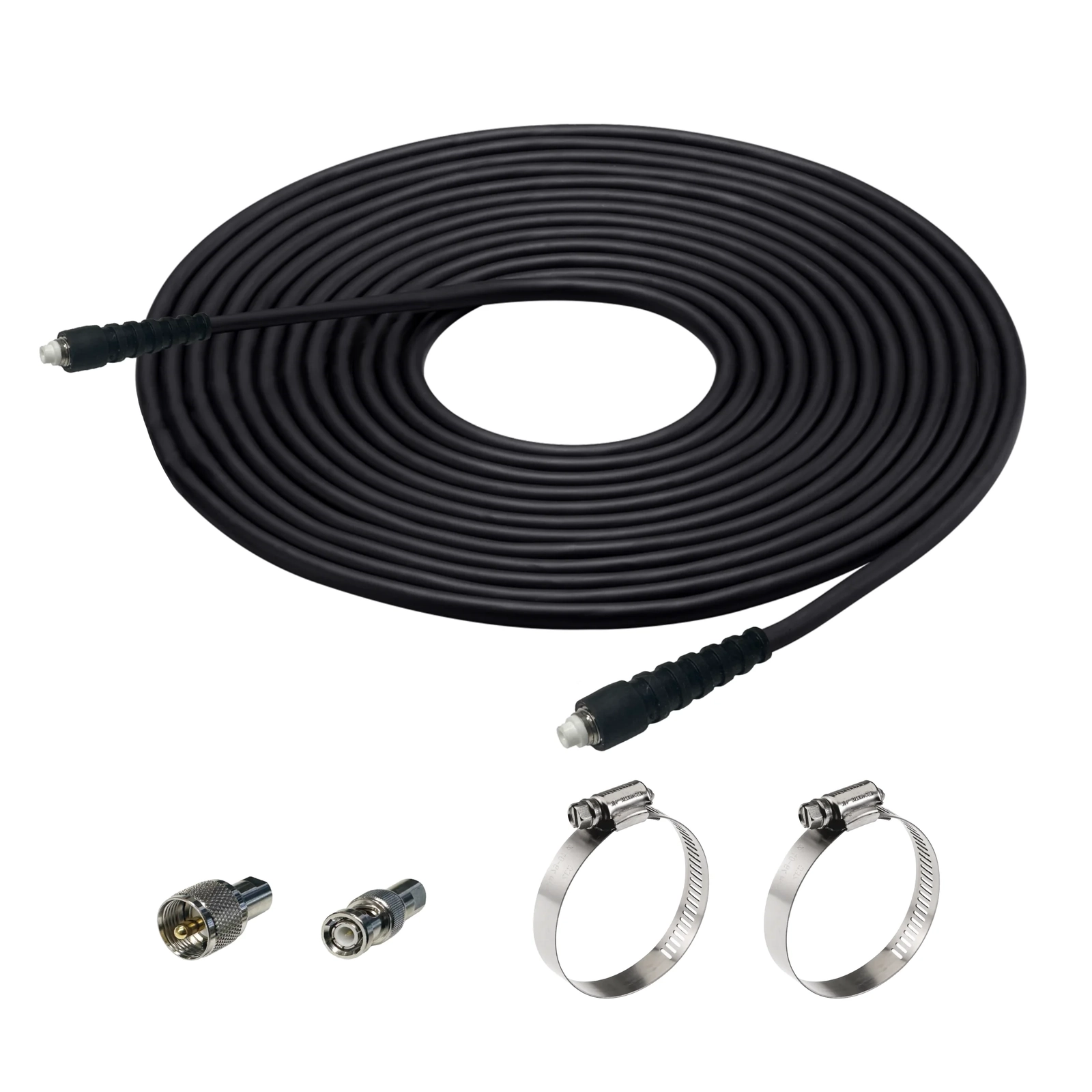

Included in the kit is a 10m feed cable with waterproof FME Female Connectors on both ends. There are two types of FME adapters supplied for connection to either a handheld VHF radio or a base station VHF transceiver.

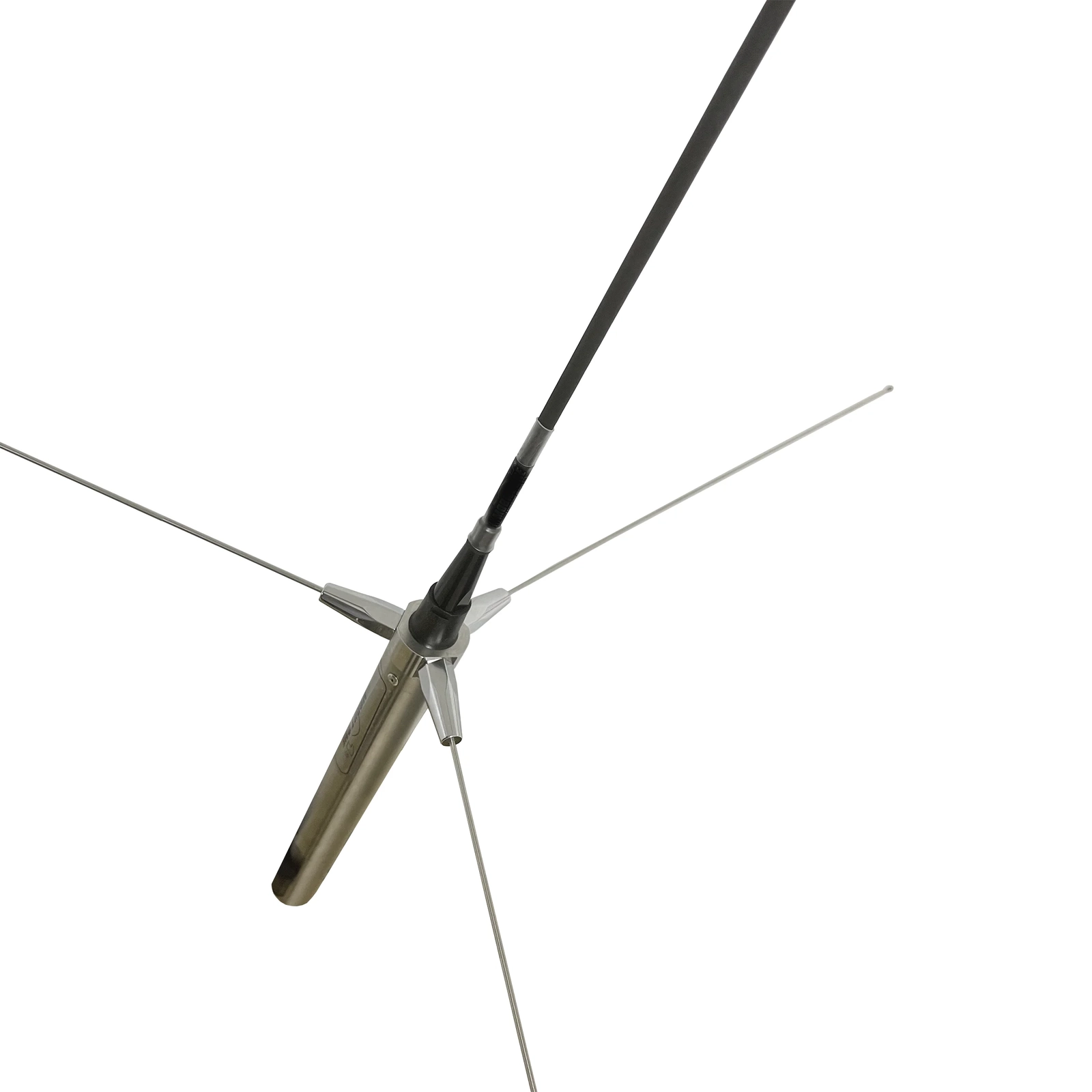

Electrically, the GP124 antenna is a quarter wave radiating element with three radials acting as a counterpoise. The three radial Stainless Steel Whip Antennas utilise a single bolt screw attachment design. The antenna is DC grounded for superior lightning protection and the reduction of precipitation static noise.
APPLICATIONS
-
Airfield VHF Pilot Activated Runway Lighting Systems
-
Close Contact Airfield Operations
-
Ground Communications for Aircraft in the Circuit Pattern
PROS
- Very broadband
- Covers the entire Airband 118 to 136MHz
- Ideal for scanning the Airwaves
- Waterproof Connectors
- Stainless Steel Base

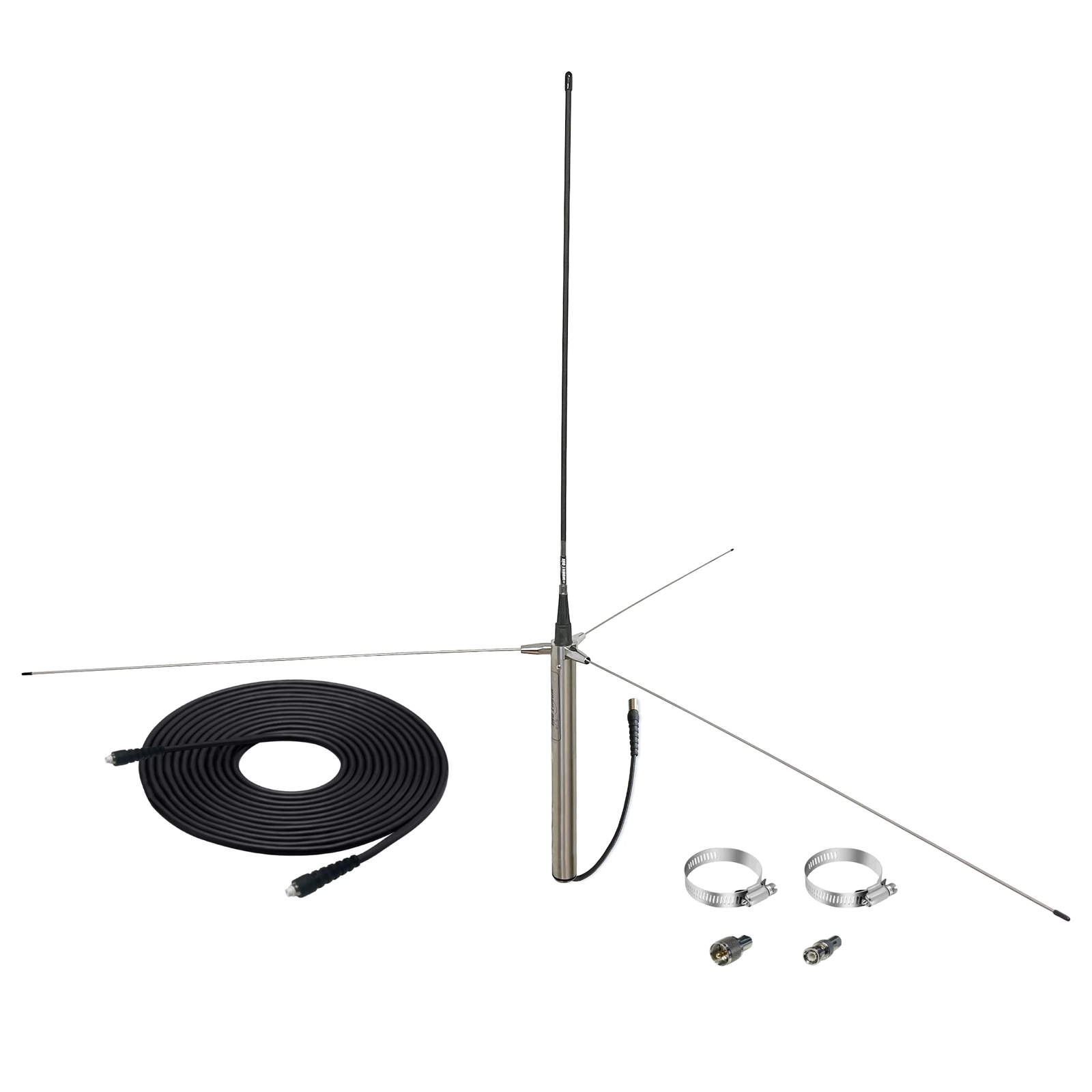

KIT 1 (STANDARD KIT) INCLUDES
1/4 Wave VHF Standard Gain +3dBi Fibreglass Whip Antenna (515mm) (x1)
1/4 Wave VHF Stainless Steel Whip Antennas (x3)
4-Way Ground Plane VHF Antenna Base Mount with Coaxial Pigtail
RG58/CU Coaxial Cable FME Female Connectors (10m)
FME Male to BNC Male Adapter
FME Male to PL259 Male Adapter
Worm Drive Clamps - 85mm Stainless Steel for mast mounting (x2)
KIT 2 (LONG RANGE KIT) INCLUDES
1/4 Wave VHF Long Range High Gain +3.3dBi Fibreglass Whip Antenna (1670mm) (x1)
1/4 Wave VHF Stainless Steel Whip Antennas (x3)
4-Way Ground Plane VHF Antenna Base Mount with Coaxial Pigtail
RG58/CU Coaxial Cable FME Female Connectors (10m)
FME Male to BNC Male Adapter
FME Male to PL259 Male Adapter
Worm Drive Clamps - 85mm Stainless Steel for mast mounting (x2)
The M1GP124KIT can be mounted onto any vertical mast using worm drive hose clamps.
NOTE: Longer Feed Cables are available as a Special Order. Call 07 5536 8694 to enquire.
Specifications
1. Standard Range - Base Station Airband VHF Fibreglass Ground Plane Antenna Kit
| Antenna Vertical | Polyfin Fibreglass 550mm |
| Antennas Horizontal | 3x Stainless Steel 545mm |
| Antenna Fittings | 5/16" Screw type |
| Overall Height | 850mm |
| Base Length | 300mm |
| Base Diameter | 20mm |
| Base Material | Stainless Steel Tube |
| Base Pigtail | 200mm Coaxial Pigtail FME Male |
| Antenna Weight | 750g |
| Cable Length | 10 meters |
| Cable Type | RG58/CU Coaxial Cable |
| Cable Connectors | FME Female |
| Adapters |
FME BNC Male / FME PL259 Male
|
| VSWR | 1.5:1 from 118-128 Mhz |
| VSWR | 2:1 from 117-133 Mhz |
| Gain | +3dBi​ |
| Waterproof | Pigtail, Cable and Connectors |
| Manufactured | Made in Australia |
2. Long Range - Base Station Airband VHF Fibreglass Ground Plane Antenna Kit
| Antenna Vertical | Polyfin Fibreglass 1670mm |
| Antennas Horizontal | 3x Stainless Steel 545mm |
| Antenna Fittings | 5/16" Screw type |
| Overall Height | 1970mm |
| Base Length | 300mm |
| Base Diameter | 20mm |
| Base Material | Stainless Steel Tube |
| Base Pigtail | 200mm Coaxial Pigtail FME Male |
| Antenna Weight | 750g |
| Cable Length | 10 meters |
| Cable Type | RG58/CU Coaxial Cable |
| Cable Connectors | FME Female |
| Adapters |
FME BNC Male / FME PL259 Male
|
| VSWR | 1.5:1 from 118-128 Mhz |
| VSWR | 2:1 from 117-133 Mhz |
| Gain | +3.3dBi​ |
| Waterproof | Pigtail, Cable and Connectors |
| Manufactured | Made in Australia |
| SKU | M1GP124-KITS |
| Brand | FlightStore |
| Shipping Weight | 1.5000kg |
| Unit Of Measure | ea |
