Antenna Cable Kit with Ground Plain Base Mount

$125.00

inc GST

Product Description

Antenna Cable Kit with Ground Plain Base Mount

NOTE: This listing is for the Ground Plane Base Mount and cable Only and DOES NOT include the 4 antennas required to make it operational.

Aircraft positioned directly overhead a Vertical High Gain Antenna often experience a 'blackspot' in communications that inhibit clear and effective radio transmissions until they have passed by. The GP124 eliminates this shadowed area keeping VHF signal strength at a maximum for both transmitting and receiving.

The GP124 is a omnidirectional unity gain ground plane Airband antenna ideal for local area coverage when a high gain antenna is not suitable. The broad vertical beamwidth offers excellent null fill for consistent signal coverage.

DESCRIPTION

The GP124 is a 0.85 meter 1/4 Wave Fibreglass Whip Antenna with three perpendicularly mounted 1/4 Wave Stainless Steel Whip Antennas that has a 300mm x 20mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 200mm Coaxial pigtail featuring a waterproof FME Male Connector.

Included is a Ground Plain Base Mount + 10m feed cable with waterproof FME Female Connectors on both ends. There are two types of FME adapters supplied for connection to either a handheld VHF radio or a base station VHF transceiver.

Electrically, the GP124 antenna is a quarter wave radiating element with three radials acting as a counterpoise. The three radial Stainless Steel Whip Antennas utilise a single bolt screw attachment design. The antenna is DC grounded for superior lightning protection and the reduction of precipitation static noise.

APPLICATIONS

Airfield VHF Pilot Activated Runway Lighting Systems
Close Contact Airfield Operations
Ground Communications for Aircraft in the Circuit Pattern

PROS

Very broadband
Covers the entire Airband 118 to 136MHz
Ideal for scanning the Airwaves
Waterproof Connectors
Stainless Steel Base

INCLUDES

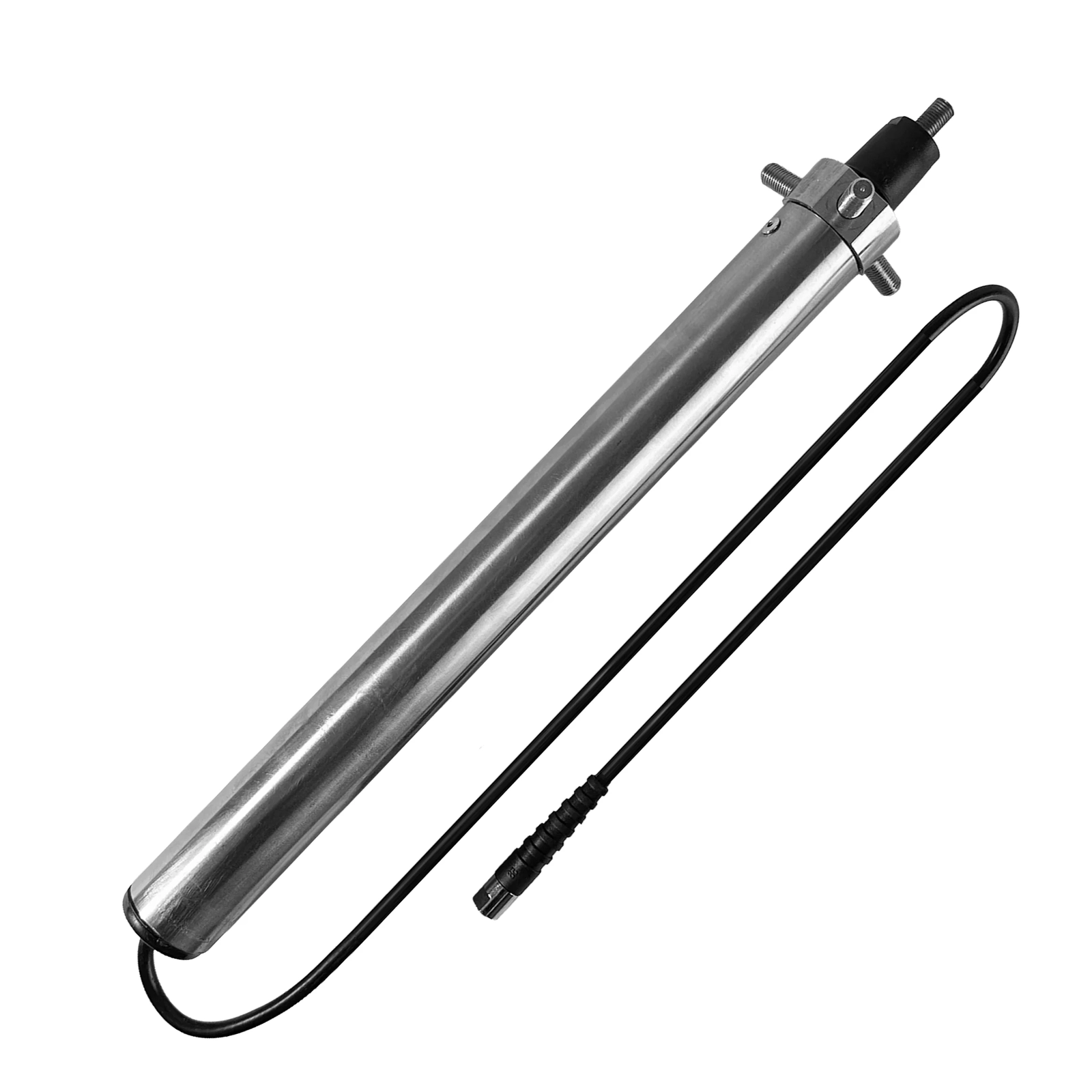

4-Way Ground Plane VHF Antenna Base Mount with Coaxial Pigtail

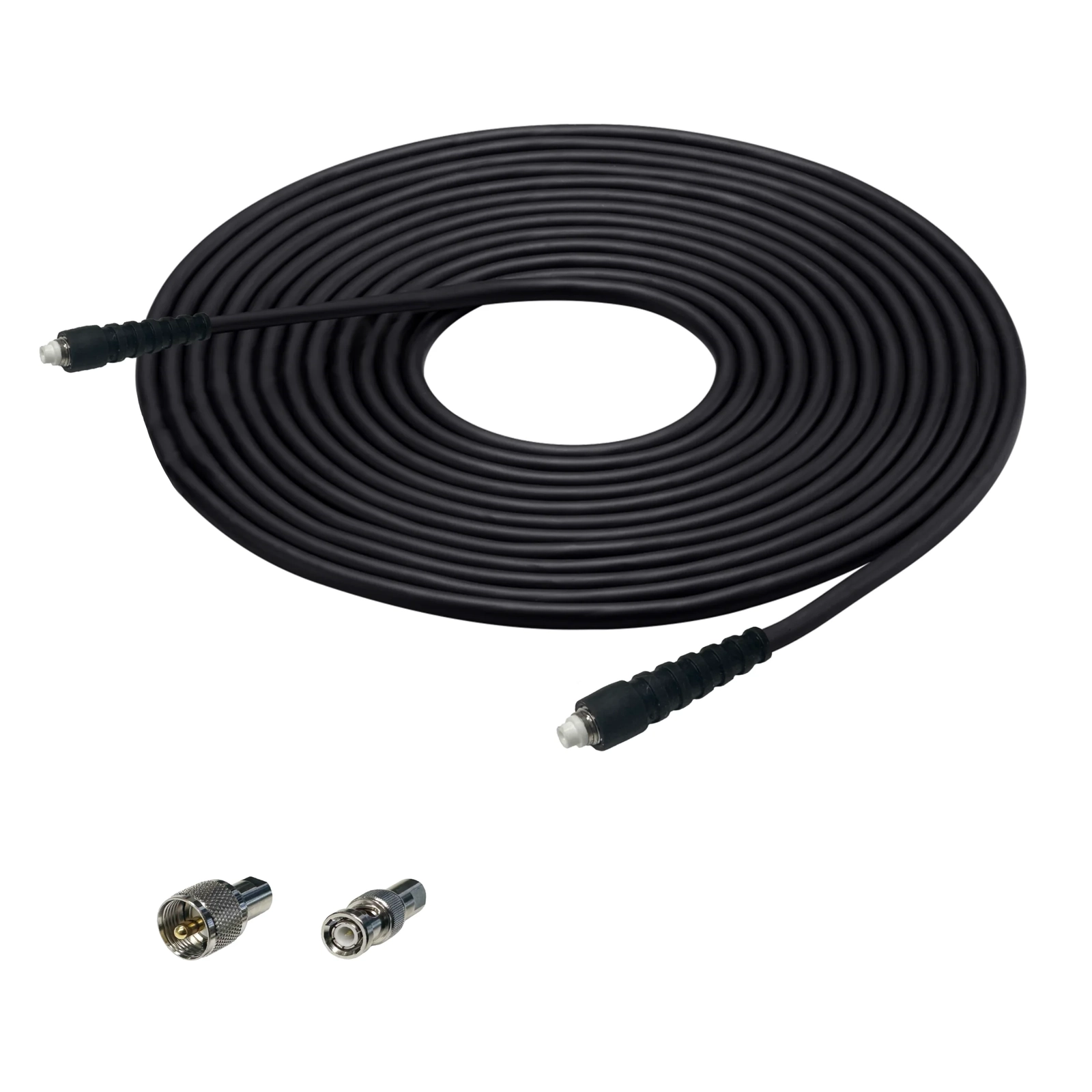

RG58/CU Coaxial Cable FME Female Connectors (10m)

FME Male to BNC Male Adapter

FME Male to PL259 Male Adapter

MAST MOUNTING

The M1GPKITBASE can be mounted onto any vertical mast using worm drive hose clamps.

NOTE: Longer Feed Cables are available as a Special Order. Call 07 5536 8694 to enquire.

Specifications
