Product Description

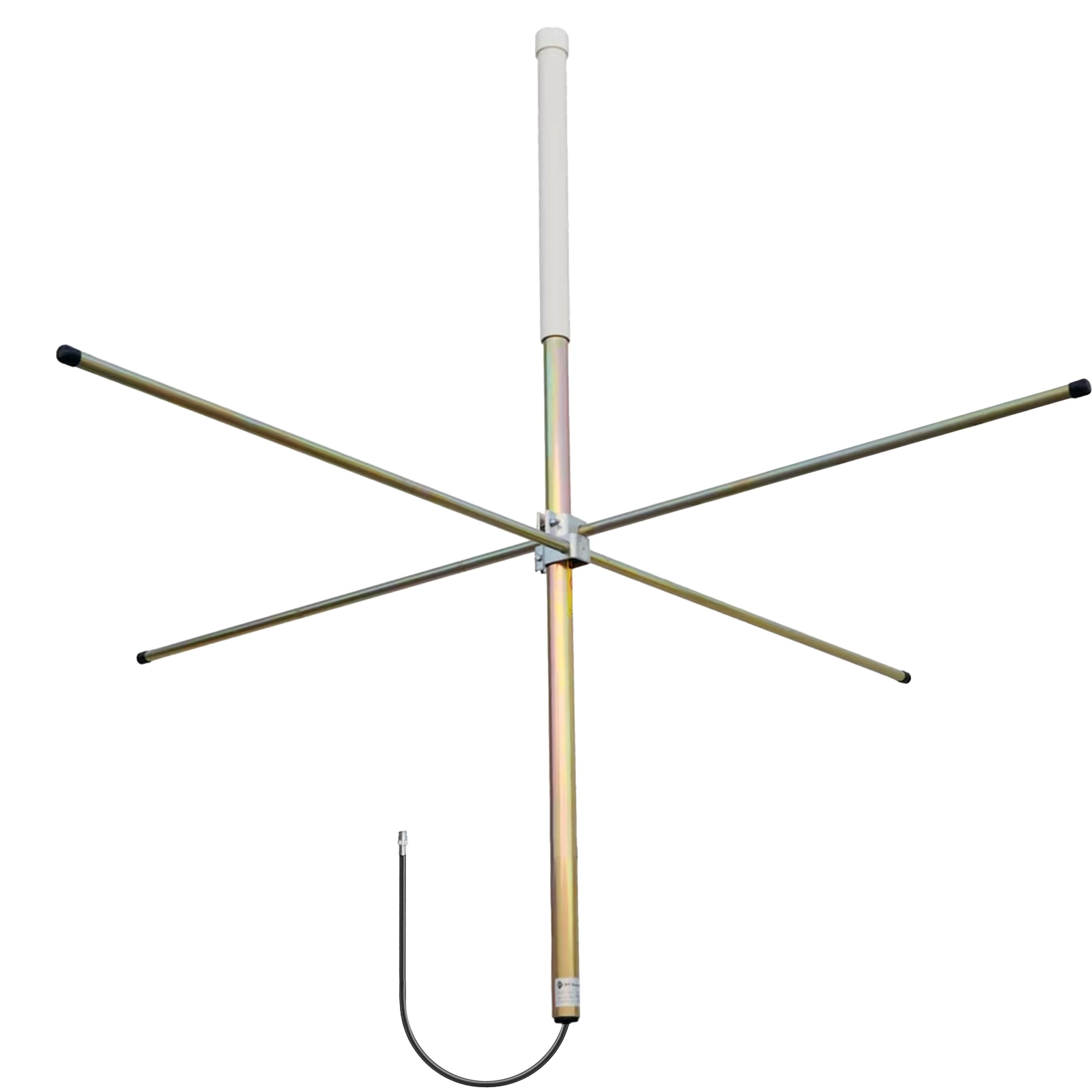

Heavy Duty Ground Plane Antenna 118 - 136Mhz
The Heavy Duty GP antenna is a omnidirectional unity gain adjustable ground plane antenna ideal for local area coverage when a high gain antenna is not required or justified. The broad vertical beamwidth offers excellent null fill for consistent signal coverage. The antennas are easily tuned in the field by adjusting the position of the ground plane elements.
Electrically, the Heavy Duty GP antenna is a quarter wave radiating element with the radials acting as a counterpoise. These radials are of one-piece construction, and utilise a unique single bolt clamping design. The antennas are DC grounded for superior lightning protection and the reduction of precipitation static noise.
KEY FEATURES
- Easily field tuned by adjusting the position of the radials
- Lightweight and easy to mount
- Broad vertical beamwidth for excellent null fill
- Compact - Shipped disassembled for ease of handling
- Fitted with short RG-213 Pigtail with N-Type Connector
- *Cable and mounting hardware not included
NOTE*: Cable ordered separately. Compliment your order with a cable length to suit your installation.
See the selection options to the right or below the listing.
DOWNLOADS
Specifications
|
Frequency MHz
|
118 - 136
|
|
Horizontal Beamwidth
|
Omni +/-0.5dB
|
|
Vertical Beamwidth
|
75°
|
|
Tuned Bandwidth
|
10MHz
|
|
Construction
|
Heavy duty aluminium radiating element encased in a PVC radome
|
|
Mounting Area
|
500mm x 40mm diam. aluminium
|
|
Termination
|
N female with 0.3m to 0.5m RG213 cable tail
|
|
VSWR
|
<1.5:1
|
|
Polarisation
|
Vertical
|
|
Power [W]
|
200
|
|
Antenna Type
|
Omni-Directional SISO
|
|
Antenna Application
|
Base Station Antenna
|
|
Antenna Configuration
|
SISO
|
| SKU | GP-118136 |
| Brand | FlightStore |
| Shipping Weight | 2.8000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.090m |
| Shipping Length | 1.480m |
| Shipping Cubic | 0.023976000m3 |
| Unit Of Measure | ea |
