Product Description
PROS
CONS
Base Station Airband VHF Fibreglass Antenna's & Kits - 118.00 to 136.00 MHz
Airband VHF Base Station Antenna's and Kits
| Choose from one of the options below - | |
|
1.
|
Heavy Duty (HD) Antenna Only
|
|
2.
|
Heavy Duty Antenna + 30m HD Lead & Adapters |
1. Base Station Airband VHF Fibreglass Heavy Duty Antenna - Antenna Only
This product is most suitable for FBO (Fixed Base Operator) or Airfield Lighting applications.
This product in a HEAVY DUTY design for extreme environments such as very low temperatures where ice / sleet / high winds are normal such as on mountain towers. Designed using a 32mm thick walled stainless steel mounting tube fitted with a double wall fibreglass radome and topped with a bird proof cap. The 500mm pigtail is pre-terminated with an in-line ‘N’ Type female connector.
The M1CDB124HD is a 1.5 meter Ground Independent Coaxial Dipole Fibreglass Base Antenna that has a 200mm x 20mm diameter stainless steel base tube for mast mounting.
The M1CDB124HD is broadband antenna that covers the entire Aviation Air Band Frequency Range from 118MHz to 136MHz without the need for tuning.
Antenna Center Frequency tuned to 124MHz
Voltage Standing Wave Ratio or VSWR = less than 1.5:1 from 119-129 Mhz (10Mhz) / VSWR = less than 2:1 from 118-136 Mhz (20Mhz)
Voltage Standing Wave Ratio or VSWR = less than 1.5:1 from 119-129 Mhz (10Mhz) / VSWR = less than 2:1 from 118-136 Mhz (20Mhz)
PROS
- Very broadband
- Covers the entire Airband 118 to 136MHz
- Ideal for scanning the Airwaves
- Waterproof Connectors
- Stainless Steel Base
CONS
- Not suitable for mobile use and should be mounted as high as possible to get the best performance
INCLUDES

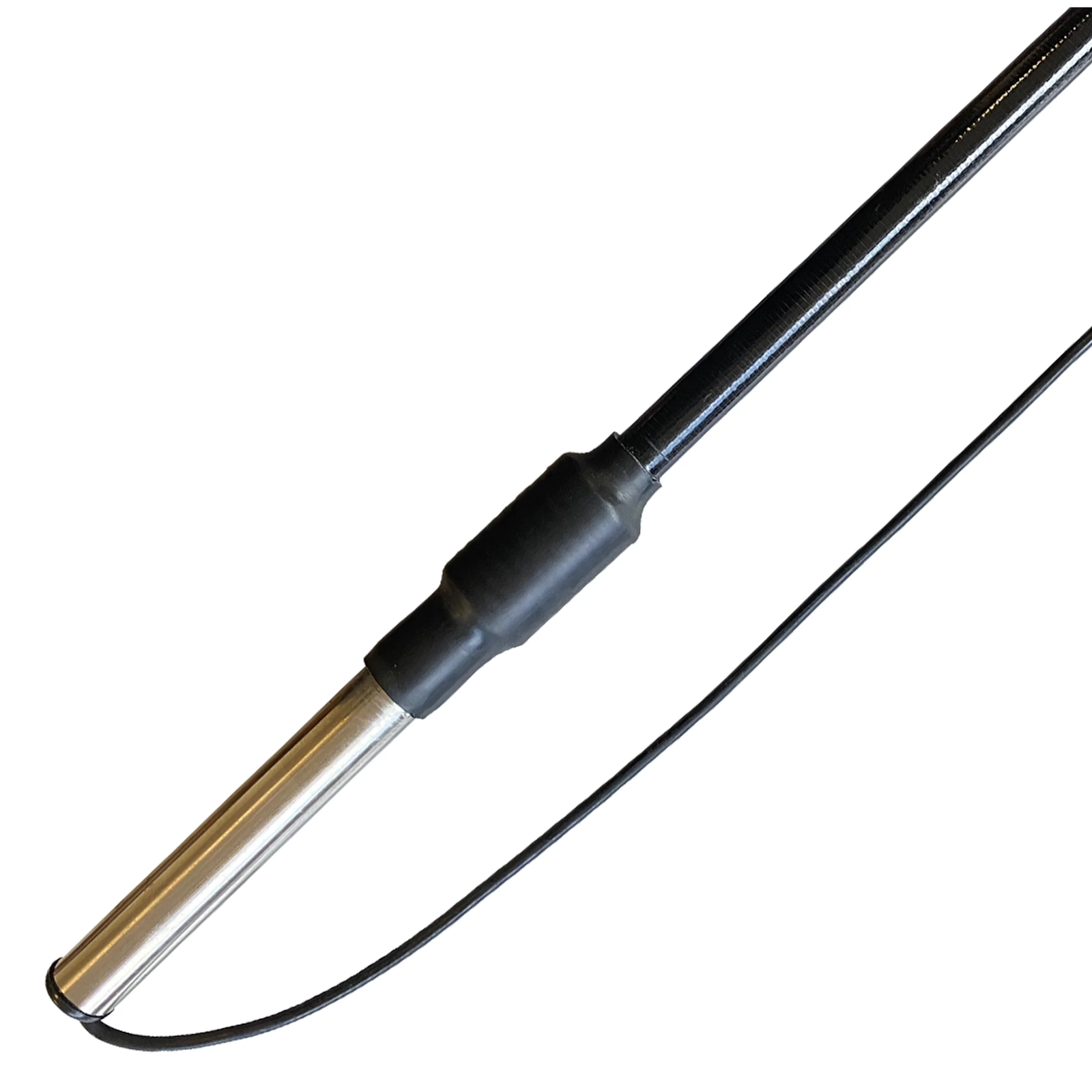

Fibreglass VHF Antenna 1400mm - Stainless Steel Base with 500mm pigtail pre-terminated with an in-line ‘N’ Type female connector.
----------------------------------------------------------------------------------------
2. Base Station Airband VHF Fibreglass Heavy Duty Antenna Kit
30m HD Lead 118.00 to 136.00 MHz
This product is most suitable for FBO (Fixed Base Operator) or Airfield Lighting applications.
The M1CDB124HD is a 14 meter Ground Independent Coaxial Dipole Heavy Duty Fibreglass Base Antenna that has a 200mm x 32mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 500mm Coaxial pigtail featuring a waterproof inline SO239 Connector. Included in the kit is a Heavy Duty 30m feed cable with heatshrink sealed waterproof PL259 Male Connectors on both ends. There are 2 stainless steel wormdrive clamps included for mounting.
The M1CDB124HD is broadband antenna that covers the entire Aviation Air Band Frequency Range from 118MHz to 136MHz without the need for tuning.
This product is most suitable for FBO (Fixed Base Operator) or Airfield Lighting applications.
The M1CDB124HD is a 14 meter Ground Independent Coaxial Dipole Heavy Duty Fibreglass Base Antenna that has a 200mm x 32mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 500mm Coaxial pigtail featuring a waterproof inline SO239 Connector. Included in the kit is a Heavy Duty 30m feed cable with heatshrink sealed waterproof PL259 Male Connectors on both ends. There are 2 stainless steel wormdrive clamps included for mounting.
The M1CDB124HD is broadband antenna that covers the entire Aviation Air Band Frequency Range from 118MHz to 136MHz without the need for tuning.
Antenna Center Frequency tuned to 124MHz
Voltage Standing Wave Ratio or VSWR = less than 1.5:1 from 119-129 Mhz (10Mhz) / VSWR = less than 2:1 from 118-136 Mhz (20Mhz)
Voltage Standing Wave Ratio or VSWR = less than 1.5:1 from 119-129 Mhz (10Mhz) / VSWR = less than 2:1 from 118-136 Mhz (20Mhz)
PROS
- Very broadband
- Covers the entire Airband 118 to 136MHz
- Ideal for scanning the Airwaves
- Waterproof Connectors
- Stainless Steel Base
CONS
- Not suitable for mobile use and should be mounted as high as possible to get the best performance
KIT INCLUDES

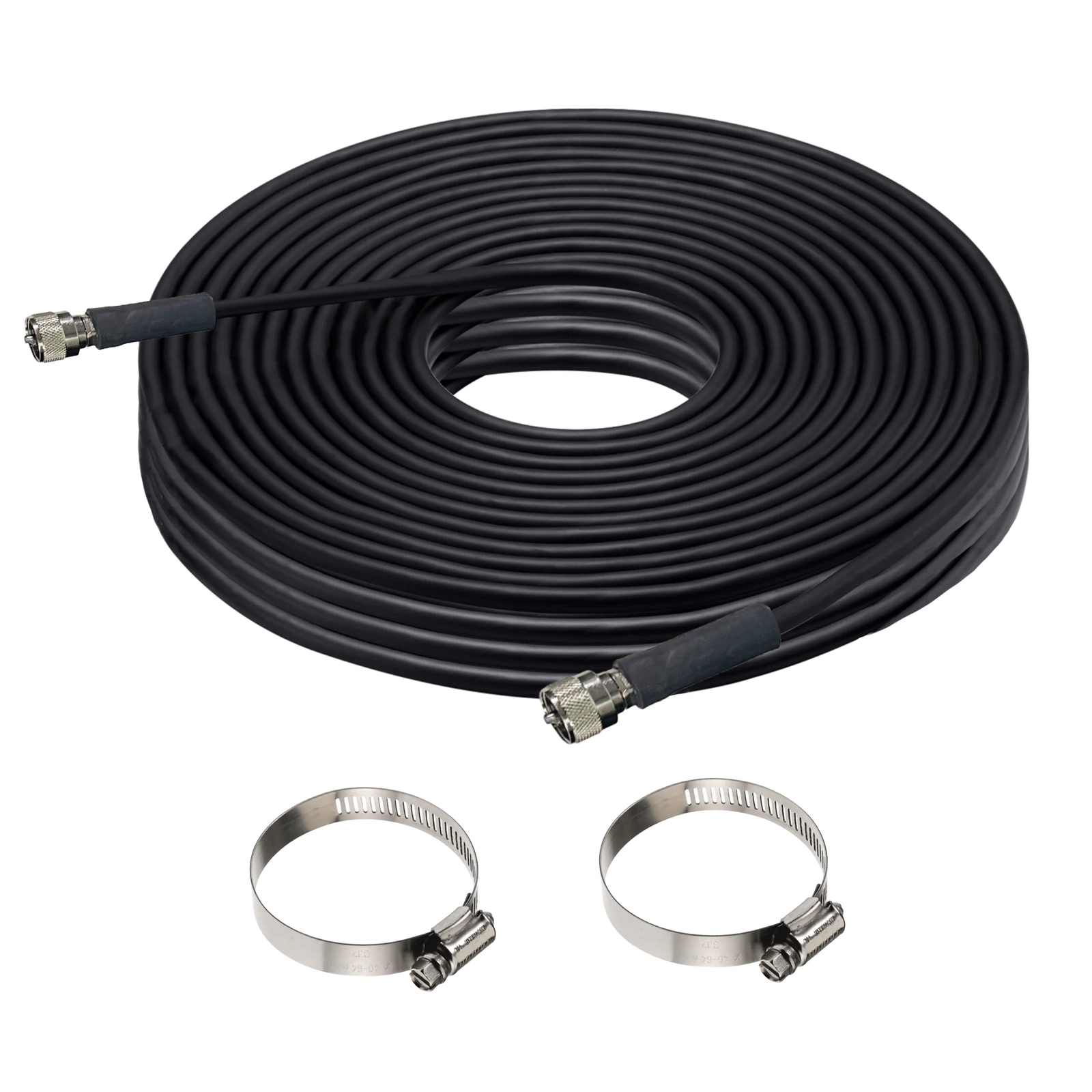

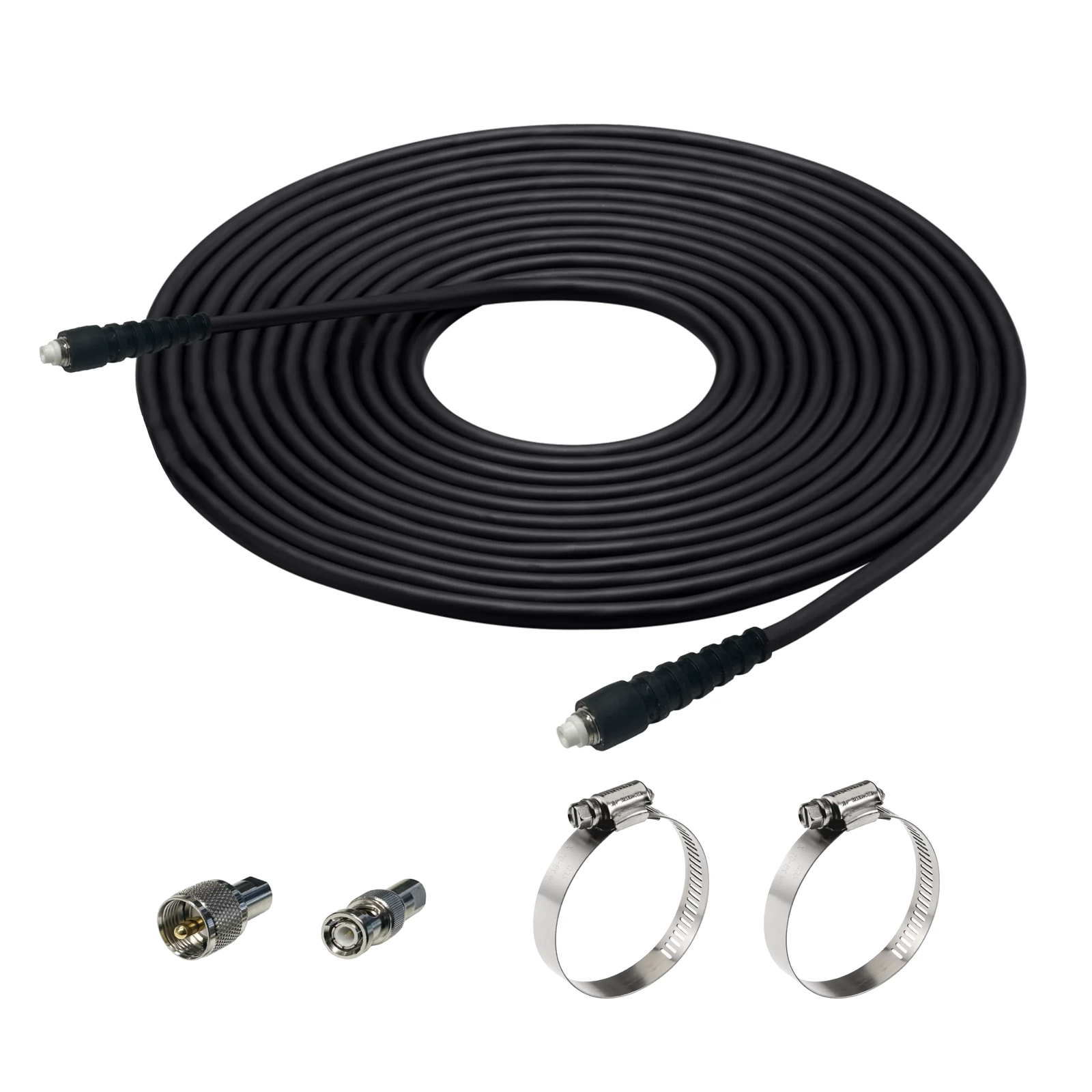

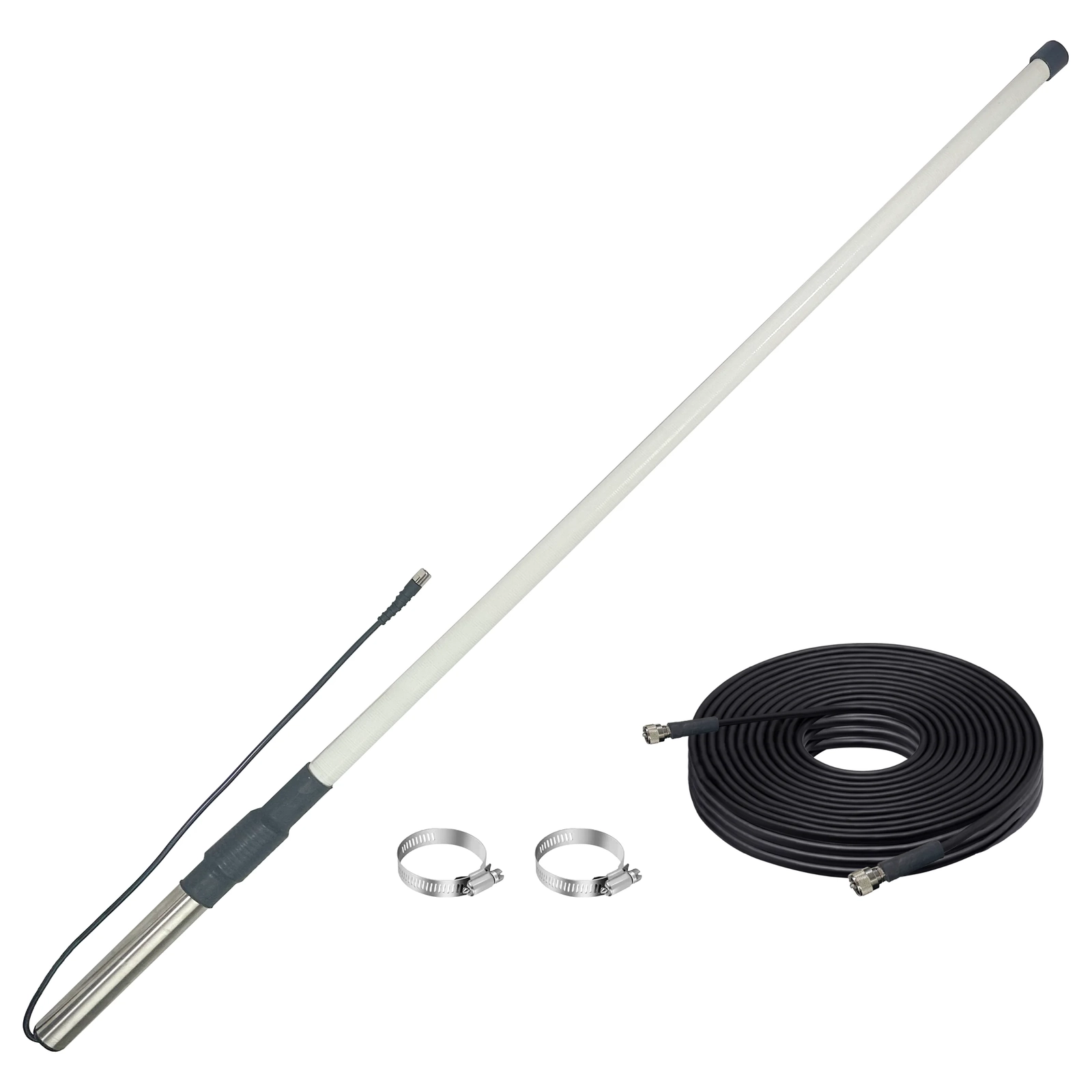

Fibreglass VHF Antenna 1400mm - Stainless Steel Base with 500mm pigtail pre-terminated with an in-line ‘N’ Type female connector.Heavy Duty LMR400 Coaxial Cable N-Type & PL259 Connectors (30m)

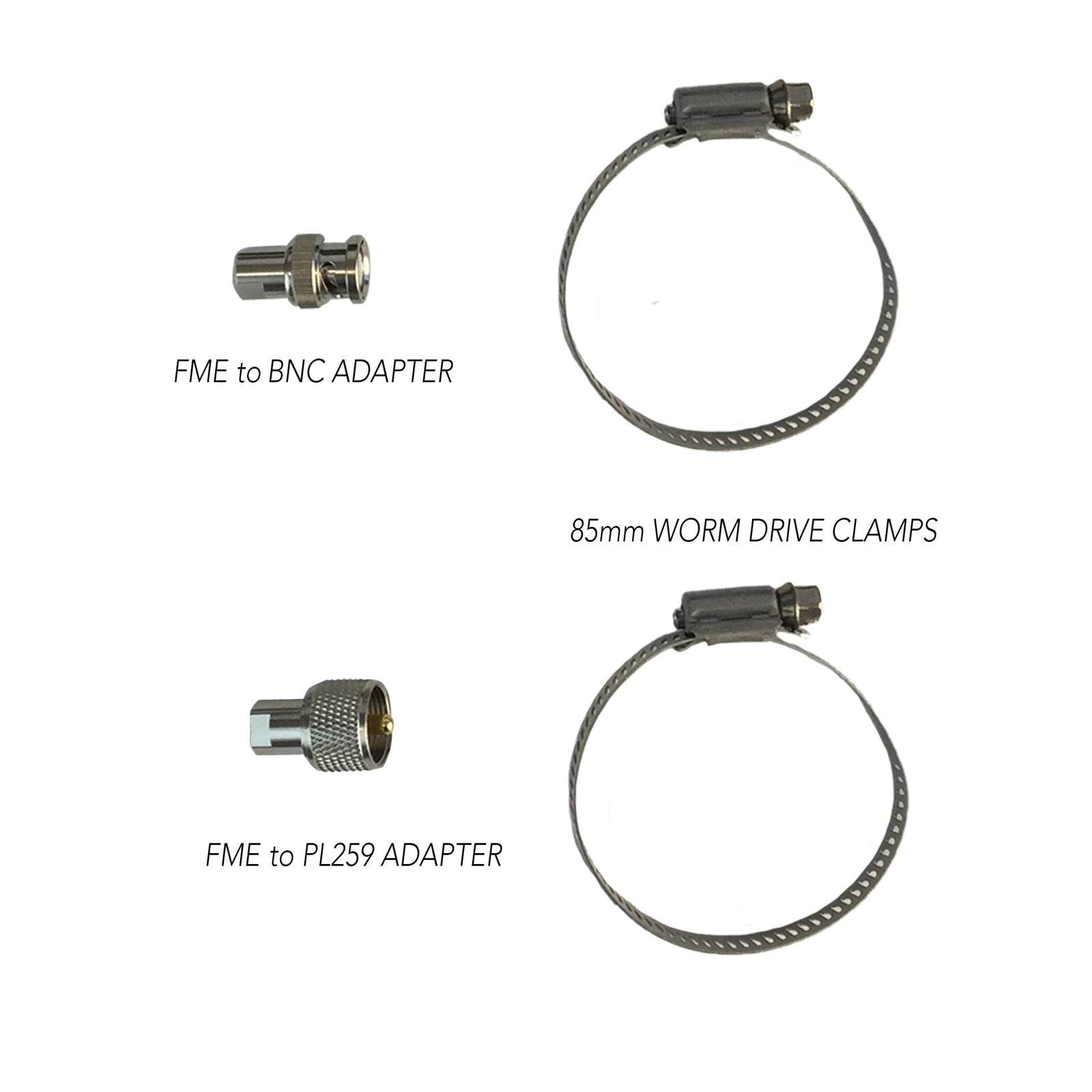

Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Amalgum Tape to waterproof wrap connectors once fitted
MAST MOUNTING

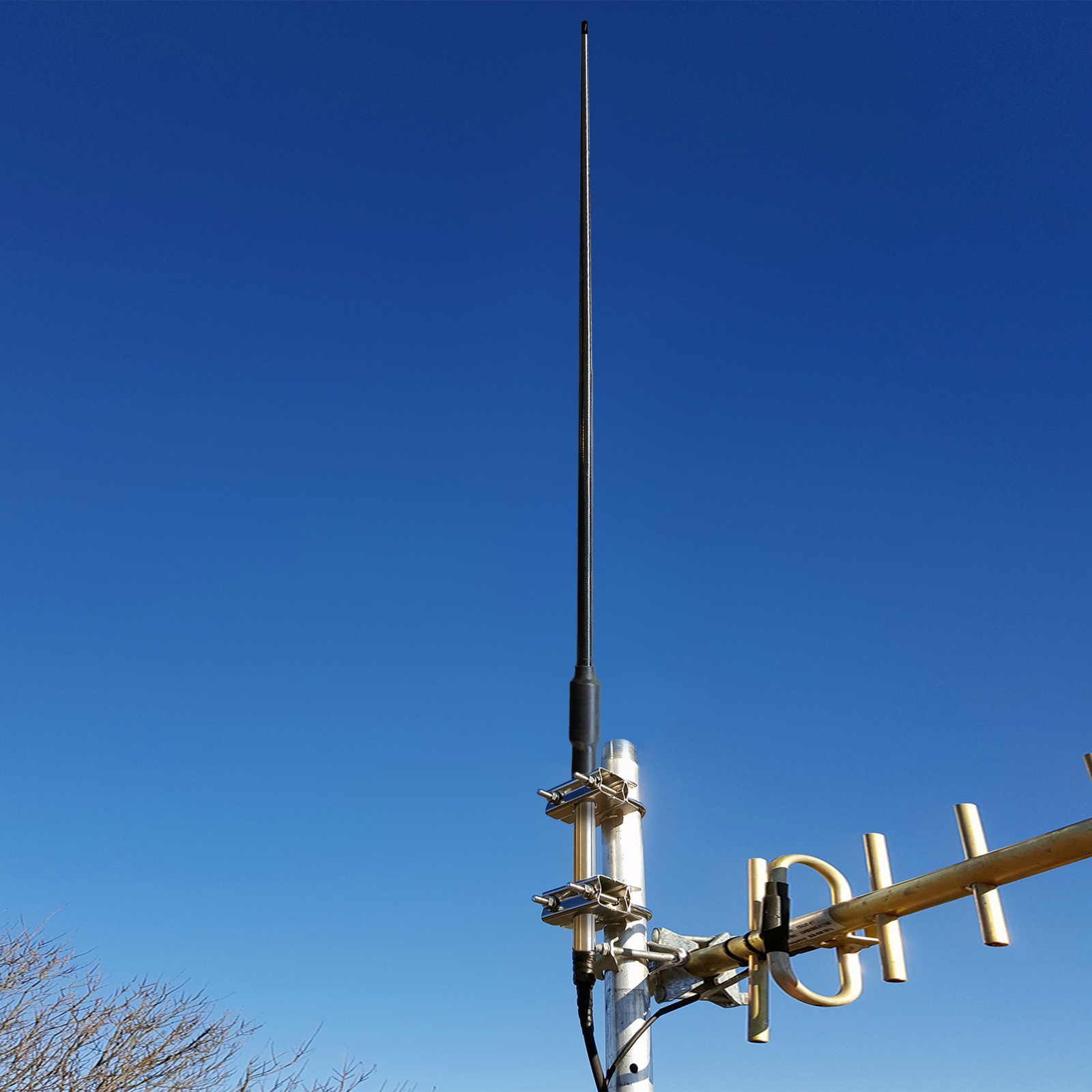

The M1CDB124 can be mounted onto any vertical mast using worm drive hose clamps.
MAST MOUNTING
The M1CDB124 can be mounted onto any vertical mast using worm drive hose clamps.
NOTE: Longer Feed Cables are available as a Special Order.

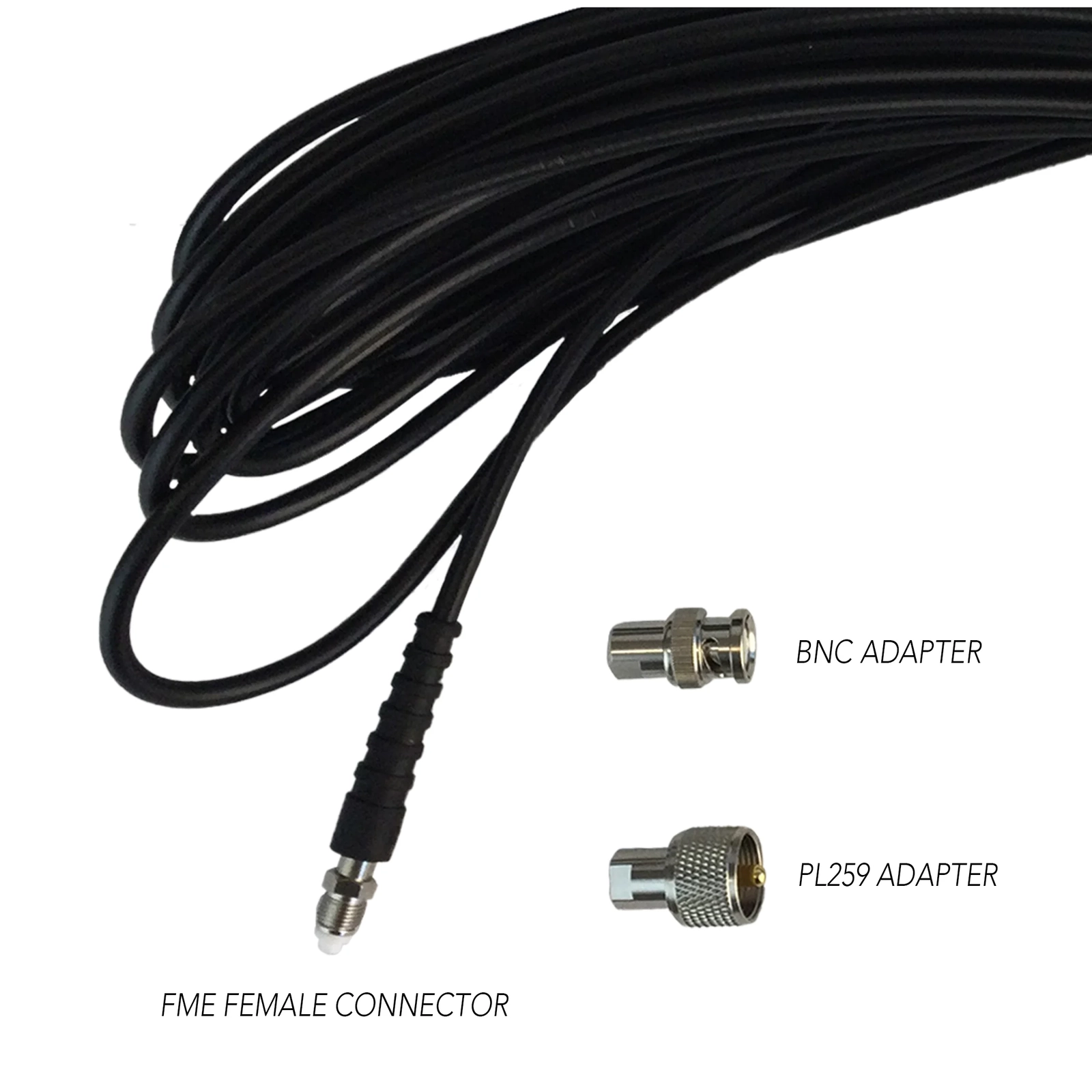

NOTE: SOCBNC - SO239 (Icom IC-A120) to BNC (Icom IC-A16) adapter avalable upon request.
Email: sales@flightstore.com.au or Call 07 5536 8694 to enquire.
Specifications
Base Station Airband VHF Fibreglass Heavy Duty Antenna Kit - 30m HD Lead 118-136MHz
| Antenna Length | 1200mm (38") |
| Overall Length | 1400mm (48") |
| Base Length | 200mm |
| Base Diameter | 32mm |
| Base Material | Stainless Steel Tube |
| Base Pigtail | 500mm Coaxial Pigtail FME Male |
| Antenna Weight | 350g |
| Cable Length | 30 meters |
| Cable Type | LMR400 Heavy Duty Coaxial Cable |
| Construction |
Foam Insulated / Solid Core Center
|
| Cable Connectors | N-Type & PL259 Male |
|
VSWR
|
1.5:1 from 118-128 Mhz
|
| VSWR | 2:1 from 117-133 Mhz |
| Gain | +3dBi |
| Waterproof | Pigtail, Cable and Connectors |
| Manufactured | Made in Australia |
| SKU | M1CDB124-HD-KITS |
| Brand | FlightStore |
| Unit Of Measure | ea |
