Product Description
PROS
Base Station CDB124 Airband VHF Fibreglass Antenna 3dBi 118-136MHz - 1500mm
Airband VHF Base Station Antenna's and Kits
| Choose from one of the options below - | |
|
1.
|
Standard Antenna Only
|
|
2.
|
Standard Antenna + RG58 Cable Kit (10m) & Connectors
|
| 3. | Standard Antenna + RG58 Cable Kit (15m) & Connectors |
1. Base Station CDB124 Airband VHF Fibreglass Antenna 3dBi 118-136MHz - 1500mm - Antenna Only
This product is most suitable for FBO (Fixed Base Operator) or Airfield Lighting Applications.

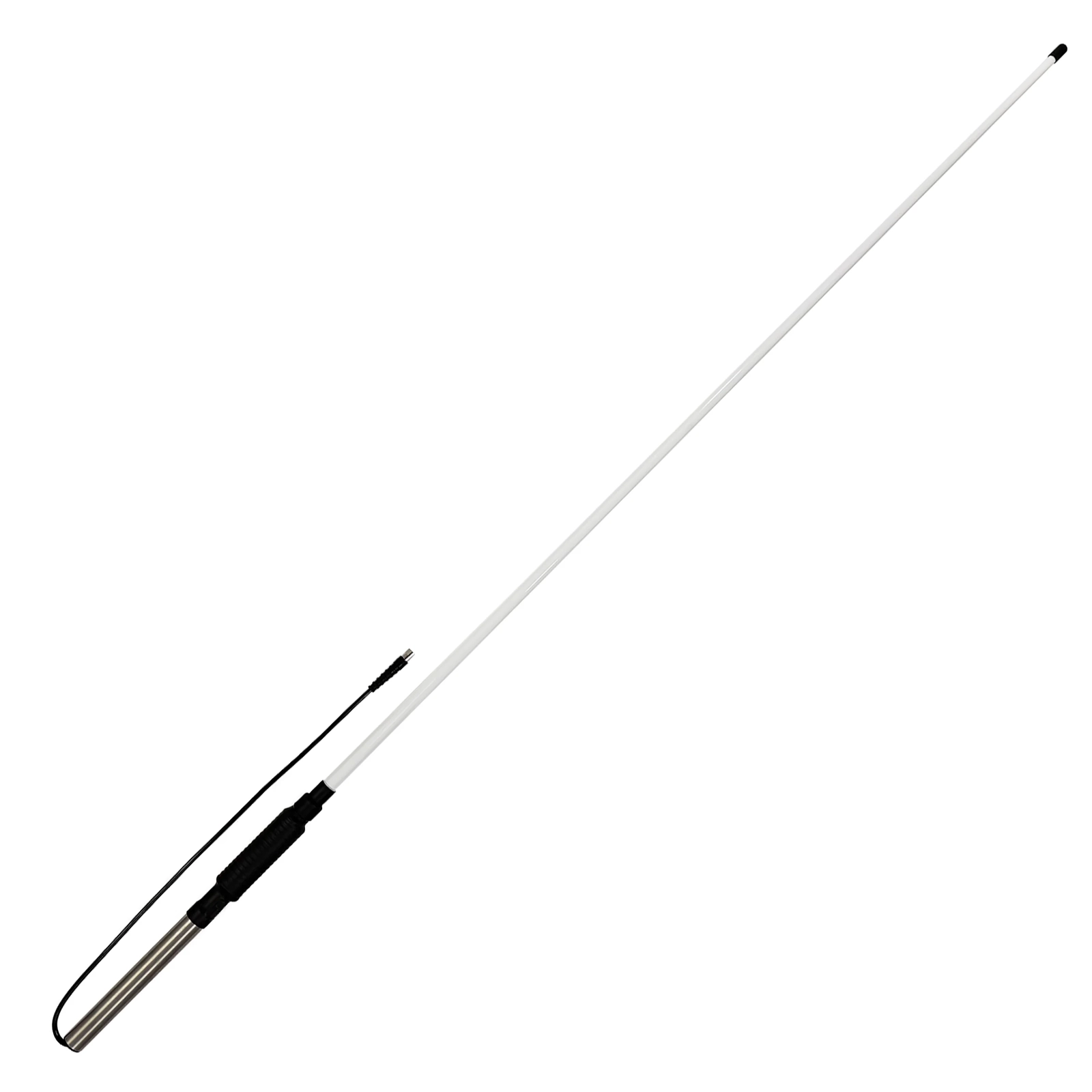

The CDB124 is a 1.5 meter Ground Independent Coaxial Dipole Fibreglass Base Antenna that has a 150mm x 20mm diameter stainless steel base tube for mast mounting. The antenna is supplied with a 500mm Coaxial pigtail featuring a waterproof FME Male Connector. Included in the kit is a 10m feed cable with waterproof FME Female Connectors on both ends. There are 2 types of FME adapters supplied for connection to either a handheld VHF radio or a base station VHF transceiver.
The CDB124 is broadband antenna that covers the entire Aviation Air Band Frequency Range from 118MHz to 136MHz without the need for tuning.
Voltage Standing Wave Ratio or VSWR = 1.5:1 from 118-128 Mhz, VSWR = 2:1 from 117-133 Mhz
PROS
- Very broadband
- Covers the entire Airband 118 to 136MHz
- Ideal for scanning the Airwaves
- Waterproof Connectors
- Stainless Steel Base
CONS
- Not suitable for mobile use due to size and should be mounted as high as possible to get the best performance
INCLUDES
- Fibreglass VHF Antenna - Stainless Steel Base with Coaxial Pigtail (FME)
MAST MOUNTING

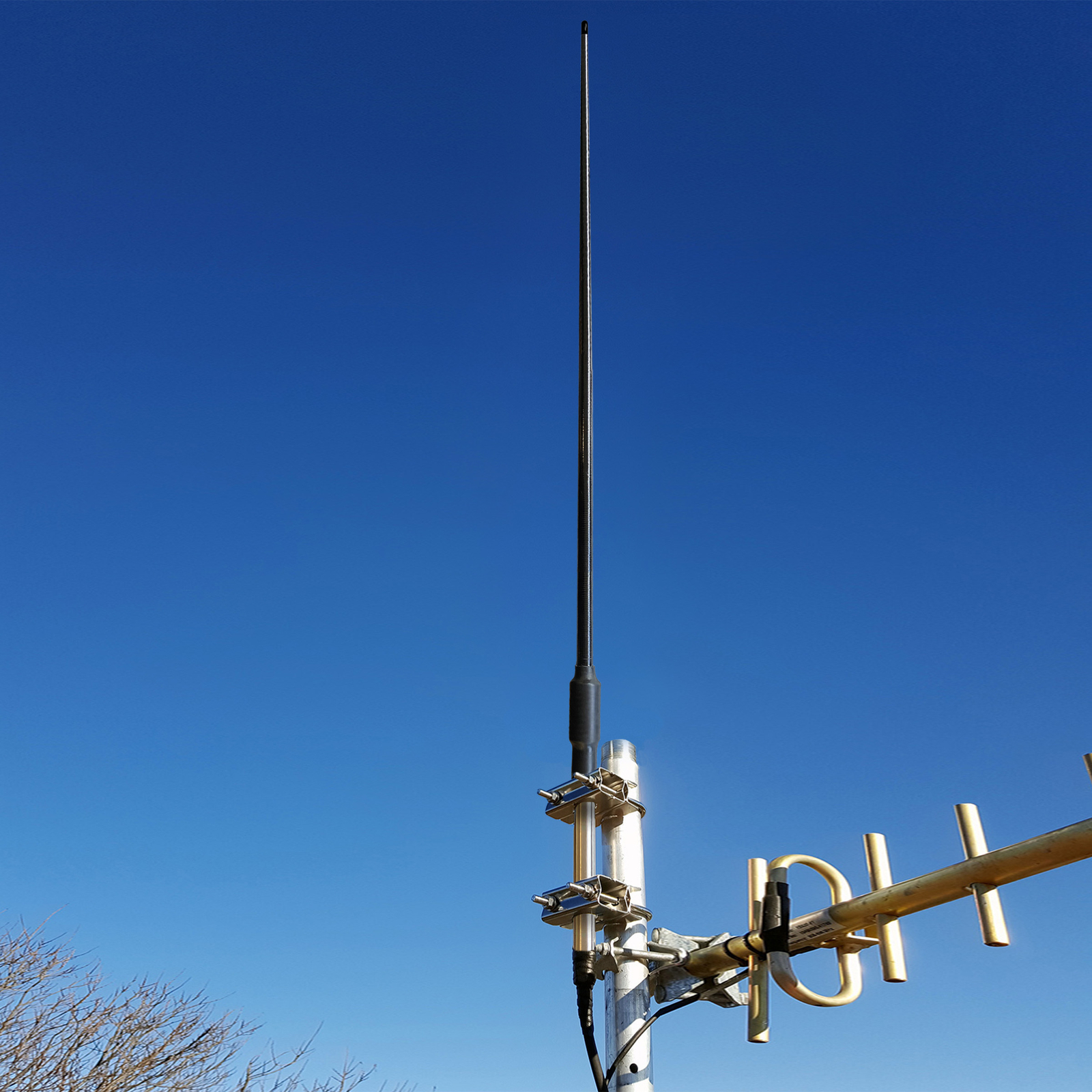

The CDB124 can be mounted onto any vertical mast using Worm Drive Hose Clamps (Supplied) or by using a Dual Parallel Antenna Mounting Bracket (Sold Separately).
----------------------------------------------------------------------------------------
2. Base Station CDB124 Airband VHF Fibreglass Antenna 3dBi 118-136MHz - 1500mm
+ RG58 Cable Kit (10m)
The Base Station Airband VHF Fibreglass Standard Antenna Kit uses the Standard Antenna as described above and includes a 10m fme to fme lead and adapters for a plug and play solution for mounting and connecting the antenna to an existing base station.

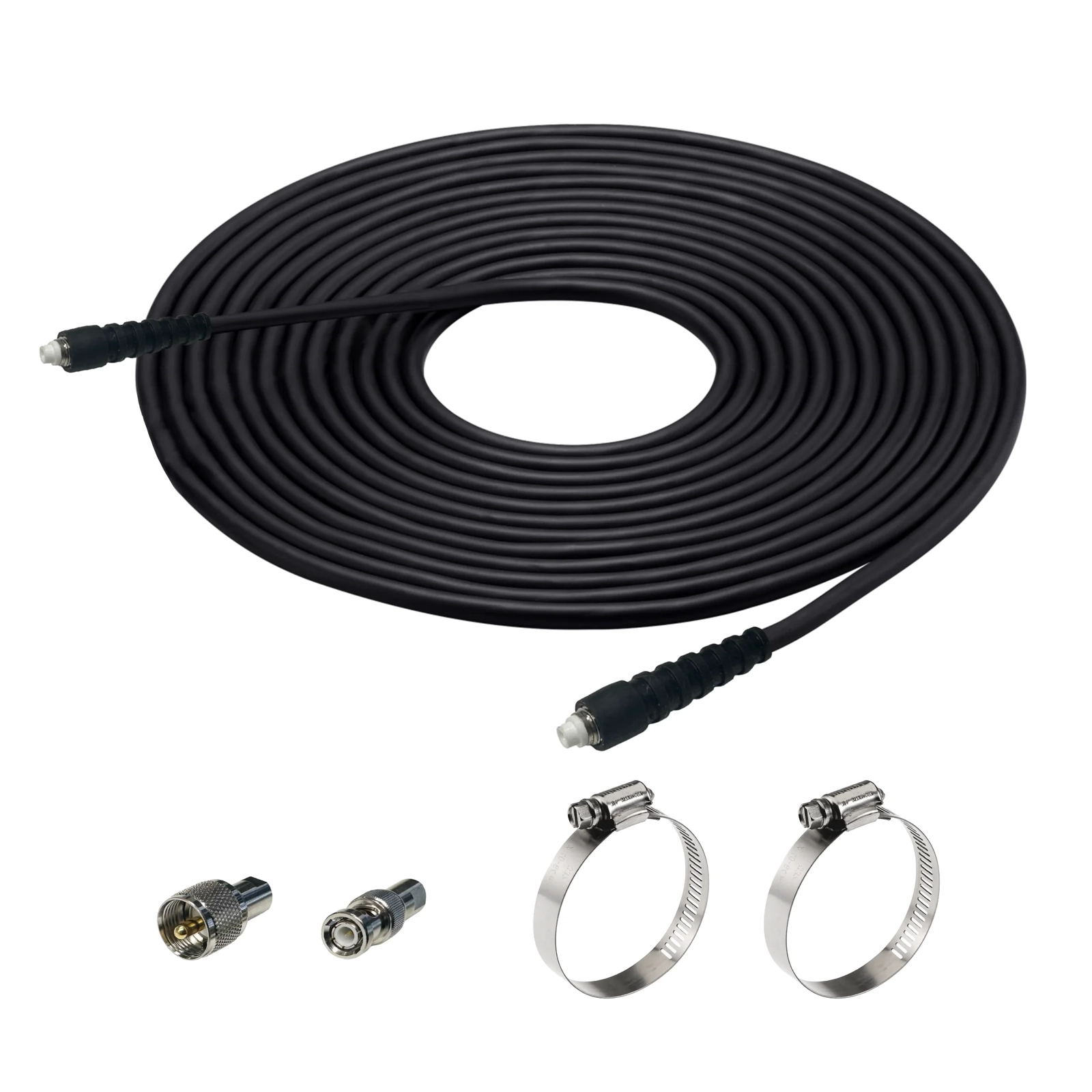

KIT INCLUDES
- CDB124 Fibreglass VHF Antenna - Stainless Steel Base with Coaxial Pigtail

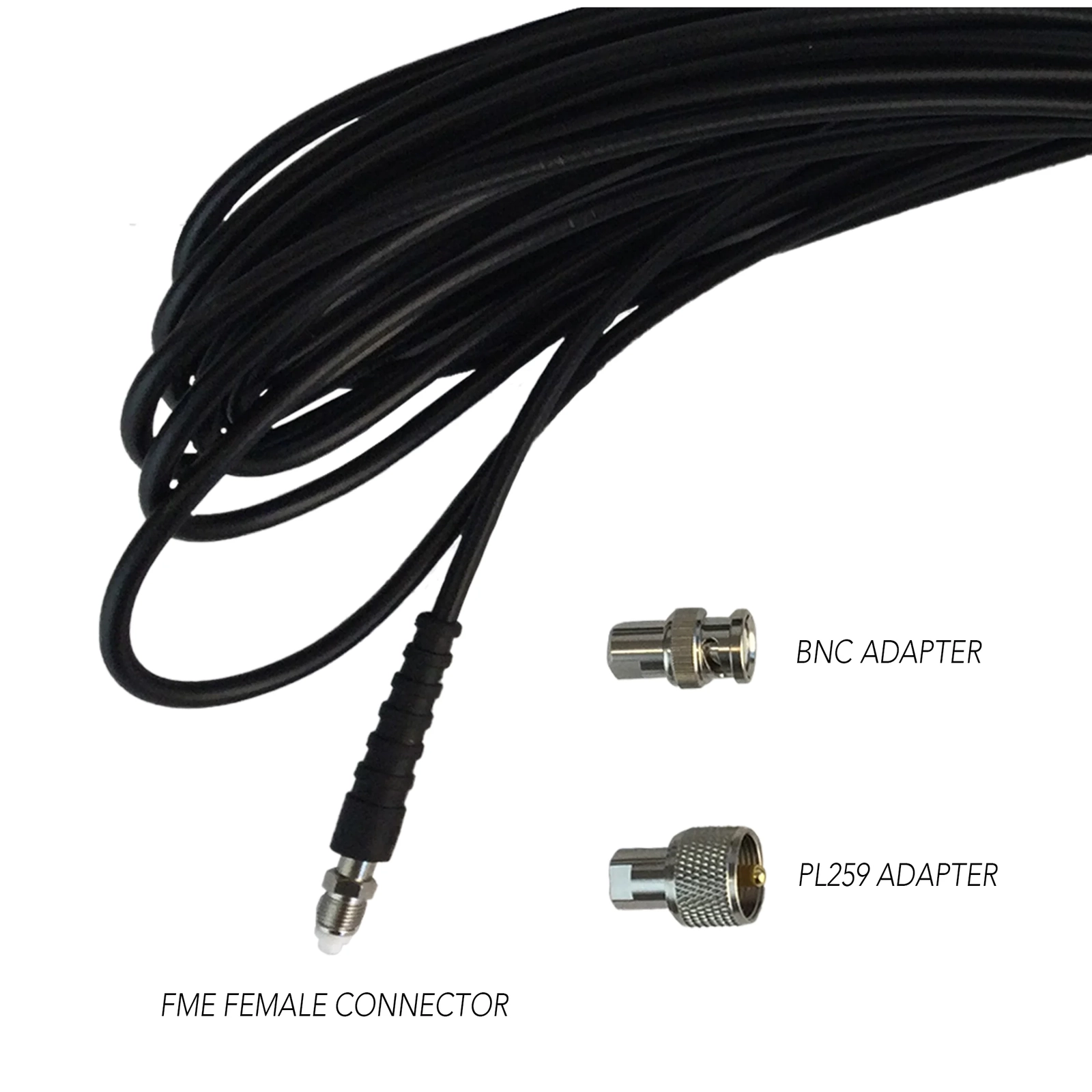

- RG58 A/U Low Loss Coax Cable FME Female Connectors (10m)

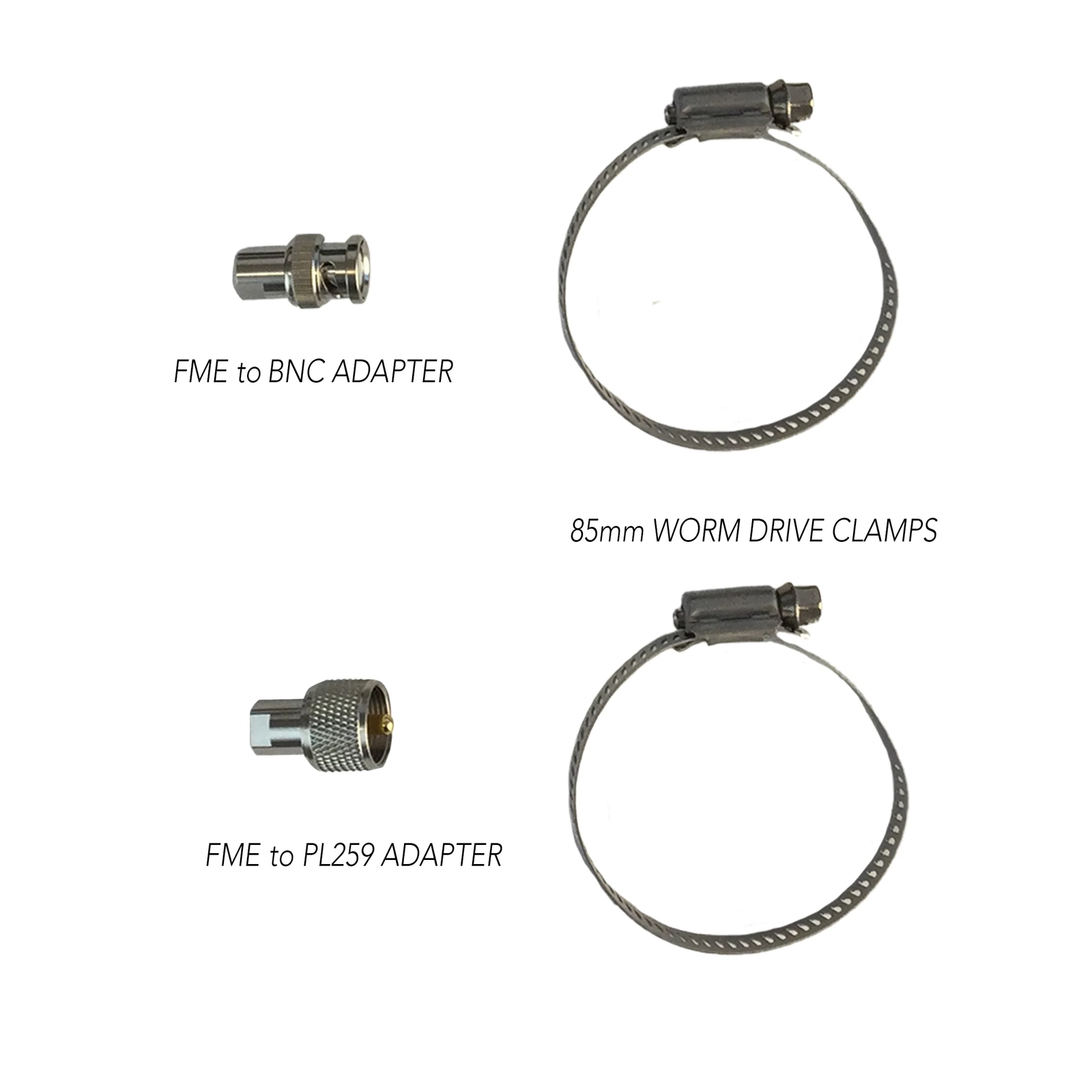

- FME Male to BNC Male Adapter
- FME Male to PL259 Male Adapter
- Worm Drive Clamps - Stainless Steel for Mast Mounting (x2)
----------------------------------------------------------------------------------------
3. Base Station CDB124 Airband VHF Fibreglass Antenna 3dBi 118-136MHz - 1500mm
+ RG58 Cable Kit (15m)
The Base Station Airband VHF Fibreglass Standard Antenna Kit uses the Standard Antenna as described above and includes a 10m fme to fme lead and adapters for a plug and play solution for mounting and connecting the antenna to an existing base station.
KIT INCLUDES
- CDB124 Fibreglass VHF Antenna - Stainless Steel Base with Coaxial Pigtail
- RG58 A/U Low Loss Coax Cable FME Female Connectors (15m)
- FME Male to BNC Male Adapter
- FME Male to PL259 Male Adapter
- Worm Drive Clamps - Stainless Steel for Mast Mounting (x2)
----------------------------------------------------------------------------------------
NOTE1 - Longer Feed Cables add Line Loss, the natural reduction of signal strength (attenuation) as an electrical or radio signal travels through the wire.
For a distance of 20m or longer, it will require a Heavy Duty 400LL Coaxial Cable with N-Type connectors and a Heavy Duty N-Type Antenna. Link below.
Specifications
Base Station Airband VHF Fibreglass Standard Antenna Kit - 10m Lead 118-136MHz
| Antenna Length | 1450mm (57") |
| Overall Length | 1600mm (63") |
| Base Length | 150mm |
| Base Diameter | 20mm |
| Base Material | Stainless Steel Tube |
| Base Pigtail | 500mm Coaxial Pigtail FME Male |
| Antenna Weight | 350g |
| Cable Length | 10 meters |
| Cable Type | RG58/CU Coaxial Cable |
|
Cable Connectors
|
FME Female
|
|
Adapters
|
FME BNC Male / FME PL259 Male
|
|
VSWR
|
1.5:1 from 118-128 Mhz
|
| VSWR | 2:1 from 117-133 Mhz |
| Gain | +3dBi |
| Waterproof | Pigtail, Cable and Connectors |
| Manufactured | Made in Australia |
Base Station Airband VHF Fibreglass Heavy Duty Antenna Kit - 30m HD Lead 118-136MHz
| Antenna Length | 970mm (38") |
| Overall Length | 1230mm (48") |
| Base Length | 200mm |
| Base Diameter | 32mm |
| Base Material | Stainless Steel Tube |
| Base Pigtail | 500mm Coaxial Pigtail FME Male |
| Antenna Weight | 350g |
| Cable Length | 30 meters |
| Cable Type | LMR400 Heavy Duty Coaxial Cable |
| Construction |
Foam Insulated / Solid Core Center
|
| Cable Connectors | PL259 Male |
|
VSWR
|
1.5:1 from 118-128 Mhz
|
| VSWR | 2:1 from 117-133 Mhz |
| Gain | +3dBi |
| Waterproof | Pigtail, Cable and Connectors |
| Manufactured | Made in Australia |
| SKU | M1CDB124-KITS |
| Brand | FlightStore |
| Unit Of Measure | ea |
