Product Description

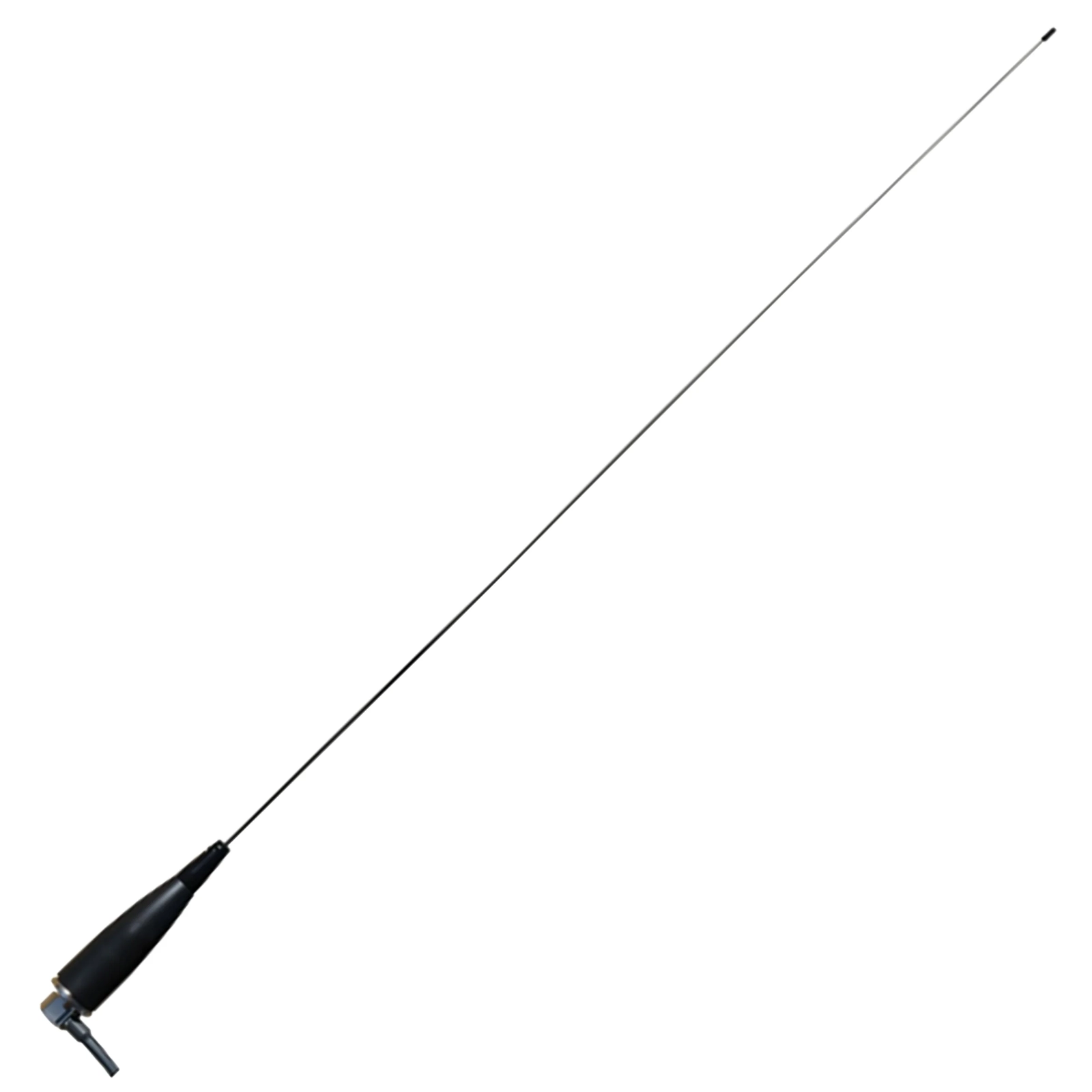

Mobile CD1836 Airband VHF Broadband Whip Antenna 118-136Mhz 3dbi - 900mm
The CD1836 Series Antennas provide greater bandwidth coverage without sacrificing antenna performance. Their no tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while improving overall coverage of the desired frequencies.
CD1836 is a fully ground independant design so it eliminates many positioning considerations. It is perfectly suited to all Airport Vehicle applications and is simply the best all round performing Antenna option for mobile applications. It's broadband monopole design has a very low VSWR of less than 1:8:1 across the entire VHF Airband 118-136 Mhz.
The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered stainless steel highly flexible whip. The CD1836 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades.
KEY FEATURES
KEY FEATURES
- Ground Independent design allows many alternative mounting locations without compromising performance
- Perfect for Bull Bar, Lip or Gutter Mounting. Works with just about any Standard Antenna Mount bracket
- Ultra Broadband Coverage means no tuning in the field
- Highly Flexible Tapered Stainless Steel Whip
- Base is Virtually Indestructible. No Spring Required
- Supplied ready to use with cabling and connectors, no complex tuning or connection requirements
INCLUDED
- Mobile CD1836 Airband VHF Broadband Whip Antenna 118-136Mhz 3dbi - 900mm

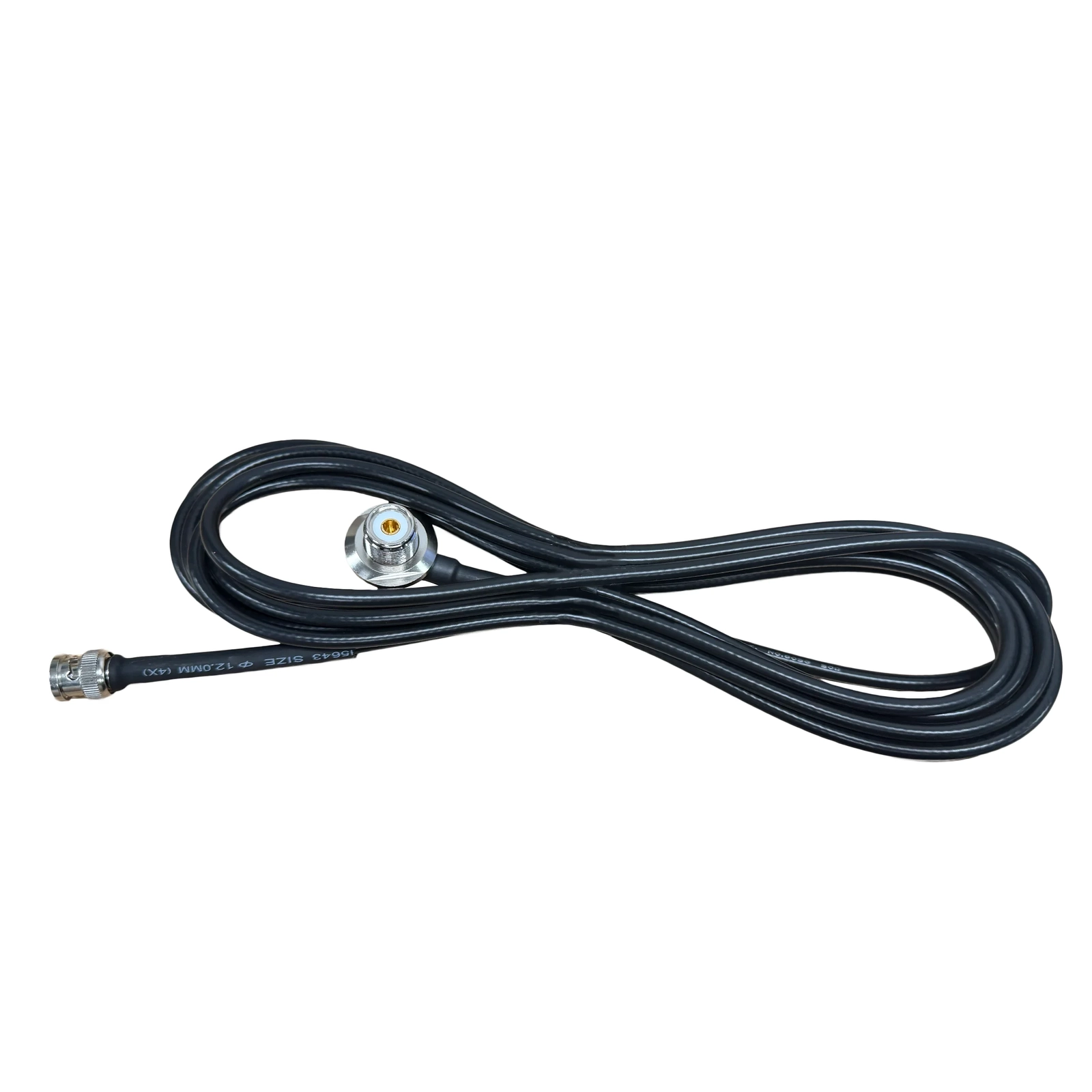

- MBC Antenna Base with 5m RG58 Low Loss Coaxial Cable pre terminated with FME connector
- FME to BNC Adapter
- FME to PL259 (UHF) Adapter
DESIGNED & MANUFACTURED IN AUSTRALIA
DOWNLOADS
Specifications
Electrical Specifications
|
Model Number
|
CD1836BM
|
|
Nominal Gain dBi (dBd)
|
3 |
|
Frequency MHz
|
118-136 MHz |
|
Tuned Bandwidth
|
Full
|
|
VSWR (Return Loss)
|
<1.8:1*
|
|
Nominal Impedance Ī©
|
50Ī©
|
| Polarisation | Vertical |
|
Input Power W
|
50W
|
*Please note VSWR response may vary between vehicle types and/or mounting locations.
Mechanical Specifications
|
Model Number
|
CD1836BM
|
| Antenna Type | Ground Independent, MBC Base Mount, Vehicle |
| Antenna Application | Vehicle Antenna |
|
Construction
|
Tapered Black Powder Coated Stainless Steel |
| Whip Material | Flexible Tapered Stainless Steel Whip |
|
Whip Length mm
|
900mm
|
| Cable & Connector | 5m RG58 Low Loss Cable with FME Connector |
|
Weight
|
0.4
|
|
Termination
|
FME Female Connector
|
|
Mounting
|
MBC Base |
| SKU | CD1836BM |
| Brand | FlightStore |
| Shipping Weight | 1.0000kg |
| Unit Of Measure | ea |
