Product Description
KEY FEATURES

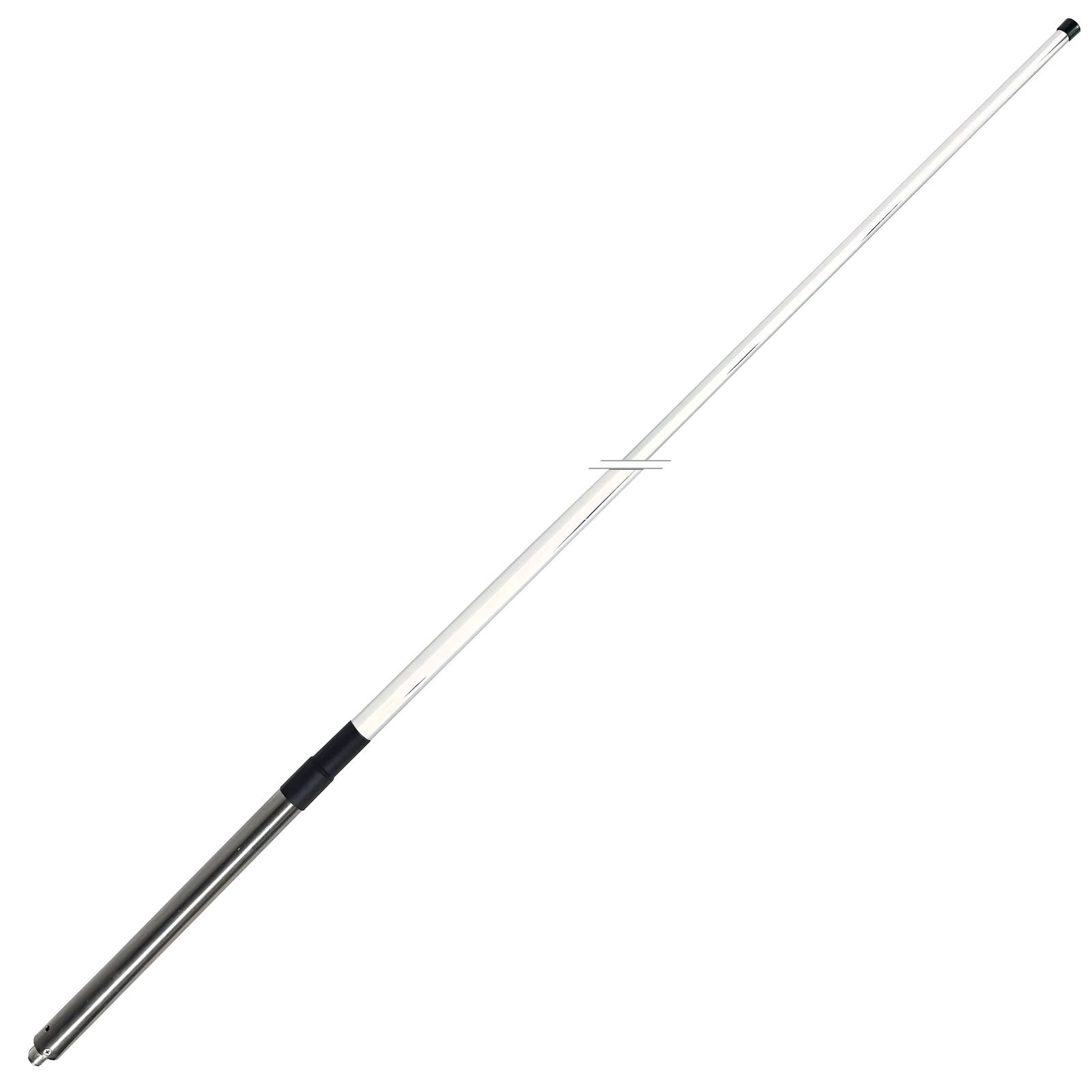

Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm
| Choose from one of the options below - | |||
|
1.
|
Antenna Only
|
4. | Antenna + 20m 400LL HD Cable |
|
2.
|
Antenna + 10m RG58 Cable | 5. | Antenna + 30m 400LL HD Cable |
| 3. | Antenna + 15m RG58 Cable | 6. | Antenna + 50m 400LL HD Cable |
The M1COL8N is designed to be installed for the station that requires additional gain performance and is supplied with an integrated N type female connector mounted onto the tube.
This extra High Gain Base Station Antenna covers the 477MHz band and is ideal for extending the radio coverage of your UHF CB radio. The antenna is designed around the patented Meanderā¢ PCB technology incorporating excellent gain, pattern stability, and light-weight construction, making it a perfect fit for any base station installation.
The M1COL8N UHF Antenna ā is an extra high-performance +8dBi gain collinear antenna engineered for the 40 or 80 UHF CB channel range on the 477 MHz band.
KEY FEATURES
- High performance +8 dBi Gain for Extended Range - boost signal strength and coverage without bulky traditional antennas
- Unique patented Meander PCB - excellent RF characteristics
- Rugged lightweight construction for easy installation - resists harsh Aussie weather including wind, rain, & dust. Integrated N(F) connector
- Excellent pattern stability - maintains a VSWR under 1.5:1 across the full band
- Effortless Installation, Pro-Grade Connectivity - no need for adapters. Handles up to 25W input power, ensuring itās ready for heavy-duty use.
- Supplied pre-tuned - tuned for the entire 477 MHz UHF CB band, itās pre-calibrated out of the box
MAST MOUNTING
The M1COL8N can be mounted onto any vertical mast using Worm Drive Hose Clamps (Supplied) or by Using a Dual Parallel Antenna Mounting Bracket (Sold Separately).
The M1COL8N can be mounted onto any vertical mast using Worm Drive Hose Clamps (Supplied) or by Using a Dual Parallel Antenna Mounting Bracket (Sold Separately).
----------------------------------------------------------------------------------------
1. Base Station CB UHF Collinear Fibreglass Antenna 2200mm
- Antenna Only
The Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm. This is the antenna only with no cable or connectors.
INCLUDES
Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm
----------------------------------------------------------------------------------------
2. Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm
+ RG58 N-Type Cable Kit (10m)
The Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm + RG58 N-Type Cable Kit (10m) uses the 2200mm antenna as described above and includes a Cable Kit with 10 meters of RG58 Low Loss Coax Cable, terminated with N Type and PL259U (UHF) Connectors for a plug and play solution for mounting and connecting the antenna to an existing base station.
KIT INCLUDES
Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm

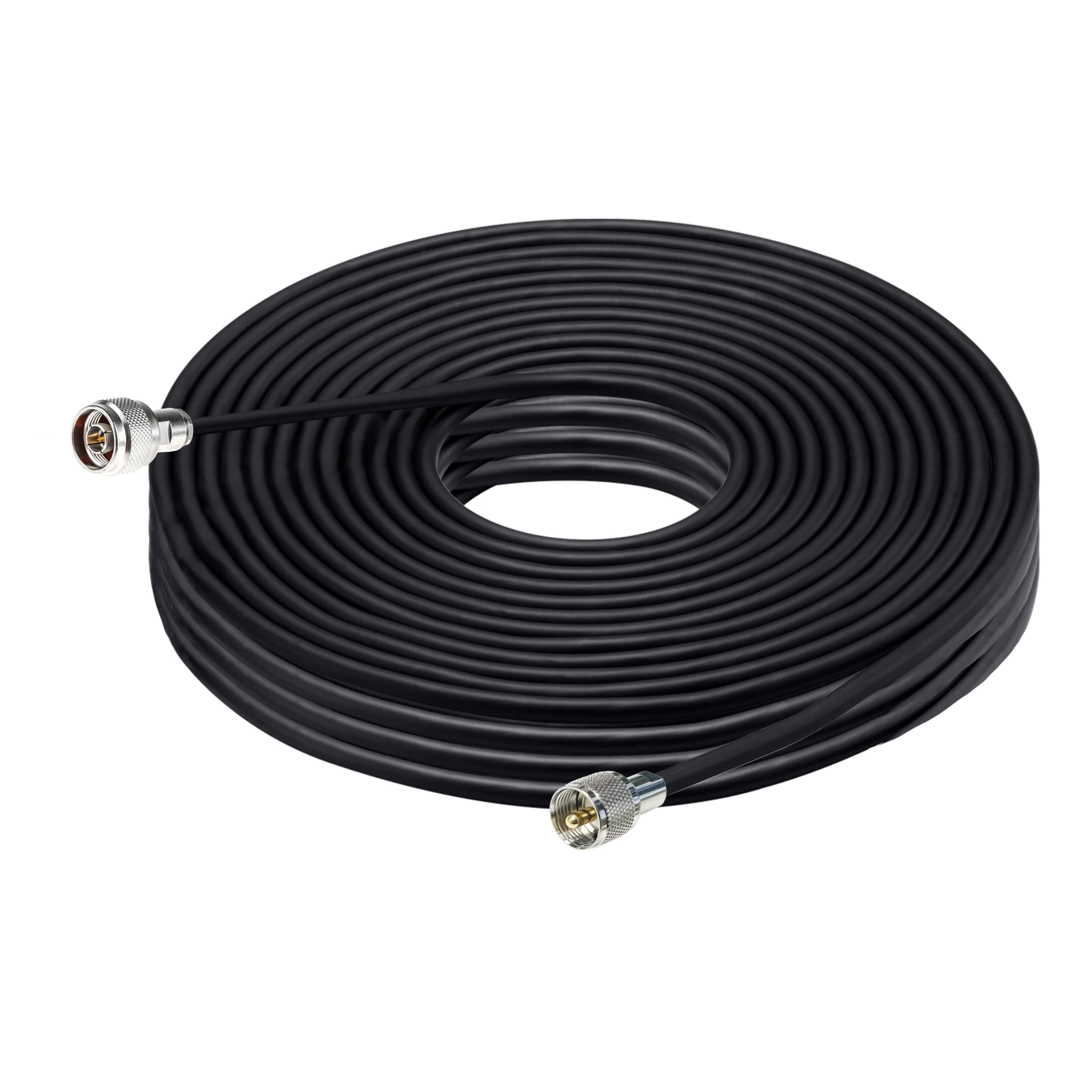

RG58 Low Loss with N Type & PL259U (UHF) Connectors (10m)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Amalgum Tape to waterproof wrap connectors once fitted
----------------------------------------------------------------------------------------
3. Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm
+ RG58 N-Type Cable Kit (15m)
The Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm + RG58 N-Type Cable Kit (15m) uses the 2200mm antenna as described above and includes a Cable Kit with 15 meters of RG58 Low Loss Coax Cable, terminated with N Type and PL259U (UHF) Connectors for a plug and play solution for mounting and connecting the antenna to an existing base station.
KIT INCLUDES
Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm
RG58 Low Loss with N Type & PL259U (UHF) Connectors (15m)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Amalgum Tape to waterproof wrap connectors once fitted
----------------------------------------------------------------------------------------
4. Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm
+ 400LL Cable Kit (20m)
The Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm + 400LL Cable Kit (20m) uses the 2200mm antenna as described above and includes a 20 meter 400LL (400 Low Loss) Coax Cable with N-Type and PL259 Connectors for a plug and play solution for mounting and connecting the antenna to an existing base station.
KIT INCLUDES
Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm

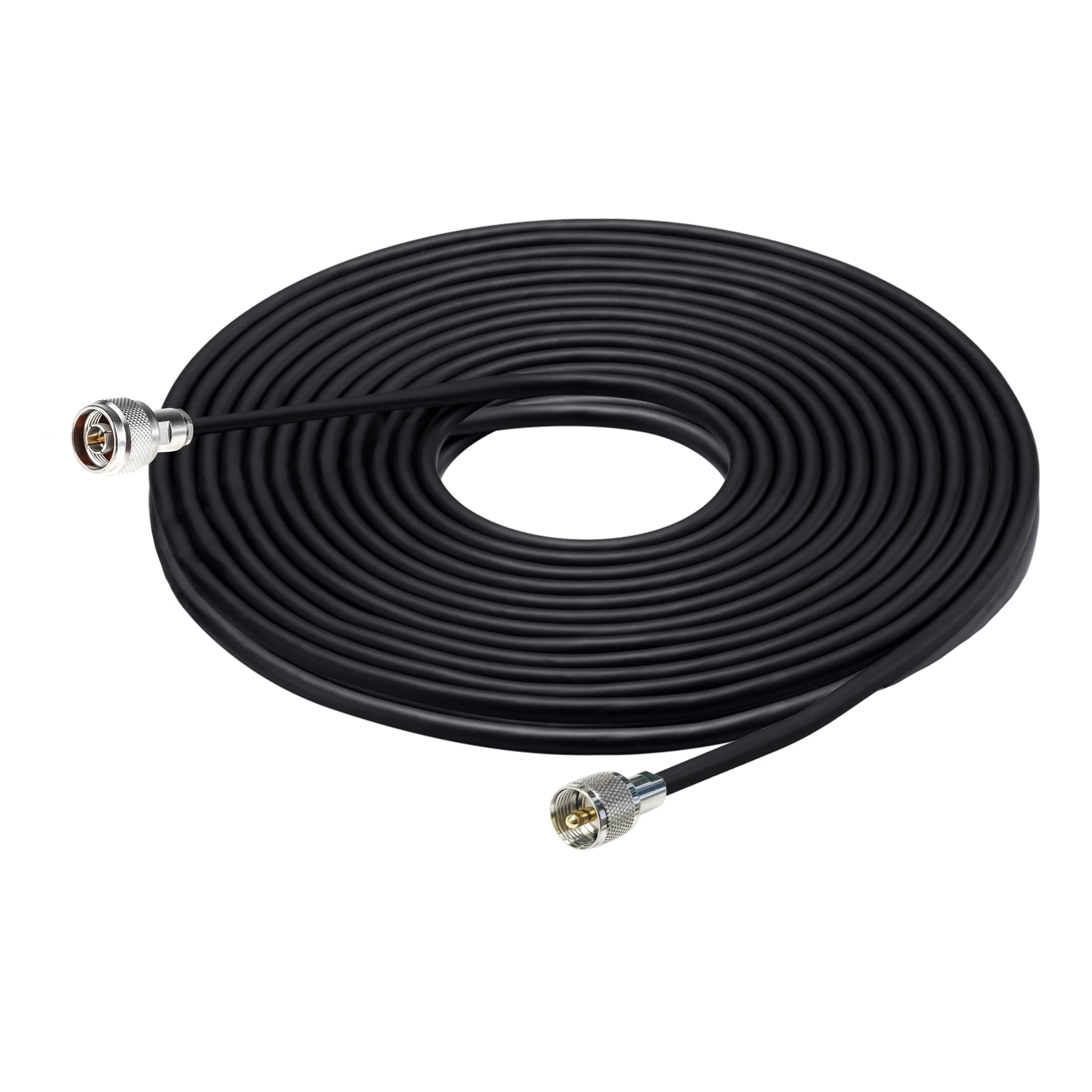

Heavy Duty 400LL Coaxial Cable N-Type & PL259 Male Connectors (20m)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Amalgum Tape to waterproof wrap connectors once fitted
----------------------------------------------------------------------------------------
5. Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm
+ 400LL Cable Kit (30m)
The Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm + 400LL Cable Kit (30m) uses the 2200mm antenna as described above and includes a 30 meter 400LL (400 Low Loss) Coax Cable with N-Type and PL259 Connectors for a plug and play solution for mounting and connecting the antenna to an existing base station.
KIT INCLUDES
Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm
Heavy Duty 400LL Coaxial Cable N-Type & PL259 Male Connectors (30m)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Amalgum Tape to waterproof wrap connectors once fitted
----------------------------------------------------------------------------------------
6. Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm
+ 400LL Cable Kit (50m)
The Base Station COL8N CB UHF Collinear Fibreglass Antenna 2200mm + 400LL Cable Kit (30m) uses the 2200mm antenna as described above and includes a 50 meter 400LL (400 Low Loss) Coax Cable with N-Type and PL259 Connectors for a plug and play solution for mounting and connecting the antenna to an existing base station.
KIT INCLUDES
Base Station COL8N CB UHF Collinear Fibreglass Antenna 477mhz 8dBi Gain - 2200mm
Heavy Duty 400LL Coaxial Cable N-Type & PL259 Male Connectors (50m)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Worm Drive Clamps - Stainless Steel for mast mounting (x2)
Amalgum Tape to waterproof wrap connectors once fitted
Specifications
Electrical Specifications
|
Model Number
|
COL5000-N
|
COL8000-N
|
|
Nominal Gain dBi (dBd)
|
5 (3)
|
8 (6)
|
|
Frequency MHz
|
475-478 (477MHz)
|
475-478 (477MHz)
|
|
Tuned Bandwidth
|
Full
|
Full
|
|
VSWR (Return Loss)
|
<1.5:1 (14dBd)
|
<1.5:1 (14dBd)
|
|
Nominal Impedance Ī©
|
50Ī©
|
50Ī©
|
|
Vertical Bandwidth
|
38Ā°
|
15Ā°
|
|
Horizontal Beamwidth
|
Omni-directional
|
Omni-directional
|
| Polarisation | Vertical | Vertical |
|
Input Power W
|
25W
|
25W
|
Mechanical Specifications
|
Model Number
|
COL5000-N
|
COL8000-N
|
| Antenna Type | Collinears, Ground Independent, Meander | Collinears, Ground Independent, Meander |
| Antenna Application | Base Station Antenna | Base Station Antenna |
|
Construction
|

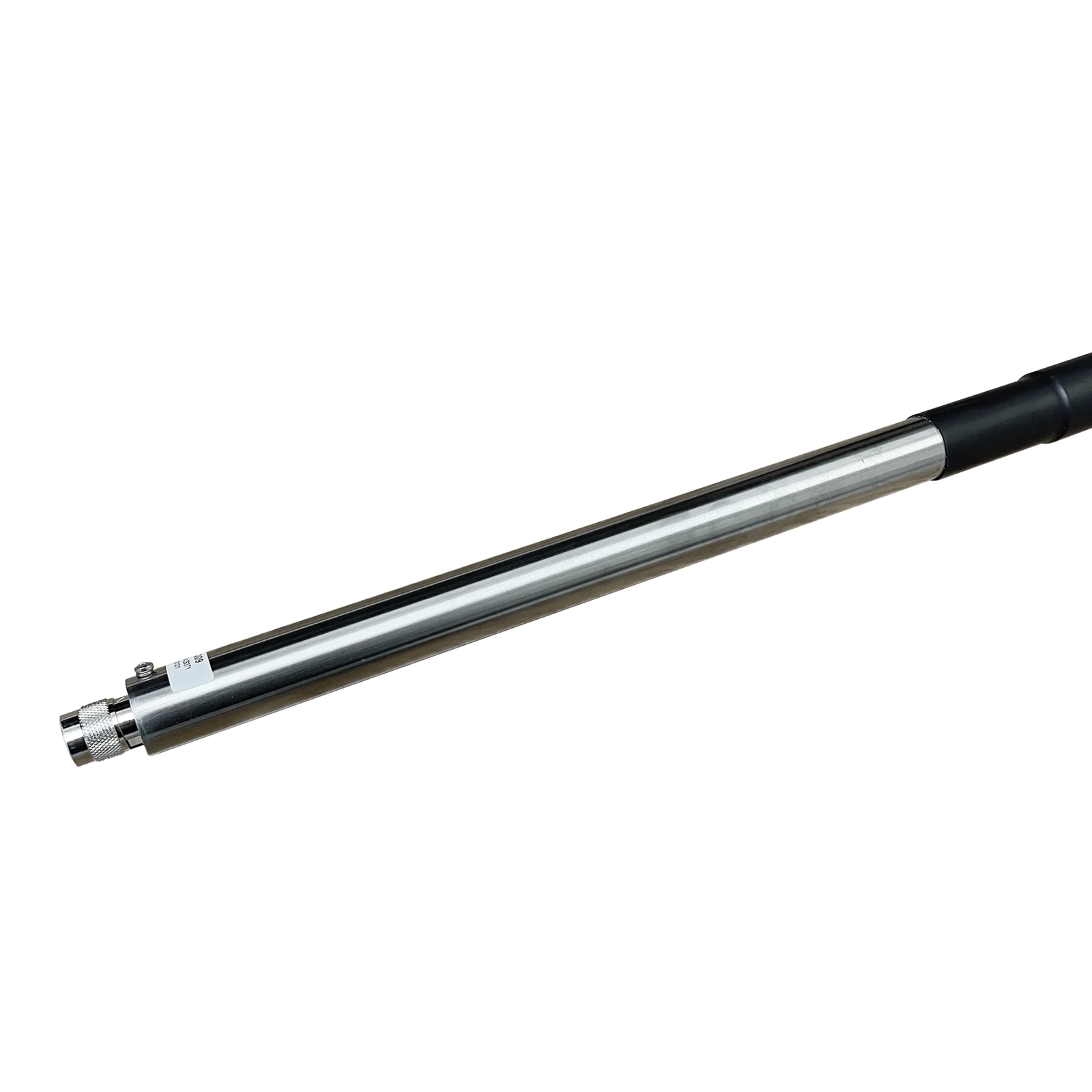

Parallel black radome w/ stainless steel mounting tube
|
Tapered black radome w/ stainless steel mounting tube
|
|
Mounted Length mm
|
1095mm
|
2166mm
|
|
Radome Diameter mm
|
16-22mm
|
16-22mm
|
|
Weight
|
0.45kg / 450g
|
1.11kg / 1110g
|
|
Termination
|
Integrated N(F) connector
|
Integrated N(F) connector
|
|
Mounting Area mm
|
300mm
|
300mm
|
|
Wind Load (Thrust)@160kph
|
60
|
142
|
|
Torque @ 160kph Nm
|
22
|
110
|
| SKU | M1COL8N-KITS |
| Brand | FlightStore |
| Unit Of Measure | ea |
