DN80 Pole Mount 316 Stainless Steel Windsock Mounting Bracket
$124.50
inc GST
Product Description

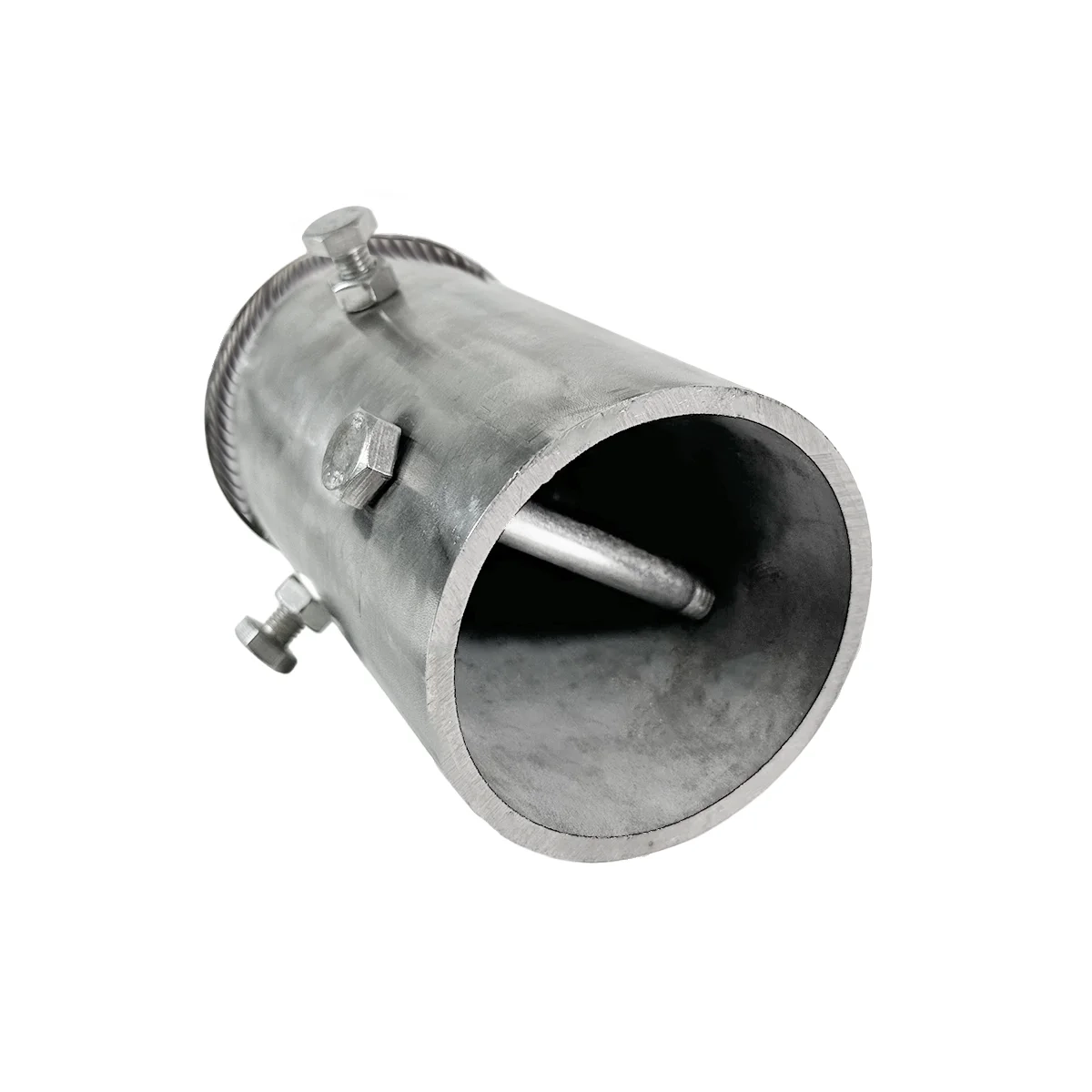

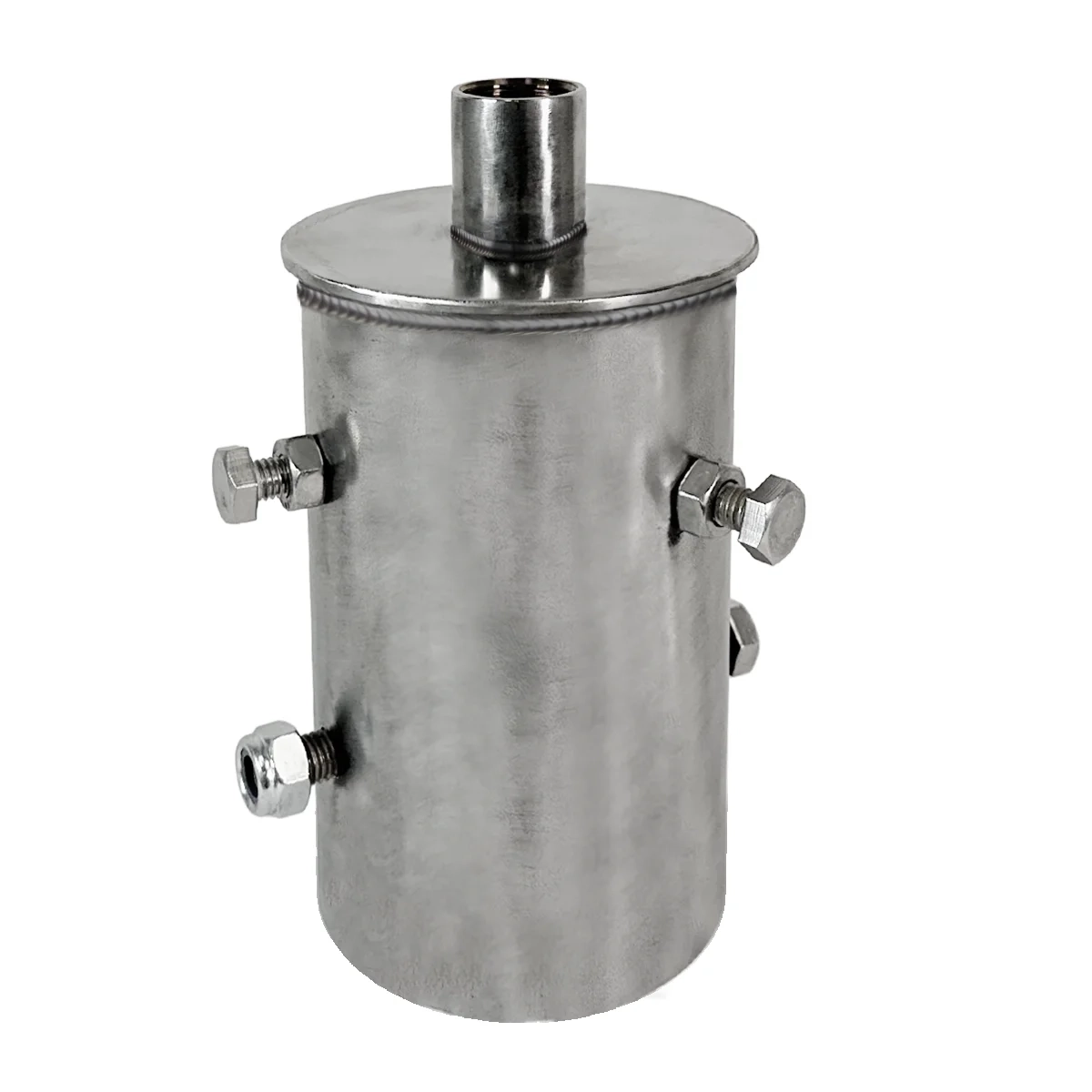

DN80 Pole Mount 316 Stainless Steel Windsock Mounting Bracket

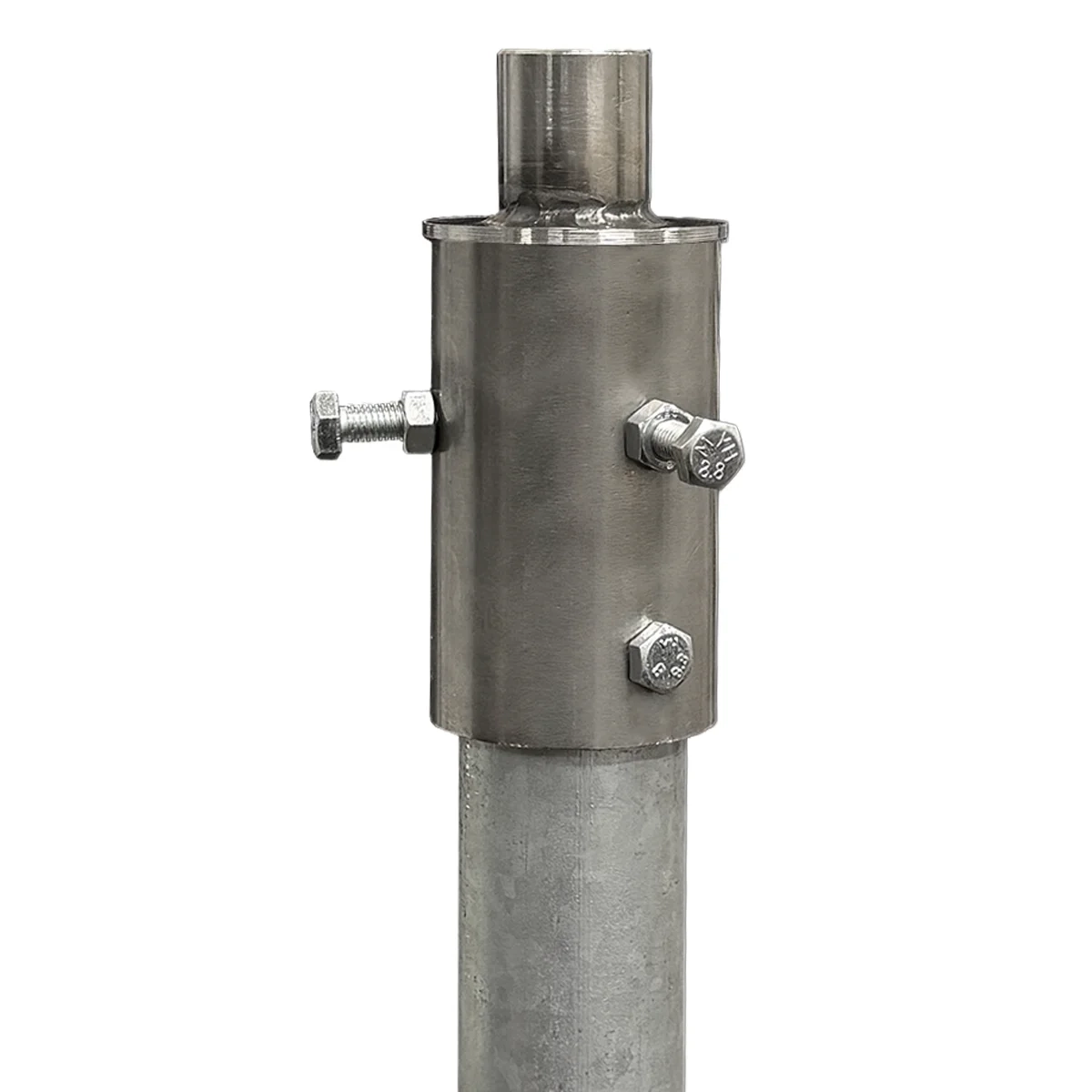

Sleeves over a standard DN80 fence post or pole with an OD (Outside Diameter) of 88.9 mm. The bracket fastens with 3 pinch bolts and a through bolt to make it a permanent attachment.

Recommended for 36" Windsock frames, however can also be used with 13", 18" and 24" windsock frames.

SPECIFICATIONS
Material:
316 Stainless Steel
Outside Dia (OD):
101.6mm
Inner Dia (ID):
90.12mm
Length:
170mm
Threaded Socket:
1 Inch UNF 35mm Stainless Steel 316
Pinch Bolts:
3x SS M10 w/ Locknut
Through Bolt:
SS M10 Bolt w/ Nyloc Nut
Suitable for: DN80 pole - OD (Outside Diameter) 88.9 mm
Weight: 2.7kg



Specifications
SKU 316003
Brand FlightStore
Shipping Weight 3.0000kg
Unit Of Measure ea
