36" Diameter Standard Windsock Frame

$459.00

inc GST

Product Description

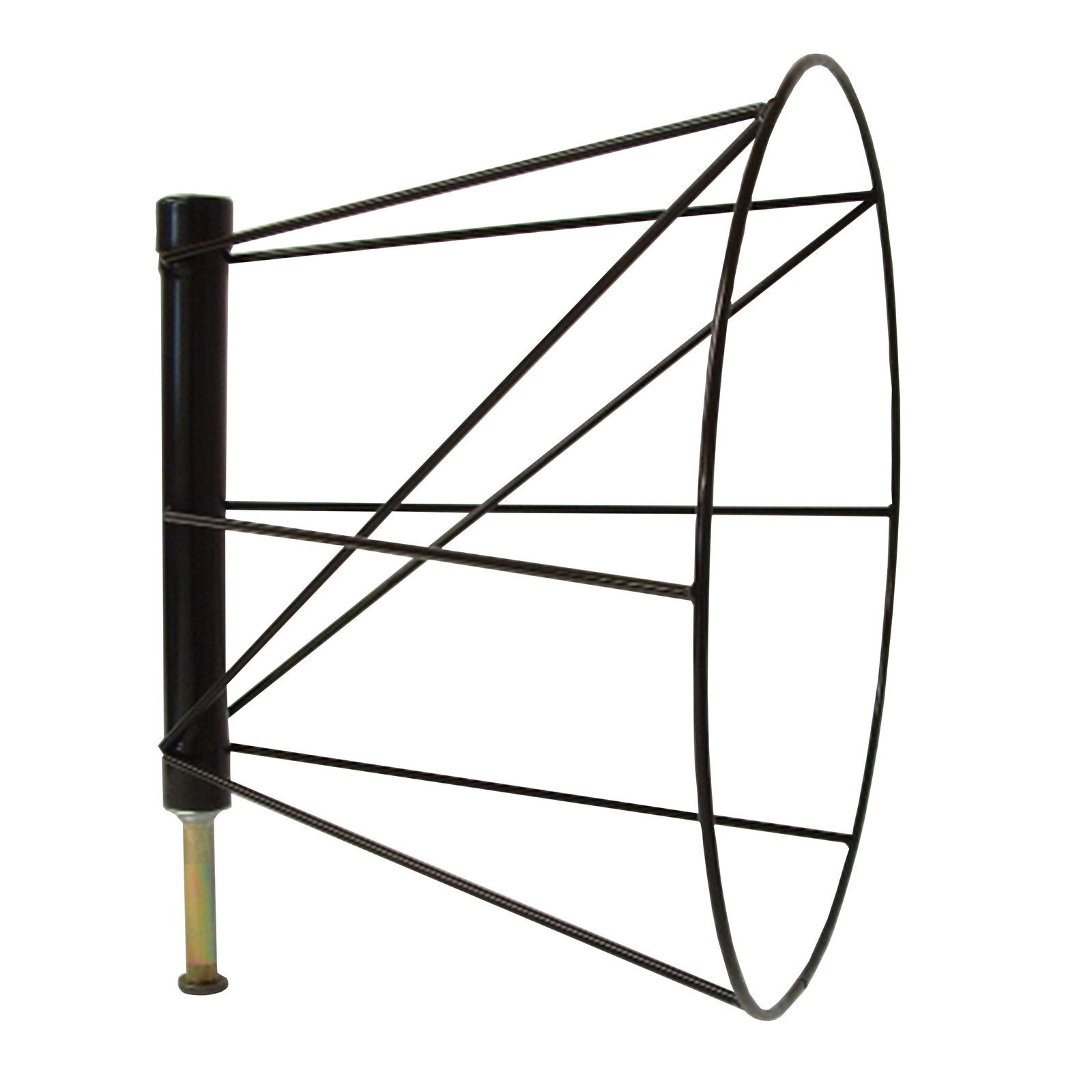

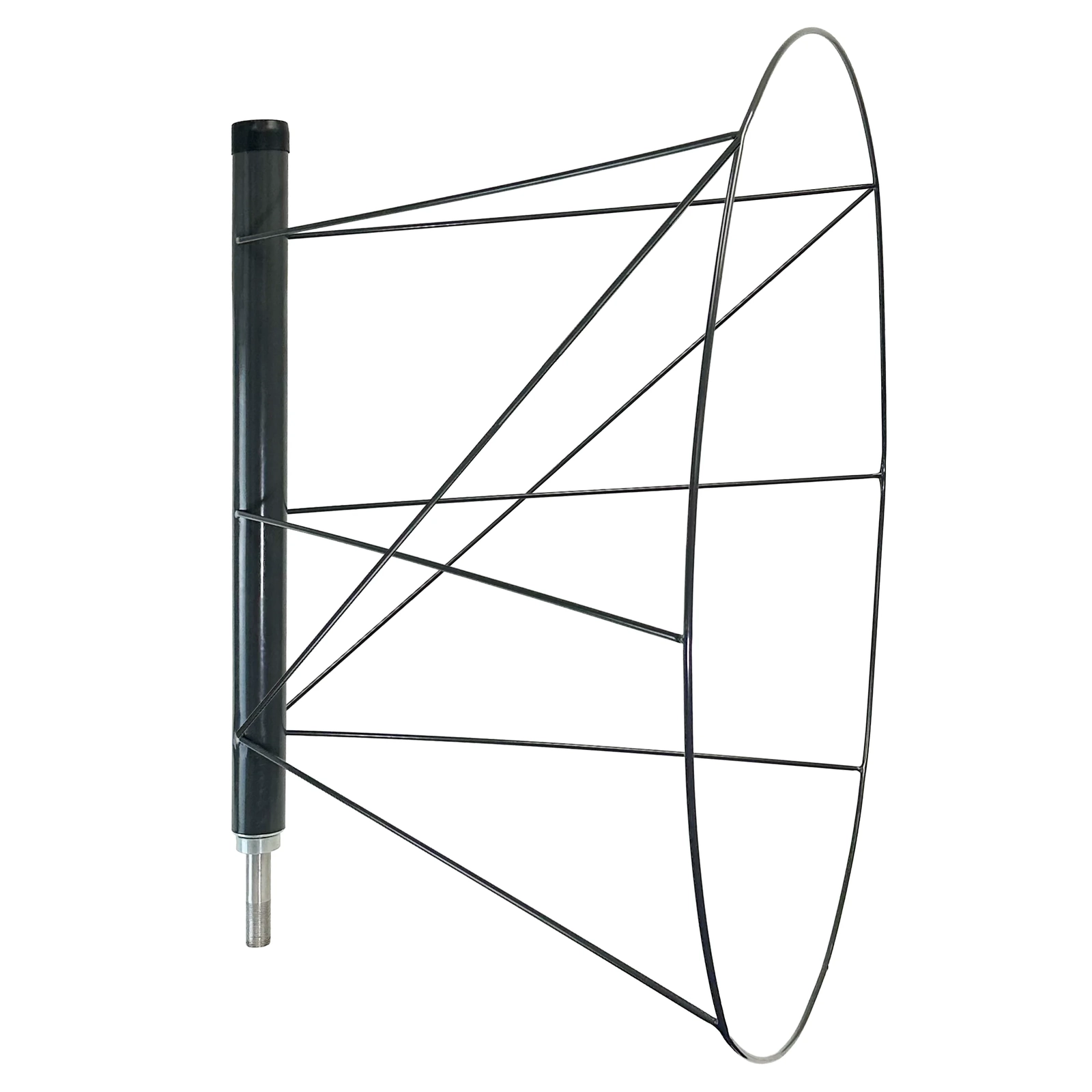

Windsock Frame. 36" Diameter - Stainless Steel

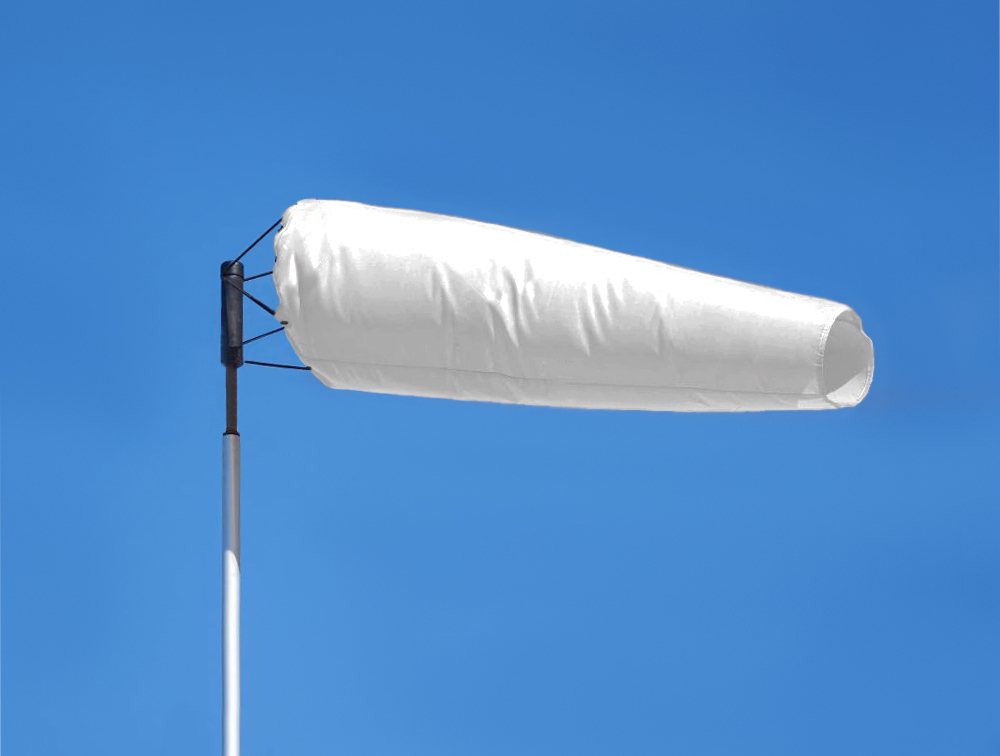

TIG Welded and constructed of Stainless Steel components including the bearings, Flightstore Windsock Frames are locally manufactured and powdercoated to protect them from weather. These windsock frames are of the highest quality, manufactured in Australia using 316 grade Stainless Steel. Each frame has two bearings so the frame turns with the wind in the slightest of breeze. Used with our rated windsocvks itshows how strong the wind is when a pilot is landing an airplane.

We reccomend using the '316 Stainless Steel Windsock Mounting Bracket' Part# 316001 (Sold Separately)

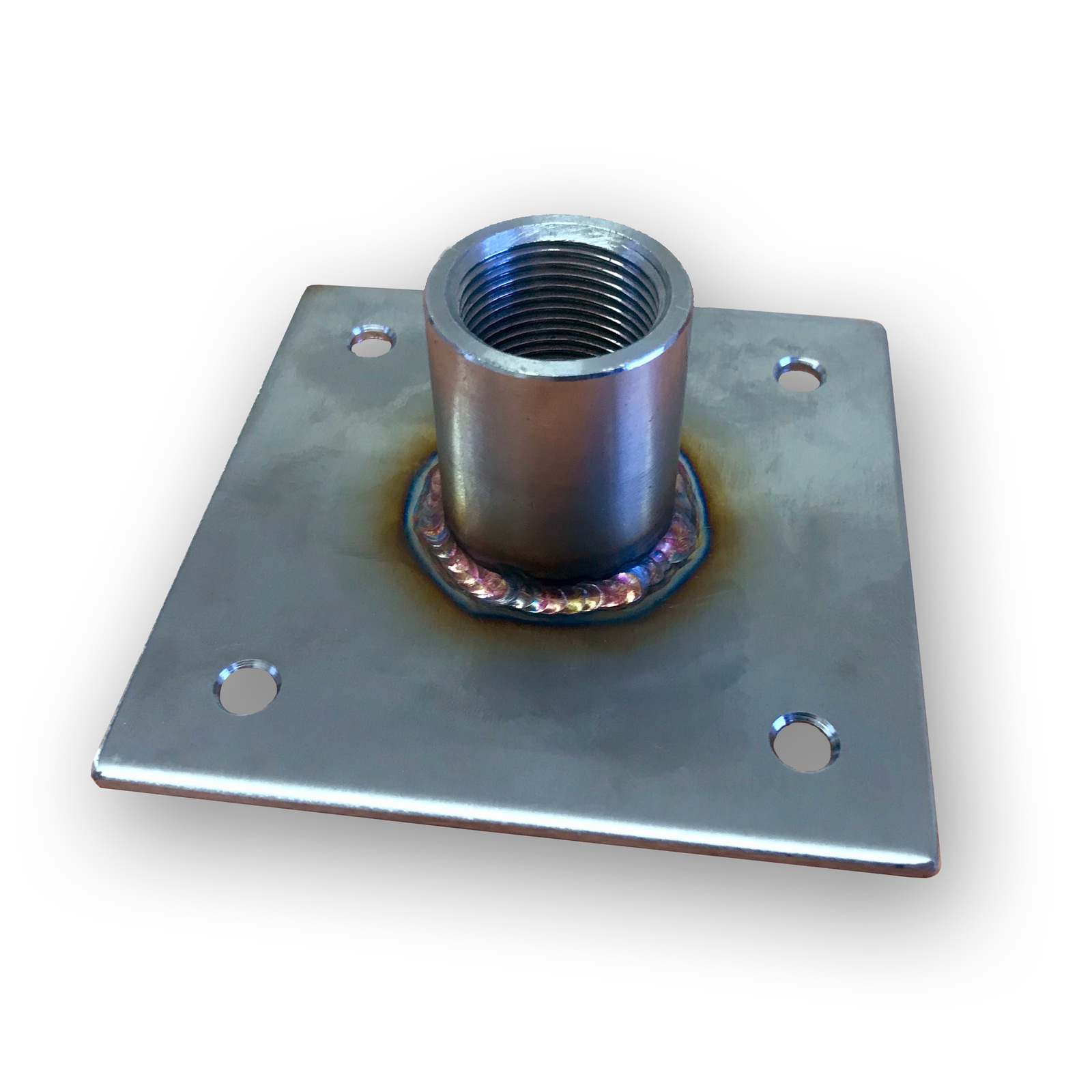

The 316 SS Windsock Mounting Bracket / flange is threaded and matched to screw on to the threaded spine of the windsock frame. The 100mm x 100mm flange has four M8 bolt holes for mounting to a pole or any flat surface.

Made from 316 stainless steel in Australia, the mounting bracket is durable and suitable for use in all weather conditions.

Thread Size: 1 Inch UMF

Thread is matched to suit 13", 18", 24" and 36" Windsock Frames.

Specifications

Frame Diameter: 91.5cm

Spine Height: 110cm

Specifications

SKU	FRAME-36S
Brand	FlightStore
Shipping Weight	4.5500kg
Shipping Width	0.900m
Shipping Height	0.470m
Shipping Length	0.590m
Shipping Cubic	0.249570000m3
Unit Of Measure	ea
