Product Description
Gain More than Just a Com

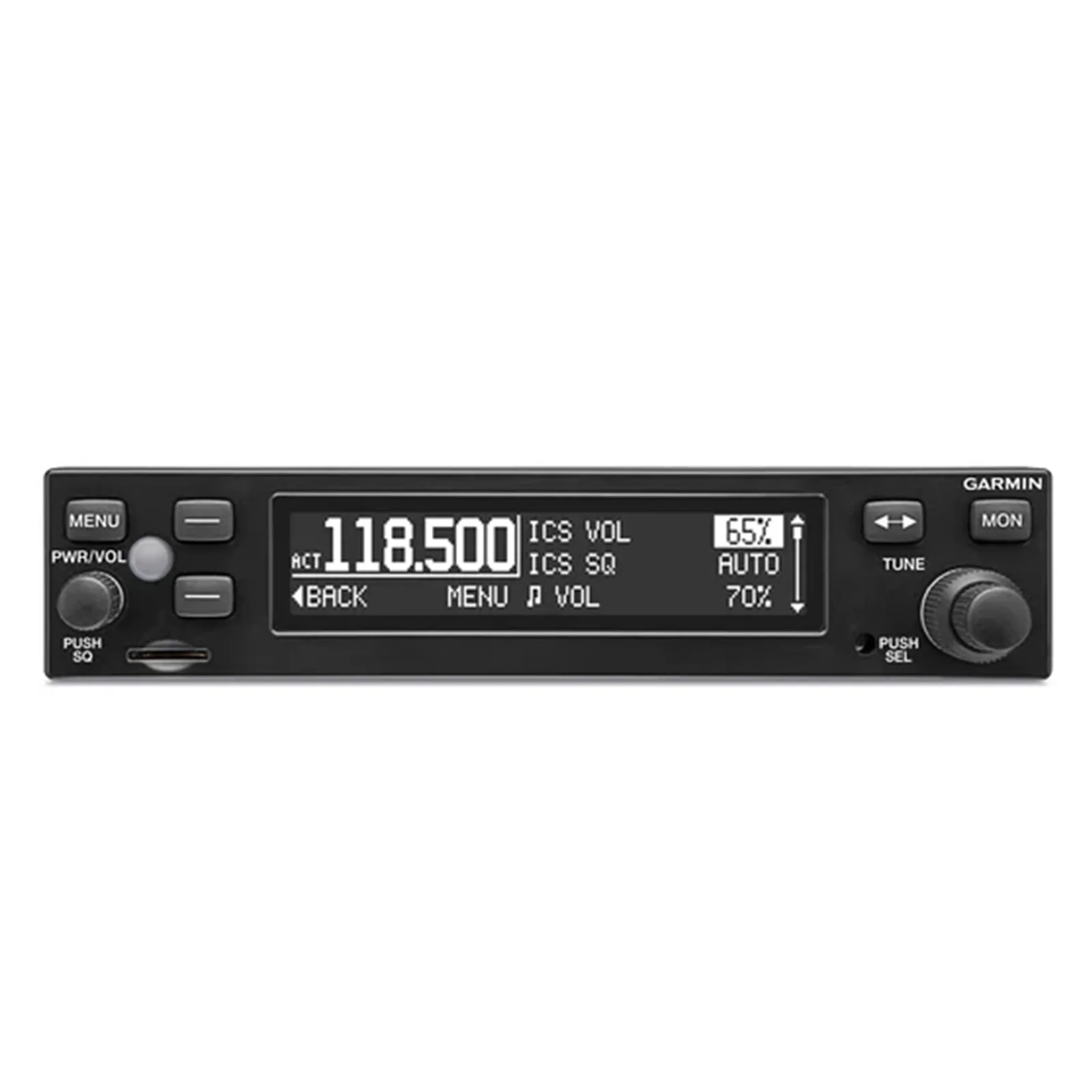

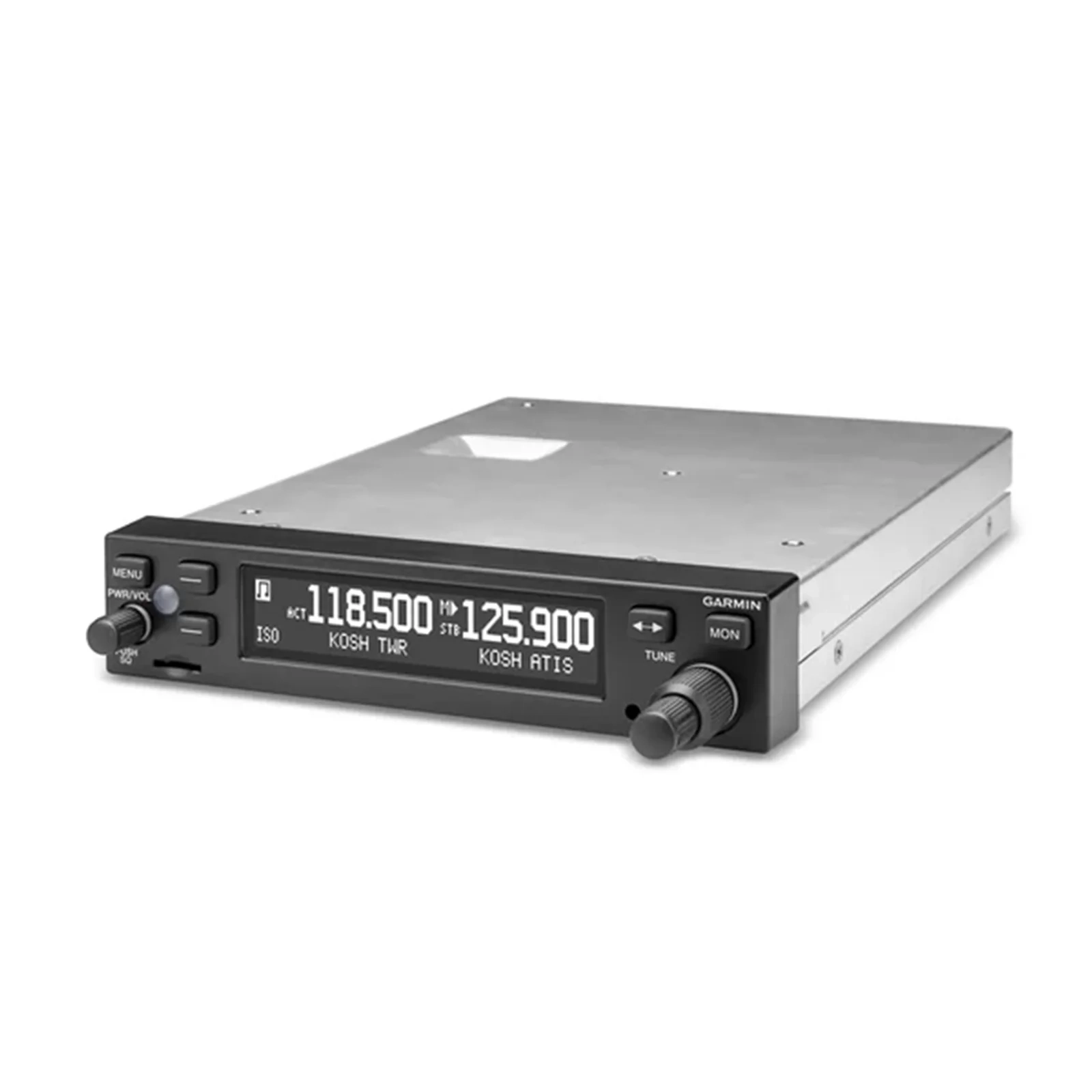

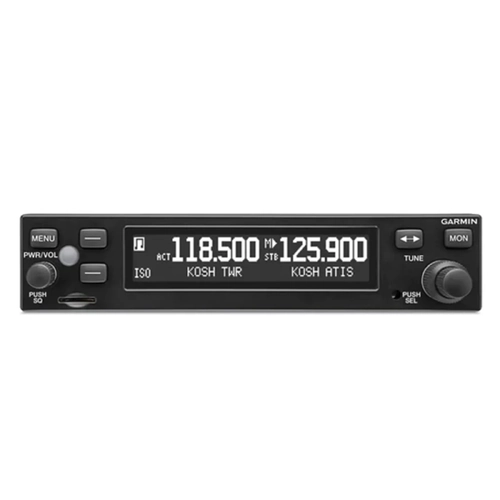

Garmin GTR 200B VHF COM Radio PMA, Fixed Wing w/ Installation Kit
Designed specifically for G3X Touch equipped aircraft, the GTR 200 combines powerful Comm capabilities with advanced workload-reducing features formerly only found in high-end certified systems.
Its slim 1.35” tall design allows you to make the most of limited space in your panel while 10 W of transmit power helps ensure solid communications between you and ATC or other aircraft in your vicinity.
Information displays on the large, sunlight-readable display with brightness levels that can adjust automatically to the natural light level in the cockpit, or can be adjusted manually by the pilot. The GTR 200 offers 25 kHz channel spacing and utilizes a standard density 37-pin connector for easy installation.
Powerful Features in a Small Package
- All-in-1 radio and stereo intercom solution with standby monitoring and stereo input
- Powerful 10 W Comm with a slim 1.35” tall design and large sunlight-readable display
- Displays facility name and type when tuned to user-defined presets or supplied by compatible portables/G3X™
- Advanced audio panel features including 3D Audio and auto-squelch

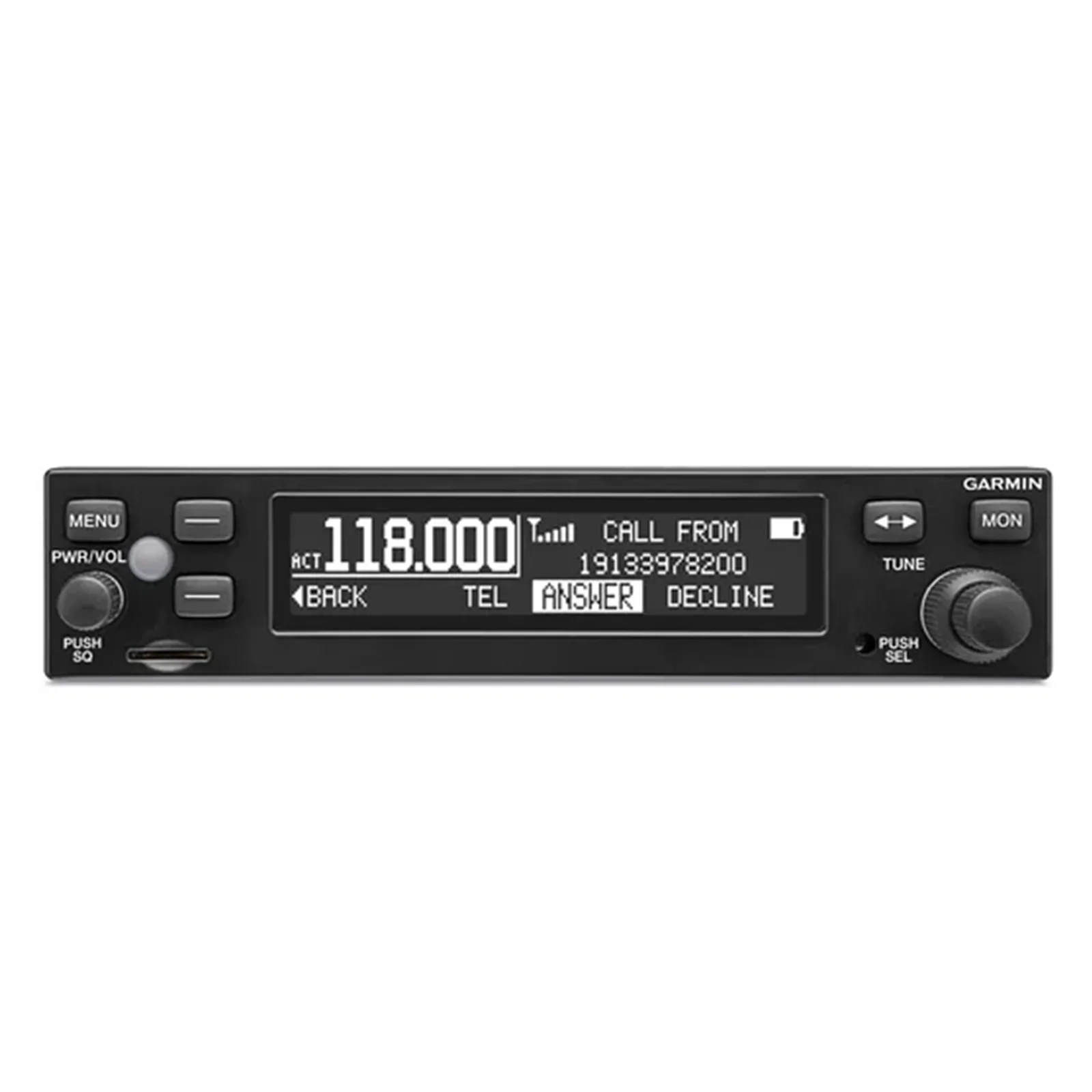

- Optional Bluetooth® connectivity (available on GTR200B versions only) enables easy access to phone calls and audio entertainment
Gain More than Just a Com
Going above and beyond the call of duty of a traditional Comm, the GTR 200 includes a 2-place stereo intercom that is ideal for 2-seat aircraft; no additional hardware is required to communicate with your passenger. Advanced auto squelch automatically senses the noise level in the cockpit and adjusts the mic squelch for effortless intercom use regardless of the cockpit noise level.
Listen to music inputs with Hi-Fi, home theater-like quality, featuring bass boost as well as pop, classical and rock music equalizer options. For added simplicity, optional Bluetooth connectivity (available on GTR200B versions only) adds the ability to make phone calls and listen to audio entertainment wirelessly.
Pilot-configurable soft keys can provide 1-touch access to emergency frequency tuning, pilot audio isolation, saved frequencies list, music mute or push-to-talk. Plus, optional installed remote switches on the flight controls allow pilots to keep their hands on the controls while performing functions like swapping the active and standby frequencies.
Reduce Your Workload
Know exactly to whom you’re talking with the GTR 200. The device will display the facility name and type when you are tuning from one of the 20 user defined frequency preselects, or selecting a frequency from one of the nearest or flight plan airports (when transferred from a compatible Garmin aviation portable or G3X™ system).
Know exactly to whom you’re talking with the GTR 200. The device will display the facility name and type when you are tuning from one of the 20 user defined frequency preselects, or selecting a frequency from one of the nearest or flight plan airports (when transferred from a compatible Garmin aviation portable or G3X™ system).
In addition, the GTR 200 automatically stores the 20 most recently accessed frequencies for easy retrieval. The 121.5 emergency frequency is also never more than a button press away; simply hold down the frequency swap button to tune it.
Enjoy Crystal-Clear Standby Frequency Monitoring
With its standby frequency monitoring feature, the GTR 200 gives you the ability to listen to ATIS while monitoring ATC. Swapping your active and standby frequencies is done with a single touch of a button or optionally installed switches on the controls.
With its standby frequency monitoring feature, the GTR 200 gives you the ability to listen to ATIS while monitoring ATC. Swapping your active and standby frequencies is done with a single touch of a button or optionally installed switches on the controls.
Even in single-radio aircraft, you’ll no longer have to worry about missing an ATC call or other critical transmission. 3D Audio capability separates the active and standby frequencies in your headset so it’s easier to differentiate between sources.
IN THE BOX
GTR 200
Installation rack
Connector kit/backplate
Manual
Installation rack
Connector kit/backplate
Manual
Package contents may vary per version. See your local dealer for more information.
DOWNLOADS
Specifications
Physical Characteristics
|
Characteristics
|
Specifications
|
|
Bezel Height
|
1.35 in (34.29 mm)
|
|
Bezel Width
|
6.25 in (158.8 mm)
|
|
Rack Height (Dimple-to-Dimple)
|
1.375 in (34.93 mm)
|
|
Rack Width
|
6.30 in (160.02 mm)
|
|
Depth Behind Panel with Connectors (Measured from face of aircraft panel to rear of connector backshells)
|
9.39 in (238.51 mm)
|
|
GTR 200/200B Weight (Unit Only)
|
1.38 lbs (0.63 kg)
|
|
GTR 200/200B (Installed with rack and
connectors)
|
1.95 lbs (0.88 kg)
|
General Specifications
|
Characteristics
|
Specifications
|
| Operating Temperature Range | -20C to +55C |
| Humidity | 95% non-condensing |
| Altitude Range | -1,500 ft to 55,000 ft |
| Input Voltage Range | 14/28 VDC |
| Current Draw* at 14 VDC | 0.6 A, Typical when receiving 3.0 A, Typical when transmitting 7.50 A Maximum, 90% modulated into 3:1 VSWR and 11V power input voltage |
| Current Draw* at 28 VDC | 0.30 A, Typical when receiving 1.40 A, Typical when transmitting 3.75 A Maximum, 90% modulated into 3:1 VSWR and 22V power input voltage |
|
Bluetooth Connectivity (GTR 200B only))
|
Bluetooth 3.00 Compliant, allows music and cell phone calls. Bluetooth supports HFP (including HFP v1.6 Wide Band Speech mode), A2DP, and AVRCP. The GTR 200B stores 10 paired devices and overwrites the least recently connected device when a new device is paired. Only 1 Bluetooth connection allowed at one time. |
Display Specifications
| Characteristics | Specifications |
| Display Size |
Width: 3.46” (88.0mm)
Height: 0.843” (21.4mm)
|
| Active Area |
Width: 2.95” (74.98mm)
Height: 0.486” (12.36mm)
|
| Resolution | 200 x 33 pixels |
| Viewing Angle |
Left: 45°
Right: 45°
Up: 10°
Down: 30°
|
Transmitter Specifications
| Characteristics | Specifications |
|
Microphone Input
|
Two inputs, standard carbon or dynamic mic with integrated
preamp. The GTR 200/200B provides a 150 Ω AC input impedance
and supplies the microphone with an 11 V bias through 470 Ω +/-
5%.
|
|
Modulation Capability
|
85% with 150 to 1500 mVRMS microphone input at 1000 Hz.
Range can be extended from 20 mVrms to 2500 mVrms with mic
gain adjustment.
|
|
Modulation
|
AM Double sided Emission Designator:
6K00A3E (118 - 136.975 MHz)
|
|
Frequency Range
|
118.000 to 136.975 MHz, 25 kHz channel spacing
|
|
Frequency Tolerance
|
+/-5 ppm from -20°C to +55°C
|
|
Output Power
|
10 Watts carrier minimum
|
|
Duty Cycle
|
20%
|
|
Carrier Noise Level
|
At least 35 dB (SNR).
|
|
Stuck Mic Time-Out
|
35 seconds time-out, reverts to receive
|
|
Demodulated Audio Distortion
|
Less than 25% distortion when the transmitter is at 85% modulation
at 350 to 2500 Hz
|
Receiver Specifications
|
Characteristics
|
Specifications
|
|
Frequency Range
|
118.000 to 136.975 MHz, 25 kHz channel spacing
|
|
Headset Audio Output
|
60 mW minimum into a 150 Ω load
|
|
Audio Response
|
Less than 6 dB of variation between 350 and 2500 Hz.
|
|
Audio Distortion
|
Less than 25% at rated output power
|
|
Sensitivity
|
SINAD greater than 6 dB when the RF level is -107 dBm
with 30% modulation
|
|
Squelch
|
Automatic squelch with manual override
|
| SKU | 010-01087-41 |
| Brand | Garmin |
| Shipping Weight | 2.0000kg |
