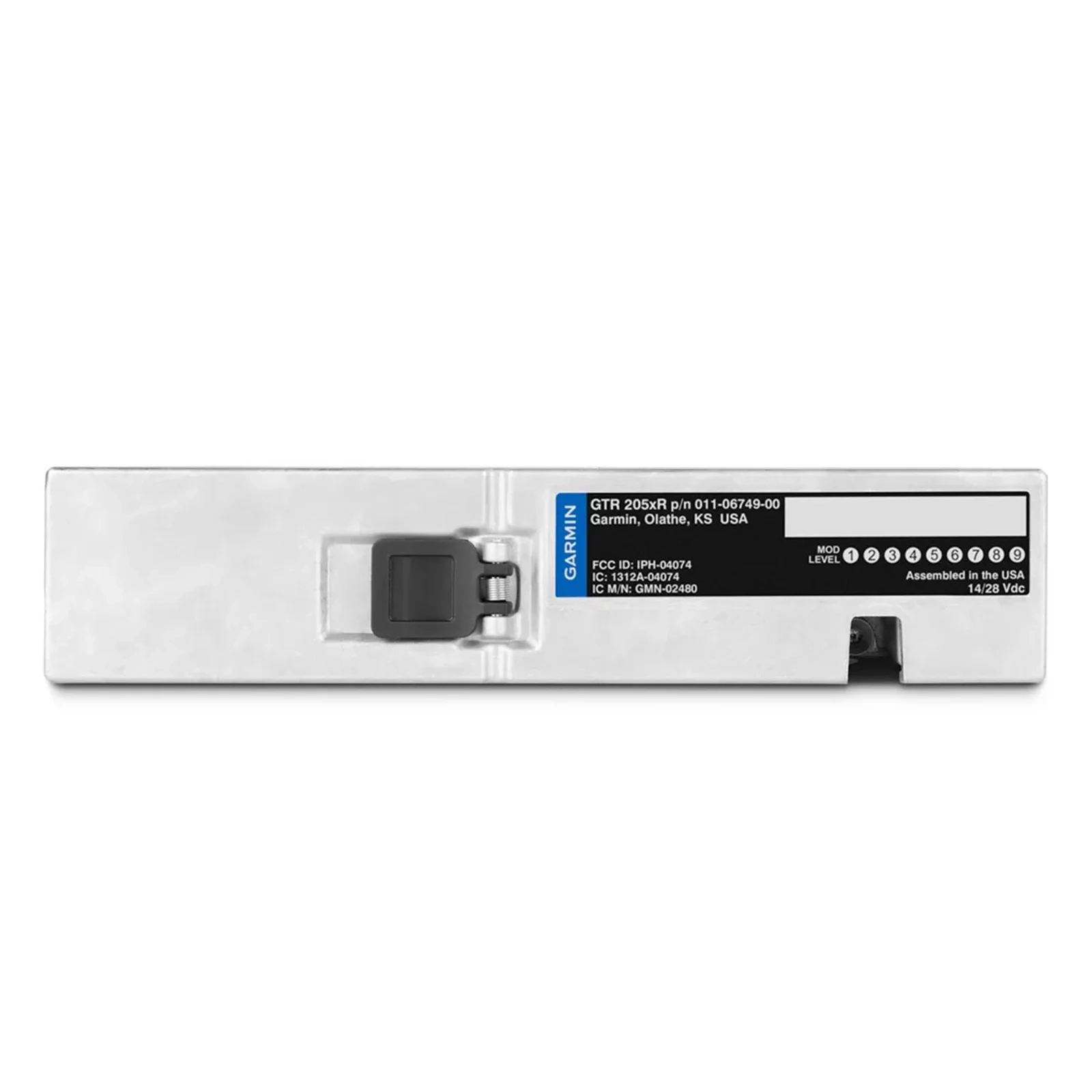

Garmin GTR 205xR Remote Mount VHF COM Radio for Experimental Aircraft

$2,950.00

inc GST

Product Description

Garmin GTR 205xR Remote Mount VHF COM Radio for Experimental Aircraft

MEET YOUR COMM NEEDS — AND MORE

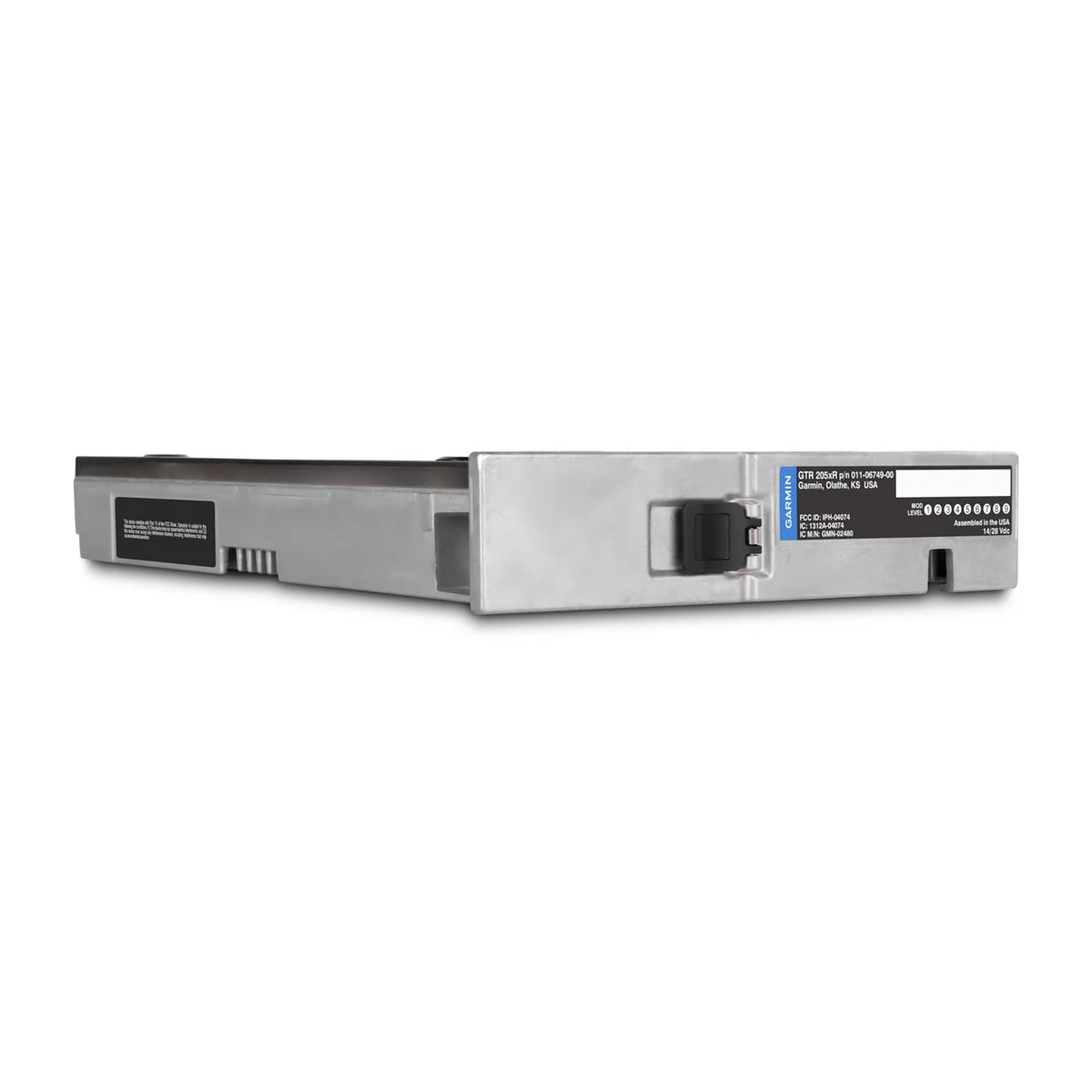

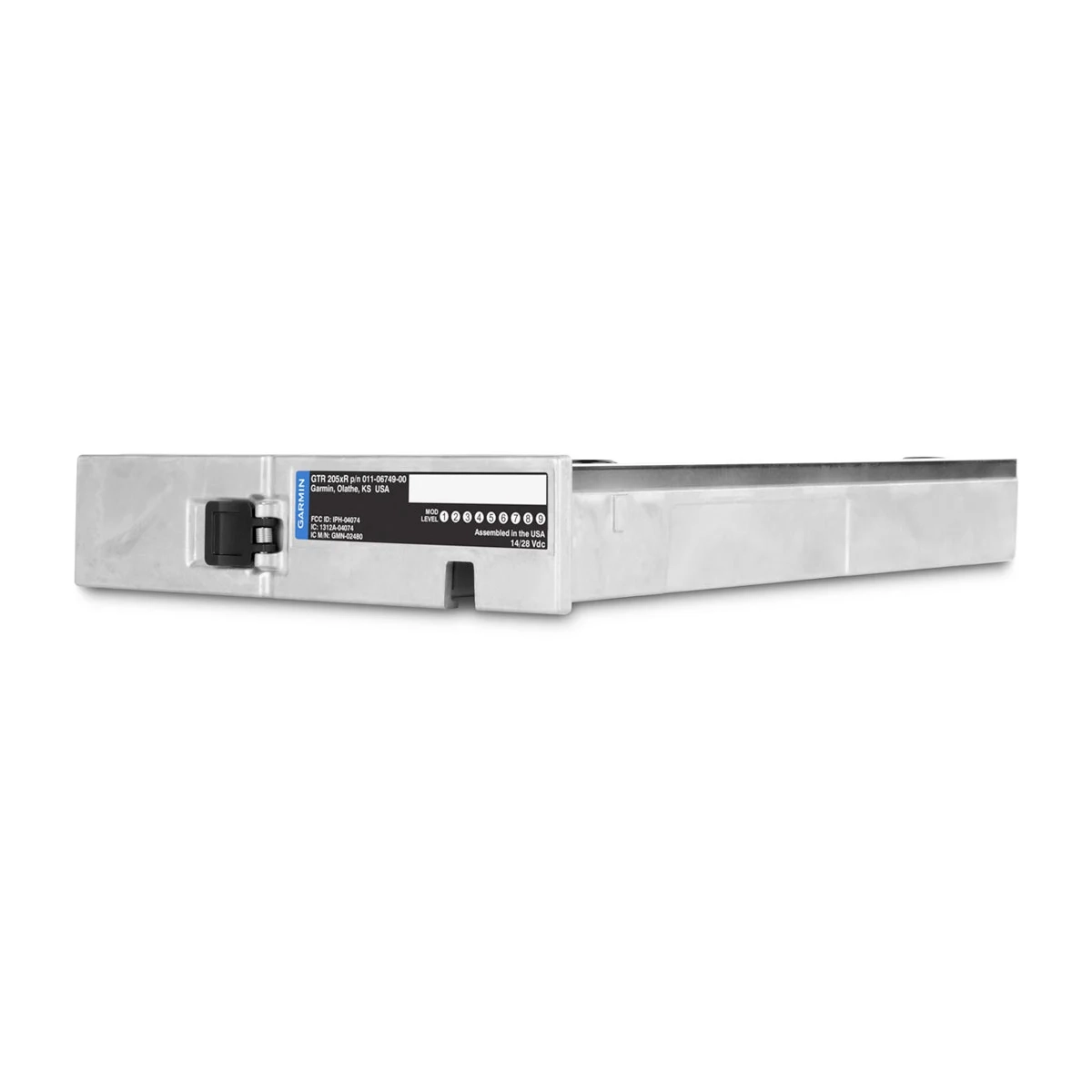

Save space with the remote-mount GTR 205xR COMM radio, and add advanced communication and audio capabilities to your panel.

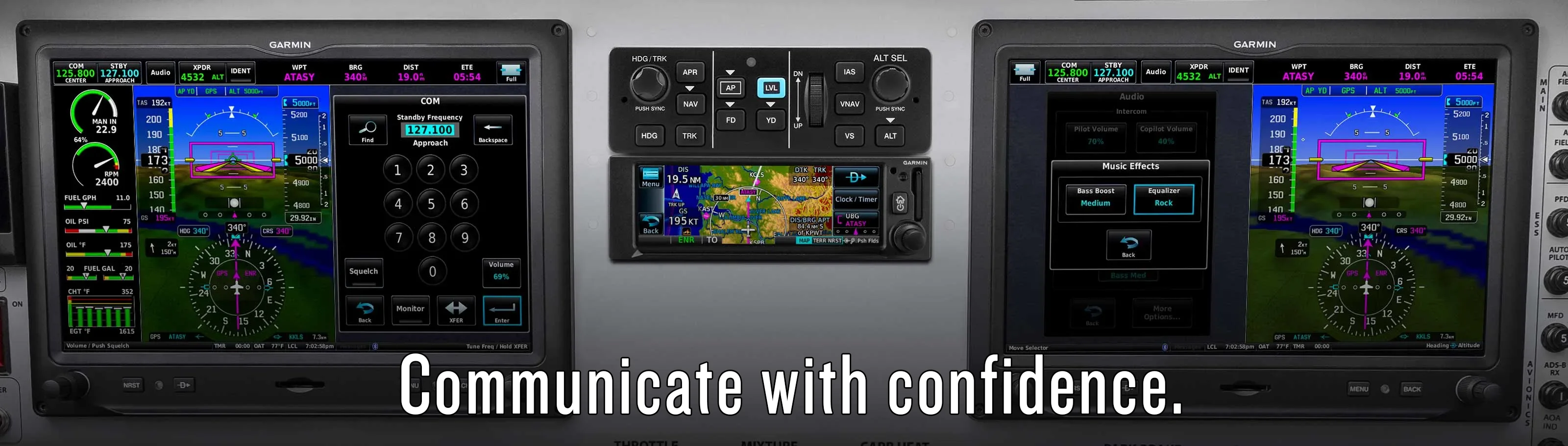

Save valuable panel space with remote mounting.	Control GTR 205xR with your G3X Touch™ flight display.	Get a two-place intercom with this all-in-one COMM radio.	Use your flight display’s database to find and select a facility frequency.	Monitor your standby COMM frequency.	Use 3D Audio processing to help differentiate between sources.


VHF COMM TRANSCEIVER	FIND A FREQUENCY	FREQUENCY ID

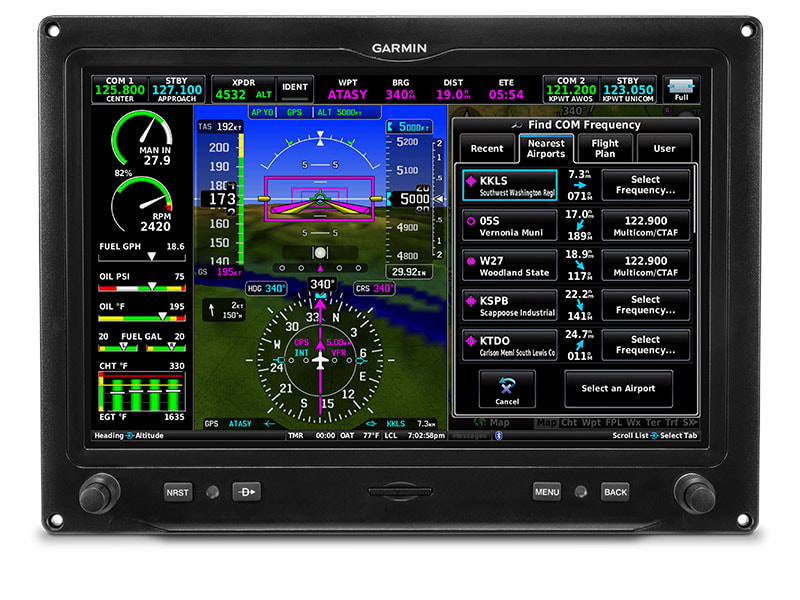

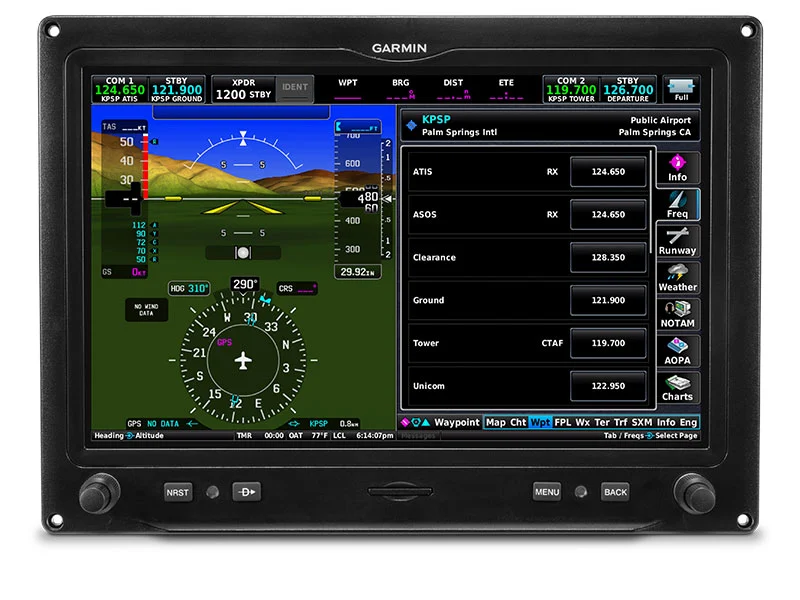

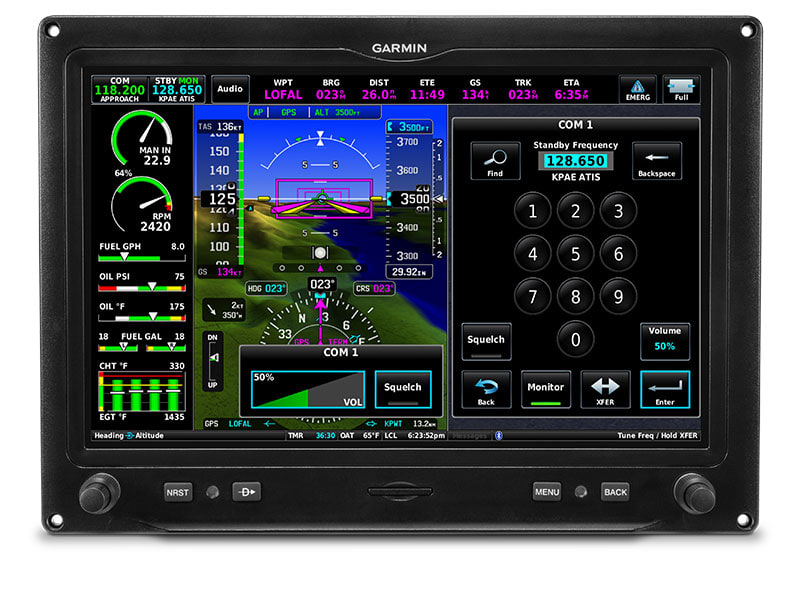

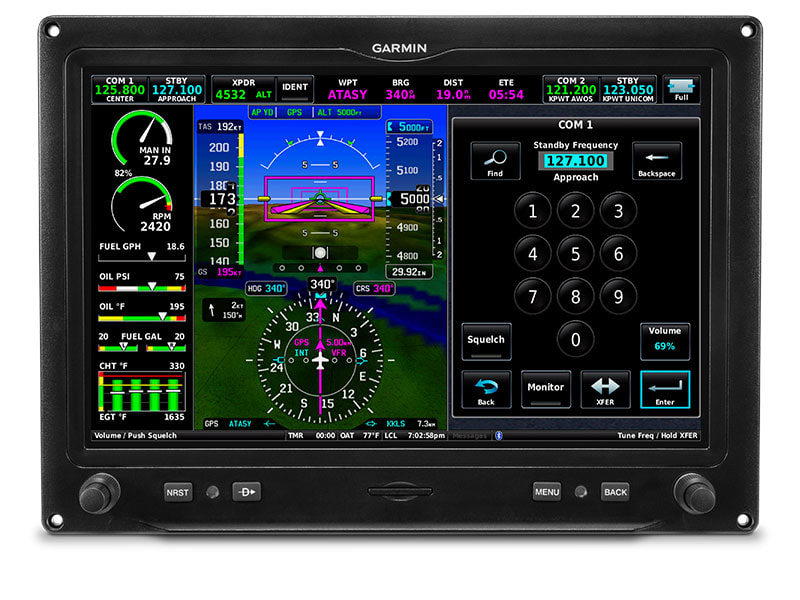

The 2,280-channel capable VHF COMM radio offers 10 watts of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing. Simply tap the standby position to enter or find your frequency, then tap the active frequency to switch.	Enter an airport identifier into your G3X Touch to look up frequencies for that location (tower, ground, ATIS, clearance delivery, etc.) Then, send the selected frequency to the standby position on the 205xR radio.	The GPS on your G3X Touch enables frequency ID to show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you know who you’re talking to.

STANDBY COMM MONITORING	NSTANT RECALL

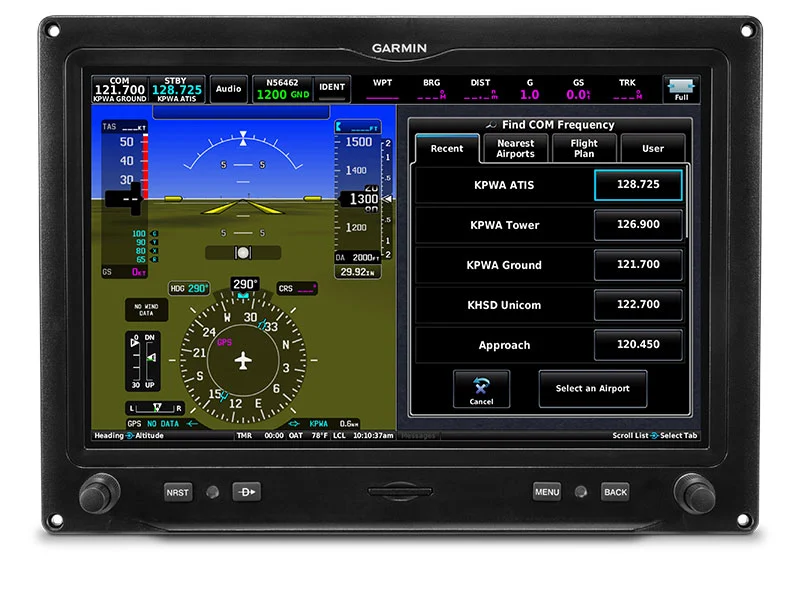

Listen to a standby frequency, such as ATIS, without leaving your active channel.	With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies.

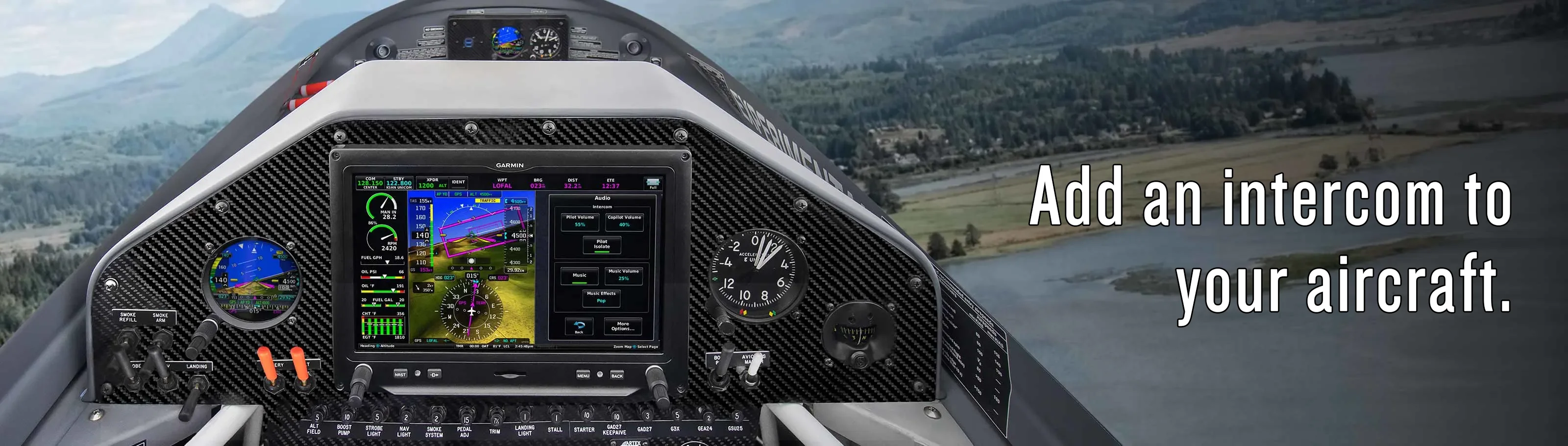

TWO-PLACE INTERCOM	AUTO SQUELCH TECHNOLOGY	3D AUDIO PROCESSING

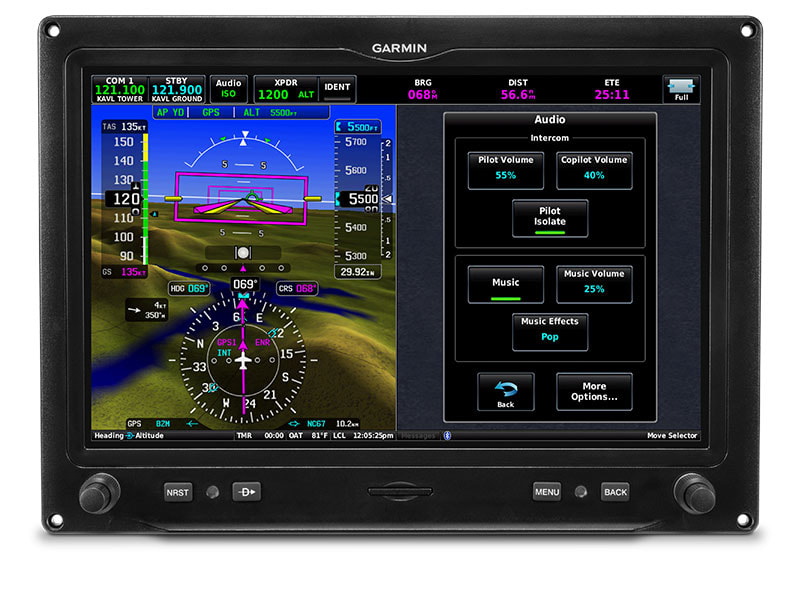

Communicate clearly with your passenger via the built-in intercom. The pilot-isolate feature allows you to focus on COMM radio communications or for your passenger to listen to music without radio interruptions.	Auto squelch allows GTR 205xR to automatically sense noise levels in the cockpit and adjust the mic squelch for easy intercom use regardless of the cockpit noise level.	With your stereo headset, hear each audio source as if it’s coming from a unique location — so it’s easier to differentiate between sources.

EQ SETTINGS	AUXILIARY INPUTS

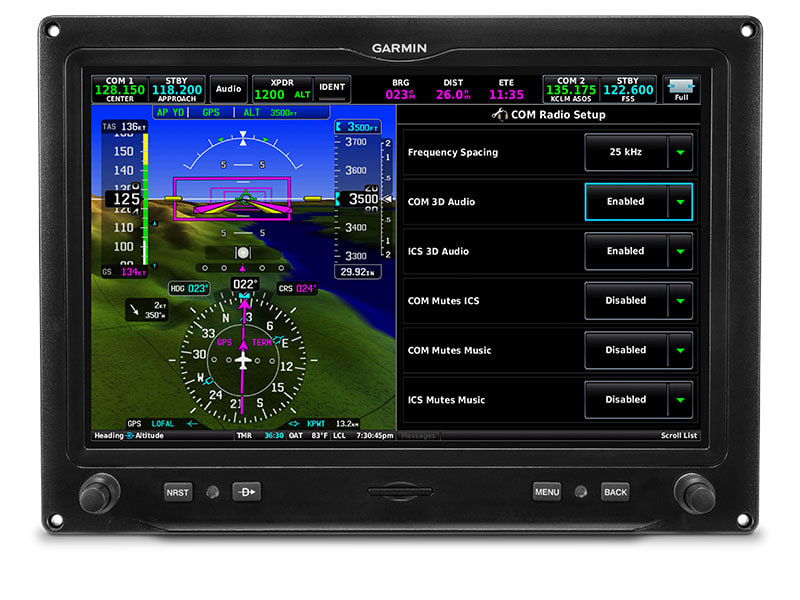

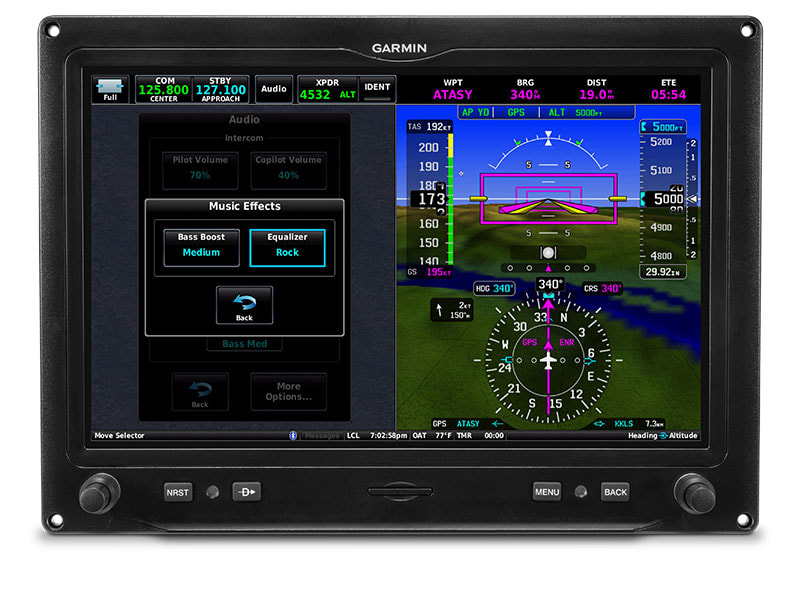

Music settings allow you to select enhanced bass boost levels as well as equalizer effects that include rock, classical and pop audio profiles.	GTR 205xR is capable of up to four AUX inputs, including two channels for stereo audio plus mono audio alerts and more.

IN THE BOX / PACKAGE INCLUDES

MANUALS

Specifications

Physical Specifications

Characteristics	Specifications
Bezel height	1.35" (34.29mm)
Bezel Width	6.25" (158.8mm)
Rack height (dimple to dimple)	1.375" (34.93 mm)
Rack width	6.30" (160 mm)
Depth behind panel with connectors (measured from face of aircraft panel to rear of connector backshells)	10.32" (262.1 mm)
GTR 205x weight (unit only)	2.2 lbs. (1.0 kg)
GTR 205x installed with rack and connectors	2.8 lbs. (1.4 kg)
GTR 205xR weight (unit only)	2.0 lbs. (0.9 kg)
GTR 205xR installed with rack and connectors	2.6 lbs. (1.2 kg)
Operating temperature range	-20°C to +55°C
Humidity	95% non-condensing
Altitude range	-1,500 ft to 55,000 ft
Input voltage range (main connector)	9 to 33 VDC
Current draw GTR 205xR	Tx Power Level 10W 14 Volt Current Draw Typical 0.63A 14 Volt Current Draw Maximum 3.35A 28 Volt Current Draw Typical 0.33A 28 Volt Current Draw Maximum 1.61A

COM Transmitter Specifications

Characteristics	Specifications
Microphone input	Two inputs, standard carbon or dynamic mic with integrated preamp providing minimum 70 mVRMS into 600 Ω load.
Modulation capability	Nominal 90% with 40 to 1500 mVRMS microphone input at 1000 Hz
Modulation	AM double sided Emission designator: 6K00A3E (118 - 136.975 MHz) 5K60A3E (118 - 136.992 MHz)
Frequency range	118.000 to 136.975 MHz, 25 kHz channel spacing 118.000 to 136.992 MHz, 8.33 kHz channel spacing
Frequency tolerance	±2 ppm from -20°C to +55°C
Output power	10 watt mode: 10 watts minimum 16 watt mode: 16 watts minimum
Duty cycle	10 W: 100% 16 W: Recommended 25% (5 seconds on/15 seconds off, 15 seconds on/45 seconds off, etc.)
Carrier noise level	At least 35 dB (SNR)
Stuck mic time-out	30 seconds time-out, reverts to receive
Demodulated audio distortion	Less than 5% distortion when the transmitter is at 90% modulation at 350 to 2500 Hz.

COM Receiver Specifications

Characteristics	Specifications
Frequency range	118.000 to 136.975 MHz, 25 kHz channel spacing 118.000 to 136.992 MHz, 8.33 kHz channel spacing
Headset audio output	Up to 65 mW into a 500 Ω load.
Speaker audio output	Up to 12 W into a 4 Ω load.
Audio response	1Less than 6 dB of variation between 350 Hz and 2500 Hz.
Audio distortion	Less than 12% at rated output power.
Output power	10 watt mode: 10 watts minimum 16 watt mode: 16 watts minimum
AGC characteristics	Less than 3 dB of variation in the audio output from -93 to -13 dBm (power absorbed by a 50 Ω load).
Sensitivity	SINAD on all channels is greater than 6 dB when the RF level is -107 dBm (power absorbed by a 50 Ω load) modulated 30% at 1000 Hz at rated audio output power.
Squelch	Automatic squelch with manual override.
Selectivity	6 dB BW is greater than ±8 kHz for 25 kHz channeling. 60 dB BW is less than ±25 kHz for 25 kHz channeling. 6 dB BW is greater than ±2.78 kHz for 8.33 kHz channeling. 60 dB BW is less than ±7.37 kHz for 8.33 kHz channeling.
