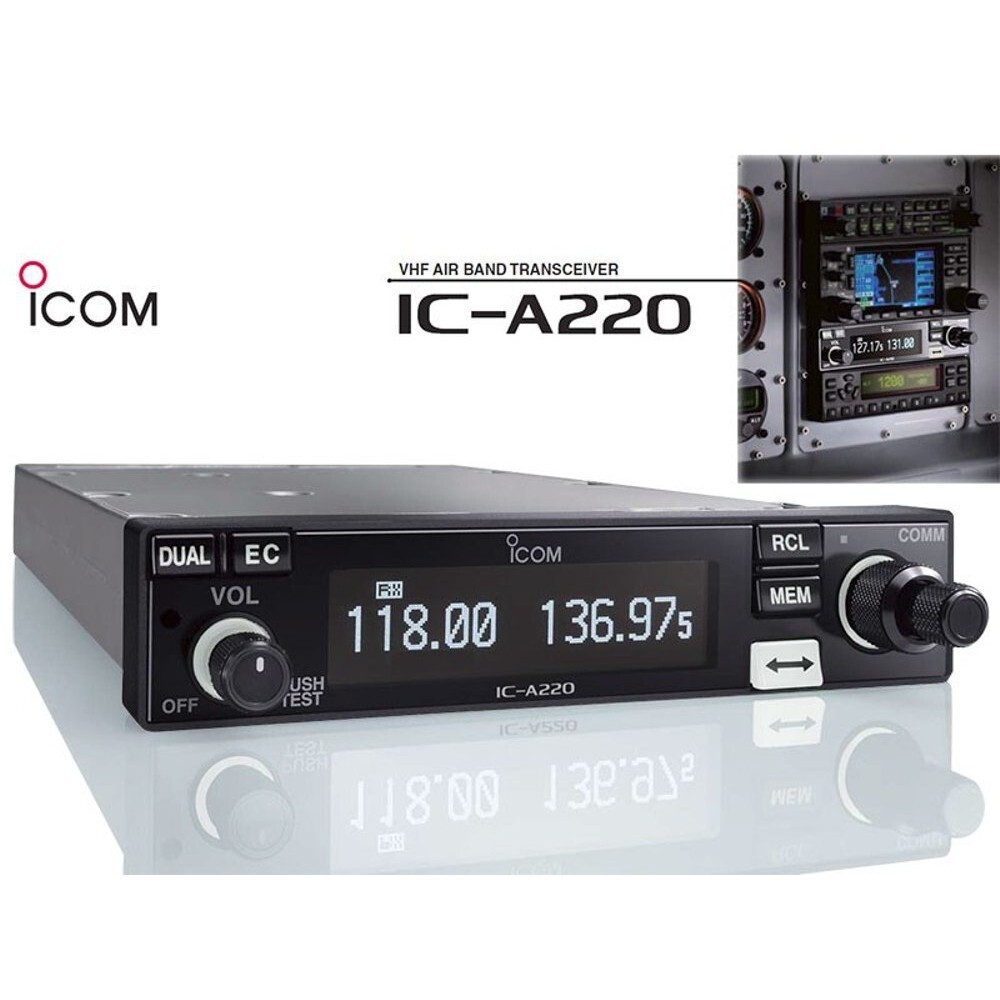

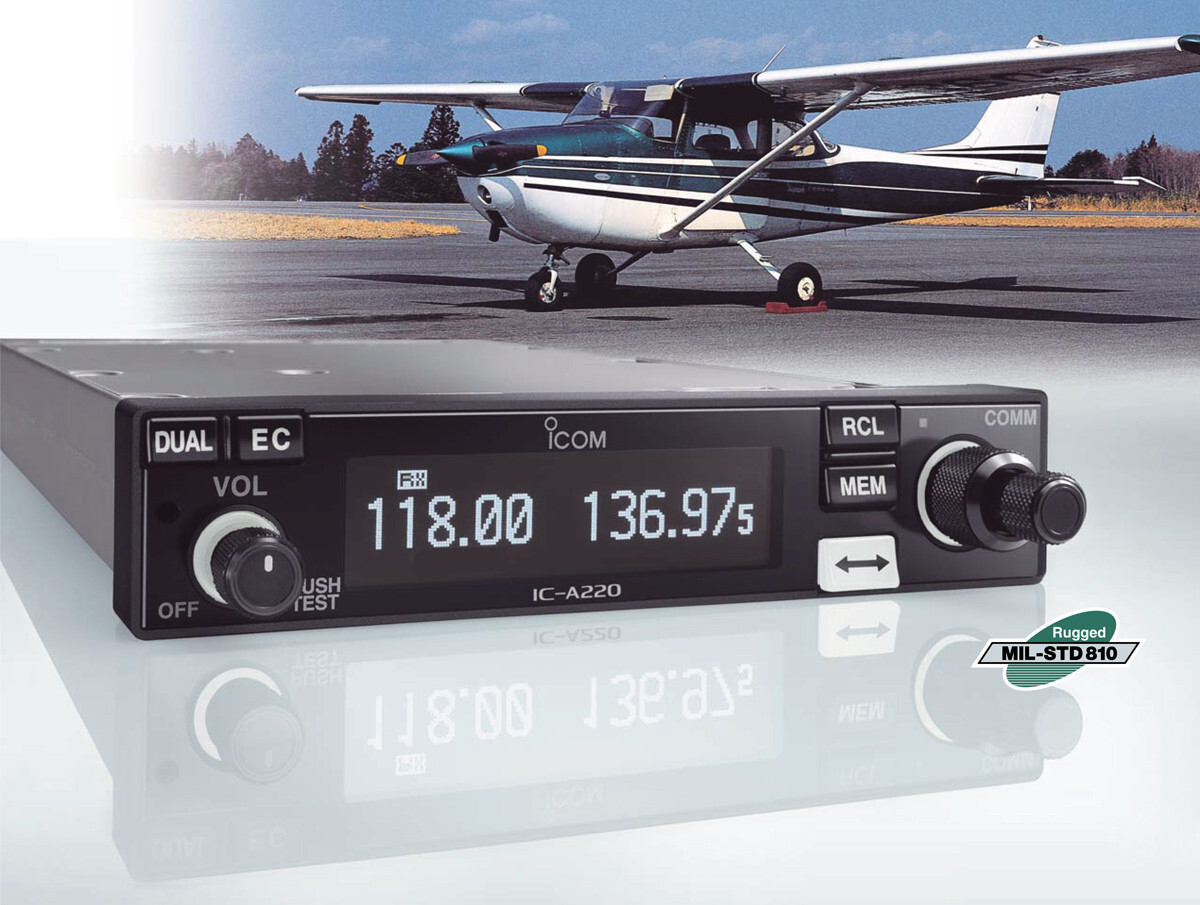

Icom IC-A220 Airband VHF Panel Mount Transceiver 8 Watt(PEP) TSO Version
$3,995.00
inc GST
Product Description
Icom IC-A220 Airband VHF Panel Mount Transceiver 8 Watt( PEP)
TSO Version
Innovative Airband that's Easier to See and Install

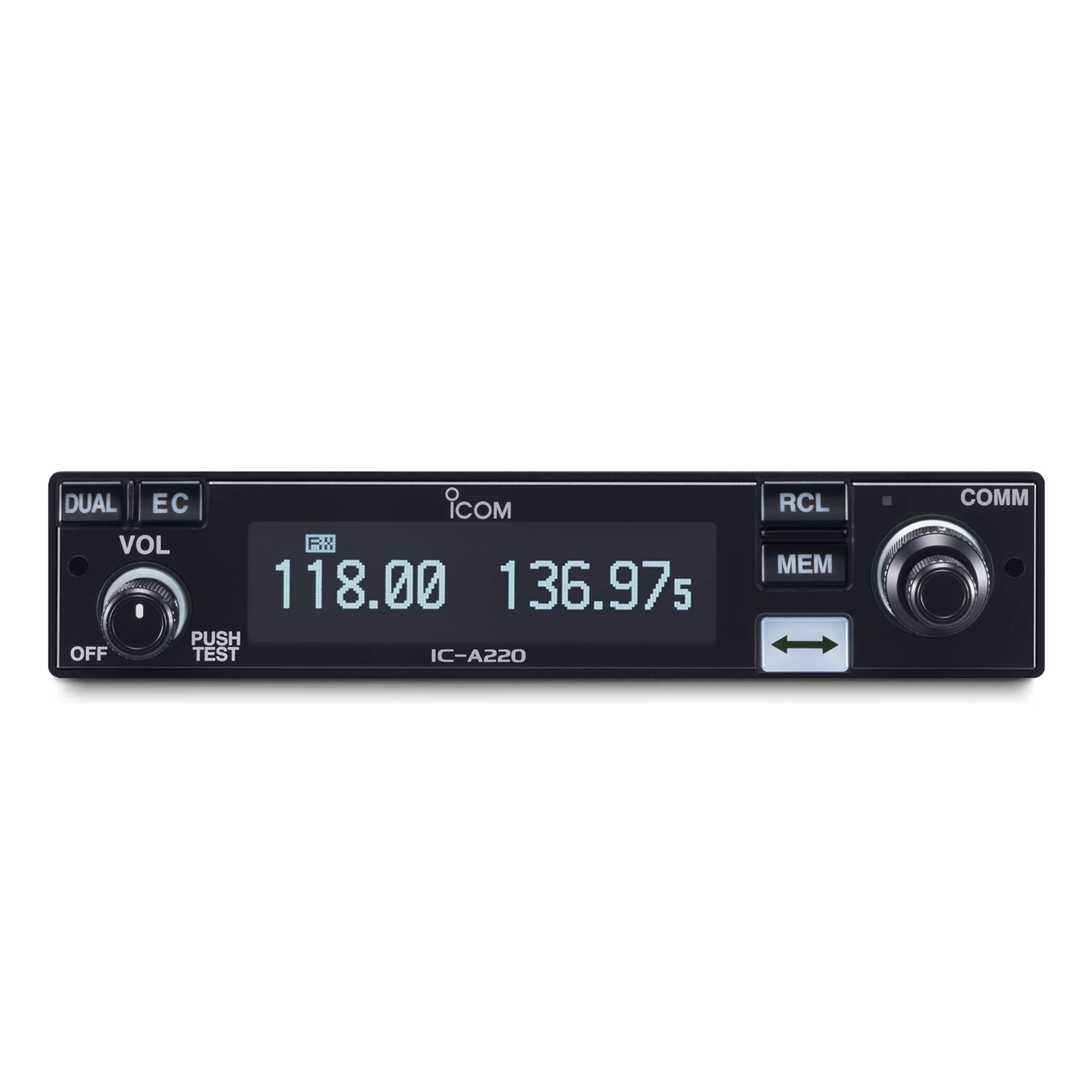

WHITE OLED DISPLAY AND WHITE KEY BACKLIGHT
The IC-A220 has a bright organic light emitting diode (OLED) display with a very wide 170 degree viewing angle. White characters on a black background show clear easy to read operating information. With white key backlighting, the white OLED display matches modern plane’s instrument panel. In addition, the auto dimmer function adjusts the display for optimum brightness at day or night.

EASY CHANNEL SELECTION
It’s fast and easy to select any of memory channels in the IC-A220. The “flip-flop” arrow button switches between main and stand-by channels. The dualwatch function allows you to monitor two channels simultaneously. In addition, the auto stack memory stores the last 20 channels used and allows you to recall those channels easily.

AUTOMATIC SQUELCH FUNCTION
The new automatic squelch function detects the signal level and automatically adjusts the squelch level to maintain a received call. The manual squelch function allows you to instantly adjust the squelch level. The squelch test function manually opens the squelch for testing. 12V/24V DC Power Source The built-in DC-DC converter accepts a 12/24V DC power source. The IC-A220 is easily installed in most air planes or vehicles.

INTERCOM FUNCTION
The IC-A220 has a built-in voice activated intercom function allowing the pilot to talk with the copilot via the headset. The IC-A220 has adjustable audio level and squelch control functions.

GPS MEMORY FUNCTION
When connected to an external GPS receiver equipped with an airport frequency database, the frequency data such as nearby airports can be transferred and made available in the IC-A220.

EASY INSTALLATION - SLIDE OUT, SLIDE IN REPLACEMENT
Easily replace Icom IC-A200 or IC-A210 installations using the MBA-3 card edge adapter (Sold Separately). When using the MBA 3 adapter IC-A220 radios are a simple slide in slide out replacement for existing installations.

KEY FEATURES

  • 20 regular memory channels with a 6-character channel name
  • 50 group memory channels (10 Ch × 5 groups) with a channel tag
  • Dualwatch and priority watch functions
  • One touch access to 121.5 MHz emergency frequency
  • Side tone function for monitoring your voice with headset
  • ANL (Automatic noise limiter) function reduces pulse type noise
  • Remote control capability
  • PC programming capability
  • Dial lock and panel lock
  • Time-out-timer
  • Slim 34mm (1.34 inch) height can be installed in a limited panel space

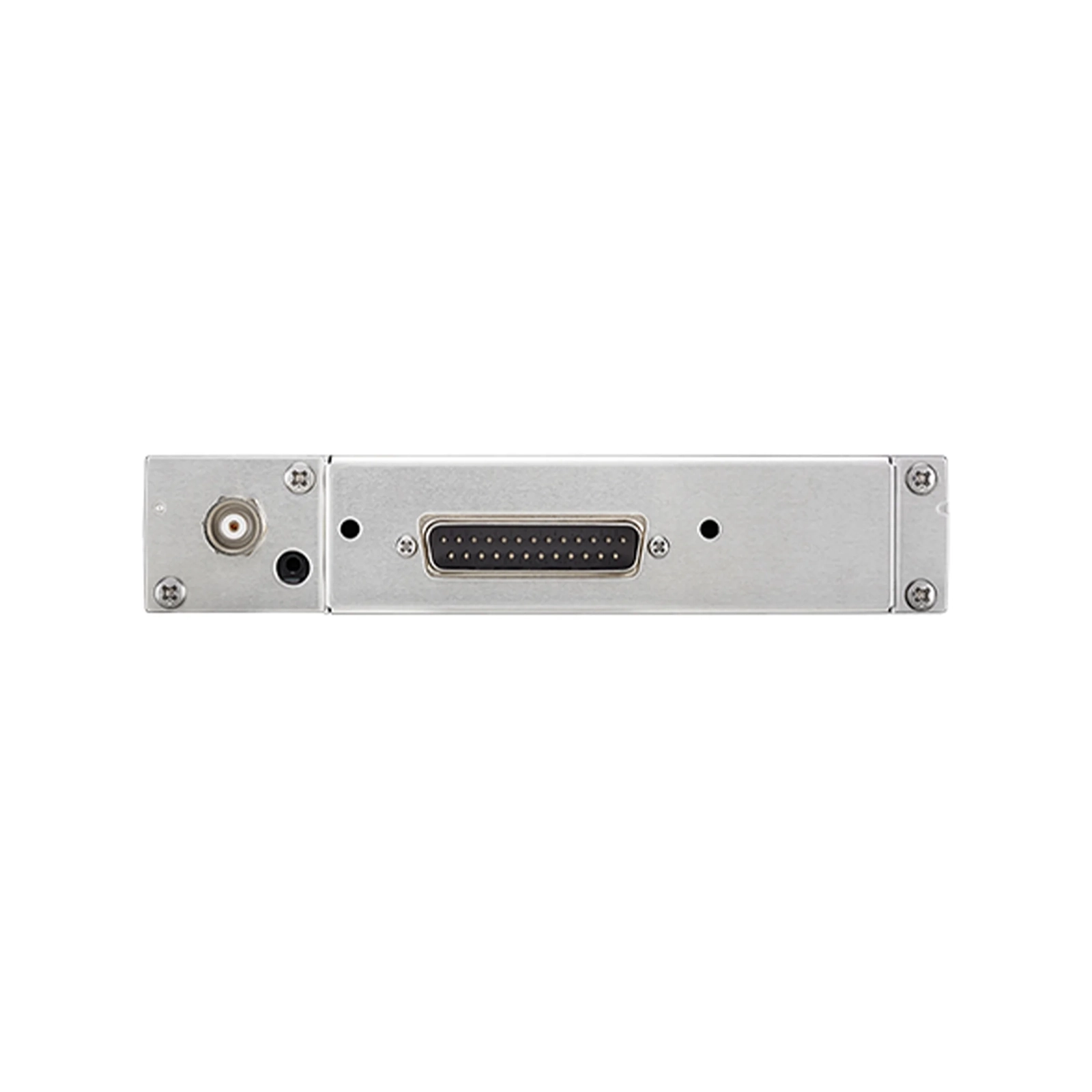

  • D-Sub 25-pin industry standard connector for easy installation
  • Two types of menu mode; settings menu and configuration menu

SPECIFICATIONS

  • 8W Output Power (Carrier power)

IN THE BOX

  • IC-A220 TSO Version VHF Air Band Transceiver
  • Mounting Bracket Kit​

USER MANUALS

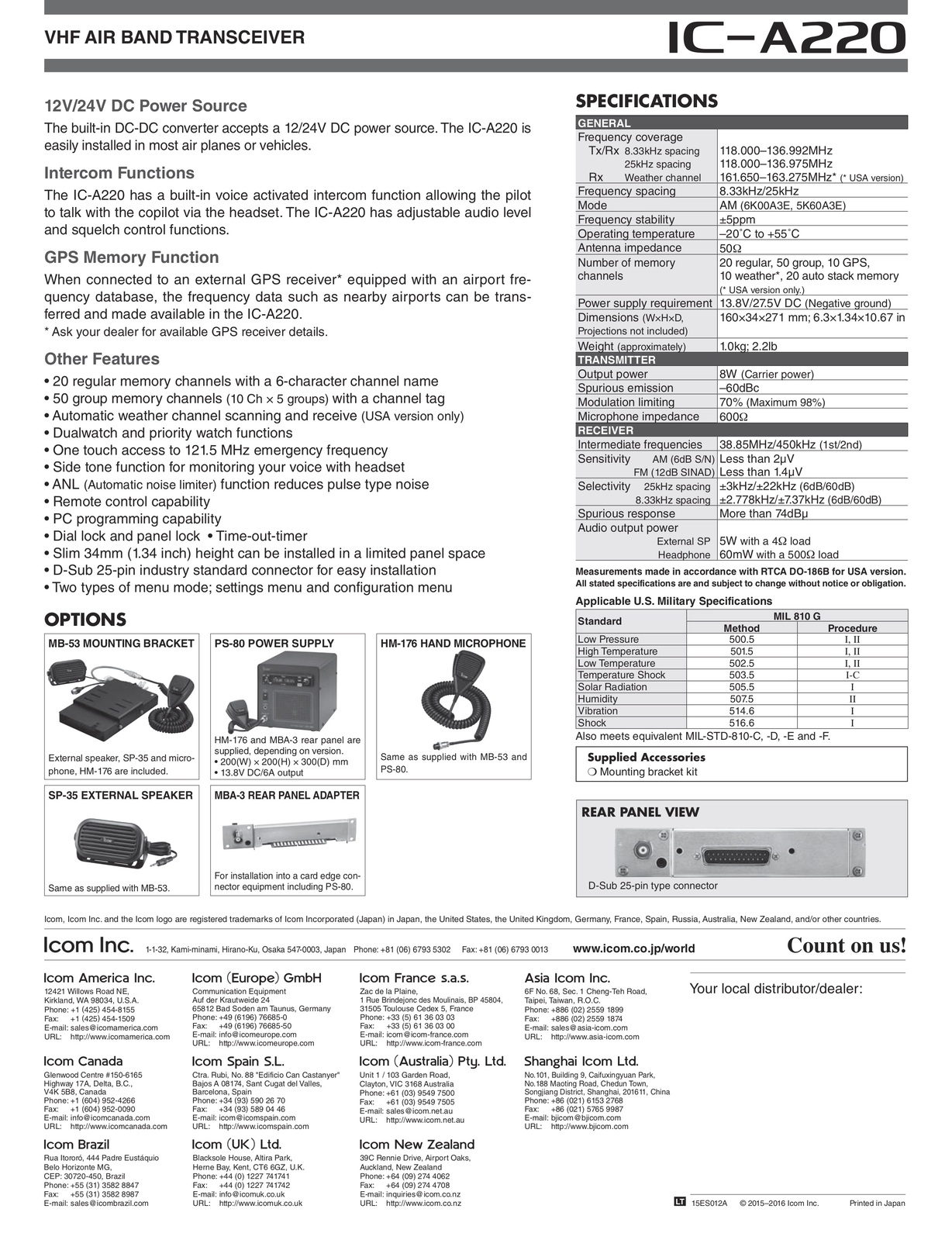

Specifications
General
Frequency range
TX/RX 8.33 kHz spacing 118.000–136.992 MHz
TX/RX 25 kHz spacing 118.000–136.975 MHz
RX Weather channel 161.650–163.275 MHz
Frequency spacing 8.33 kHz / 25 kHz
Mode AM (6K00A3E, 5K60A3E)
Frequency stability ±5 ppm
Operating temperature –20˚C to +55˚C; –4˚F to +131˚F
Antenna impedance 50 Ω
Number of memory channels
20 regular / 50 group memory
10 GPS / 20 history / 10 weather
Power supply requirement 13.8 V/27.5 V DC (Negative ground)
Dimensions (W × H × D,
Projections not included)
160 × 34 × 271 mm;
6.3 × 1.34 × 10.67 in
Weight (approximately) 1.0 kg; 2.2 lb

Transmitter
Output power 8 W (Carrier power)
Spurious emission –60 dBc
Modulation limiting 70% (Maximum 98%)
Microphone impedance 600Ω

Receiver
Intermediate frequencies 38.85 MHz/450 kHz (1st/2nd)
Sensitivity AM (6 dB S/N) Less than 2μV
FM (12 dB SINAD) Less than 1.4μV
Selectivity 25 kHz spacing ±3 kHz/±22 kHz (6 dB/60 dB)
8.33 kHz spacing ±2.778 kHz/±7.37 kHz (6 dB/60 dB)
Spurious response More than 74 dBμ
Audio output power External SP 5 W with a 4 Ω load
Headphone 60 mW with a 500 Ω load


SKU IC-A220-TSO
Barcode # 731797022912
Brand Icom
Shipping Weight 3.0000kg
Unit Of Measure ea
