RAM® Handlebar U-Bolt Double Ball Mount with Diamond Plate

$55.00
In Stock

RAM® Handlebar U-Bolt Double Ball Mount with Diamond Plate

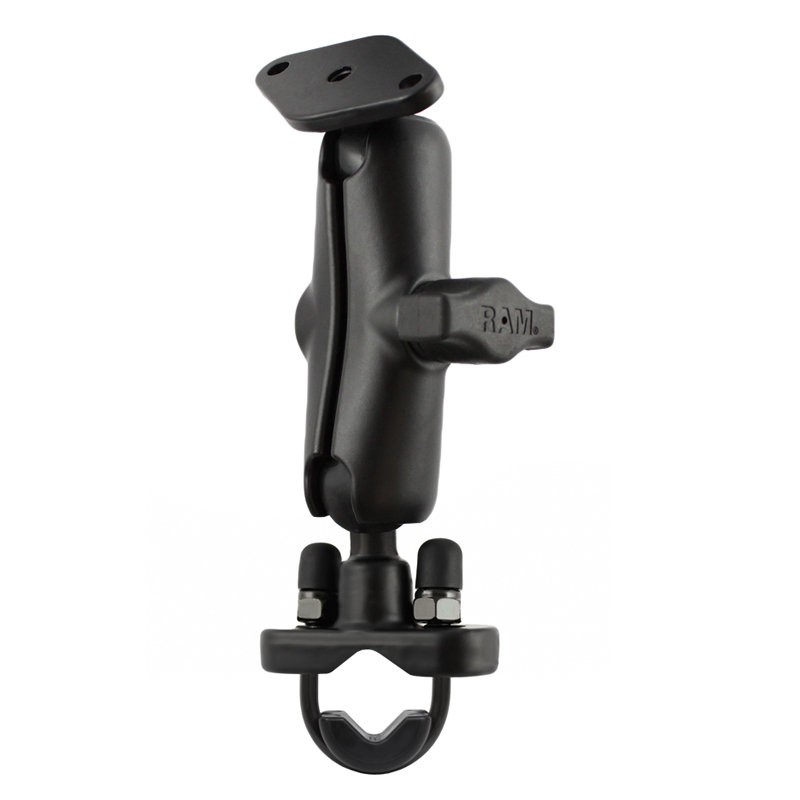

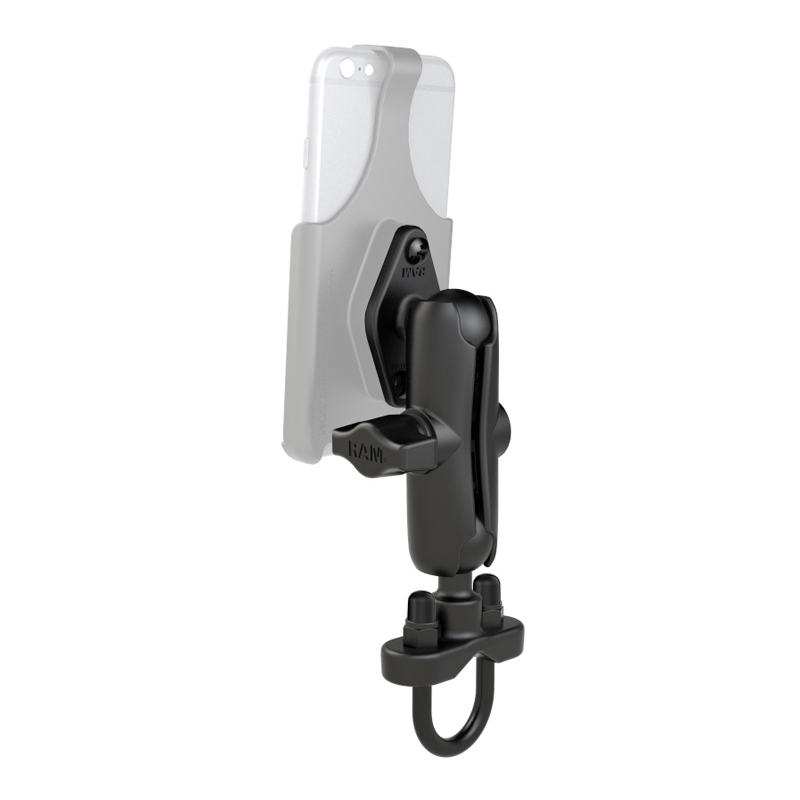

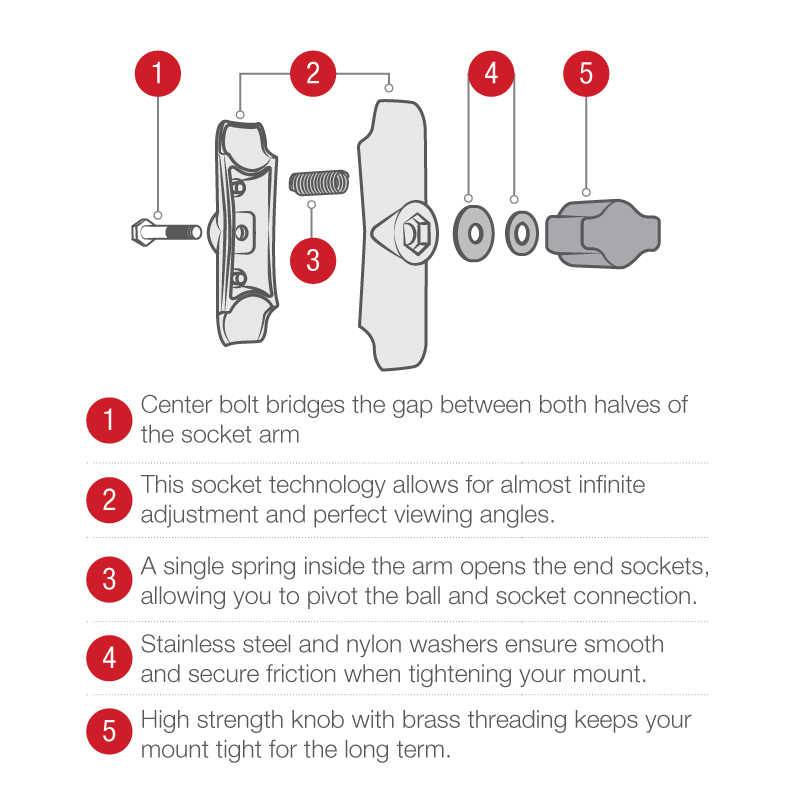

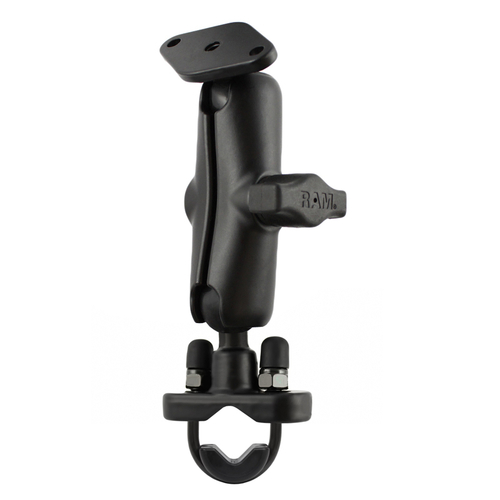

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® components. Included is hardware that will accommodate rails from .5" to 1.25" (1.3cm - 3.2cm) in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.


FEATURES

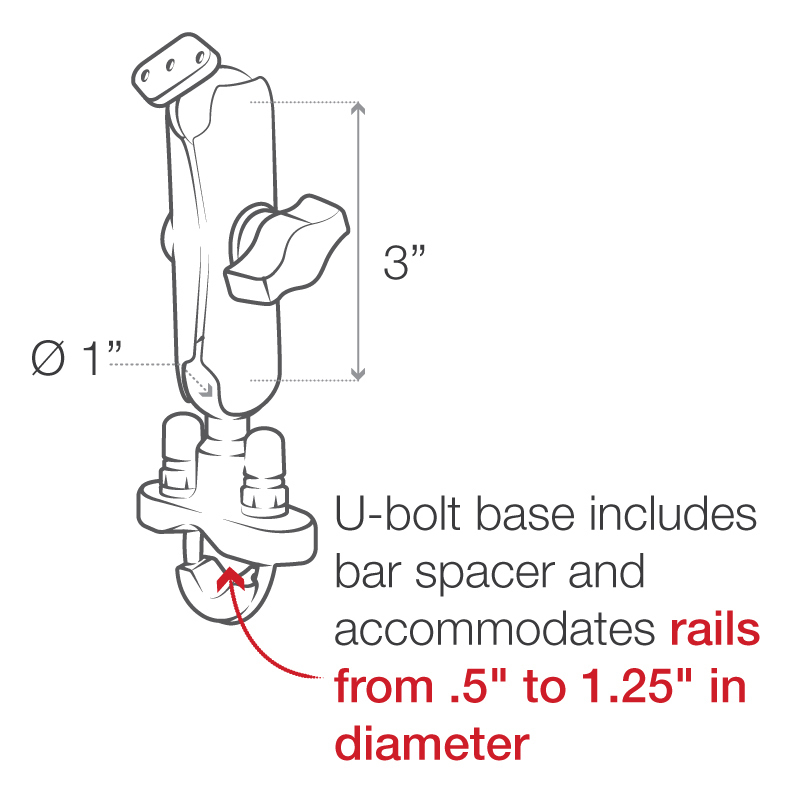

  • Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" (1.3cm - 3.2cm) in diameter, medium length B size RAM® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders

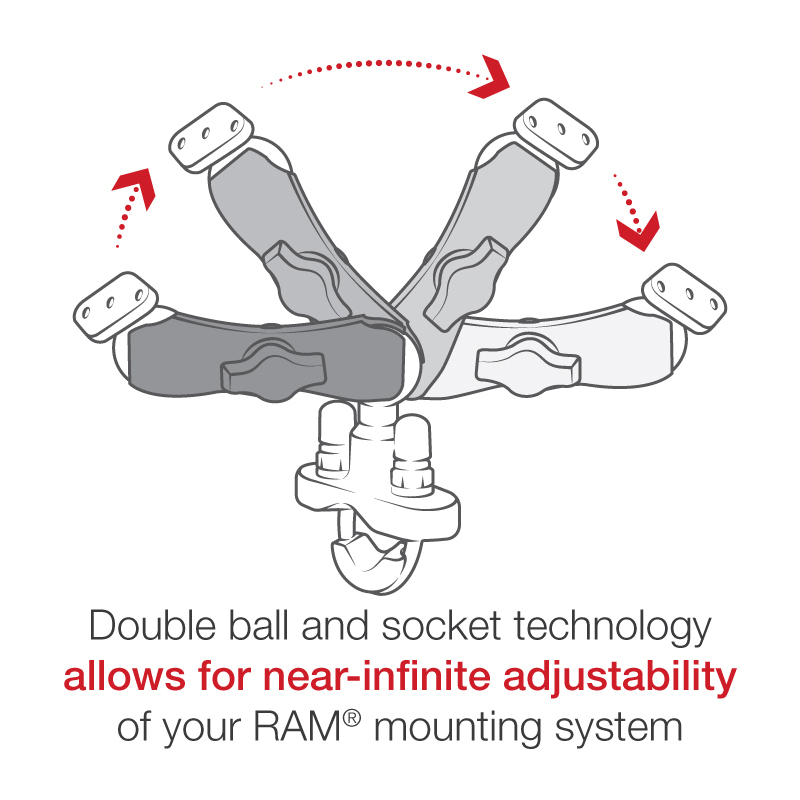

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

SPECIFICATIONS

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE: 0.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH: 3" (7.62cm)
HOLE PATTERN: 2-Hole AMPS: 1.912"
PLATE SIZE: 6.17cm x 3.33cm
BALL SIZE: B Size (1")
WEIGHT CAPACITY: Standard Use: 907g / Heavy-Duty Use: 453g
MATERIALS: Marine-grade aluminum
WEIGHT: 286g


(RAM-B-149ZU)

SKU RAM-B-149ZU
Barcode # 793442149009
Brand Ram Mounts
Shipping Weight 0.4000kg
Unit Of Measure ea
