Garmin GHA 15 Height Advisor Garmin GHA 15 Height Advisor  (Experimental & LSA Aircraft Only)

See digital AGL advisory readings from 500’ to touchdown1 on select flight displays.	Audio callouts provide landing cues in select intervals from 300’ down to 1’ AGL2.	Get accurate radar-based height readings over land or water.	Small and lightweight, the unit is 100% self-contained for easy mounting on your aircraft.	Audio outputs work with any standard audio panel.	Fly with precise AGL reference, especially in areas where current baro altimeter settings aren’t available.

DIGITAL HEIGHT ADVISORIES	AN ALL-IN-ONE MODULE	DIGITAL DISPLAY OPTIONS

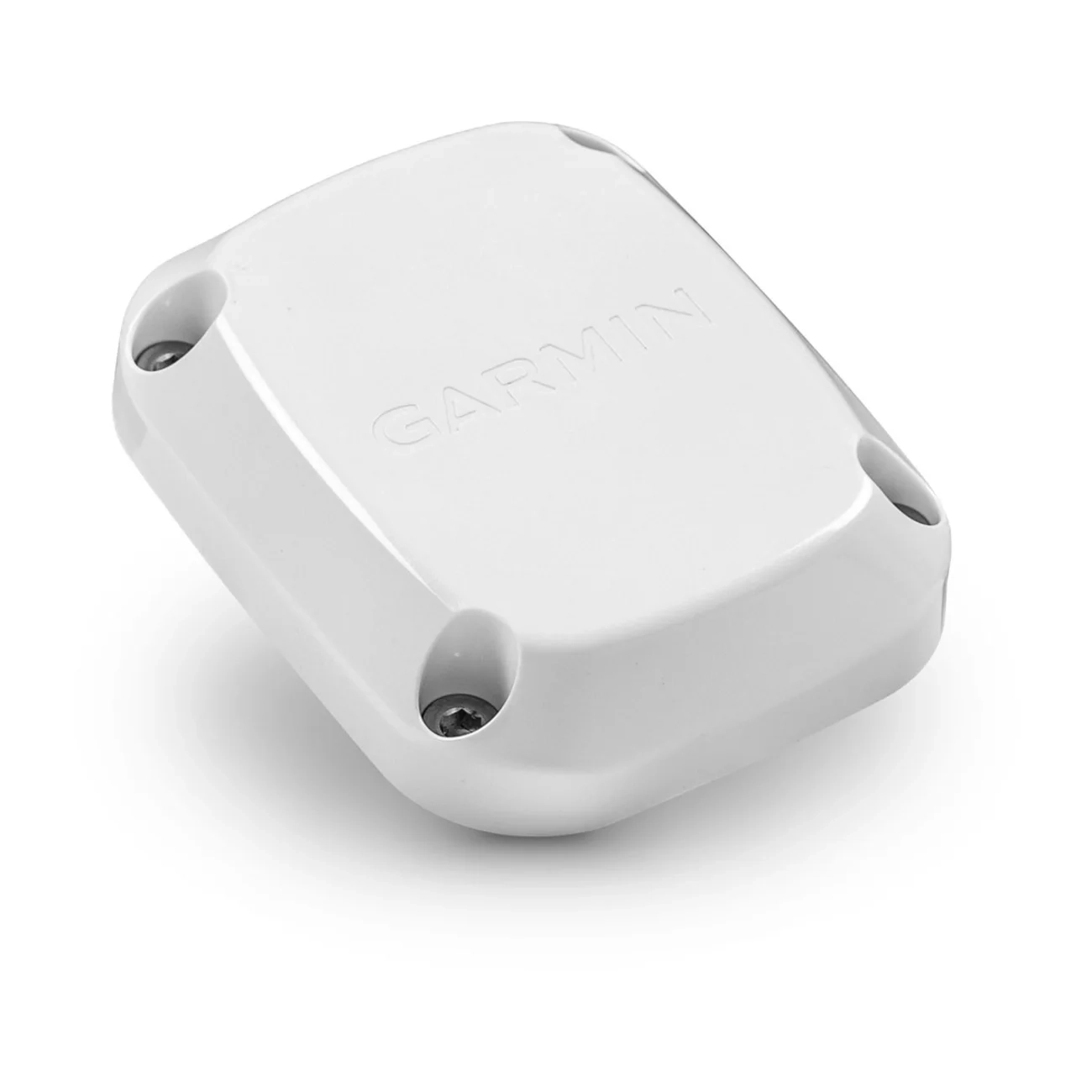

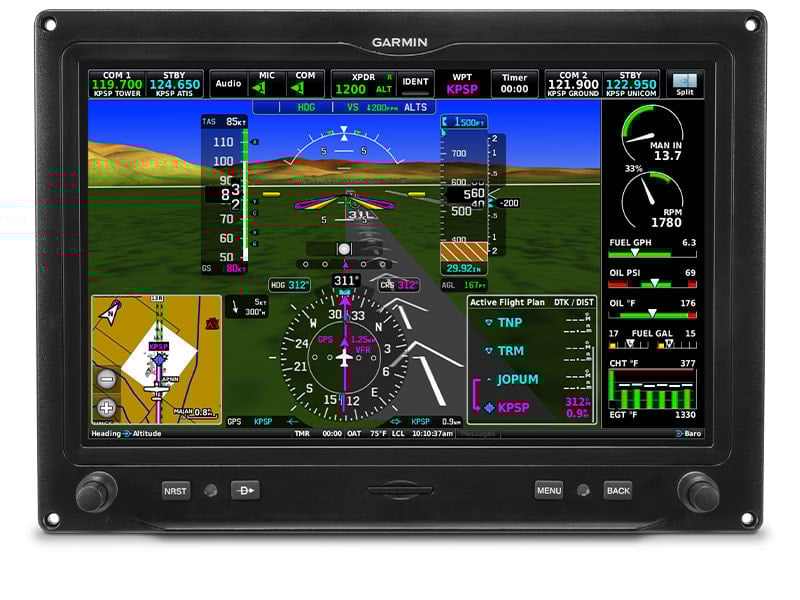

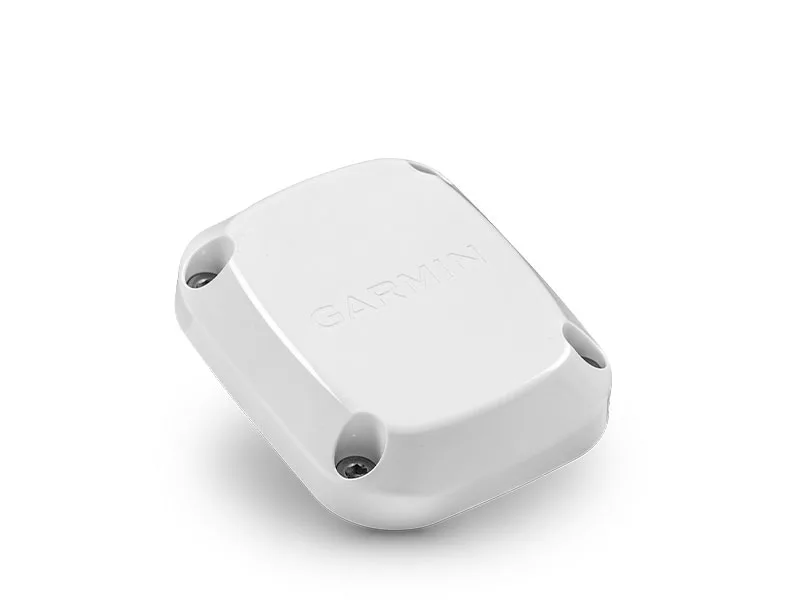

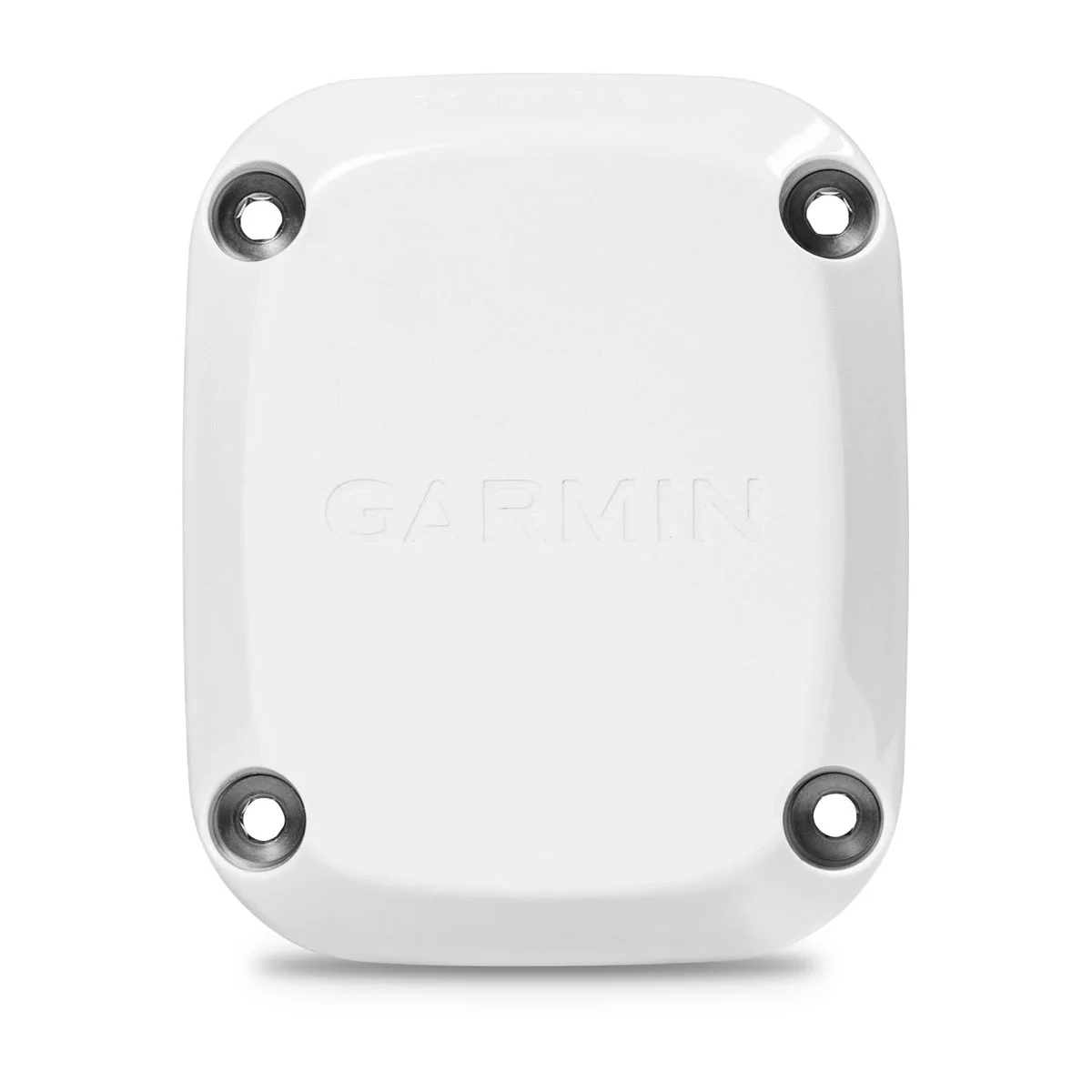

Like other radar-based systems, the GHA 15 height advisor works by transmitting radio waves downward from your aircraft. When the signal is reflected from the surface, the system determines the precise height by using the time delay it takes to receive the signals back.	The compact GHA 15 module is slightly larger than a deck of cards and weighs less than a pound (0.45 kg). The antenna and radar transceiver are built in to the unit, making for easy installation on the underside of your aircraft.	In experimental and light sport aircraft, the GHA 15 module is compatible with our G3X Touch flight displays.
AUDIBLE HEIGHT CALLOUTS	ADVANCED PROCESSING	PEACE-OF-MIND TECHNOLOGY
Starting at 300’ AGL, pilots who have the GHA 15 audio outputs connected2 will hear altitude callouts at select intervals down to 1’ above the surface. These callouts are user-configurable as to how low the prompts will go.	The GHA 15 height advisor can intelligently process hundreds of altitude measurements per second and apply advanced digital filters to maintain an accurate continuous reading of your AGL altitude.	An affordable solution, the GHA 15 height advisor leverages proprietary Garmin signal processing technology to provide a smooth-tracking AGL altitude reference, even in challenging terrain environments.

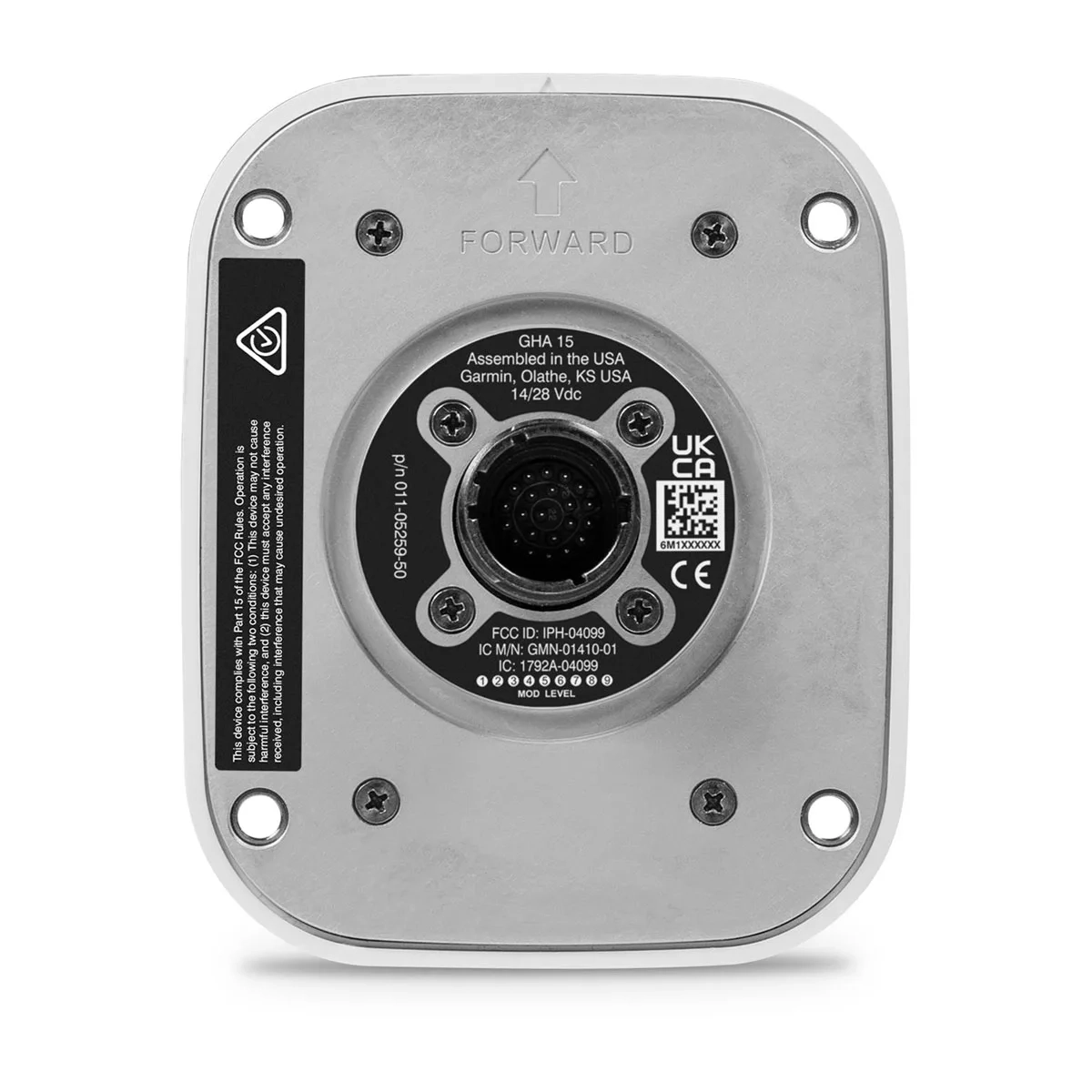

Physical Specifications

• Height: 4.35" (110.5 mm)
• Width: 3.55" (90.2 mm)

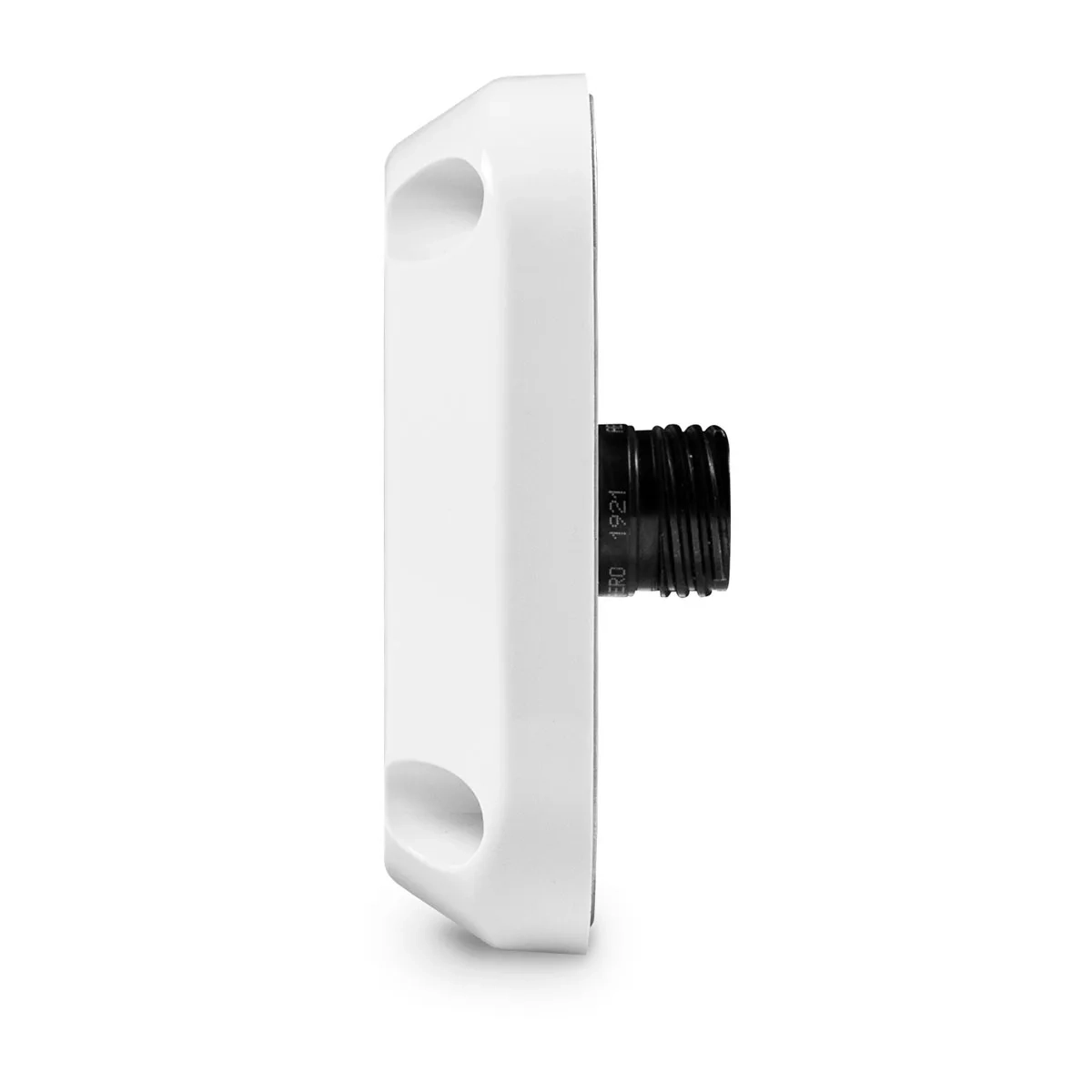

• Depth (from surface of fuselage): 1.02" (25.9 mm)
• Depth (with connector): 2.47" (62.7 mm)
• Weight: 0.5 lb (0.23 kg) max
• Connector kit weight: 0.15 lbs (0.06 kg) max

General Specifications

• Operational Temperature Range: -45C to +70C
• Altitude Range: 25,000 ft maximum

Performance Specifications

• Altitude Accuracy: +/- 1.5 ft (3-100 ft AGL), +/- 2% (>100 - 500 ft AGL)
• Altitude Range: 0 - 500 ft AGL
• Horizontal Velocity: 0 - 100 knots maximum
• Vertical Velocity: 20 ft/sec maximum (up to 100 ft AGL), 25 ft/sec maximum (above 100ft AGL)
• Pitch Angle: +/- 20° maximum
• Roll Angle: +/- 20° maximum

Power Requirements

• Supply Voltage: 14/28VDC
• Power Consumption: 5W maximum
