Product Description
KEY FEATURES
Conductor: 22 AWG, Stranded Tin-Plated Copper (usually 19 strands of 32 or 34 AWG).
Insulation: Extruded Ethylene Tetrafluoroethylene (ETFE), often referred to as Tefzel.
Voltage Rating: 600 Volts.
Temperature Rating: -55°C to 150°C.
Features: Superior abrasion resistance, high dielectric strength, resistance to chemical solvents & fuels.
Outer Diameter: Approx. 0.050 - 0.062 inches, allowing for lightweight, space-saving designs.
Application: Ideal for aerospace (SWAMP - Severe Wind And Moisture Problem areas) and high-performance racing vehicles.
M22759/16 Extruded ETFE Tefzel Wire, 22AWG - (Per FT)
HOW TO ORDER 1: To order a multiple foot length (eg. 6 foot length), put the number 6 in the quantity box.
It will be delivered in a single long rolled piece.

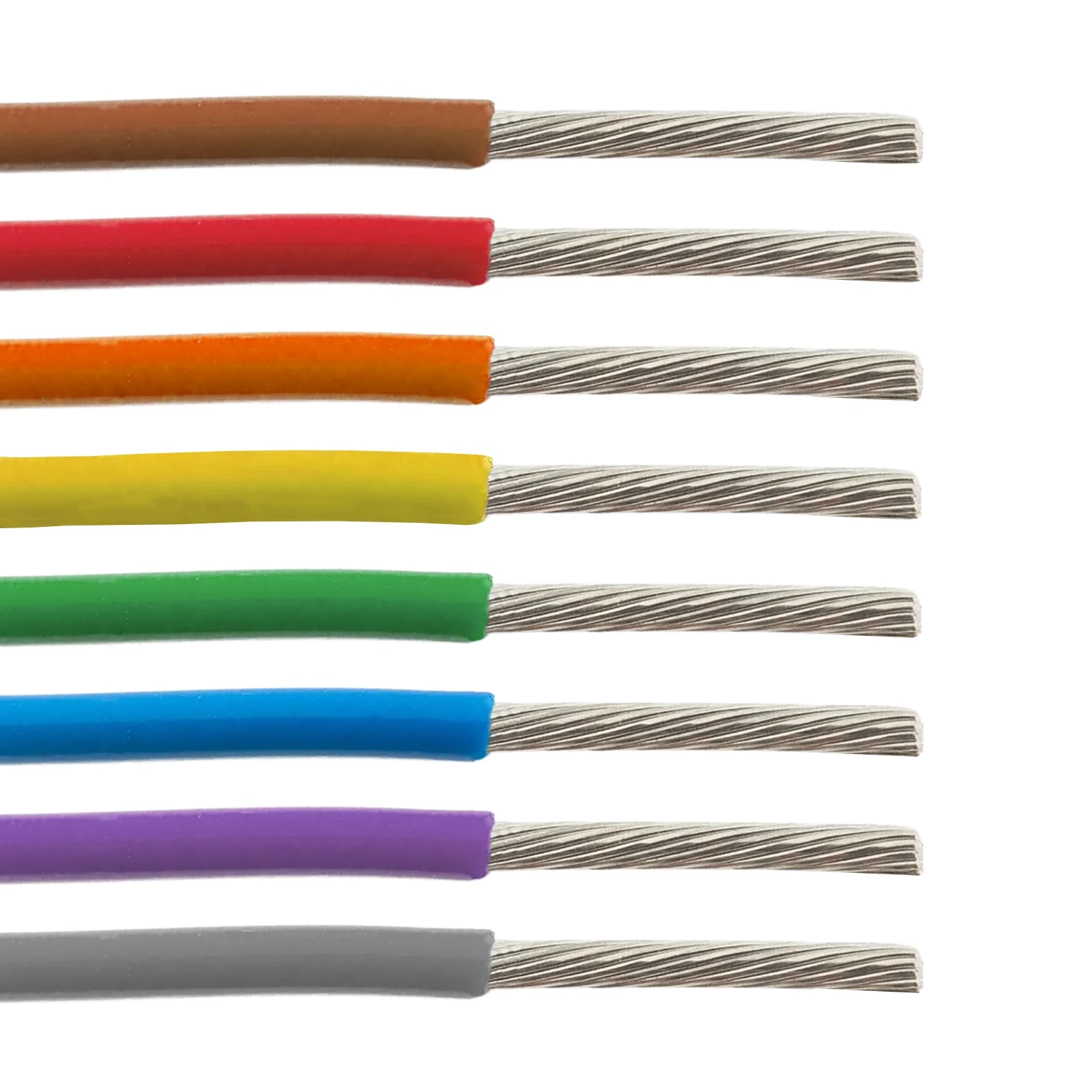

HOW TO ORDER 2: You can order multiple colors at once.
Put the required length in feet in the corresponding quantity box(s).

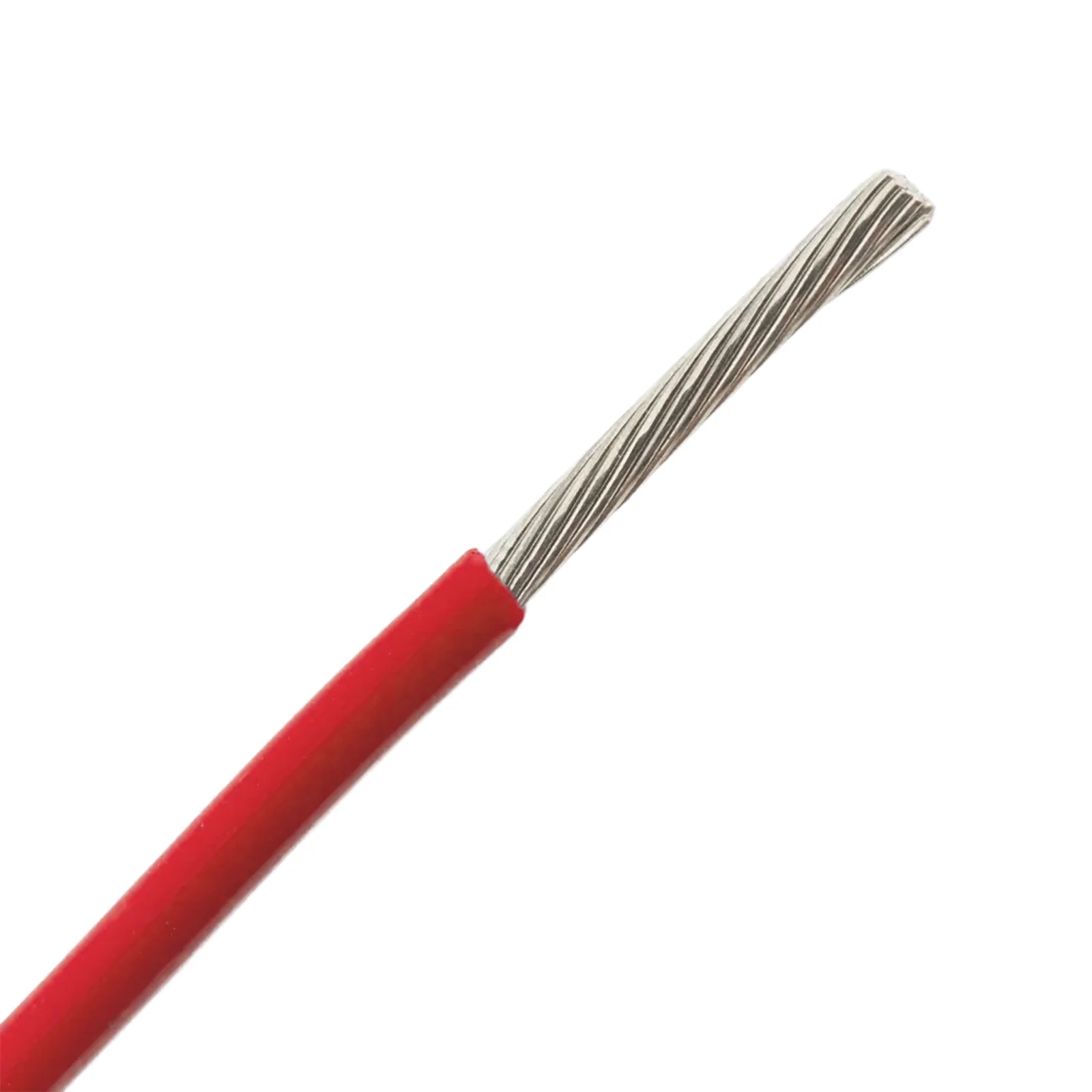

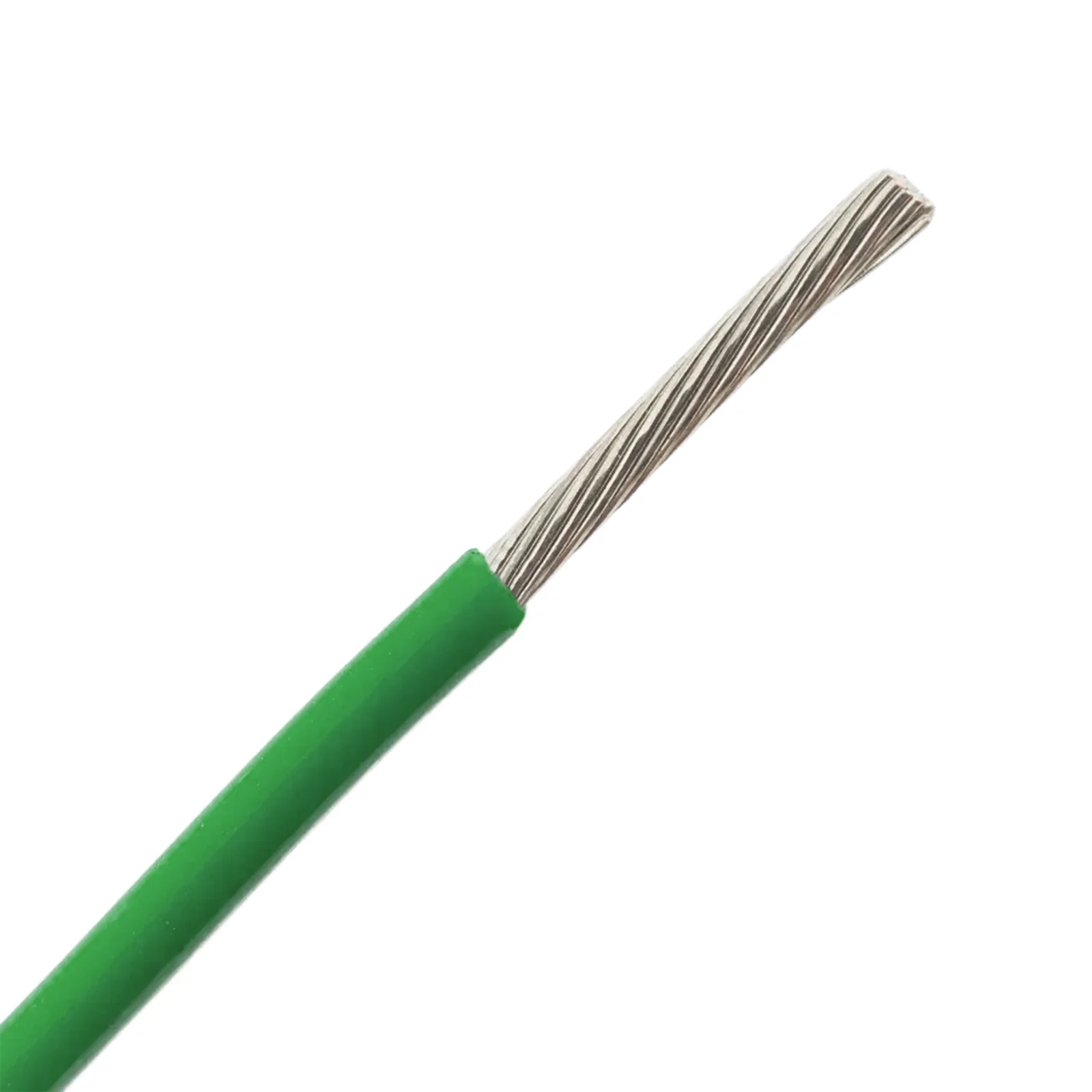

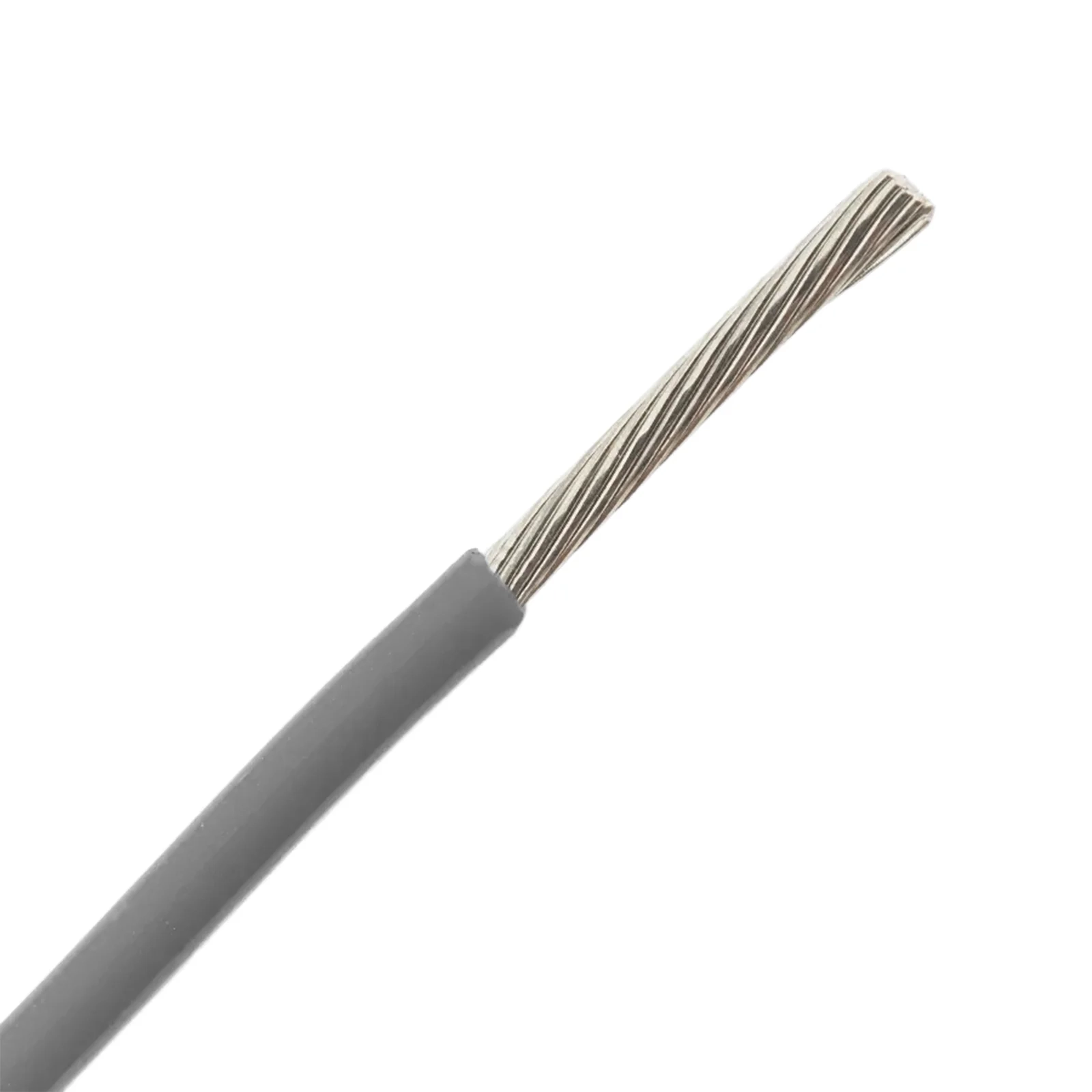

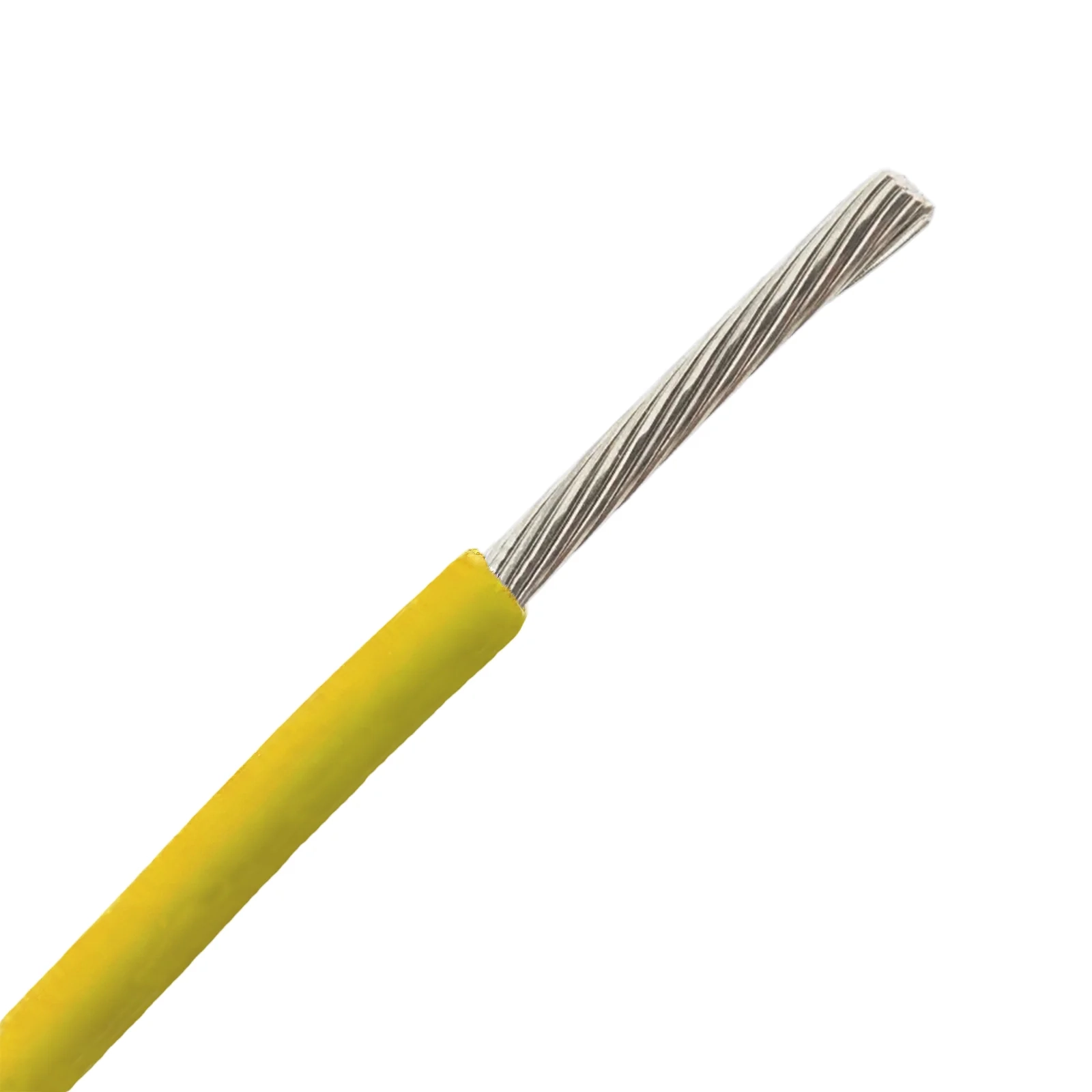

M22759/16-22 is a 22 AWG, 600V, 150°C military-grade hook-up wire with a stranded tinned copper conductor and rugged extruded ETFE (Tefzel) insulation. It is designed for severe environments, including aerospace and motorsport, offering high abrasion resistance, chemical stability, and a 19/34 stranding, typical of this M22759/16 wire.
KEY FEATURES
Conductor: 22 AWG, Stranded Tin-Plated Copper (usually 19 strands of 32 or 34 AWG).
Insulation: Extruded Ethylene Tetrafluoroethylene (ETFE), often referred to as Tefzel.
Voltage Rating: 600 Volts.
Temperature Rating: -55°C to 150°C.
Features: Superior abrasion resistance, high dielectric strength, resistance to chemical solvents & fuels.
Outer Diameter: Approx. 0.050 - 0.062 inches, allowing for lightweight, space-saving designs.
Application: Ideal for aerospace (SWAMP - Severe Wind And Moisture Problem areas) and high-performance racing vehicles.
Specifications
| SKU | 22G16-P |
| Brand | Tefzel® |
| Unit Of Measure | ea |
