Polyethelene Pitot Static Tubing - 1/4" (Per Foot)

$1.10

inc GST

Product Description

Polyethelene Pitot Static Tubing - 1/4" (Per Foot)

HOW TO ORDER ¹: To order a multiple foot length (eg. 6 foot length), put the number 6 in the quantity box.

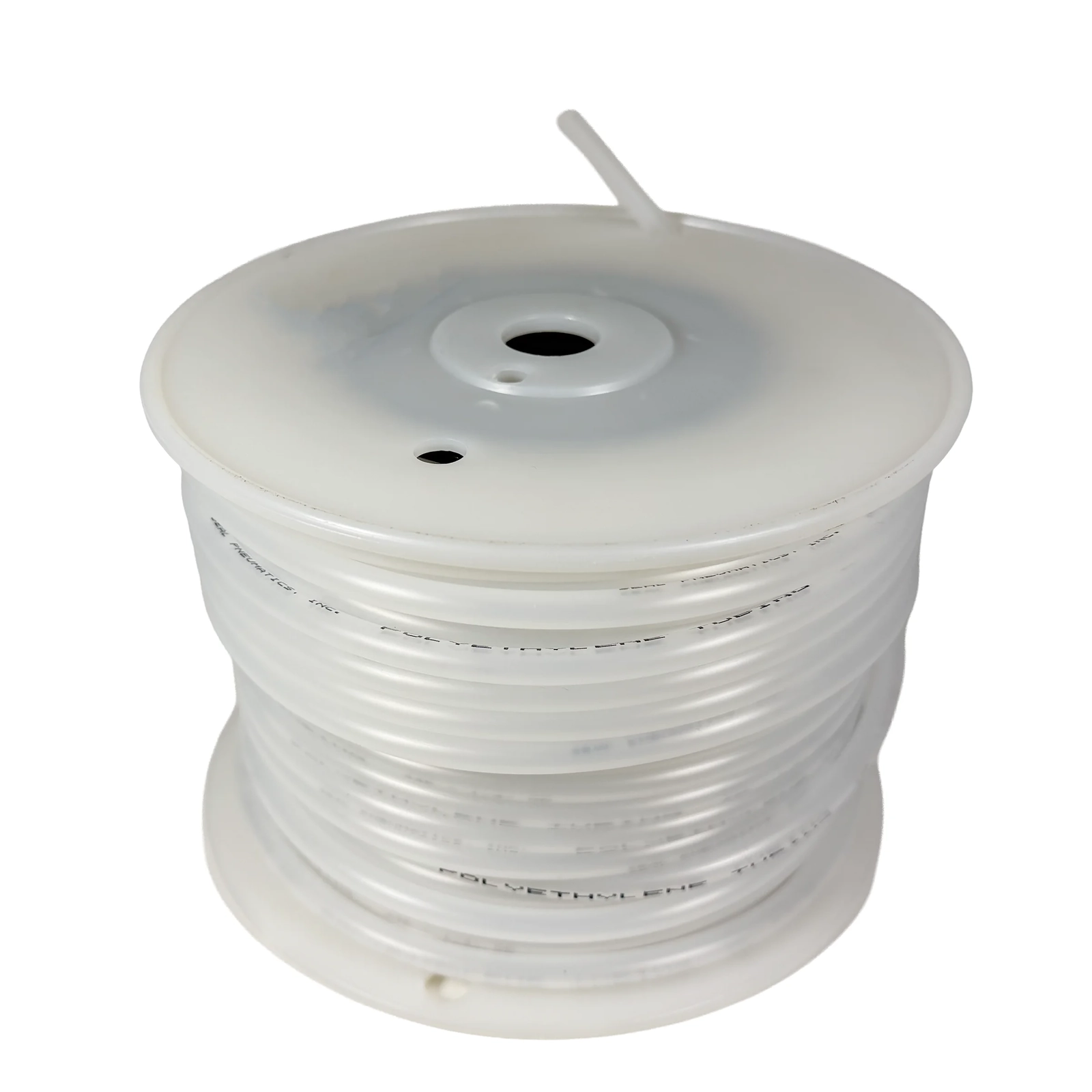

It will be delivered in a single long rolled piece.

HOW TO ORDER ²: Put the required length in feet in the corresponding quantity box.

Poly-Flo tubing is ideal for use in pneumatic lines, pitot and static lines, instrumentation systems, and water lines (as well as limited food service). It is constructed with low-density polyethylene to provide dimensional stability; a strong form structure; and high resistance to heat, stress, sunlight, many solvents and chemicals, as well as vermin attacks.

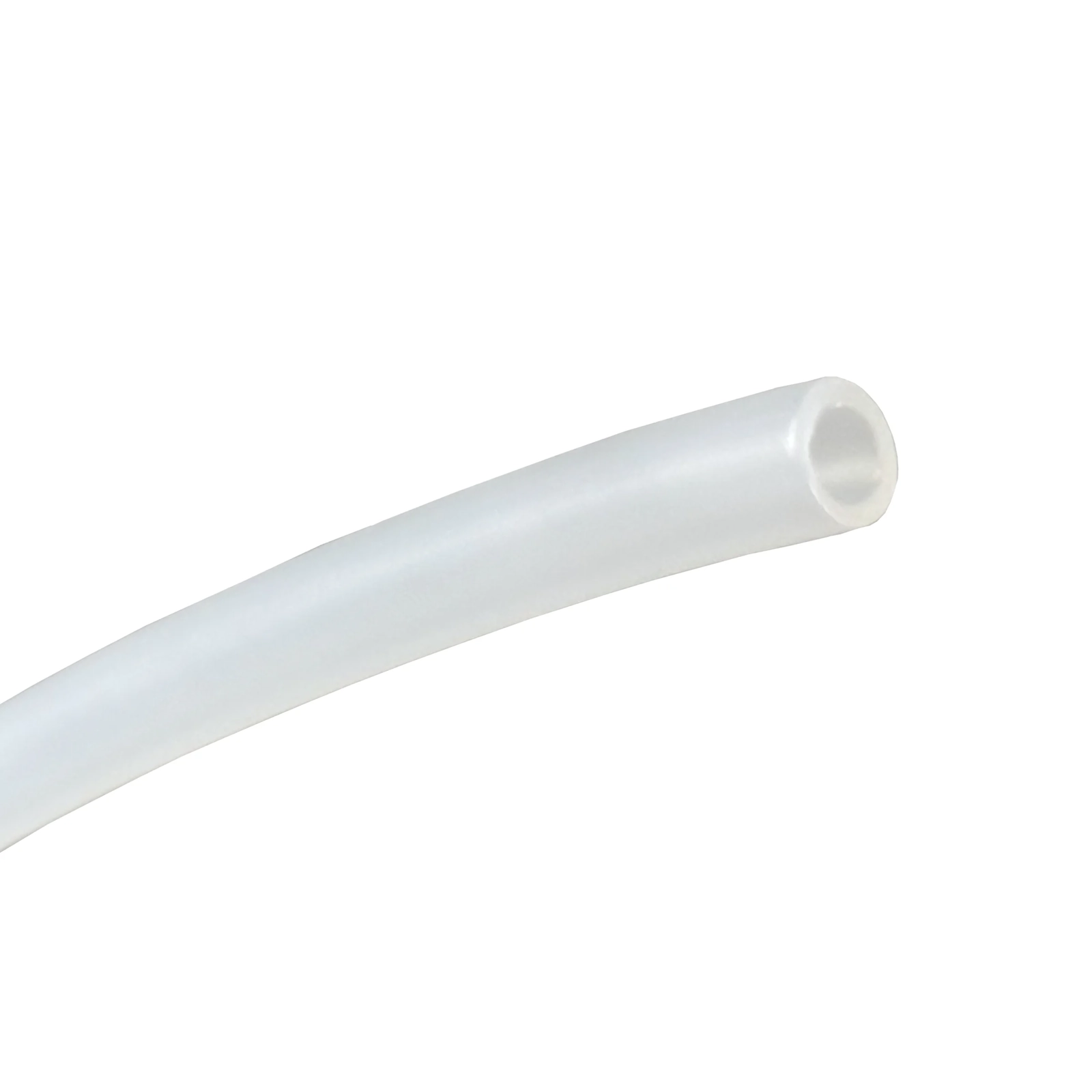

This polyethylene tubing (PT44PN) has a 1/4-inch outside diameter and a natural color.

KEY FEATURES
Withstands temperatures from -40°F to 150°F
Perfect for pitot and static systems
Retains its shape even after repeated bending and flexing
Resistant to heat and stress, UV (black tubing), and most solvents and chemicals

Specifications

Material: Polyethylene
Tube O.D.: 1/4 in
Wall Thickness: 0.040 in
Bend Radius: 1.25 in
PSI @ 75°F: 190 psi
PSI @ 150°F: 75 psi
Fitting Type: barb. compression push-in
Temperature Range: -40°F to 150°F
Vacuum Rating: 28 inHg
Diameter Tolerances: ±0.002 in (±0.004 all sizes)
Hardness: 50 shore D
Working Pressure: 3:1 safety factor
