Extruded ETFE Tefzel Wire, 22 AWG, White, 3-Conductor - (Per FT)

$4.51

inc GST

Product Description

Extruded ETFE Tefzel Wire, 22 AWG, White, 3-Conductor - (Per FT)

HOW TO ORDER: To order a multiple foot length (eg. 6 foot length), put the number 6 in the quantity box.
It will be delivered in a single long rolled piece.

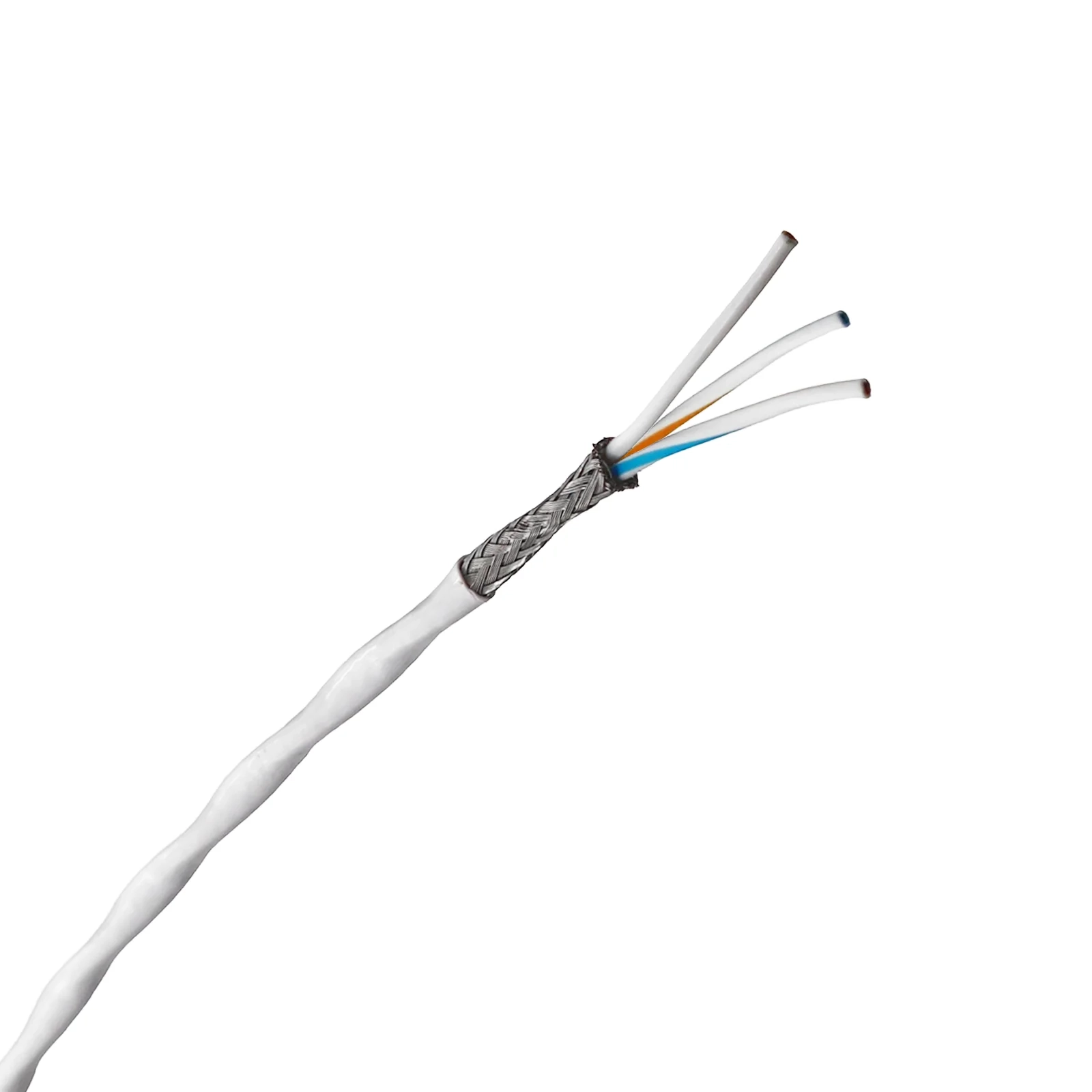

M27500-22TG3T14 is a high-performance, MIL-Spec shielded and jacketed electrical cable designed for aerospace, military, and harsh automotive environments. It features three 22 AWG tin-plated copper conductors insulated with Tefzel (ETFE), surrounded by a tinned copper shield, and protected by a white Tefzel outer jacket.

This wire is widely used for reliable data transmission and power in high-temperature "Severe Wind And Moisture Prone" (SWAMP) zones in aircraft.

KEY FEATURES

Part Number: M27500-22TG3T14 (also referred to as 22TG3T14)
Construction: 3-Conductor Shielded Cable
Wire Gauge: 22 AWG (19/34 stranding)
Insulation/Jacket: Extruded Tefzel (ETFE) - light-weight, thin-walled, and resistant to fuels, oils, chemicals, and abrasion
Shielding: Tinned copper braid (85% coverage)
Operating Temp: Up to 150°C (302°F)
Voltage Rating: 600 V
Color: White Jacket

PERFORMANCE & APPLICATION

Applications: Ideal for aircraft wiring, avionics, sensors, and motorsport engine harnesses where durability and space savings are critical.
Characteristics: Excellent chemical and radiation resistance, high toughness, and low smoke emission.
MIL-Spec Conformance: Complies with MIL-C-27500 cable standards and features MIL-W-22759/18 basic wire.
Outside Diameter: Approximately 0.086 – 0.130 inches.
