Extruded ETFE Tefzel Wire, 22 AWG, White, 1-Conductor - (Per FT)

$1.76

inc GST

Product Description

Extruded ETFE Tefzel Wire, 22 AWG, White, 1-Conductor - (Per FT)

HOW TO ORDER: To order a multiple foot length (eg. 6 foot length), put the number 6 in the quantity box.
It will be delivered in a single long rolled piece.

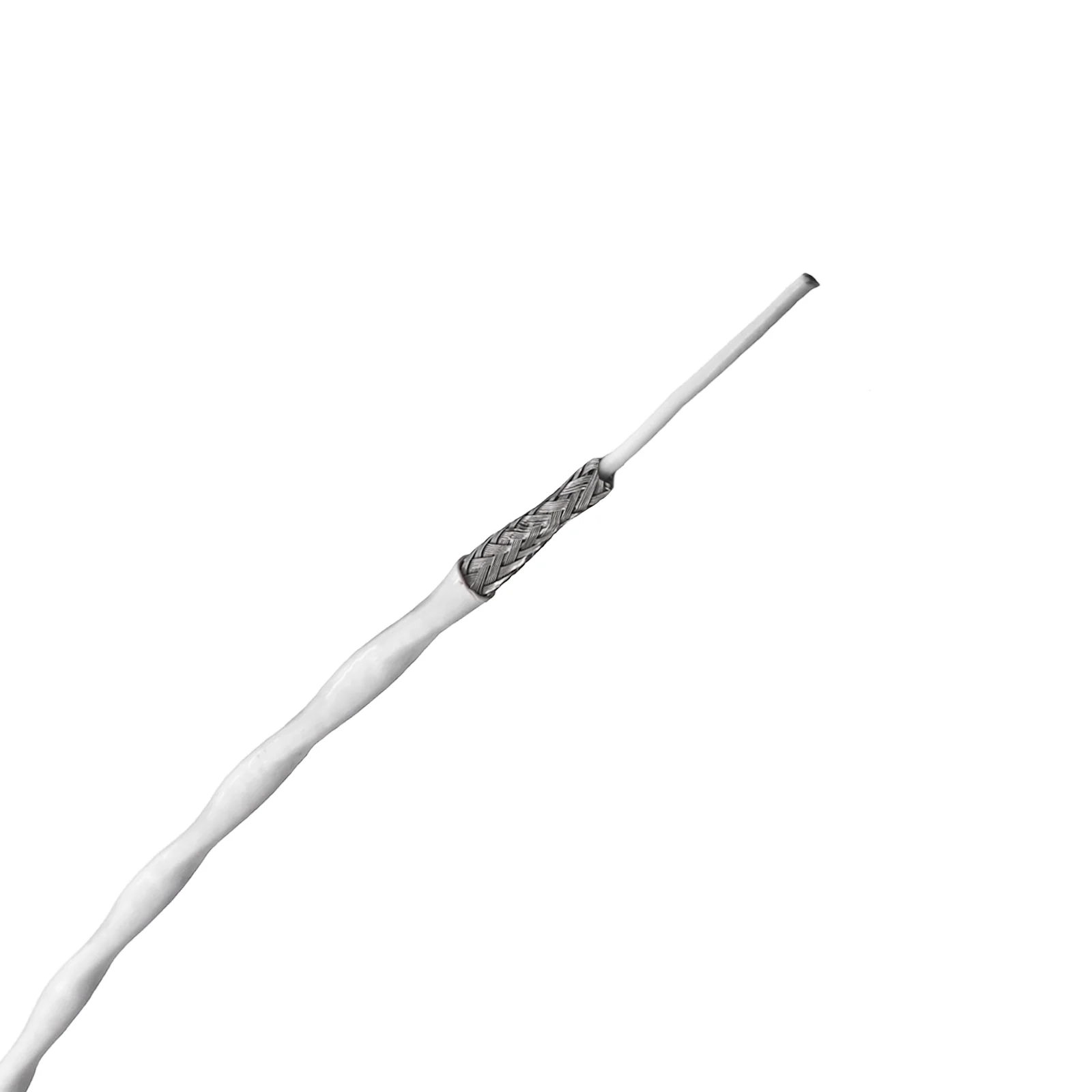

M27500-22TG1T14 is a high-performance, single-conductor 22 AWG shielded Tefzel™ wire designed for aerospace and military applications. It features stranded, tin-plated copper conductors with extruded ETFE (Tefzel) insulation, a tinned copper braid shield, and a white ETFE jacket. It is rated for 150 degrees celcius and 600V.

This wire is frequently used for applications requiring shielded, single-conductor cabling, such as in avionics, airframes, and data transmission.

KEY FEATURES

Military Spec: Conforms to MIL-C-27500 and uses MIL-W-22759/18 basic wire.
Conductor: 22 Gauge (AWG) Stranded Tin-Plated Copper.
Insulation & Jacket: Extruded ETFE (Tefzel) provides excellent chemical resistance and durability.
Shielding: Tinned copper braid, typically 85% coverage for EMI protection.
Temperature & Voltage: Rated for up to 150° C (302°F) and 600 volts.

Appearance: White outer jacket.
Applications: Ideal for aircraft, avionics, and harsh environment wiring due to its lightweight, flexible, and high-temperature properties.
