Product Description
HOW TO ORDER: To order a multiple foot length (eg. 6 foot length), put the number 6 in the quantity box.
It will be delivered in a single long rolled piece.
Military Spec: Conforms to MIL-C-27500.
Conductors: 2 Conductors, 22 AWG, Stranded Tin-Plated Copper.
Insulation/Jacket: Extruded ETFE (Tefzel).
Shielding: Tinned copper braid (85% coverage).
Temperature Rating: Up to 150°C (302°F).
Voltage Rating: 600 Volts.
Diameter: Approx. 3.0mm.
Applications: Ideal for aircraft wiring, severe wind and moisture prone (SWAMP) zones, and high-durability environments requiring low smoke and fire resistance.
Extruded ETFE Tefzel Wire, 22 AWG, White, 2-Conductor - (Per FT)
HOW TO ORDER: To order a multiple foot length (eg. 6 foot length), put the number 6 in the quantity box.
It will be delivered in a single long rolled piece.

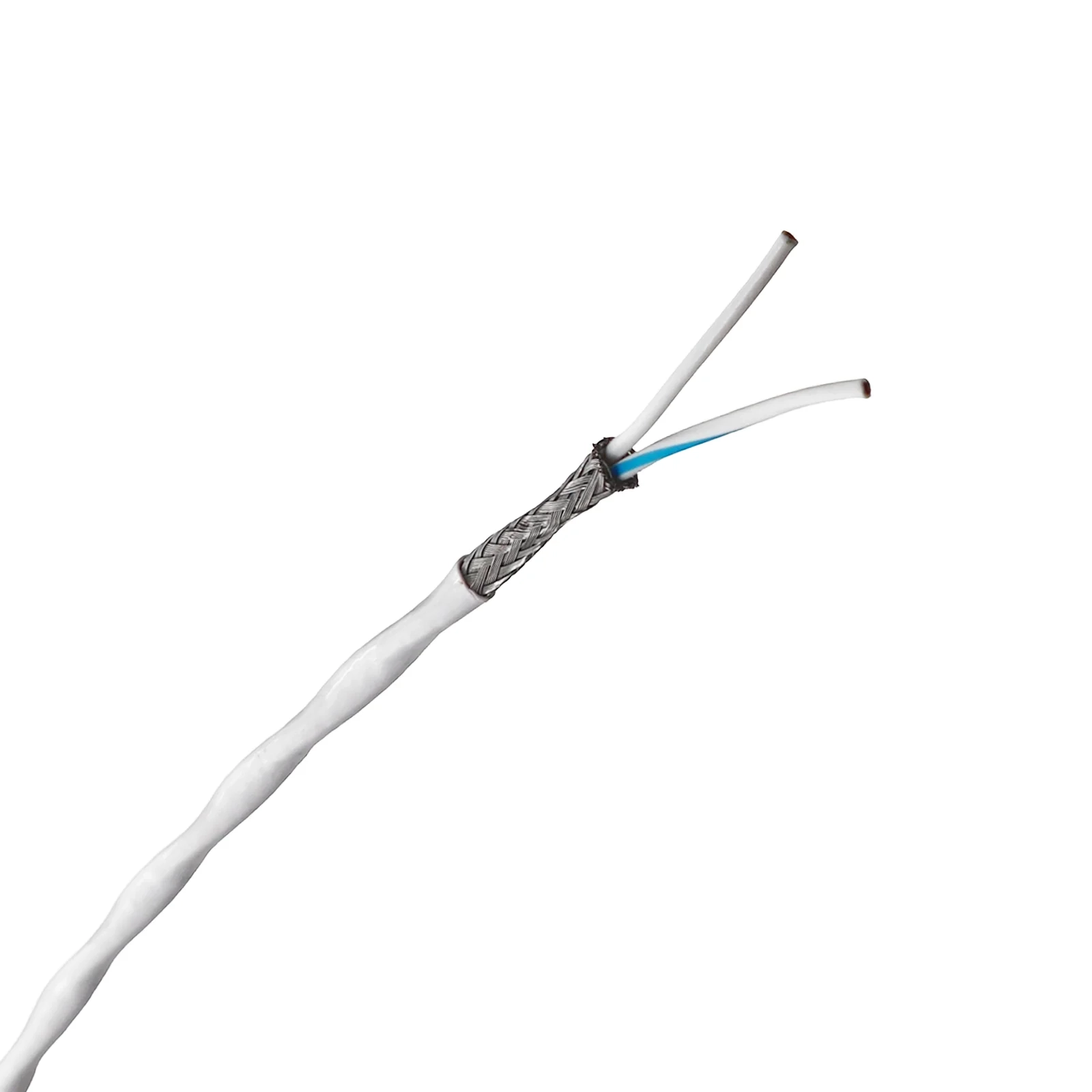

The M27500-22TG2T14 is a high-performance 22 AWG, 2-conductor shielded electrical cable designed for aerospace and military applications, often used for data and avionics. It features stranded tin-plated copper conductors with thin-wall extruded ETFE (Tefzel) insulation, a tinned copper braided shield for EMI protection, and a white ETFE jacket.
This cable, described in detail on Aircraft Spruce and EDMO, provides superior mechanical toughness, flexibility, and durability for military and commercial airframes.
This cable, described in detail on Aircraft Spruce and EDMO, provides superior mechanical toughness, flexibility, and durability for military and commercial airframes.
KEY FEATURES
Military Spec: Conforms to MIL-C-27500.
Conductors: 2 Conductors, 22 AWG, Stranded Tin-Plated Copper.
Insulation/Jacket: Extruded ETFE (Tefzel).
Shielding: Tinned copper braid (85% coverage).
Temperature Rating: Up to 150°C (302°F).
Voltage Rating: 600 Volts.
Diameter: Approx. 3.0mm.
Applications: Ideal for aircraft wiring, severe wind and moisture prone (SWAMP) zones, and high-durability environments requiring low smoke and fire resistance.
Specifications
| SKU | 22T-G2-T14 |
| Brand | Tefzel® |
| Shipping Weight | 0.0500kg |
| Unit Of Measure | ea |
Reviews
Be The First To Review This Product!
Help other Flight Store Pty Ltd users shop smarter by writing reviews for products you have purchased.
Write a product review
