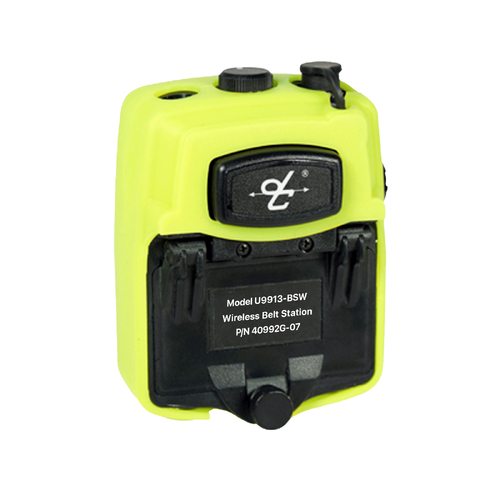

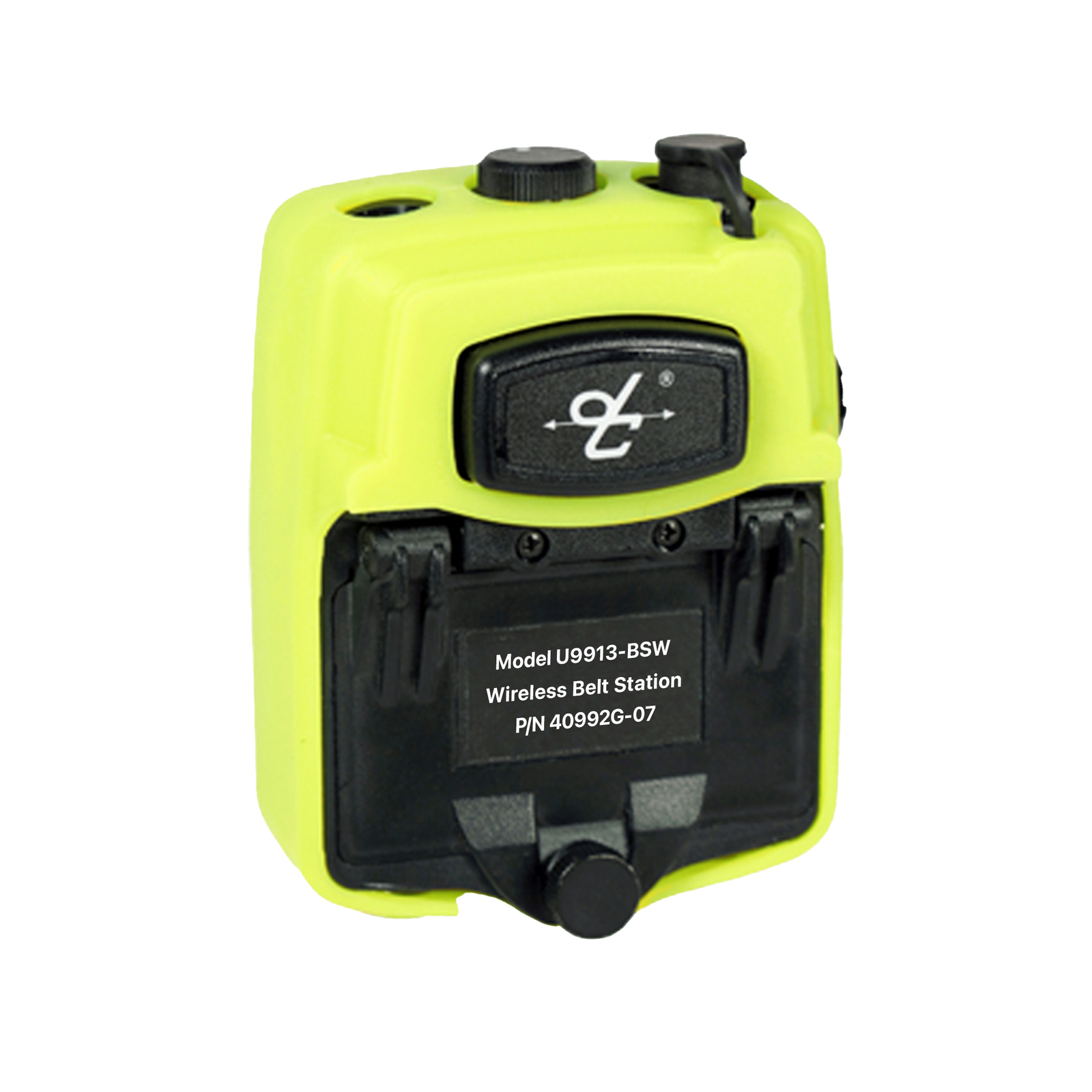

David Clark U9913-BSW (EU) Wireless System Belt Station, VOX (Intercom Only)

$1,298.00

inc GST

Product Description

David Clark U9913-BSW (EU) Wireless System Belt Station, VOX (Intercom Only)

Transmits and receives all system audio, to and from the Gateway and user's Headset.

KEY FEATURES

Same as U9910-BSW, except no PTT transmit capability outside the intercom (no radio transmit)
Hands-free, full duplex intercom via system Gateway
Range of up to 300 feet (line-of-sight) to and from the Gateway
Once linked to a Gateway, automatically reconnects on each power-up until purged from system ("strong link")
Up to 4 Belt Stations can be connected to the system Gateway
Marine-grade, water-tight enclosure and components
Audible voice prompts for link/purge status, out-of-range, low battery
Easily accessible battery compartment with removable Li-Polymer battery
Removable Li-Polymer battery (24 hours continual usage) for charging (3-4 hours)
VOX control with proprietary "helper" tone, assists in ideal VOX setting
Large PTT for link and VOX override
Power button with LED indicator for visual status of link, PTT and battery charge
Military-grade, twist-lock headset connector
Rubberized outer skin, hi-visibility yellow
360-degree rotational belt clip
EU version available {U9913-BSW(EU)}

**These systems require multiple components and are custom configured to suit different crew requirements and applications.
***For quotes and advice on system configurations please contact us at sales@flightstore.com.au or call 07 5536 8694

U9913-BSW (EU) DATA SHEET

9900 SERIES WIRELESS SYSTEM

David Clark Company 9900 Series Wireless Headset Communication Systems provide maximum freedom, mobility, and clear communication for ground crew personnel without being tethered to aircraft or ground support equipment. Ideal for a wide variety of ground support applications including pushback, deicing and maintenance operations.

Crisp, clear communication in demanding environments
Hands-free, full-duplex intercom — DECT based technology
Rugged, durable construction; marine-grade components
Secure signaling prevents unwanted interception
Interfaces to existing David Clark wired intercom systems
Interfaces to most HF, VHF and UHF radios
Up to four users per gateway — expanded capability
Range up to 300 ft. (100m) from gateway

Specifications

Frequency	1880 MHz - 1900 MHz
Average Power Output	10mW (250mW peak) in EU
Range	100 m (300′) line-of-sight, typical
Carriers	10 each (1,728 kHz spacing)
Time Slots	2 x 12 (up and down stream)
Power Source	Li-Polymer rechargeable 3.7V cell, 2000 mAh (battery not included)
Power Consumption / Current Draw	100mA, typical
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +60°C
Dimensions, Enclosure	4″ H x 2-3/4″ W x 1-7/8″ D (2-1/2″ D with belt clip)
Weight	10 oz (280g) with battery
