David Clark U9920-GPB (EU) Wireless System Pushback Gateway

$1,408.00

inc GST

Product Description

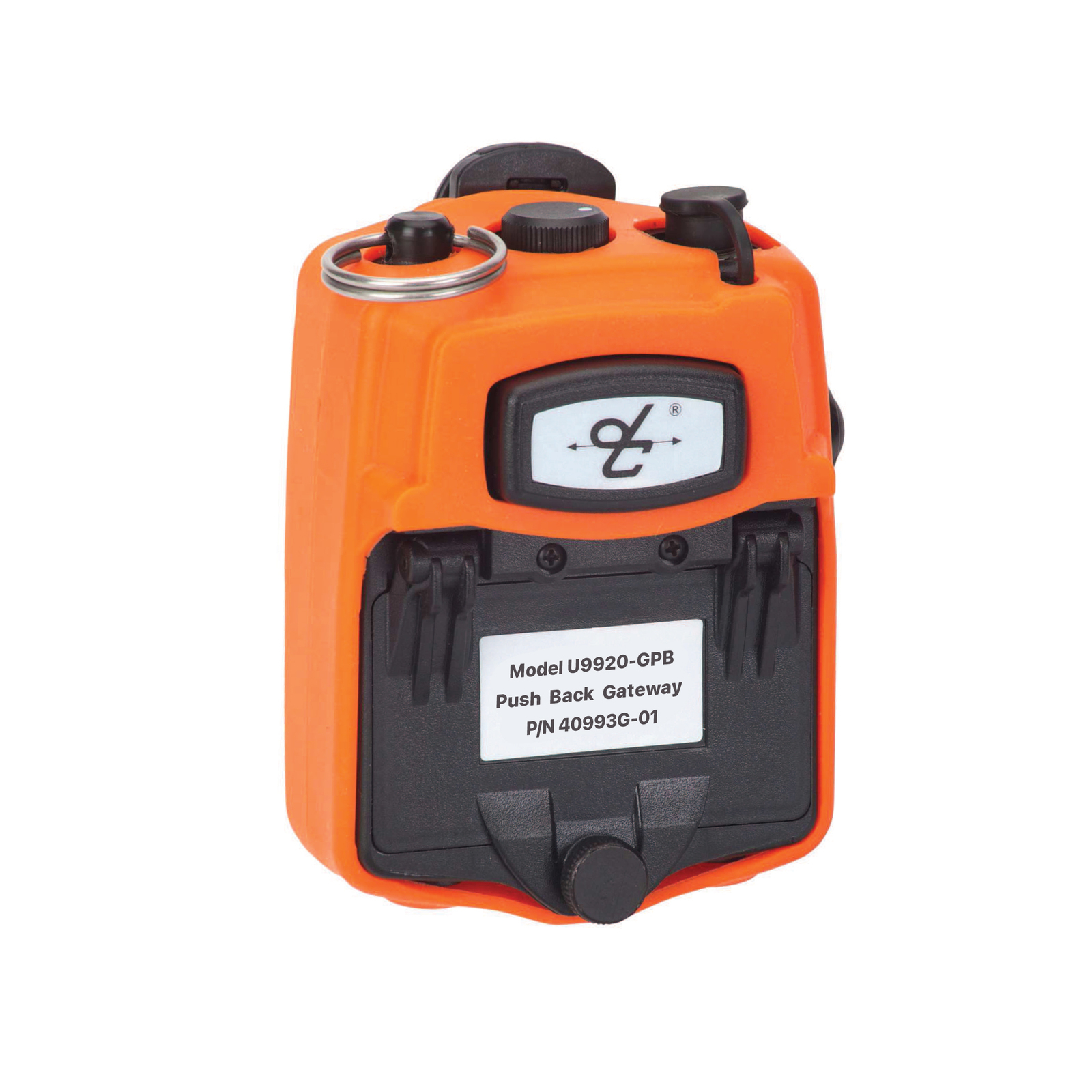

David Clark U9920-GPB (EU) Wireless System Pushback Gateway

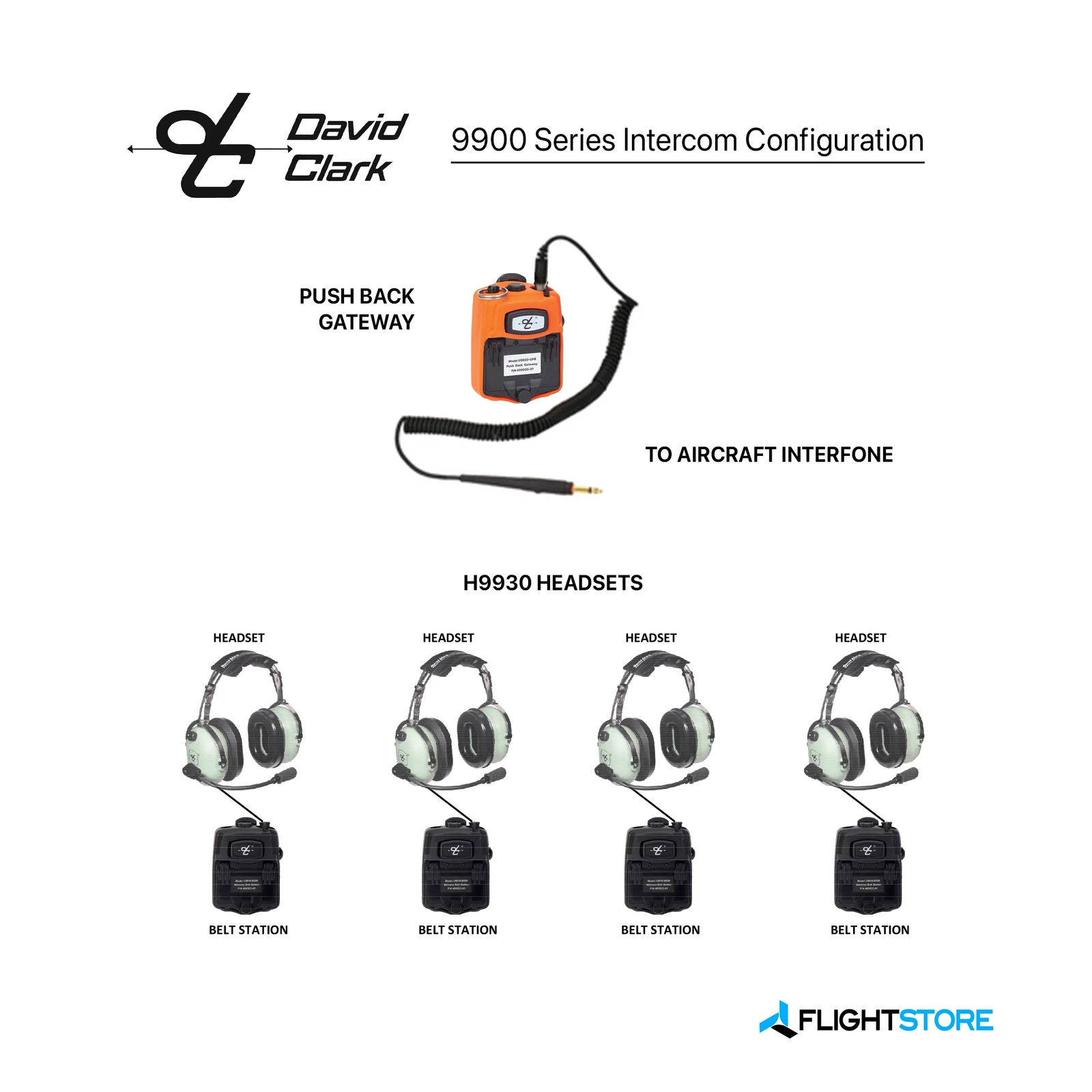

Acts as a relay for all audio between Belt Stations and aircraft interphone system for push-back applications.

KEY FEATURES

Internal antenna provides range of at least 300 feet from Gateway
Attach to aircraft via adjustable lanyard (3' to 6') and nylon hook
"REMOVE BEFORE FLIGHT" banner included
Military grade twist-lock connector mates to aircraft interphone cords.
Accommodates up to 4 wireless users per Gateway
U9910-BSW user (tug operator) presses PTT to talk to flight deck via Gateway
U9913-BSW user (wing-walker) speaks on intercom only (does not transmit to flight deck)
Multiple independent Gateways operate in same RF vicinity with no cross-talk; systems in adjacent gates experience no bleed-through
Listen level control for regulating volume of flight deck intercom transmissions
Close-proximity link via PTT button
LED indicator for visual status of comm link and PTT status
Rubberized outer skin, hi-visibility orange
Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) ,not included
EU version available {U9920-GPB(EU)}

**These systems require multiple components and are custom configured to suit different crew requirements and applications.
***For quotes and advice on system configurations please contact us at sales@flightstore.com.au or call 07 5536 8694

U9920-GPB (EU) DATA SHEET

9900 SERIES WIRELESS SYSTEM

David Clark Company 9900 Series Wireless Headset Communication Systems provide maximum freedom, mobility, and clear communication for ground crew personnel without being tethered to aircraft or ground support equipment. Ideal for a wide variety of ground support applications including pushback, deicing and maintenance operations.

Crisp, clear communication in demanding environments
Hands-free, full-duplex intercom — DECT based technology
Rugged, durable construction; marine-grade components
Secure signaling prevents unwanted interception
Interfaces to existing David Clark wired intercom systems
Interfaces to most HF, VHF and UHF radios
Up to four users per gateway — expanded capability
Range up to 300 ft. (100m) from gateway

Specifications

Frequency	1880 MHz - 1900 MHz
Average Power Output	10mW (250mW peak) in EU
Range	150 m (450′) line-of-sight, typical
Carriers	10 each (1,728 kHz spacing)
Time Slots	2 x 12 (up and down stream)
Power Source	Li-Polymer rechargeable 3.7V cell, 2000 mAh (battery not included)
Power Consumption / Current Draw	100mA, typical
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +60°C
Dimensions, Enclosure	4″ H x 2-3/4″ W x 1-7/8″ D (2-1/2″ D with belt clip)
Weight	10 oz (280g) with battery
Aircraft Interface Cords (required for flight deck communications)	41035G-02 (PJ-051, Type plug) 41035G-03 (U-174/U, Civilian) 41035G-04 (Dual GA Plugs) 41035G-05 (U-174/U, Military)
