Product Description

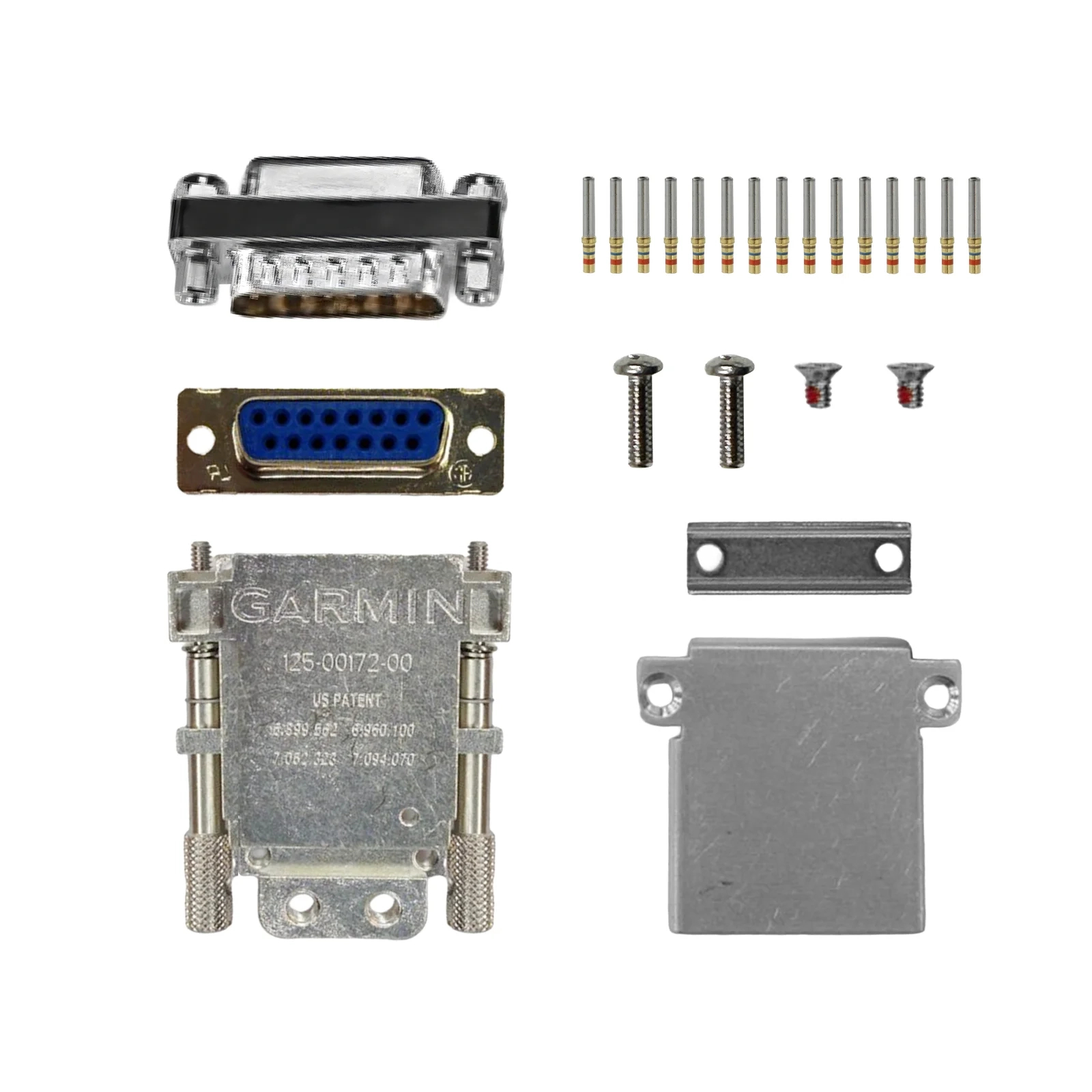

Garmin G3X GSU 25 C/D Connector Kit
Connector kit for the GSU 25C/D.
The connector kit is required, as it is not a part of the Standard or High Performance LRU Kit.
GSU 25 Connector Kit contains all items in Table 1 and Table 2 below.
| Table 1 - Contents of 9 Pin Connector Kit |
| Item | Garmin P/N | Quantity |
| Backshell w/Hdw, Jackscrew, 9/15 pin | 011-01855-00 | 1 |
| CAN Termination Kit | 011-02887-00 | 1 |
| D-Sub, Crimp Socket Connector, 09 CKT | 330-00625-09 | 1 |
| Contact Socket, Mil Crimp, Size 20, 20-24 AWG | 336-00022-02 | 9 |

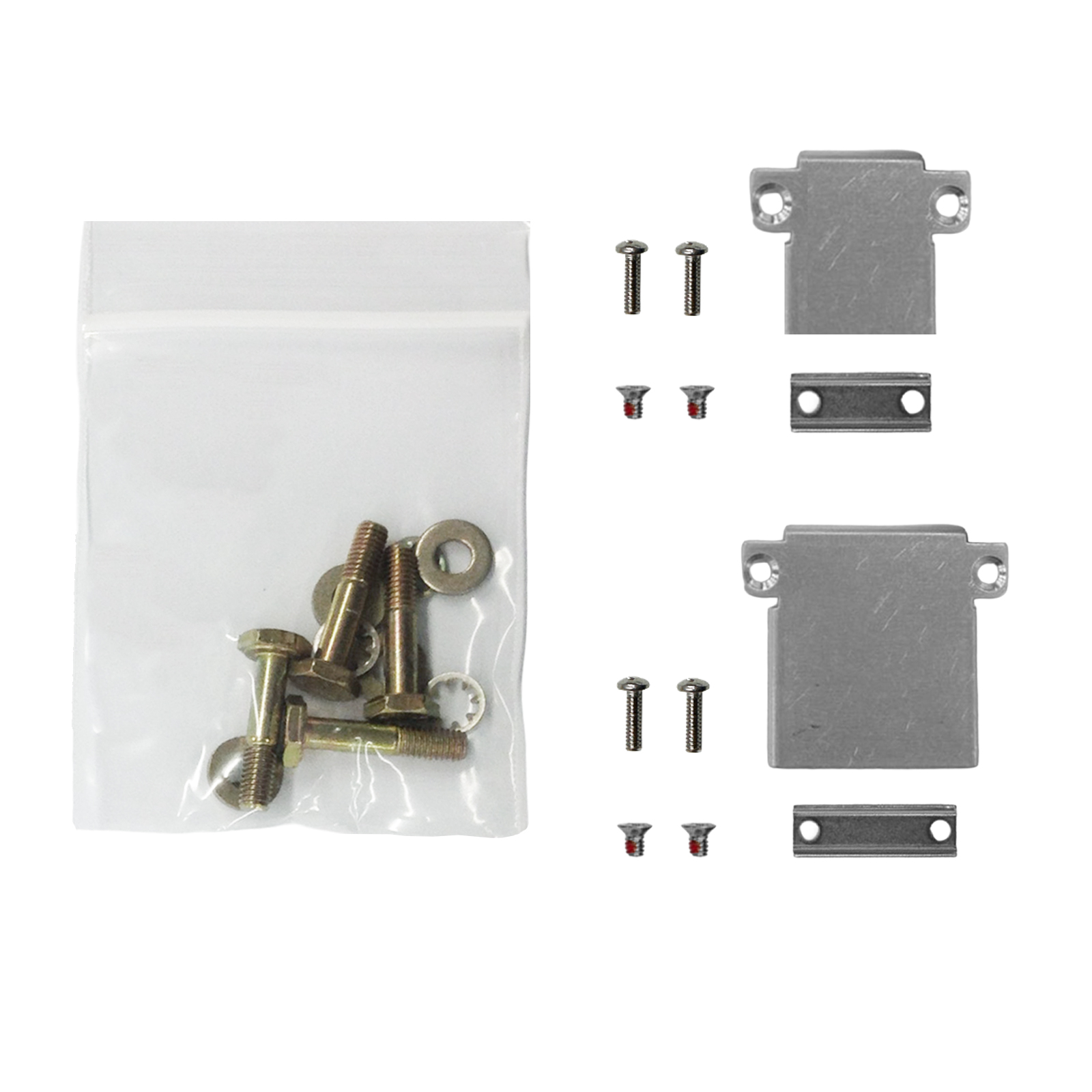

| Table 2 - Contents of 15 Pin Connector Kit (contains mounting hardware) |
| Item | Garmin P/N | Quantity |
| Backshell w/Hdw, Jackscrew, 15/26 pin | 011-01855-01 | 1 |
| AN3-7A, Bolt | 211-00090-05 | 4 |
| AN960, Cad Plate, #10 Washer | 212-00035-10 | 4 |
| Washer, Int Star, MS35334, #10 | 212-00081-03 | 4 |
| D-Sub, Crimp Socket Connector, 15 CKT | 330-00625-15 | 1 |
| Contact Socket, Mil Crimp, Size 20, 20-24 AWG | 336-00022-02 | 15 |
Specifications
| SKU | K10-00181-00 |
| Brand | Garmin |
| Shipping Weight | 0.4000kg |
| Unit Of Measure | ea |
Reviews
Be The First To Review This Product!
Help other Flight Store Pty Ltd users shop smarter by writing reviews for products you have purchased.
Write a product review
Garmin G3X GSU 25 C/D Connector Kit
Sold Out - Backorder Available
$165.00
