Garmin GNC 355A GPS/COM for Certified Aircraft w/ GA35 GPS Antenna & Installation Kit (25kHz & 8.33kHz) European Spacing

WAAS GPS navigation enables LPV approaches with minimums as low as 200'.	Built-in 10-watt COMM radio offers 25 kHz or optional 8.33 kHz channel spacing.	Automatically identify frequencies so you know who you’re talking to.	Get extensive compatibility with Garmin flight displays or existing course deviation indicators (CDIs).	Visualize your entire flight plan, including holds and approaches, on the 4.8” touch display.	Use built-in Connext® wireless technology to connect to the Garmin Pilot™ or ForeFlight

SLIM GPS NAVIGATION	DO-IT-ALL TOUCH SCREEN	SIMPLE INSTALLATION
Created for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and experimental/amateur-built aircraft, GPS 175 provides a smart, affordable way to add next-generation navigation to your favorite airplane.	The intuitive touchscreen interface provides quick access to navigation, multifunction display features and more.	The GPS 175 navigator has the same 2-inch height as older navigation equipment and can allow you to keep the composite legacy CDIs already in your aircraft to minimize.



MULTI FUNCTION DISPLAY	EASY DATA ENTRY	PINCH, SWIPE GESTURES

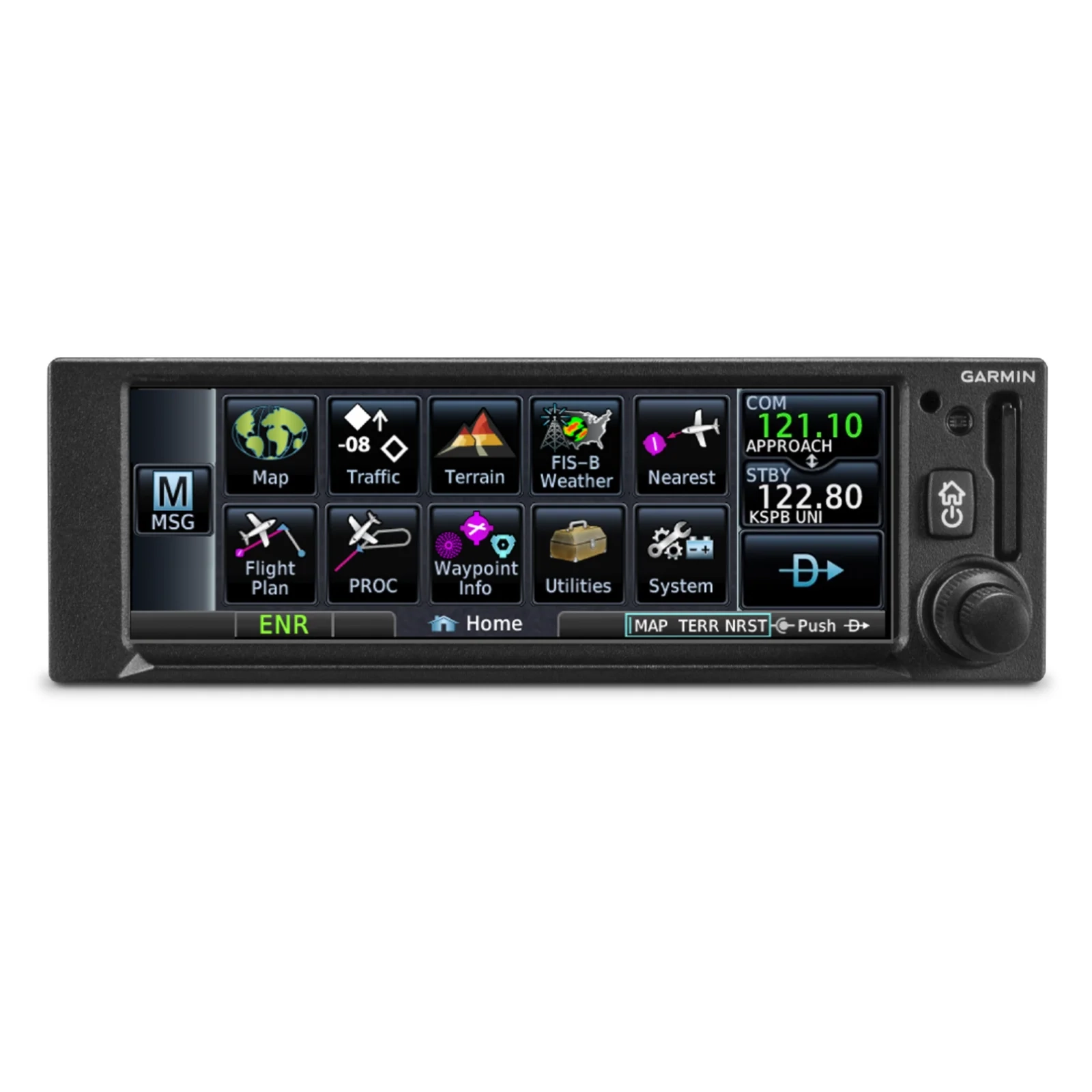

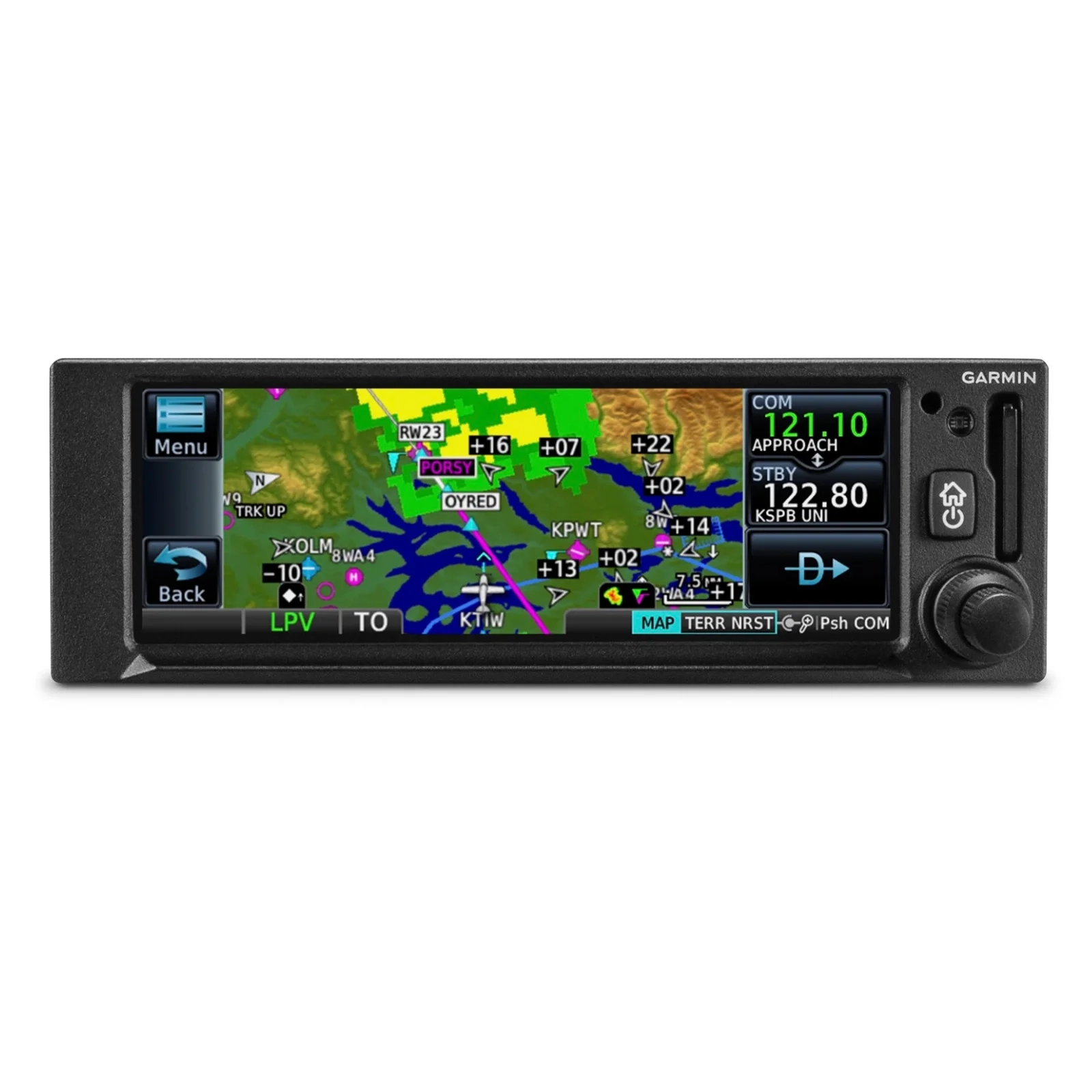

The 4.8-inch display puts moving maps, terrain, traffic and weather 1, SafeTaxi® airport diagrams and more at your fingertips.	Use the on-screen keyboard or traditional concentric knobs to enter waypoint identifiers, routings and more.	A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic1 or terrain page.
FASTFIND FEATURE	AIRWAYS, YOUR WAY	"RUBBER BAND' REROUTES
As soon as you start typing, the GPS 175 navigator’s FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position. Just select and go.	Victor airways can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.	This handy feature lets you grab a flight plan leg on the screen and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.
VIRTUAL MAP TOPO	TERRAIN ALERTING	DIRECT CONNECT

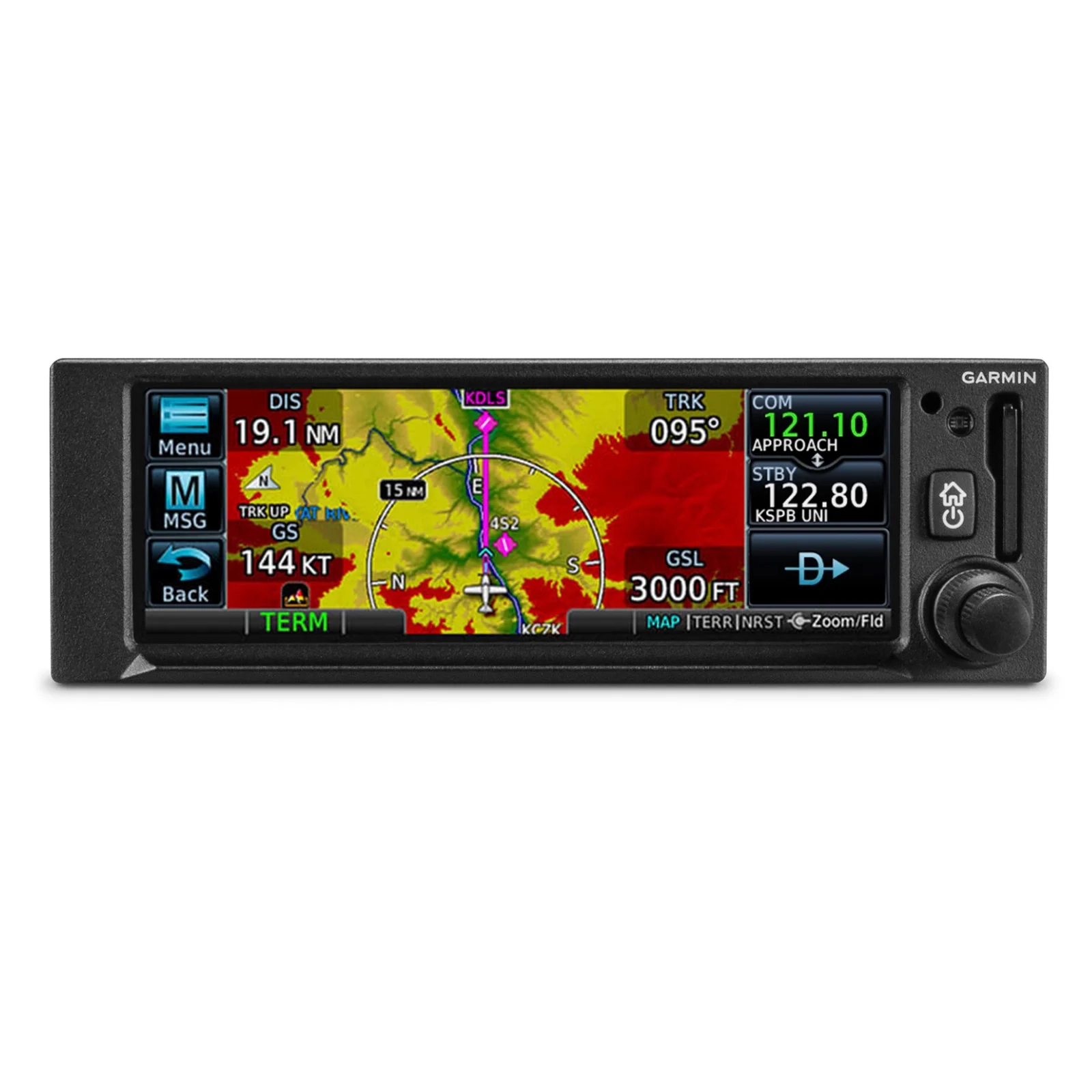

By referencing built-in terrain, mapping and obstacles databases, GPS 175 shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.	A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead.	A Direct-to key on almost every page lets you quickly enter a direct course for any selected waypoint. A menu of nearest.



MORE APPROACH OPTIONS	CLEARED FOR THE VISUAL	AUTOPILOT INTERFACE

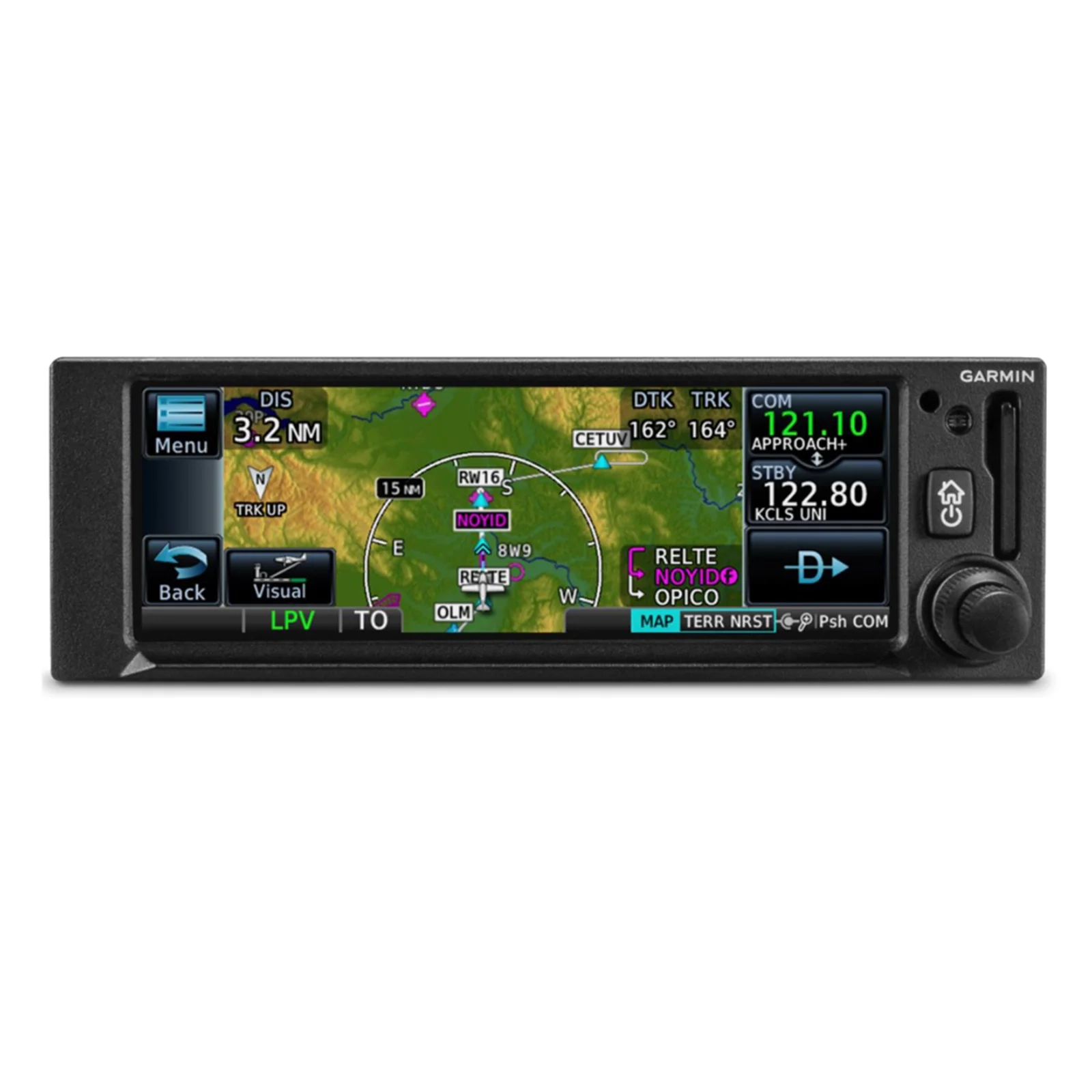

The WAAS/SBAS-certified GPS receiver enables GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.	GPS 175 can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).	Precise course deviation and roll steering outputs can be coupled to Garmin autopilots and select third-party autopilots, enabling virtually all IFR flight procedures to be flown automatically.
HOLDING PATTERNS	SAFETAXI DATABASE	ADS-B DATA LINKS

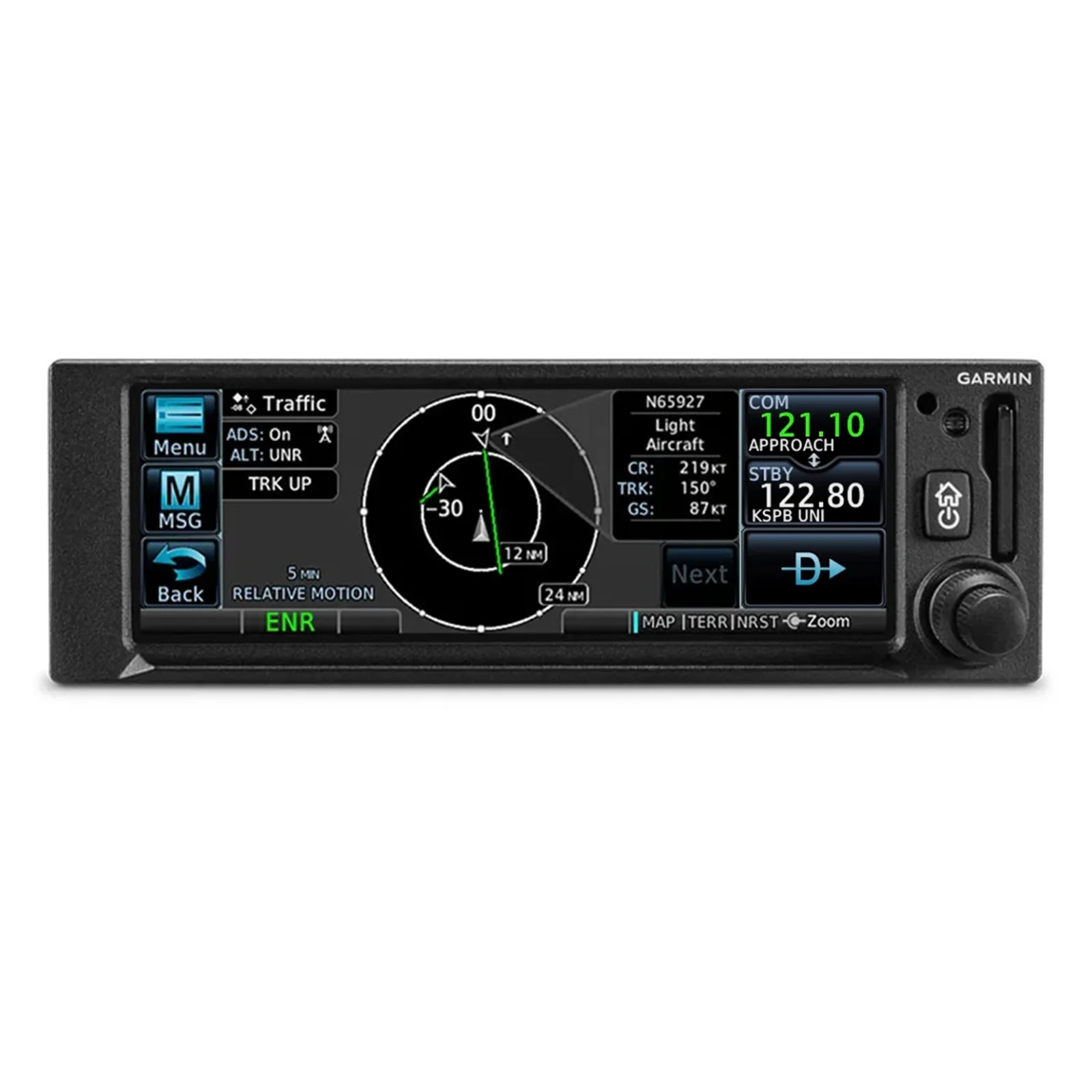

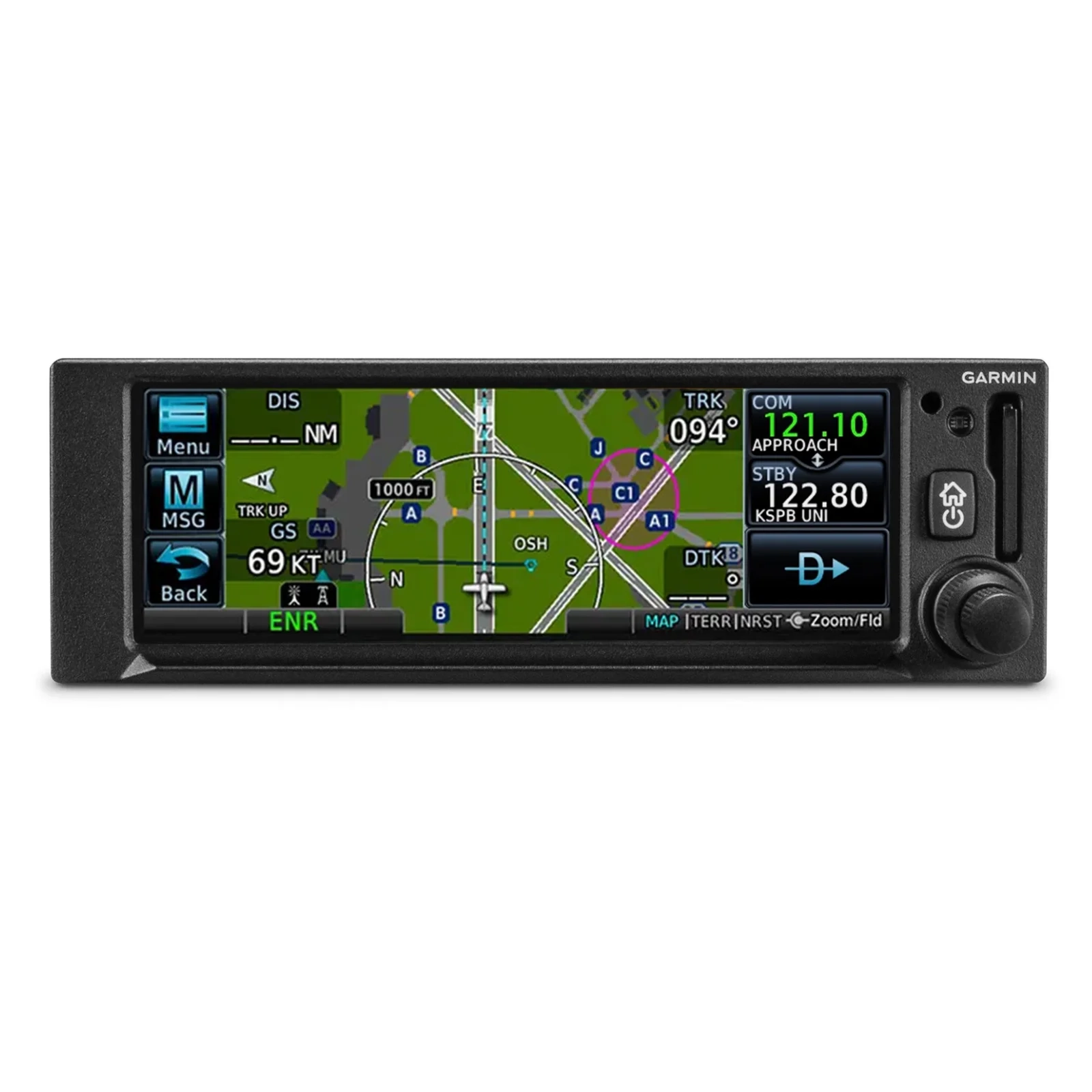

IFR pattern entries can be tricky. The GPS 175 navigator lets you easily create and execute holding patterns over a published or user-defined waypoint.	Upon landing, georeferenced SafeTaxi diagrams on the display automatically help you track your location on hundreds of airports.	When paired with a Garmin ADS-B “In” equipage solution2, GPS 175 can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data.



BUILT IN COMM TRANSCEIVER	FIND A FREQUENCY	INSTANT RECALL
A 2,280-channel capable VHF COMM radio gives GNC 355 a standard 10 watts of talking power. With GNC 355A, you have the option for 8.33 kHz spacing.	Save time with the onboard frequency database, and find airport, weather, FSS and center frequencies. Just tap to load your needed frequency to the standby spot.	GNC 355 database technology allows you to quickly recall your most frequently or recently used frequencies. Plus, holding down the frequency transfer key will dial up the emergency frequency.
STATION CONFIRMATION	STAND BY MONITORING
If you’re given a frequency by ATC, the GNC 355 navigator lookup function will automatically provide the station identifier right below it. So you’ll know you’re making the right call.	Listen to a standby frequency, such as ATIS, without leaving your active channel.



PANEL INTEGRATION	CONNECT YOUR COCKPIT	FLIGHT PLAN TRANSFER
GNC 355 navigator interfaces with Garmin flight displays, including G3X Touch™ (experimental and certified), G5 (experimental and certified), G500/G600, G500 TXi/G600 TXi and select third-party displays3 to provide navigation outputs and ADS-B weather and traffic information.	Use built-in Garmin Pilot or ForeFlight apps2. In addition to GPS data, you can stream ADS-B traffic, weather and backup attitude data to your device in real time.	Save time by creating your flight plan on your mobile device at home, then use built-in Connext technology to wirelessly upload the data into your GPS 175 during preflight at the airport.
EASY DATABASE UPDATES	TRAINER APP
Install a Flight Stream 510 gateway to add Database Concierge to your GPS 175 navigator. Upload databases from your tablet in minutes — then let automatic sync with your compatible avionics do the rest.	A free iPad® Trainer app is available on the App Store®. Get familiar with the product, even before you buy!



¹Sold separately

²Reference the supported Interfaces tab for compatibility details



MANUALS

GARMIN GPS 175 - Installation Manual - TSO, 190-02207-00_04

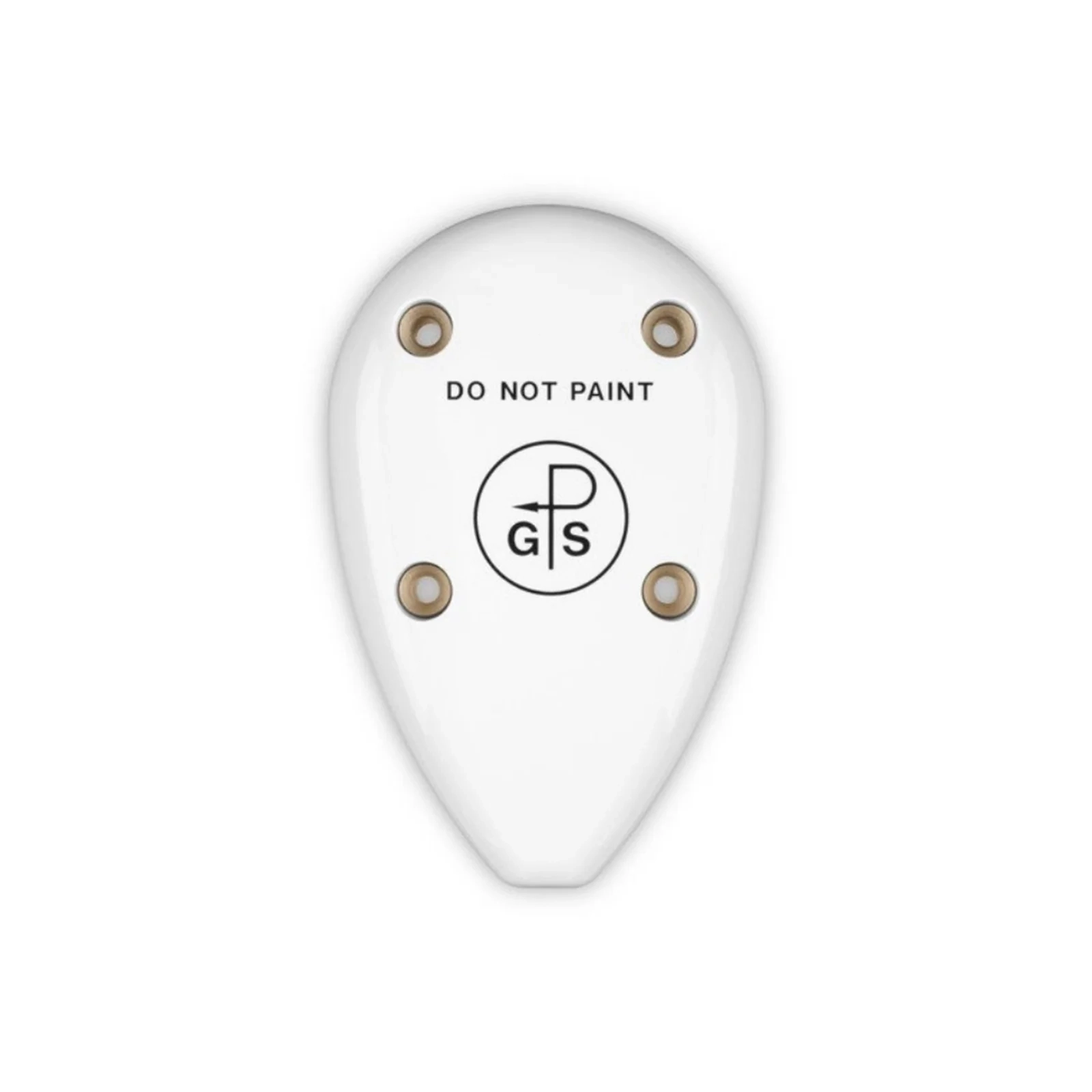

GARMIN GA35S Antenna - Installation Manual 190-02466-00_03

GARMIN GPS 175 - Pilot's Guide GPS175 /GNC355(A) /GNX375 - v3.20 190-02488-01



GNC 355

Physical and Performance

• TSO applicability: C128a; 2C128; C146e Class 3; C157b Category 1; C165a; C169a Class C, E, 4, 6; 2C169a Class C, E, H1, H2, 4, 6; C195b Category B1, B3, B5, B7
• Display size: 4.8" (122.5 mm) diagonal
• Display resolution: 732 pixels (W) x 240 pixels (H)
• Unit bezel height: 2.02" (51.0 mm)
• Unit bezel width: 6.25" (159.0 mm)
• Unit depth with connectors: 11.23" (285 mm) (measured from face of aircraft panel to rear of connector backshells)
• Unit weight: 3.3 lbs (1.5 kg)
• Maximum altitude: 35,000 ft
• Input voltage range: 9 VDC - 33 VDC
• Maximum display brightness: 260 fL
• Operating temperature range: -20° C to 55° C (-4° F to 131° F)
• Bluetooth version: 4.2
• Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
• LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
• Maximum velocity: 1,000 knots (above 60,000 feet)
• Position update Interval: 0.2 sec (5 Hz)
