Product Description
COL3F COMPACT BASE STATION ANTENNA - Option 2

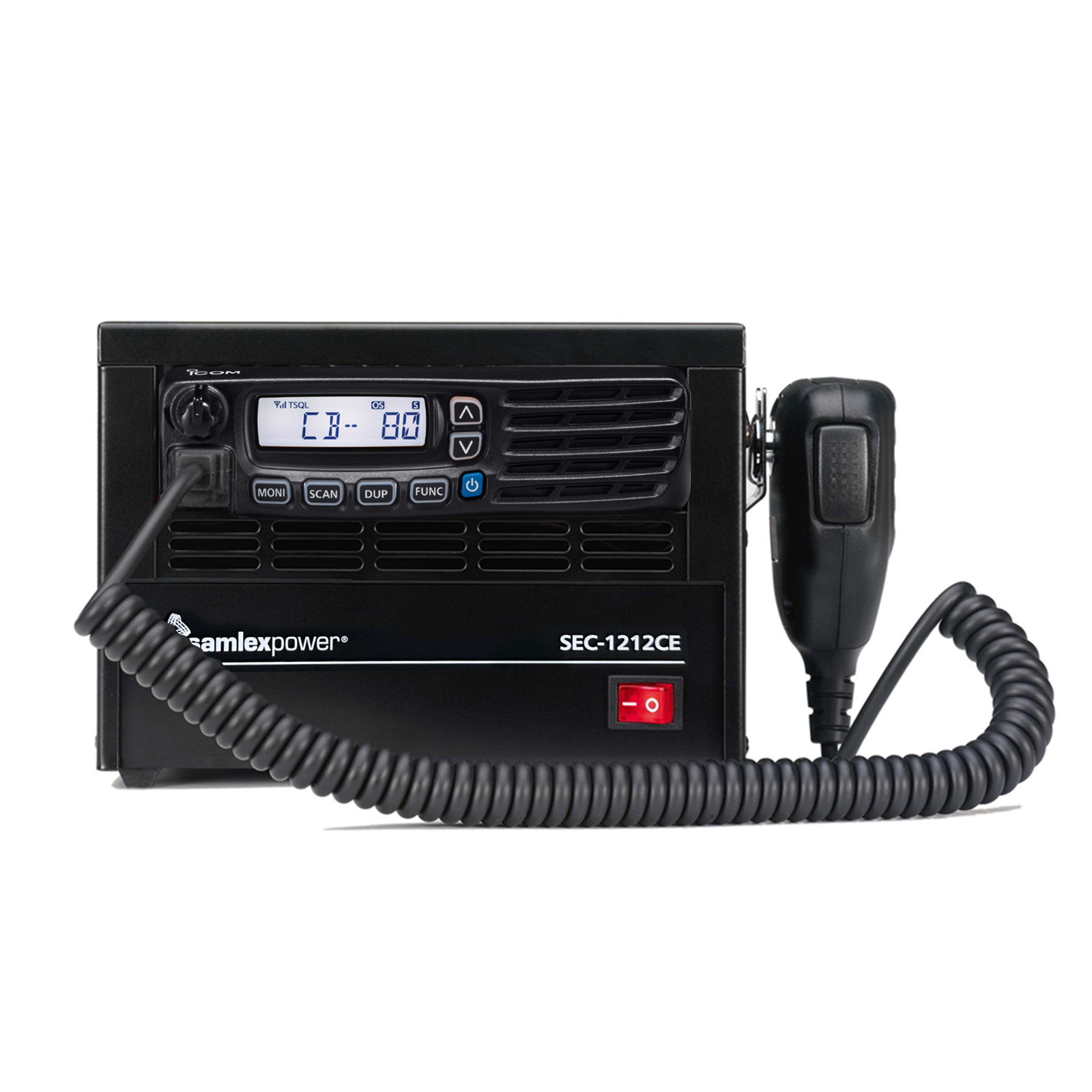

Icom IC-410PRO UHF Transceiver Base Station Kit
Everything you need to set up a base station using the IC-410PRO CB UHF Transceiver. Comes with the Icom IC-410PRO Radio, 240V to 12V Power Supply, Base Station Cabinet, genuine Icom Hand Microphone and your choice of a Collinear Fibreglass Base Station Antenna. All the cables and mounting harware are supplied.
SUPPLIED IN THE KIT
- ICOM IC-410PRO UHF CB Transceiver
- ICOM HM-211 Hand Microphone
- SAMLEX SEC-1212 Power Supply
- SAMLEX Base Station Cabinet for IC-410PRO
- Base Station UHF Fibreglass Antenna + Kit*
*Choose your Antenna - Use the Drop Down to Select the Antenna you require to suit your application.

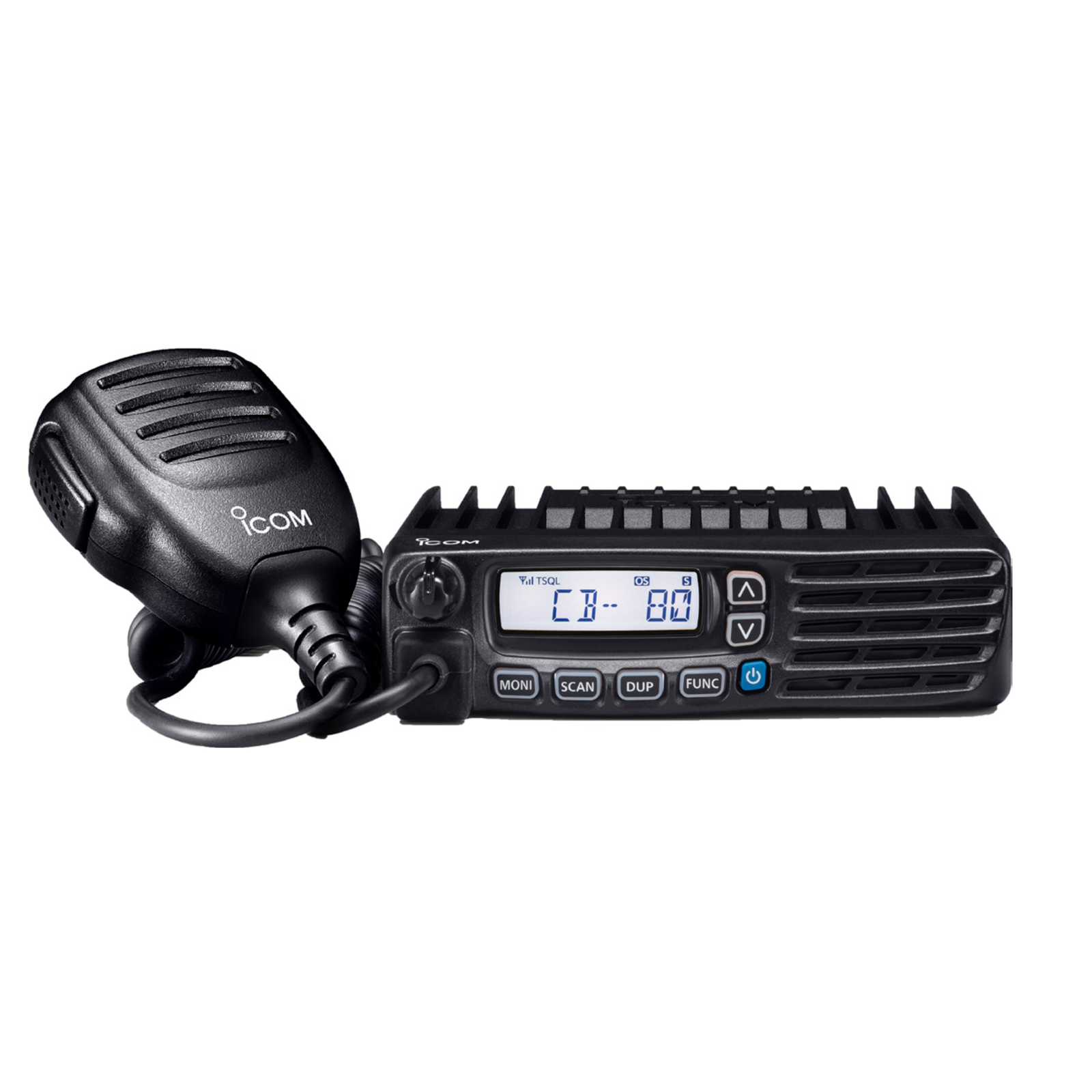

IC-410PRO
1W / 5W / 25W Output Power
5W output power Citizen Band (CB). Approved for 25W when using licensed private/commercial frequencies within 450-520MHz*
5W output power Citizen Band (CB). Approved for 25W when using licensed private/commercial frequencies within 450-520MHz*
*ACMA Licensed users only.
80+ Channels
80 Channel UHF CB* plus up to 35 Private Channels.**
80 Channel UHF CB* plus up to 35 Private Channels.**
*80 Channel UHF CB, 61-63 not present, reserved for future use.
**Private frequencies must be dealer programmed prior to shipping, the corresponding ACMA licence certificate must be supplied for programming to be completed.
Active Noise Cancel Microphone
This feature allows clear communication by reducing the surrounding noise, especially the unwanted low frequency noise received by the microphone. Active noise cancel is available only with HM-211.
CB / Commercial Use
The Compact and Rugged construction makes this product ideal for use in Commercial environments.
Other Features
Easy to see White backlit LCD display
Exclusive automatic repeater scan easily finds local repeaters
Rugged MIL SPEC construction provides shock & vibration resistance
Silent Stand-by with CTCSS & Selcall
Front mounted speaker for loud and clear sound.
Exclusive automatic repeater scan easily finds local repeaters
Rugged MIL SPEC construction provides shock & vibration resistance
Silent Stand-by with CTCSS & Selcall
Front mounted speaker for loud and clear sound.

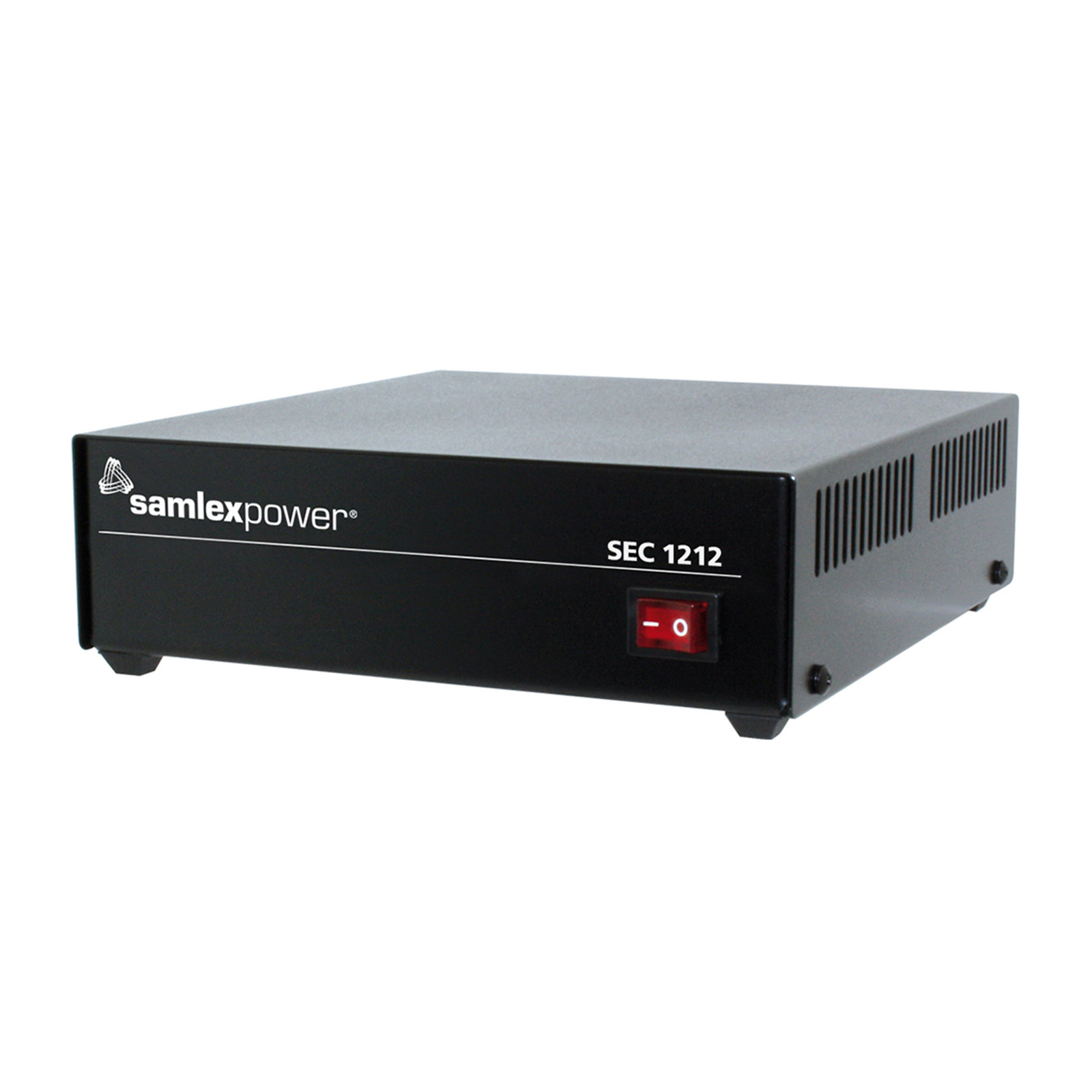

SAMLEX POWER SUPPLY
Samlex SEC-1212 Switch Mode Power Supply Unit 12V 10Amp.
Switch-mode DC power supply, designed specifically for use with ground base stations and mobile radio. This power supply produces clean reliable power and is highly filtered to suppress Radio Frequency Interference (RFI). Comes with a detachable AU/ANZ mains power supply cord with IEC plug and includes over-current, short-circuit and over voltage protection.
M475HD UHF BASE STATION ANTENNA - Option 1
The M1M475HD is a 860mm 5dB High Gain, 7mm Fibreglass, Wide Band, Colinear UHF antenna suitable for all UHF CB applications on a 5/16" screw type fitting.
It comes with a 4m coax cable and mounting base.
- Note - Antenna positioning needs to be be carefully considered when using this option since the antenna is 'ground dependent design'. The antenna requires a reflective surface such as a metal roof or structure in close situ to act as a ground plane. Without this relective surface antenna performance will be degraded. We do not recommend this option for a tiled roof or fibreglass structures, instead go for a 'ground independent' antenna such as COL3F or COL8N.

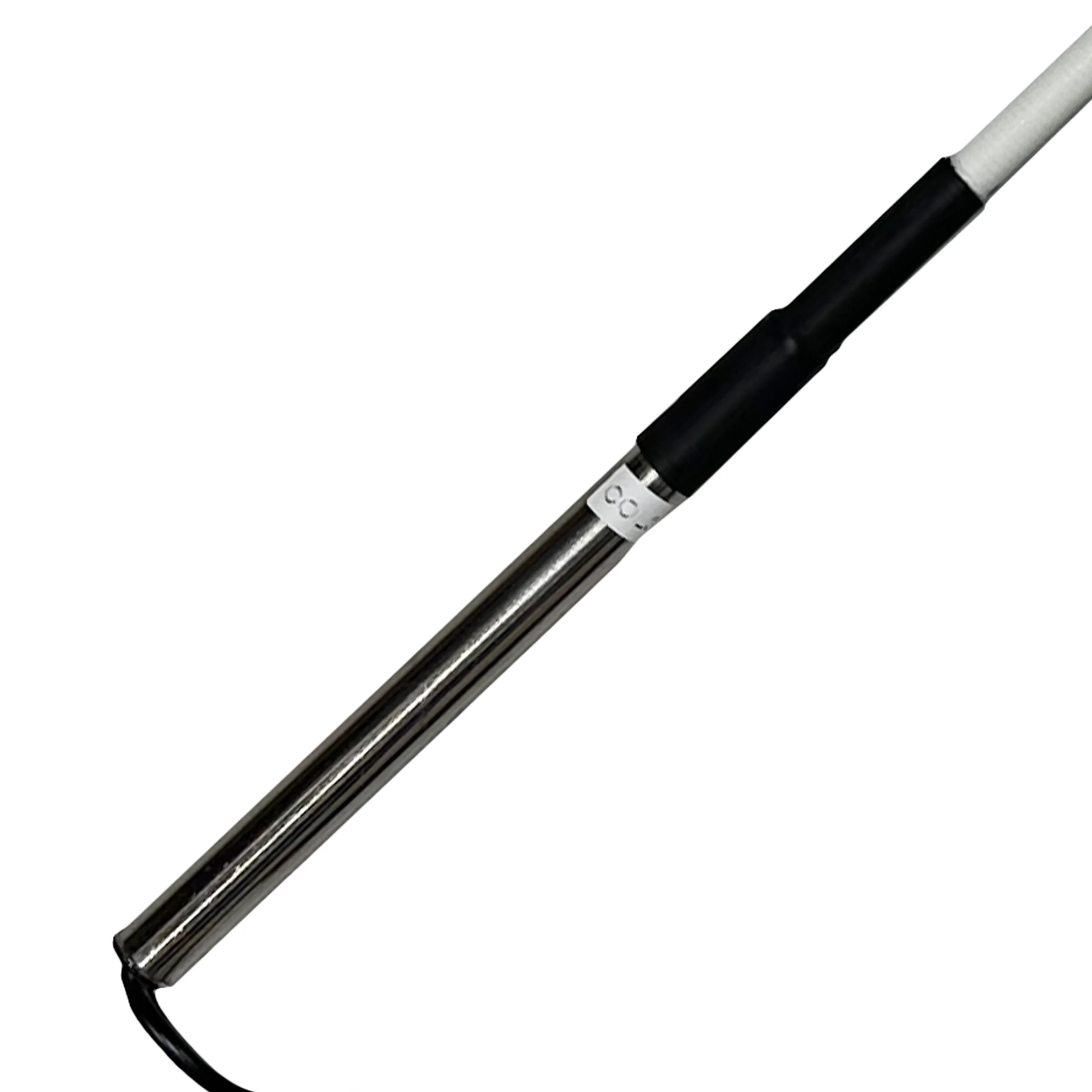

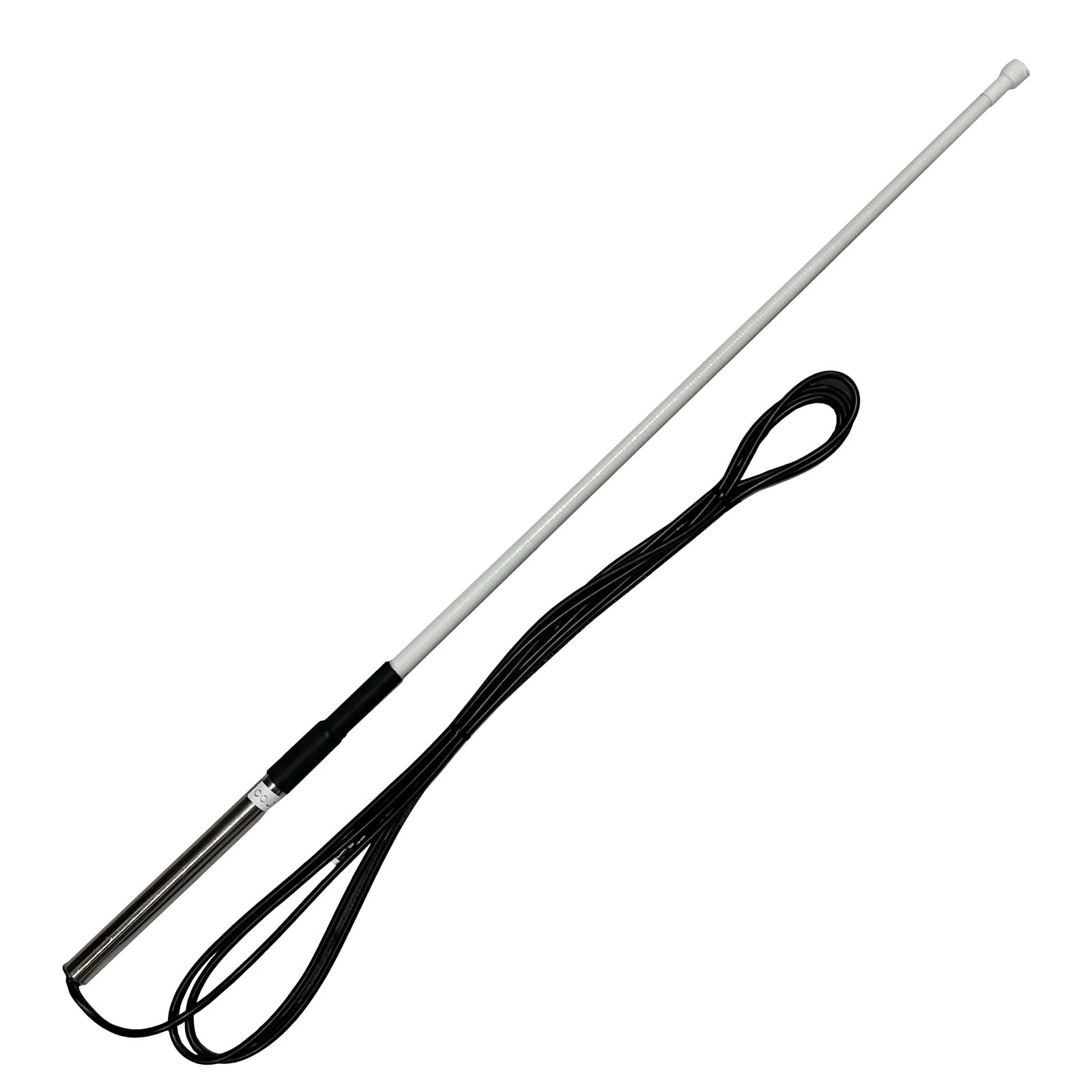

COL3F Base Station 820mm UHF CB Antenna Kit w/Fibreglass Antenna - 3db Gain - 3m Cable.
UHF 477MHz CB Base Station Antenna, the COL3F has a pre-cabled pigtail at its base.
- A compact lightweight antenna that is designed for LOW GAIN applications requiring a broad vertical pattern.
- The COL3F is made with the finest Australian fiberglass and stainless steel that is perfect for a marine environment.
- The COL3F comes pre-cabled with a 3 meter coaxial cable and an FME Female connector.

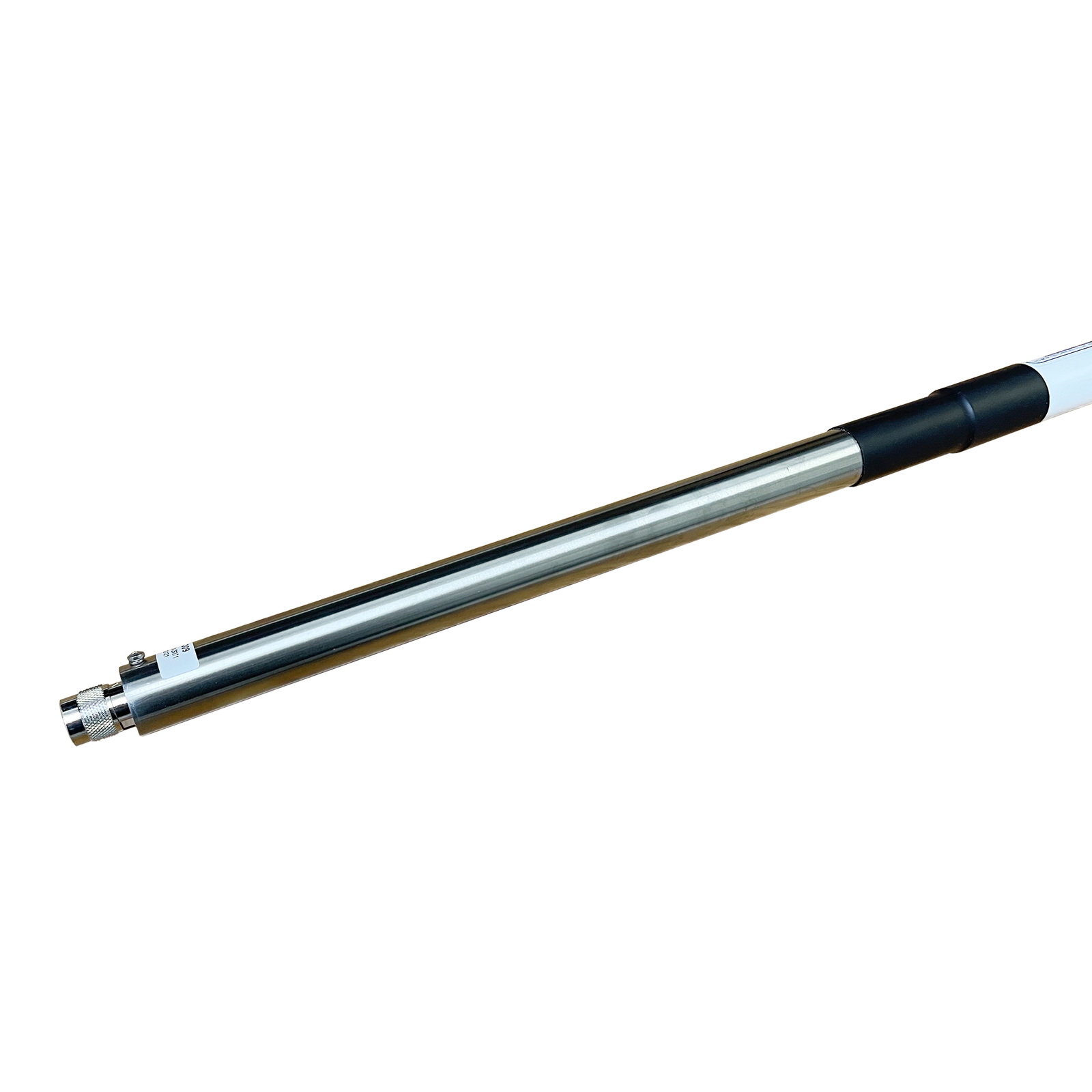

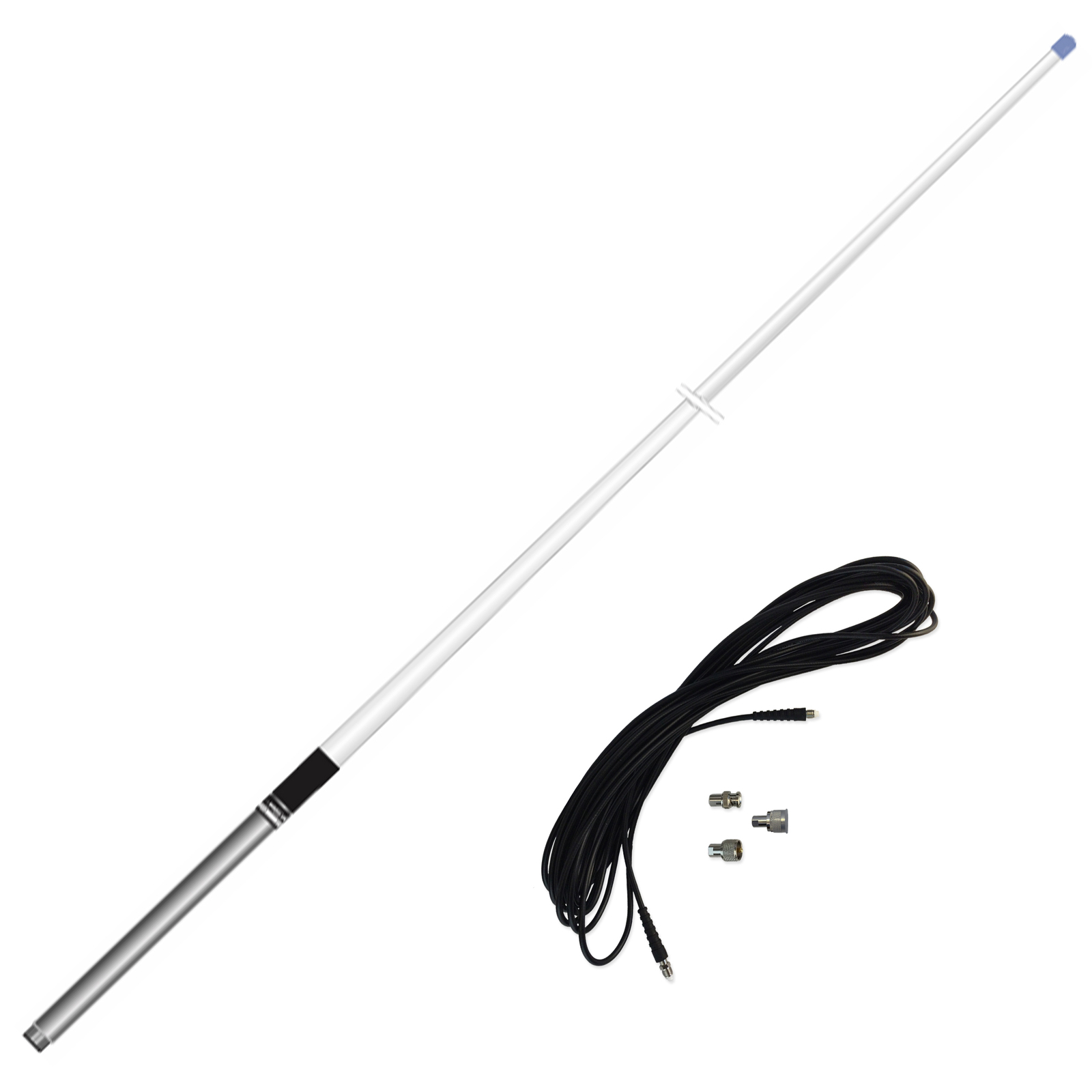

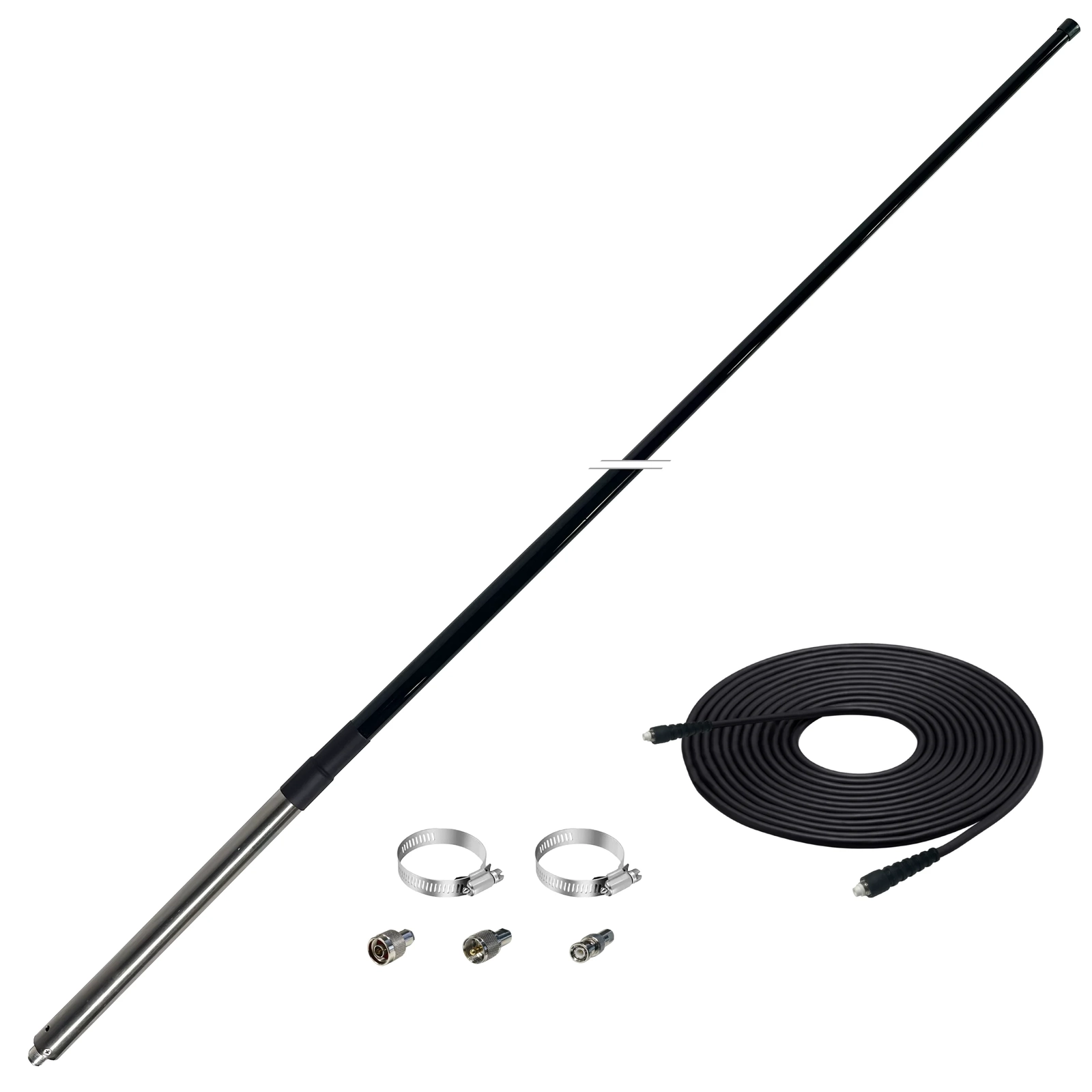

COL8N LONG RANGE BASE STATION ANTENNA - Option 3
COL8N Base Station 2400mm UHF CB Antenna Kit w/Fibreglass Antenna - Medium +8dBi Gain - 10m Cable.

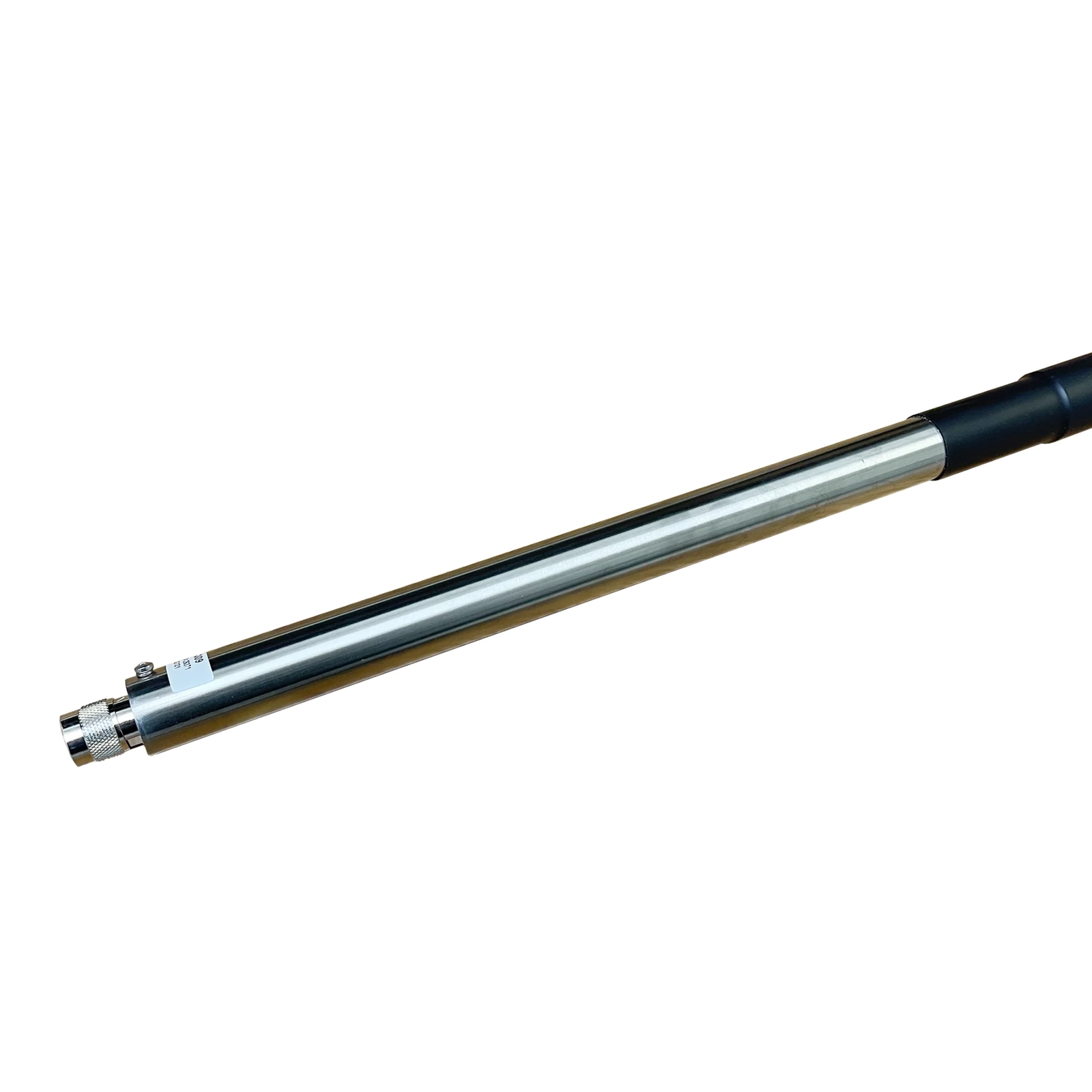

UHF 477MHz CB Base Station Antenna, the COL8N has a N connection at its base.
- The COL8N is a 8dBi gain Collinear UHF antenna base antenna that is designed for maximum range in all base installations regardless of terrain.

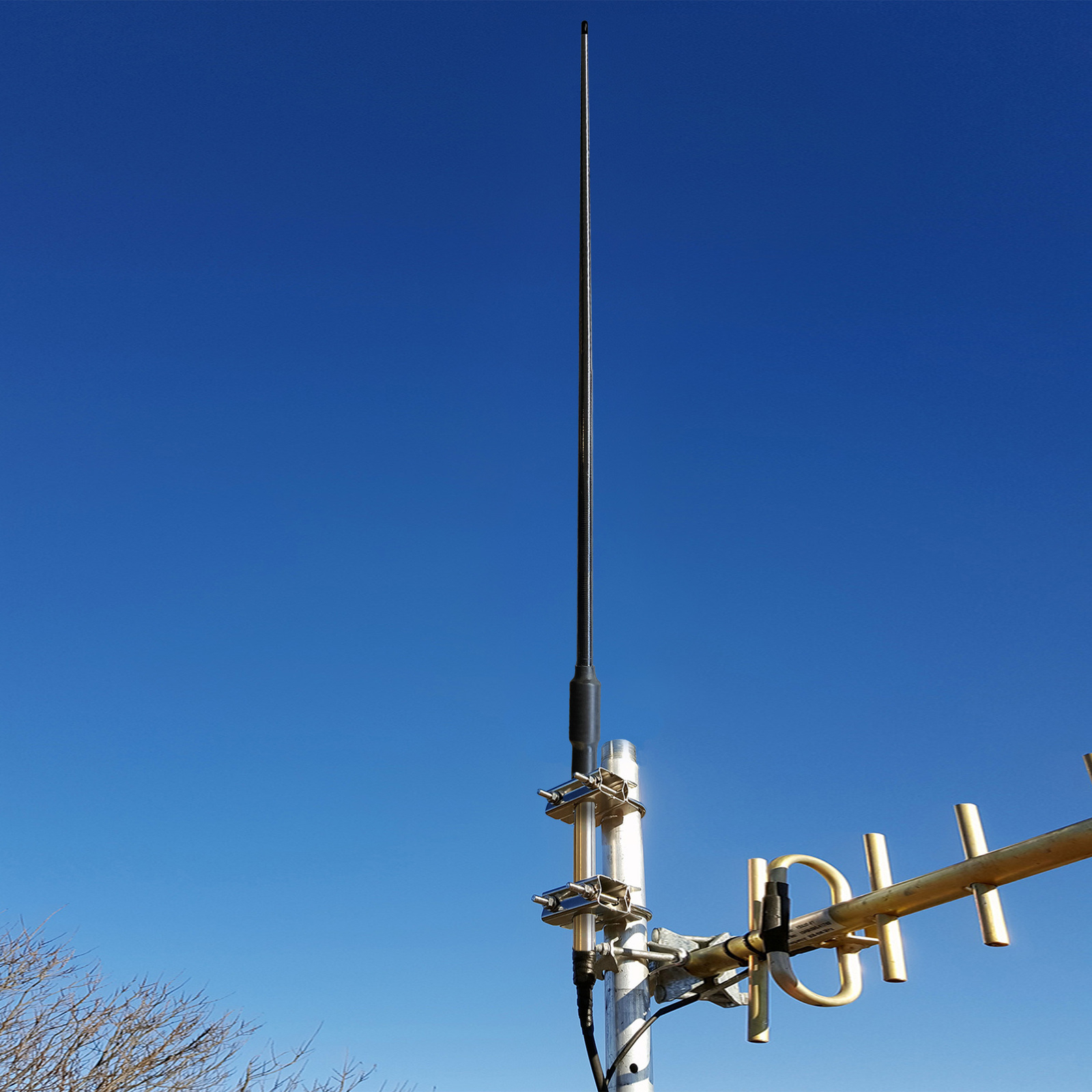

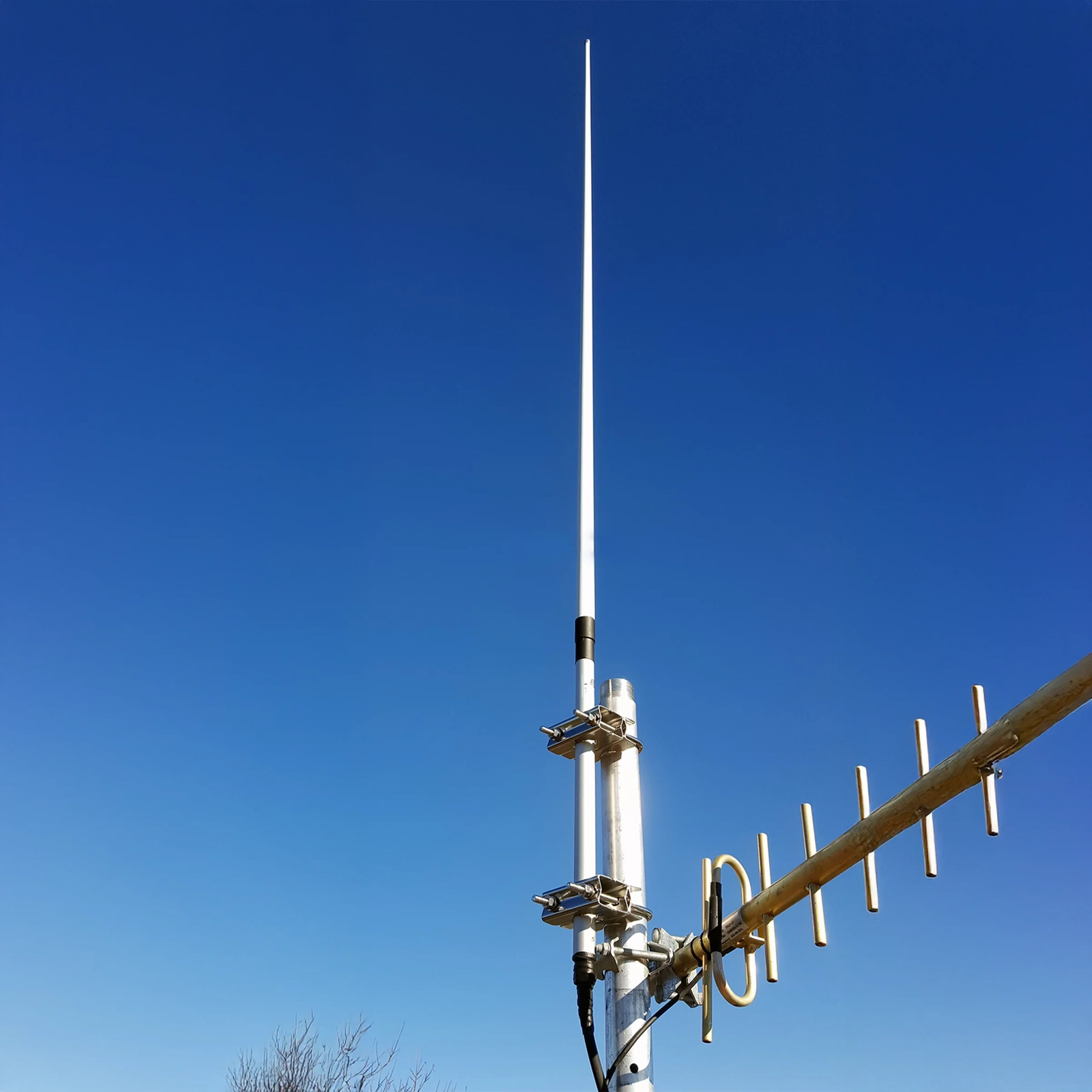

- The Antenna will perform best when placed on a high tower or mast, the higher the Antenna, the better the performance.
- The COL8N comes with a 10 meter coaxial cable and connectors.
NOTE: If a longer coax cable is required contact sales@flightstore.com.au or call us on 07 5536 8694.
Specifications
Number of Conventional Channels: 128 Channels
Receiver
Sensitivity: 0.25ktV typ. @ 12 dB SINAD
Audio Power Output: 4.0 W typ. @ 5 % dist. With 40
IC-410 PRO SPECIFICATIONS
General
Frequency Range:
Frequency Range:
476.4250 MHz to 477.4125 MHz CB
450.0000 MHz to 520.0000 MHz LMR
450.0000 MHz to 520.0000 MHz LMR
Number of Conventional Channels: 128 Channels
Antenna Impedance: 50 ohms nominal
Operating Temperature Range: —30 °C to + 60 °C
Power Supply Voltage: 13.8 V DC nominal
Dimensions: W 150 x H 40 x D 117.5 mm
Weight: 800 grams (approx)
Transmitter
Rated output power: 1W/ 5W CB / 1W/ 5W/ 25W (LMR)
Rated output power: 1W/ 5W CB / 1W/ 5W/ 25W (LMR)
Modulation: Variable reactance frequency modulation
Maximum Permissible Deviation: ±2.5 kHz (Narrow) / ±5.0 kHz (Wide)
Frequency error: ± 2.50 ppm
Frequency error: ± 2.50 ppm
Receiver
Sensitivity: 0.25ktV typ. @ 12 dB SINAD
Audio Power Output: 4.0 W typ. @ 5 % dist. With 40

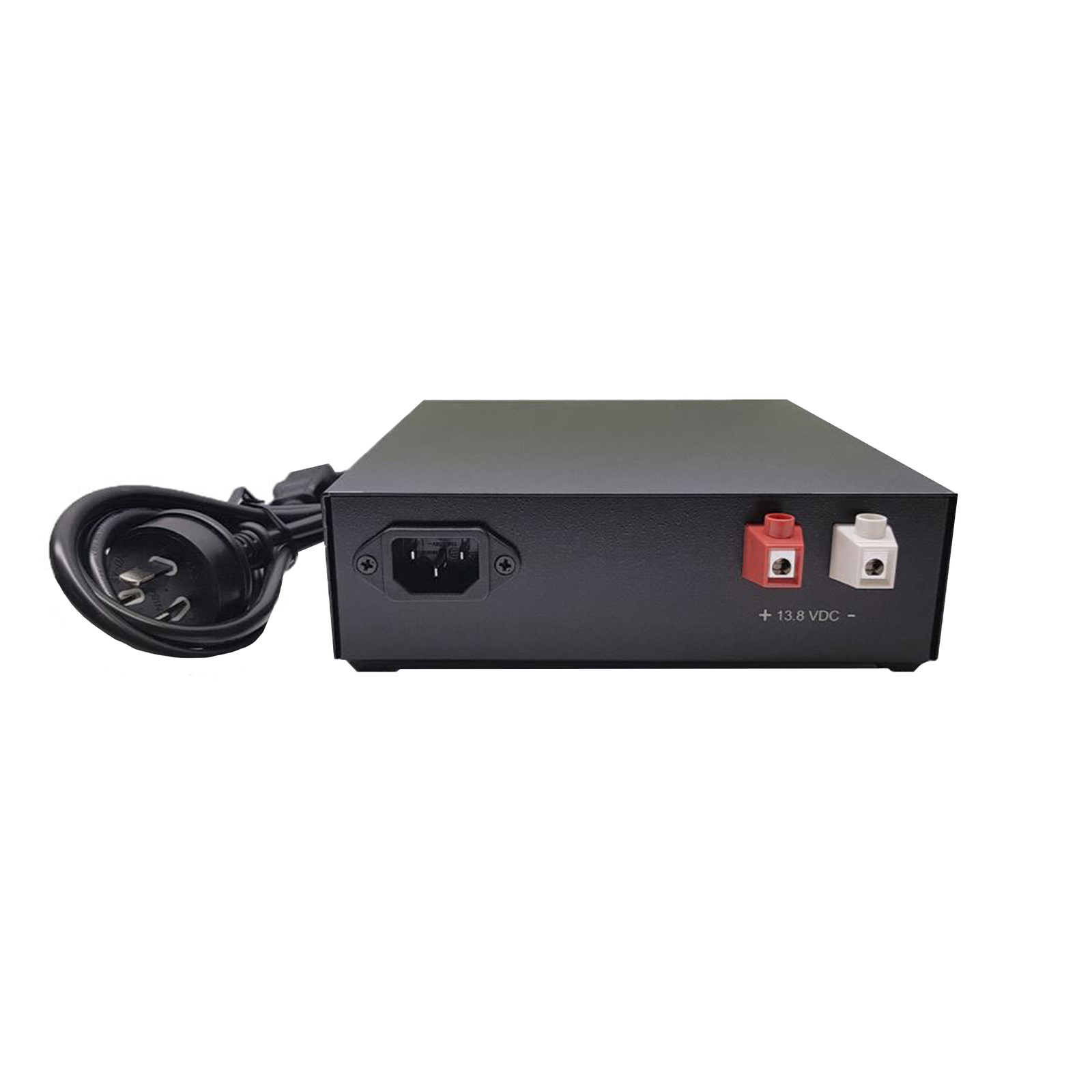

SAMLEX SEC-1212 POWER SUPPLY SPECIFICATIONS
Input Voltage : 115-230 VAC 50-60 Hz
Output Voltage : 13.8 VDC ±1%
Output Ripple : <120 mV Peak
Output Current Continuous : 9.5 A
Current Limiting : 10 A
Cooling : Convection
Protections : Short Circuit: YES, Overload: YES, Reverse Polarity: YES, Over Temperature: YES
Connections : Input: IEC C14, Output: 5mm Terminals
Operating Temperature : 0-40ºC
Dimentions (LxWxH) : 190 x 180 x 60 mm
Weight : 1.45 Kg
Standards : EN 61000-6-3, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 60950
Energy Efficiency Certification : CEC, DOE, MEPS
Safety Standard : UL60950-1, EN60950-1 (ETL)
EMI Standard : EN55022 class B EN61000-3-2,3
FCC : Part 15 subpart B class B
C-Tick : AN/NZS CISPR22 class B
COL 3 ANTENNA SPECIFICATIONS
Length: 1120mm (1.1m)
Weight: 400g
Gain: +3dBi

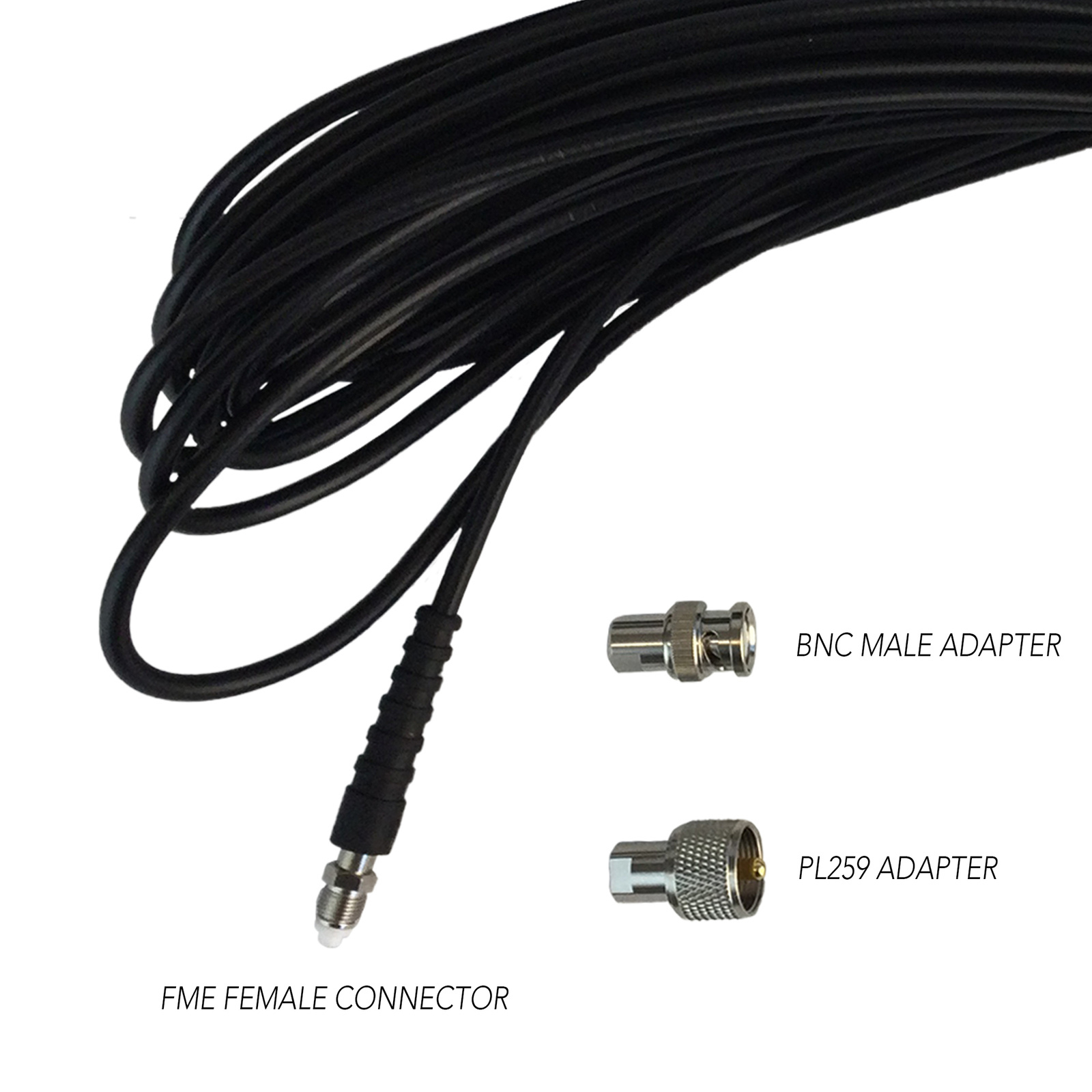

Cable: Pigtail Cellfoil Coax with FME Female
Cable Length: Pigtail 3m
Supplied Adapters that Plug onto Cable:
FME Male to BNC Male Adapter
FME Male to PL259 Male Adapter
Worm Drive Clamps - 85mm Stainless Steel for mast mounting (x2)
COL 6 ANTENNA SPECIFICATIONS
Length: 2400mm (2.4m)
Weight: 1.2 kg
Gain: 6dBd / 8dBi
Cable: Cellfoil Coax with 10FME Female on both ends
Cable Length: 10m
Supplied Adapters that Plug onto Cable:
FME N - FME Male to N Male Adapter
FME BNC - FME Male to BNC Male Adapter
FME PL - FME Male to PL259 Male Adapter
Worm Drive Clamps - 85mm Stainless Steel for mast mounting (x2)
| SKU | IC-410PRO-BASE-KIT |
| Brand | Icom |
| Shipping Weight | 12.0000kg |
| Unit Of Measure | ea |
