Product Description

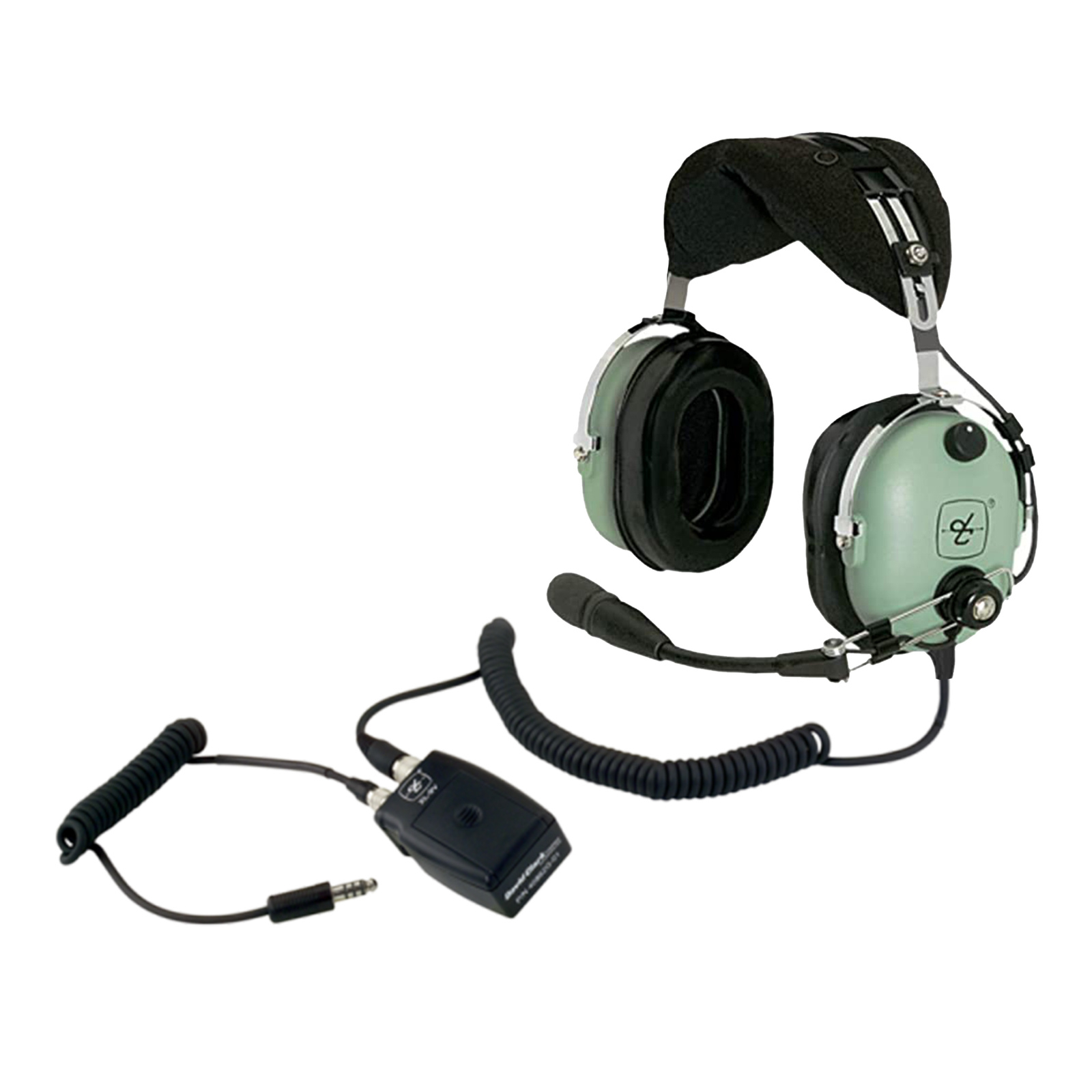

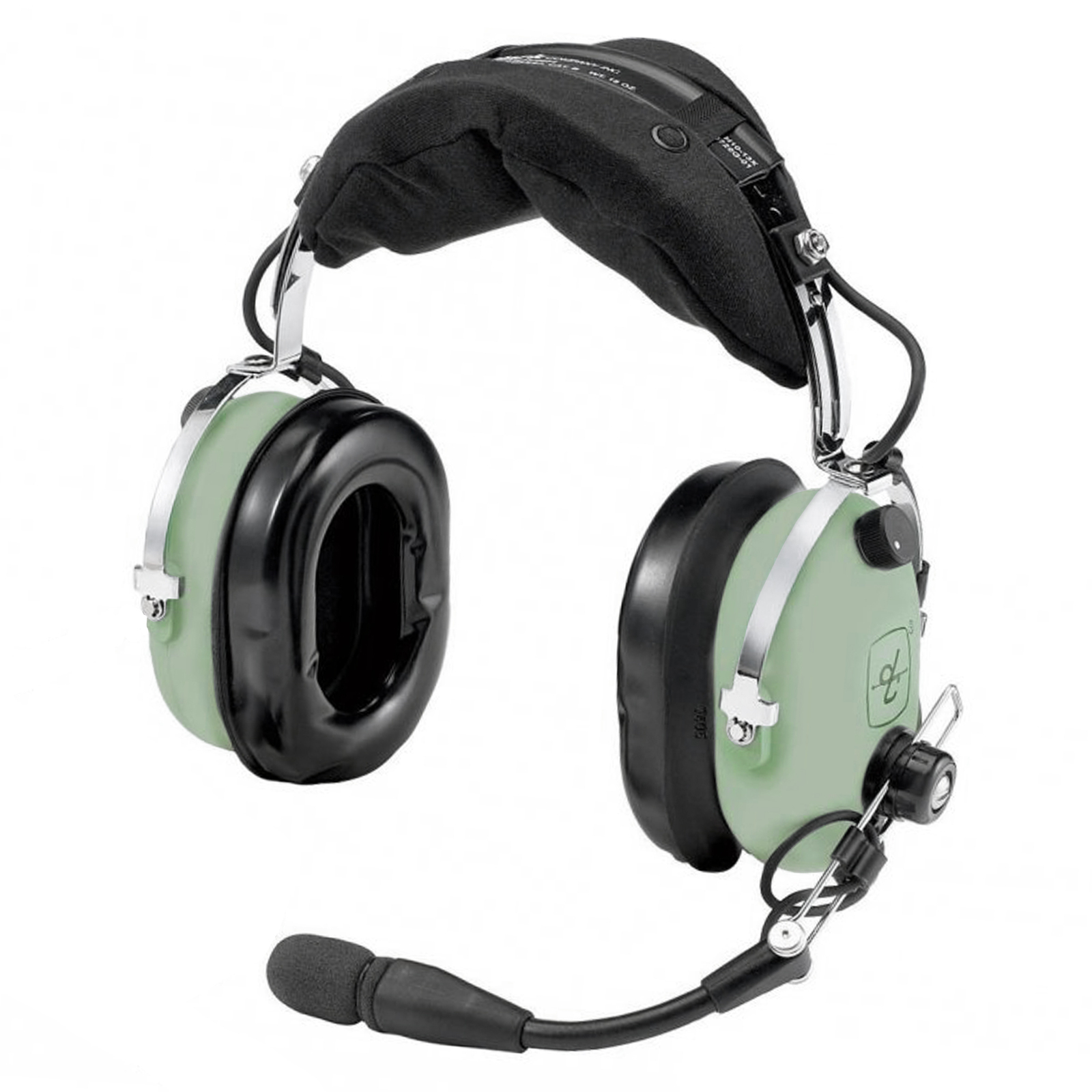

David Clark H10-13HXL Helicopter Modular ENC Headset
Modular Coil Cord U-174 Helicopter Plug ENC Headset
Portable ENC Technology in David Clark's Most Popular Headset Design.
The H10-13HXL gives helicopter pilots all the comfort, durability and performance they need, with the added benefit of modular ENC portability in a classic headset design. Comes with 5 ft. (extended) coil cord assembly with mating battery connector and Panel-Intercom plug.
KEY FEATURES
-
Super-soft head pad
-
Larger, yet lighter, undercut, Comfort Gel, ear seals
-
Battery Power Module - One 9 volt battery for up to 25 hours of operation
-
Pilot selectable Automatic Shut-Off feature
-
Five-foot (extended) coil cord
-
Coiled cord assembly connects Battery Power Module to panel intercom/radio
-
Same headset can be used with optional panel mount
-
Weight (without cord assembly): 18 oz.
-
Exclusive, patented flex/wire boom for easy, precise microphone placement
-
Reduced headband pressure
-
M-7A noise-cancelling electret microphone provides clear, crisp transmission
-
Stereo compatible for use with stereo intercom and cabin entertainment systems
DOWNLOADS
Specifications
| Ear coupling | Around-the-ear |
| Hardware | Steel |
| Connection Cable | ~ 5 ft. (1.5 m) coil cord |
| Weight w/o cable | ~ 18 oz. (532 g) |
| Dome type | ABS |
| Characteristic SPL | ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal |
| Contact Pressure | ~0.6 lb. (2.7 N) |
| Total harmonic distortion (THD) | < 1% - 110 dB SPL (300 - 3,000 Hz) |
| Transducer principle | Dynamic (ENC) |
| Ear Impedance | Monaural, 150Ω nominal, stereo, 300Ω nominal per side |
| Ear Freq Response | 100 - 5,500 Hz |
| Microphone principle | M-7A Amplified Electret |
| Mic Impedance | 50Ω +/- 20% |
| Mic Sensitivity | 400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input |
| Mic Freq Response | 300Hz – 3.5KHz per RTCA DO 214 |
| Mic DC Supply V. | 8-16V, not polarity sensitive |
| Source Resistance | 470Ω |
| SKU | 40600G-03 |
| Brand | David Clark |
| Shipping Weight | 1.5000kg |
| Unit Of Measure | ea |
