In Stock
Lightspeed Sierra
Product Description

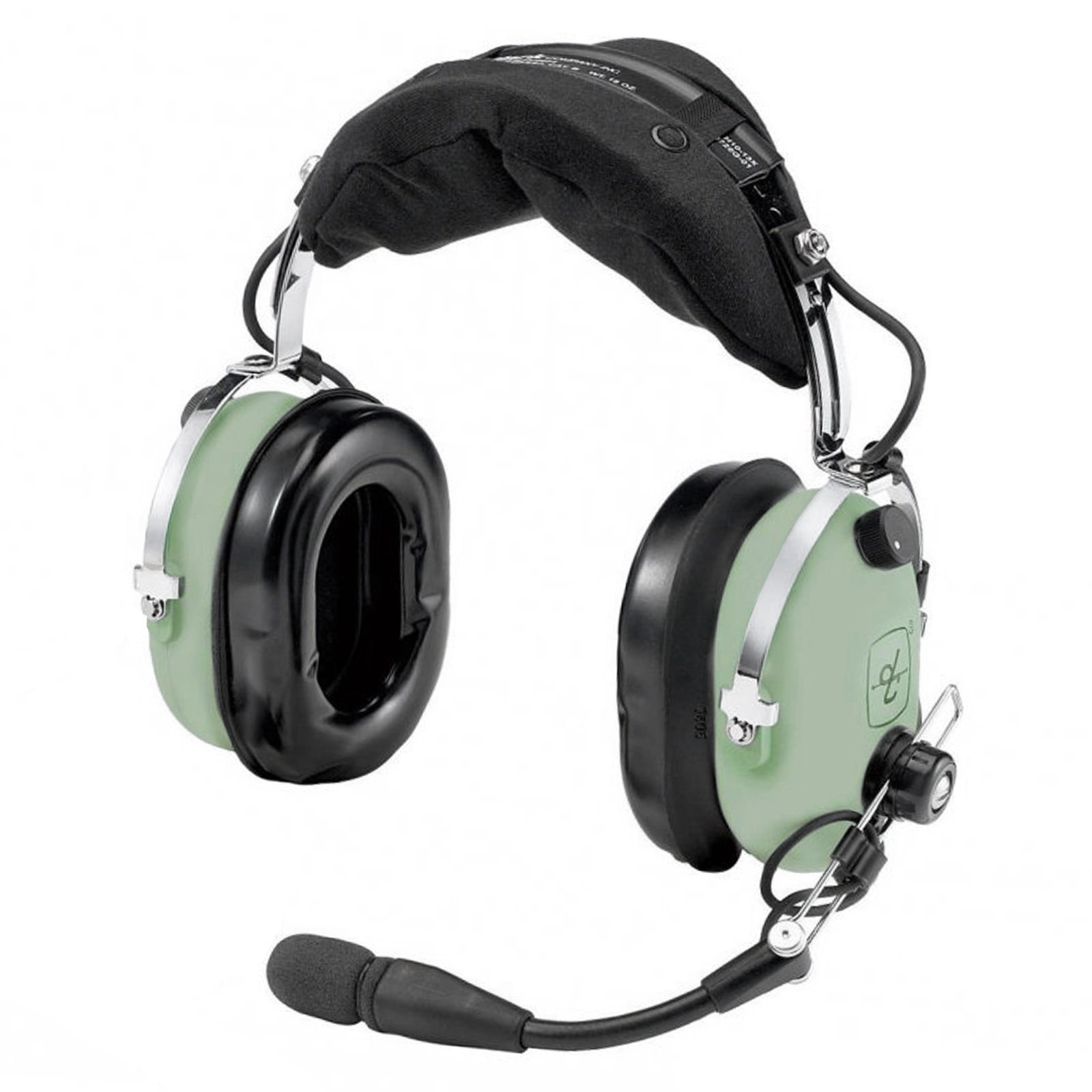

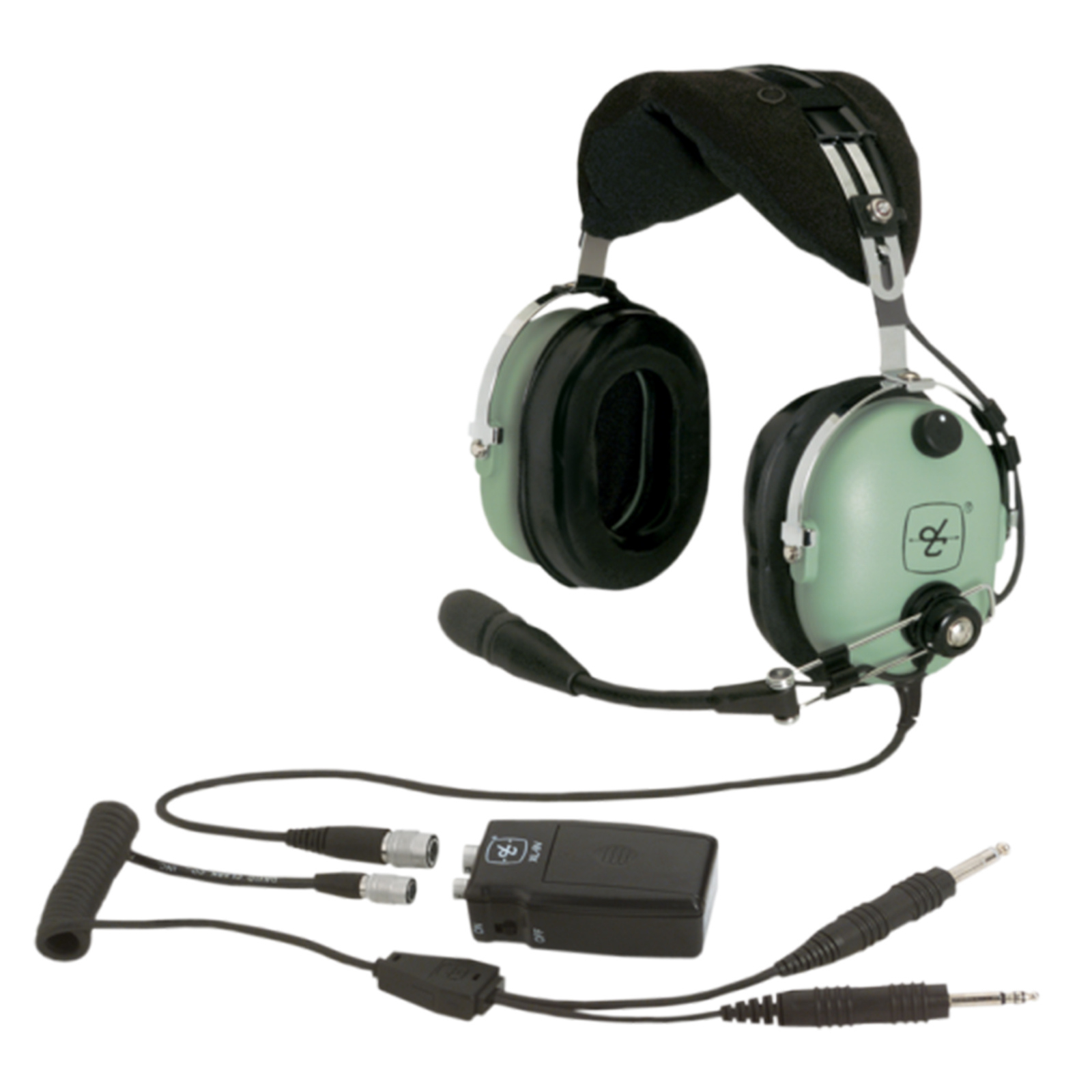

David Clark H10-13XL Modular ENC Headset
Portable ENC Technology in a Proven Headset Design.
Enjoy the added quiet and clarity of Electronic Noise-Cancelling technology with modular portability. Headset can be unplugged from portable battery module for use with Permanent Panel Mount module.
KEY FEATURES
- Expanded, super-soft, double foam head pad
- Larger, yet lighter, Comfort Gel, undercut ear seals
- Battery Power Module - One 9 volt battery for up to 25 hours of operation
- Pilot selectable automatic Shut-Off feature
- Five-foot (extended) coil cord terminating with a 10 pin quick release connector
- Coiled cord assembly connects Battery Power Module to panel intercom/radio
- Dual volume controls let you adjust the listening level for each ear
- Exclusive, patented flex/wire boom for easy, precise microphone placement
- NRR - 23 dB passive noise reduction. Additional 17 - 22 dB low-frequency noise attenuation when ENC is activated
- Weight (without cord assembly): 22 oz.
-
FAA TSO Approved C-57b, C58a
DOWNLOADS
Specifications
| Ear coupling | Around-the-ear |
| Hardware | Steel |
| Connector Type | PJ-055 (.25” phone plug) |
| Connection Cable | ~ 5 ft. (1.5 m) straight cord |
| Weight w/o cable | ~ 18 oz. (532 g) |
| Dome type | ABS |
| Characteristic SPL | ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal |
| Contact Pressure | ~0.6 lb. (2.7 N) |
| Total harmonic distortion (THD) | < 1% - 110 dB SPL (300 - 3,000 Hz) |
| Transducer principle | Dynamic (ENC) |
| Ear Impedance | Monaural, 150Ω nominal, stereo, 300Ω nominal per side |
| Ear Freq Response | 100 - 5,500 Hz |
| Microphone principle | M-7A Amplified Electret |
| Mic Impedance | 50Ω +/- 20% |
| Mic Sensitivity | 400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input |
| Mic Freq Response | 300Hz – 3.5KHz per RTCA DO 214 |
| Mic DC Supply V. | 8-16V, not polarity sensitive |
| Source Resistance | 470Ω |
| SKU | 40600G-01 |
| Brand | David Clark |
| Shipping Weight | 1.5000kg |
| Unit Of Measure | ea |
Reviews
Be The First To Review This Product!
Help other Flight Store Pty Ltd users shop smarter by writing reviews for products you have purchased.
Write a product review
David Clark H10-13XL Dual Plug Modular ENC Headset
In Stock
$1,599.00
inc GST
David Clark H10-13XL Dual Plug Modular ENC Headset
$1,599.00
inc GST
Product Description
David Clark H10-13XL Modular ENC Headset
Portable ENC Technology in a Proven Headset Design.
Enjoy the added quiet and clarity of Electronic Noise-Cancelling technology with modular portability. Headset can be unplugged from portable battery module for use with Permanent Panel Mount module.
KEY FEATURES
- Expanded, super-soft, double foam head pad
- Larger, yet lighter, Comfort Gel, undercut ear seals
- Battery Power Module - One 9 volt battery for up to 25 hours of operation
- Pilot selectable automatic Shut-Off feature
- Five-foot (extended) coil cord terminating with a 10 pin quick release connector
- Coiled cord assembly connects Battery Power Module to panel intercom/radio
- Dual volume controls let you adjust the listening level for each ear
- Exclusive, patented flex/wire boom for easy, precise microphone placement
- NRR - 23 dB passive noise reduction. Additional 17 - 22 dB low-frequency noise attenuation when ENC is activated
- Weight (without cord assembly): 22 oz.
-
FAA TSO Approved C-57b, C58a
DOWNLOADS
Specifications
| Ear coupling | Around-the-ear |
| Hardware | Steel |
| Connector Type | PJ-055 (.25” phone plug) |
| Connection Cable | ~ 5 ft. (1.5 m) straight cord |
| Weight w/o cable | ~ 18 oz. (532 g) |
| Dome type | ABS |
| Characteristic SPL | ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal |
| Contact Pressure | ~0.6 lb. (2.7 N) |
| Total harmonic distortion (THD) | < 1% - 110 dB SPL (300 - 3,000 Hz) |
| Transducer principle | Dynamic (ENC) |
| Ear Impedance | Monaural, 150Ω nominal, stereo, 300Ω nominal per side |
| Ear Freq Response | 100 - 5,500 Hz |
| Microphone principle | M-7A Amplified Electret |
| Mic Impedance | 50Ω +/- 20% |
| Mic Sensitivity | 400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input |
| Mic Freq Response | 300Hz – 3.5KHz per RTCA DO 214 |
| Mic DC Supply V. | 8-16V, not polarity sensitive |
| Source Resistance | 470Ω |
| SKU | 40600G-01 |
| Brand | David Clark |
| Shipping Weight | 1.5000kg |
| Unit Of Measure | ea |
