In Stock
Lightspeed Sierra
Product Description

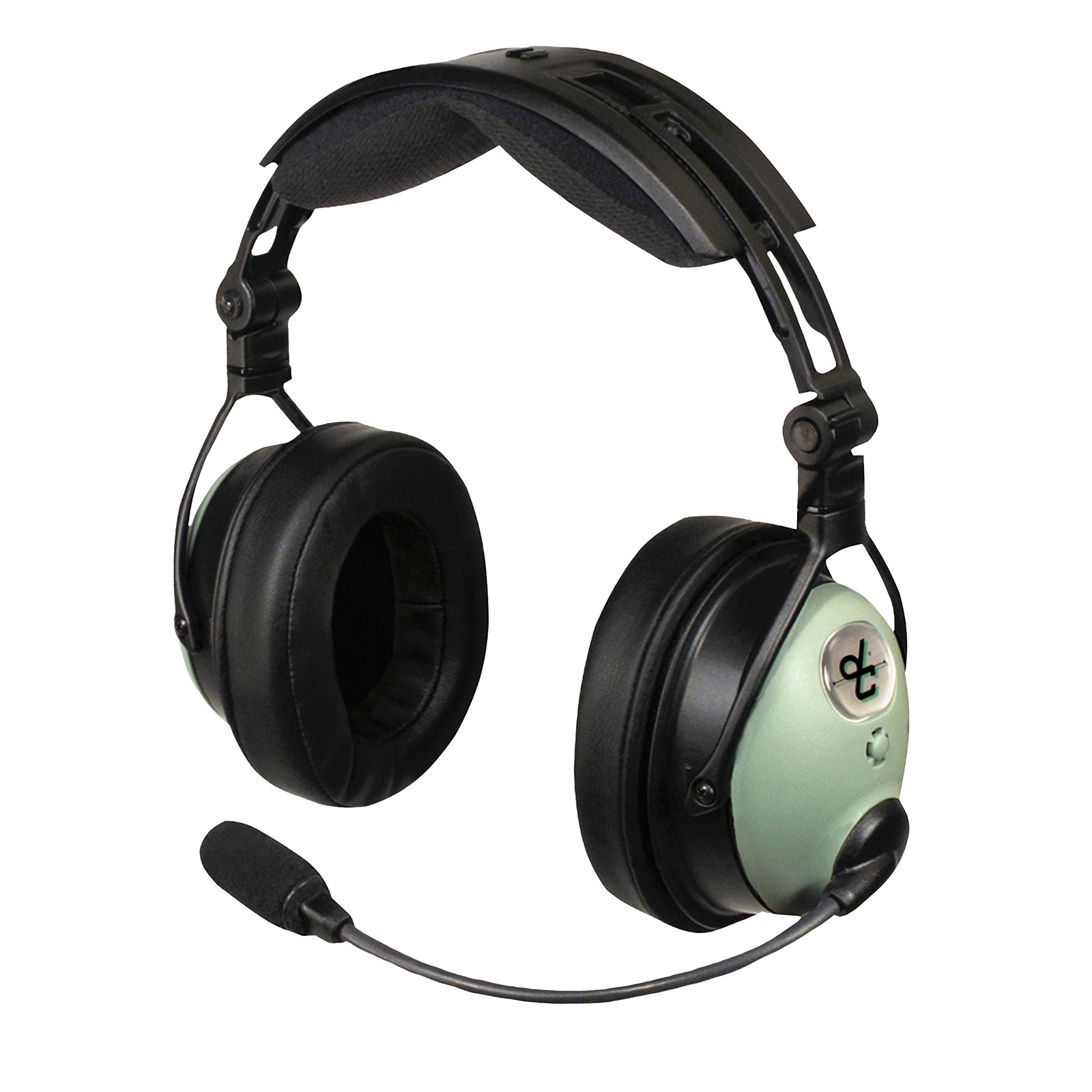

David Clark DC ONE-X ENC Headset with Bluetooth
Hybrid ENC technology with Bluetooth wireless phone and music, advanced comfort features
KEY FEATURES
- Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
- Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
- Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other smart devices
- Stereo/mono switch ─ compatible with all aircraft audio panel configurations
- M-55 electret microphone with enhanced noise cancelling
- Rugged yet lightweight alloy headband and suspension system is adjustable for personalized fit
- Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool and eliminates 'hot spots'
- Over-the-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide a snug, secure seal
- Compact, in-line control module with backlit, touch-key user interface controls On/Off, Bluetooth® wireless technology and volume control
- Control module powered by two (2) AA batteries for up to 50 hours of use

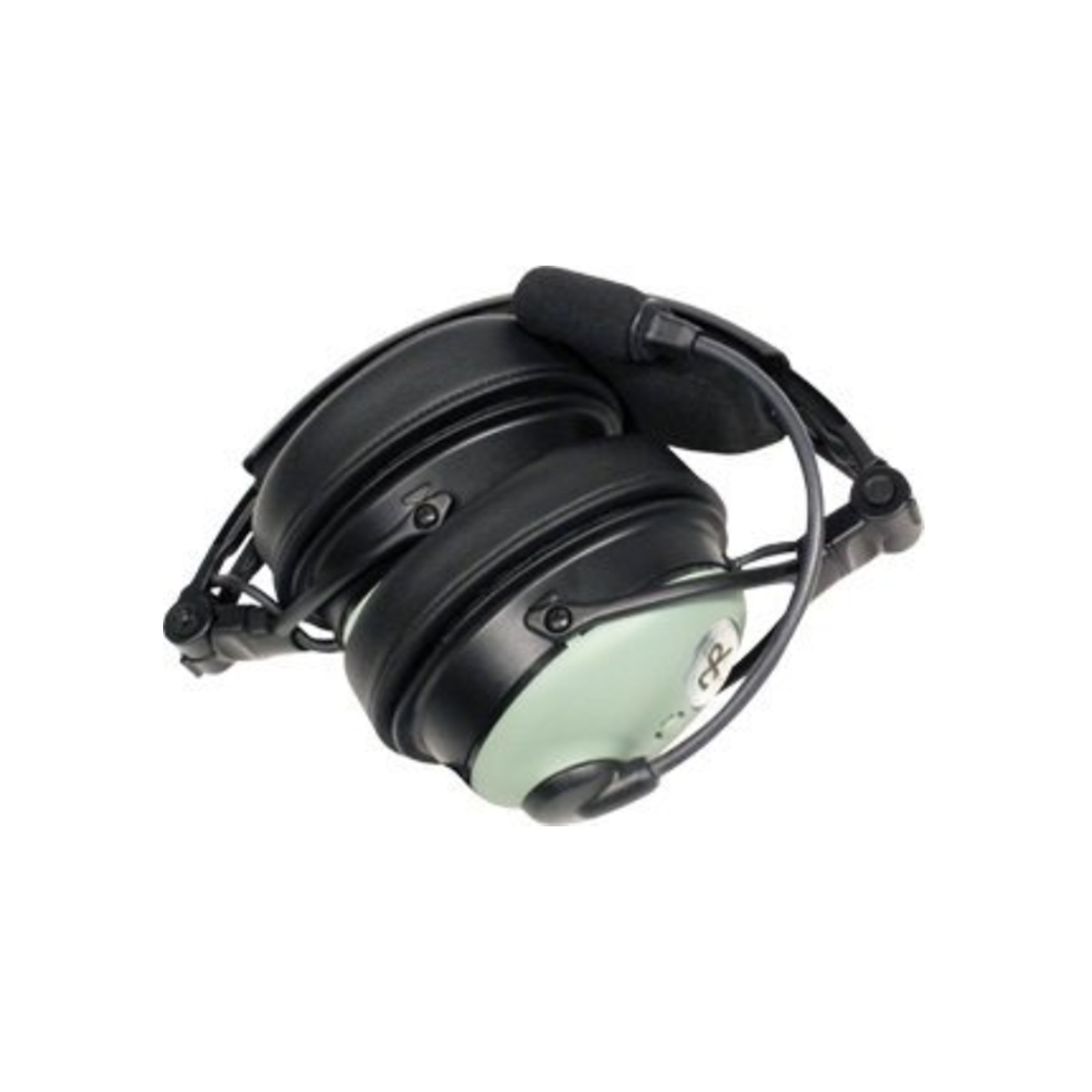

- Collapsible, folding design for compact storage in David Clark headset bag (included)
- Weight (without cord assembly) 12.3 oz.
- FAA TSO-C139a Approved
PLUG TYPES / VARIANTS

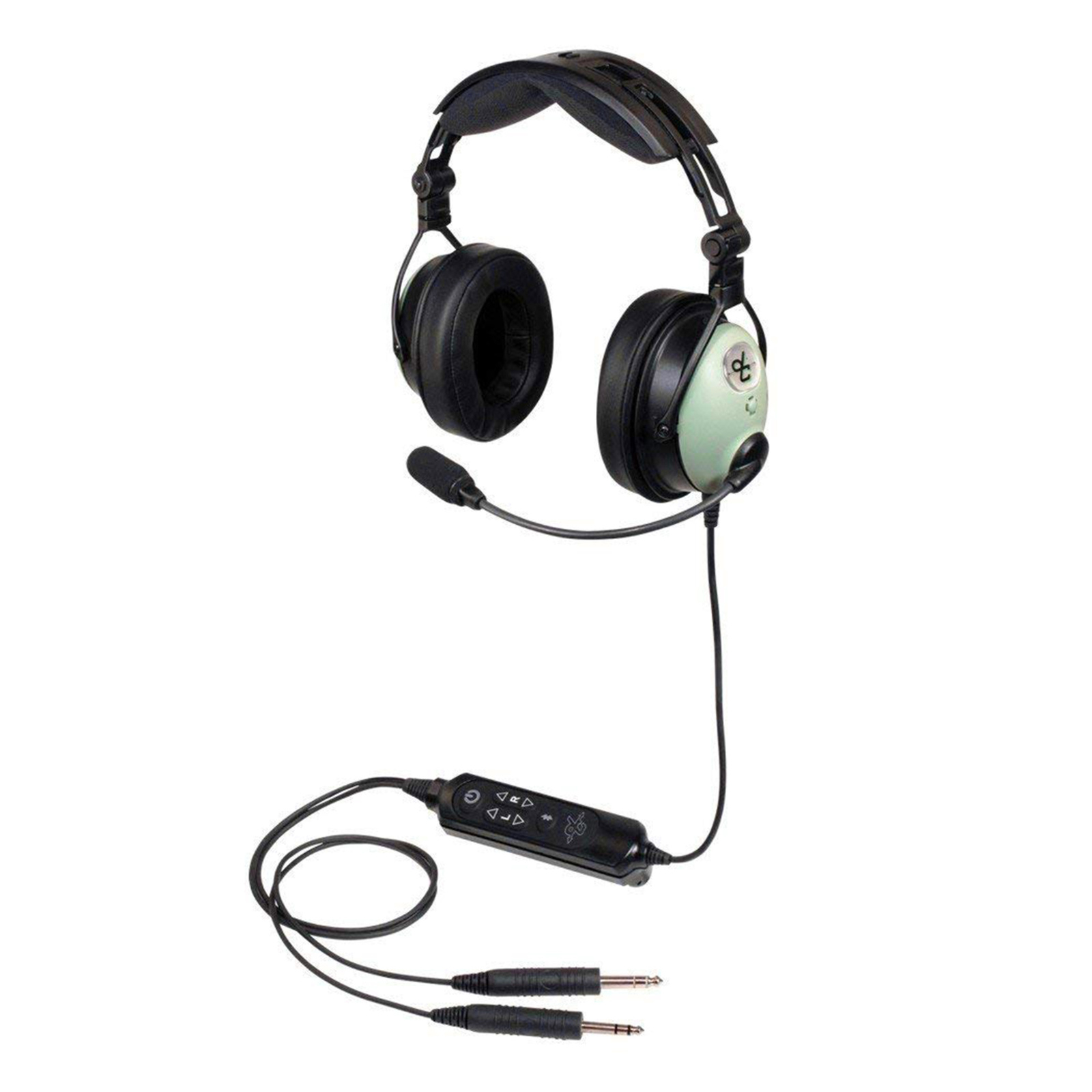

- Straight Cord GA Dual Plug

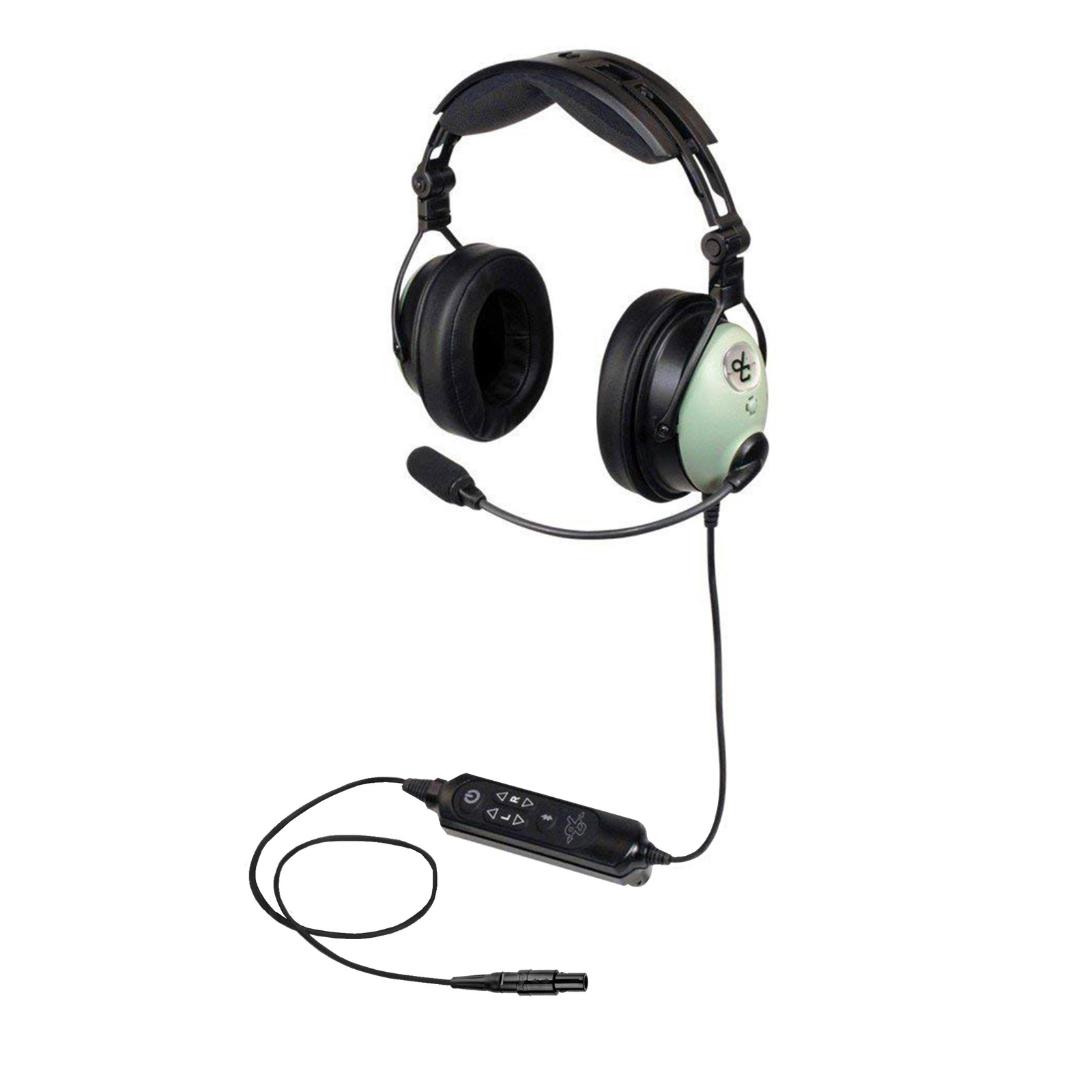

- Straight Cord 6 Pin Lemo

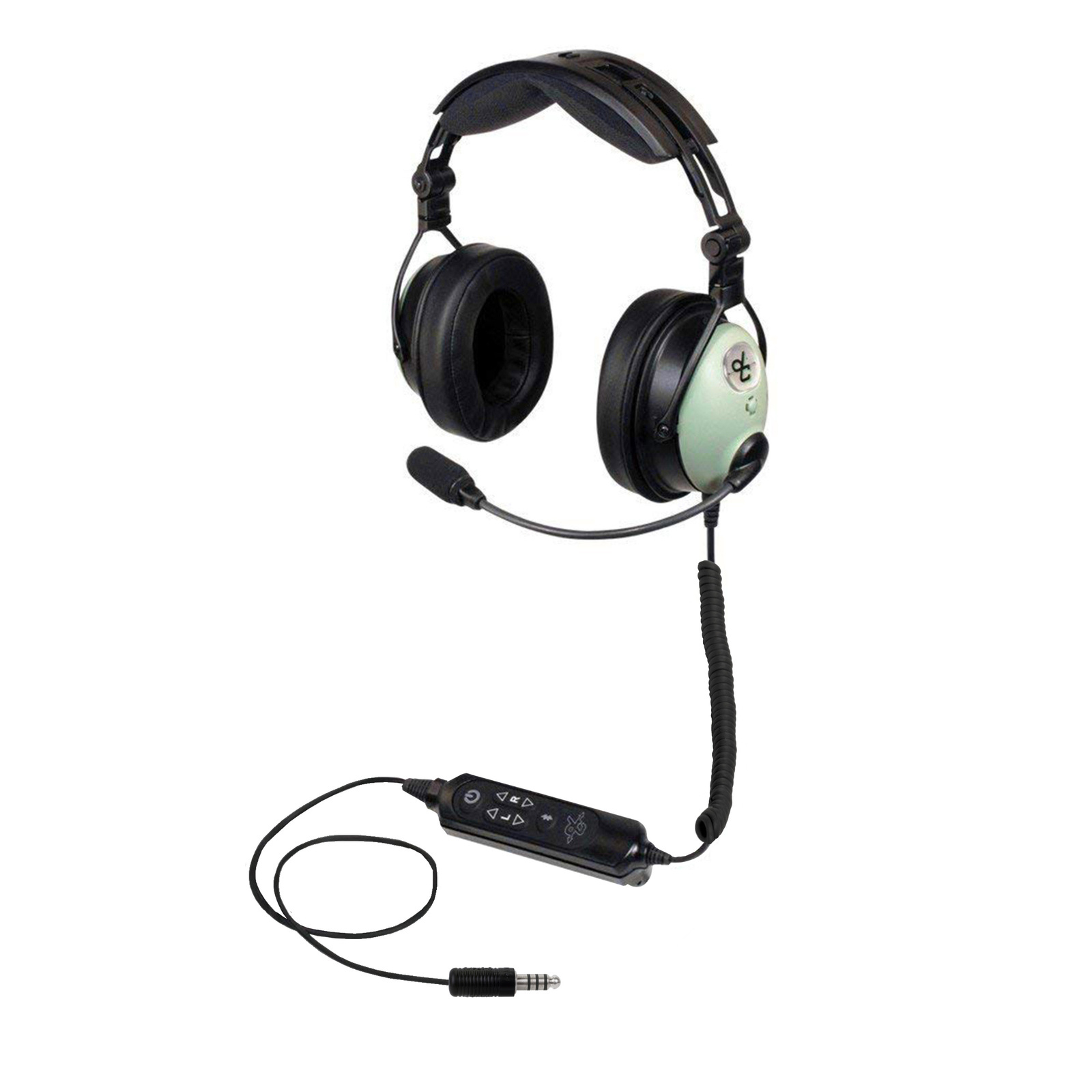

- Coil Cord U174 Nato Helicopter Plug

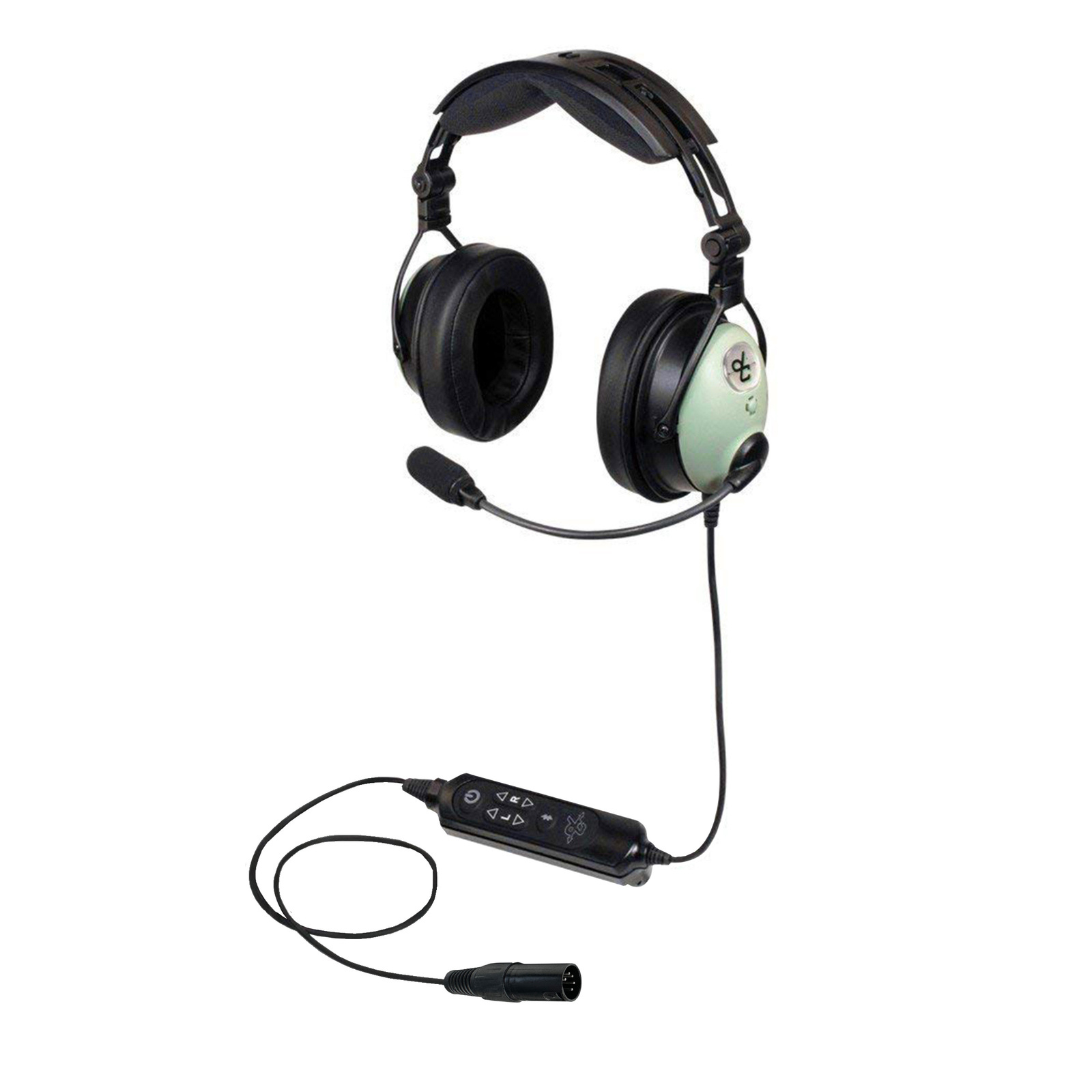

- Straight Cord 5 Pin XLR Plug
- Coil Cord U174 Nato Helicopter Plug - Military Version 5 Ohm Low Impedance *(Not intended for General Aviation use)
DOWNLOADS
Specifications
TECHNICAL DATA FOR ONE-X (non military variants)
| Ear coupling | Around-the-ear (Circumaural) |
| Hardware | Lightweight Alloy |
| Connector Type | Standard Dual GA plugs / U174/U / 6Pin Lemo / 5Pin XLR |
| Connection Cable | 0.155” (4-mm) OD shielded cable, length ~ 6 ft. (1.8 m) |
| Weight w/o cable | a~ 12.3 oz. (349 g) |
| Battery life | Up to 50 hours (2 AA batteries) |
| Operating temperature | -20°C to +70°C |
| Operating voltage | 3VDC (2x AA) |
| Dome type | ABS |
| Characteristic SPL | ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal |
| Contact pressure | ~1.4 lb. (6.2 N) |
| ENC peak attenuation | 30dB @ 150Hz |
| ENC attenuation range | 20Hz―1KHz |
| Total harmonic distortion (THD) | < 1% - 110 dB SPL (300 - 3,000 Hz) |
| Ear Transducer principle | Dynamic |
| Ear Impedance | 150 Ω mono / 300 Ω stereo (each ear) |
| Ear Freq Response | 12 - 15,000 Hz |
| Microphone principle | pre-polarized condenser microphone (electret), noisecancelling |
| Mic Impedance | 150Ω nominal (5Ω on Military Variant) |
| Mic Sensitivity | 400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input |
| Mic Freq Response | 150 - 8,000 Hz |
| Mic DC Supply | V. 8-16V, not polarity sensitive |
| Source Resistance | 470Ω |
TECHNICAL DATA FOR ONE-XM (Military Headset)
| Ear coupling | Around-the-ear (Circumaural) |
| Hardware | Lightweight Alloy |
| Connector Type | U174/U |
| Connection Cable XM Military |
Upper Cord; ~44” fixed length 0.155” OD shielded
Lower Coil Cord; ~12” relaxed 0.130” OD shielded
Overall Cord; ~72” overall extended length
|
| Weight w/o cable | ~ 12.3 oz. (349 g) |
| Battery life | Up to 50 hours (2 AA batteries) |
| Operating temperature | -20°C to +55°C |
| Operating voltage | 3VDC (2x AA), 1 W max. |
| Dome type | ABS |
| Characteristic SPL | ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal |
| Contact pressure | ~1.4 lb. (6.2 N) |
| ENC peak attenuation | 30dB @ 150Hz |
| ENC attenuation range | 20Hz―1KHz |
| Total harmonic distortion (THD) | < 1% - 110 dB SPL (300 - 3,000 Hz) |
| Ear Transducer principle | Dynamic |
| Earphone Impedance | 10 Ω mono (+/- 10%) |
| Ear Freq Response | 12 - 15,000 Hz |
| Microphone principle | Dynamic |
| Mic Impedance | 5Ω nominal |
| Mic Freq Response | 150 - 8,000 Hz |
| Mic DC Supply | V. 8-16V, not polarity sensitive |
| SKU | DC-ONE-X |
| Brand | David Clark |
| Shipping Weight | 1.2000kg |
| Unit Of Measure | ea |
