David Clark U9911-BSW (EU) Wireless System Contoller Belt Station, VOX

$1,408.00

inc GST

Product Description

David Clark U9911-BSW (EU) Wireless System Contoller Belt Station, VOX

The Series 9900 Wireless Intercom System is the perfect solution for wireless intercom/radio communications in demanding environments and applications requiring rugged, secure and reliable communications in and around high-noise areas; ideal for push-back operations, wing-walkers, marshalling agents, maintenance mechanics or de-icing operations. Also suits other industrial applications.

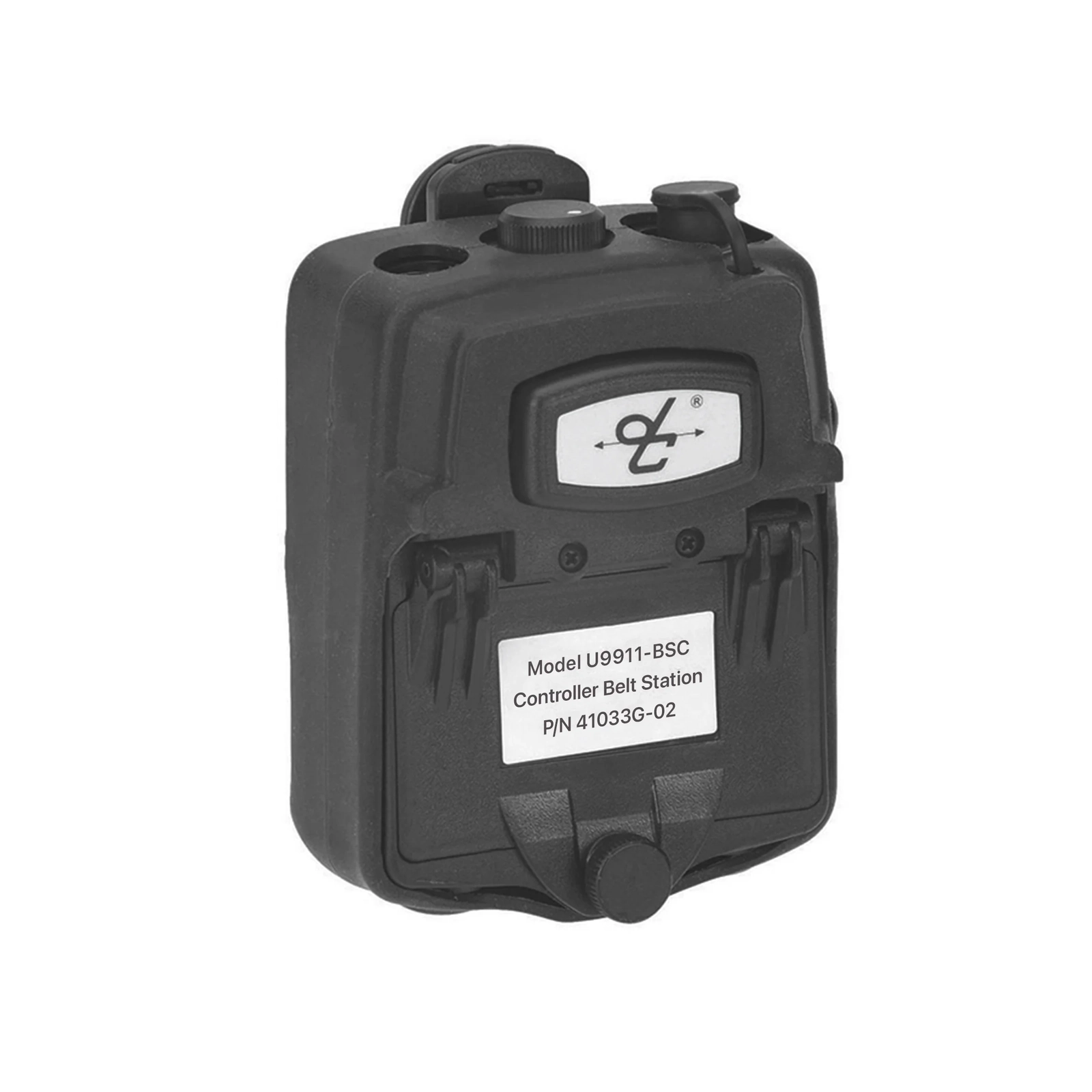

The U9911-BSC Controller Belt Station is designed to serve as the “master” control, or fixed part, to which all belt stations within a work group are linked. It accommodates one wireless headset itself, and acts as a relay for all intercom audio between multiple Wireless Belt Stations.

A single Controller can accommodate up to four (4) connected wireless users at a time with hands-free, full-duplex intercom communications. It also includes a VOX override PTT button, VOX control know, and an on/off/link button with LED indicator (link/comm/battery status).

Transmits and receives all system audio, to and from the Controller Belt Station and user's headset.

KEY FEATURES

Hands-free, full duplex intercom via system Controller Belt Station
Internal antenna provides range of at least 300 feet from Controller
Linked Belt Stations automatically reconnect to Controller when power is lost and regained, or when returning from out-of-range distance ("strong link")
Multiple independent Controllers operate in same RF vicinity with no cross-talk
Links up to 4 wireless users per Controller; 2 to 5 position system
Marine-grade, water-tight enclosure and components
Audible voice prompts for link/purge status, out-of-range, low battery
Easily accessible battery compartment with captive thumb screw
Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) (not included; must be purchased separately)
VOX control with proprietary "helper" tone, assists in ideal VOX setting
Large PTT for link and VOX override
Power button with LED indicator for visual status of link, PTT and battery charge
Military grade twist-lock connector
Rubberized outer skin, black
360-degree rotational belt clip
EU version available {U9911-BSC(EU)}

**These systems require multiple components and are custom configured to suit different crew requirements and applications.
***For quotes and advice on system configurations please contact us at sales@flightstore.com.au or call 07 5536 8694

U9911-BSC (EU) DATA SHEET

U9911-BSC (EU) USER MANUAL

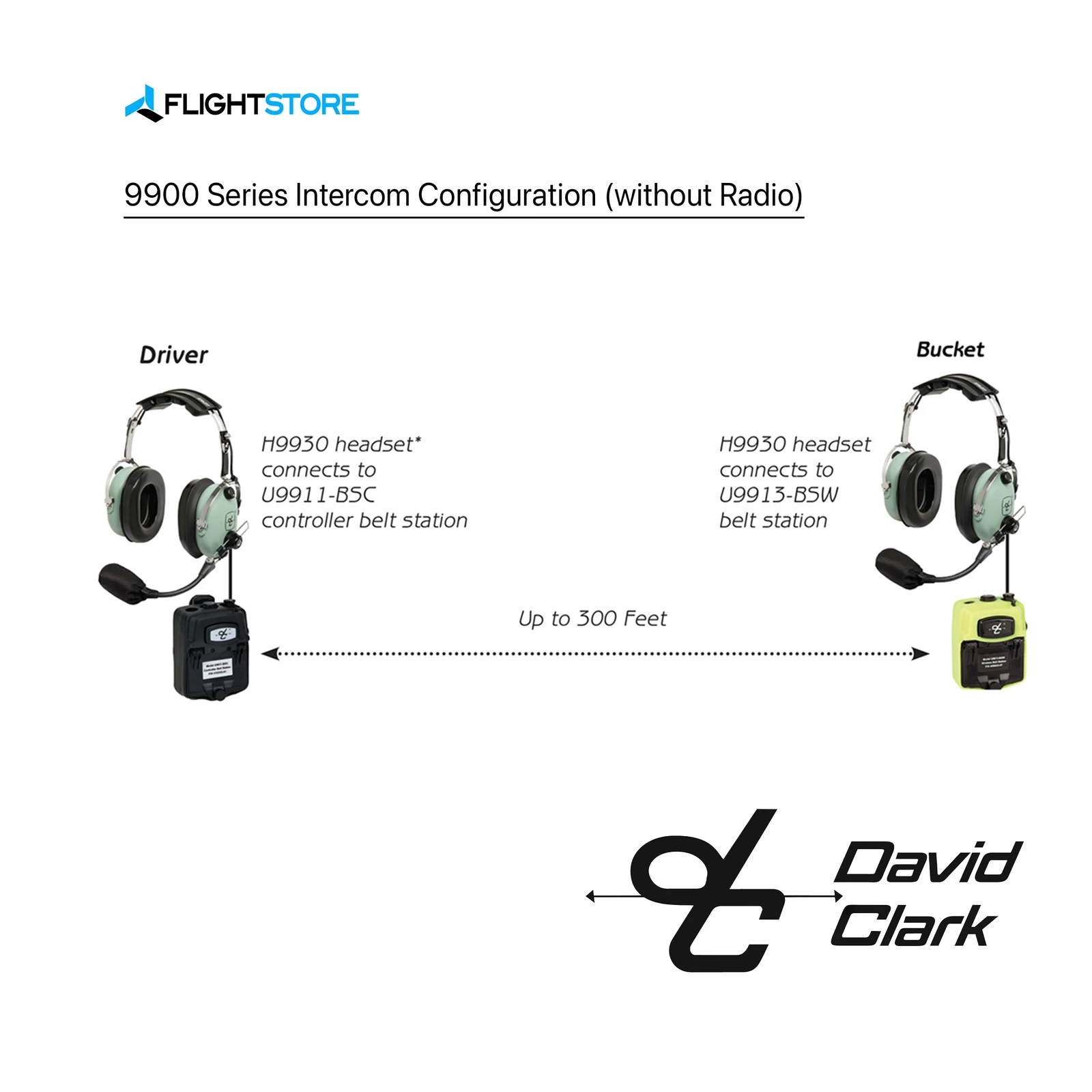

9900 SERIES WIRELESS SYSTEM

David Clark Company 9900 Series Wireless Headset Communication Systems provide maximum freedom, mobility, and clear communication for ground crew personnel without being tethered to aircraft or ground support equipment. Ideal for a wide variety of ground support applications including pushback, deicing and maintenance operations.

Crisp, clear communication in demanding environments
Hands-free, full-duplex intercom — DECT based technology
Rugged, durable construction; marine-grade components
Secure signaling prevents unwanted interception
Interfaces to existing David Clark wired intercom systems
Interfaces to most HF, VHF and UHF radios
Up to four users per gateway — expanded capability
Range up to 300 ft. (100m) from gateway

Specifications

Frequency	1880 MHz - 1900 MHz
Average Power Output	10mW (250mW peak) in EU
Range	100 m (300′) line-of-sight, typical
Carriers	10 each (1,728 kHz spacing)
Time Slots	2 x 12 (up and down stream)
Power Source	Li-Polymer rechargeable 3.7V cell, 2200 mAh (battery not included)
Power Consumption / Current Draw	90mA, typical
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +60°C
Dimensions, Enclosure	4″ H x 2-3/4″ W x 1-7/8″ D (2-1/2″ D with belt clip)
Weight	10 oz (280g) with battery
