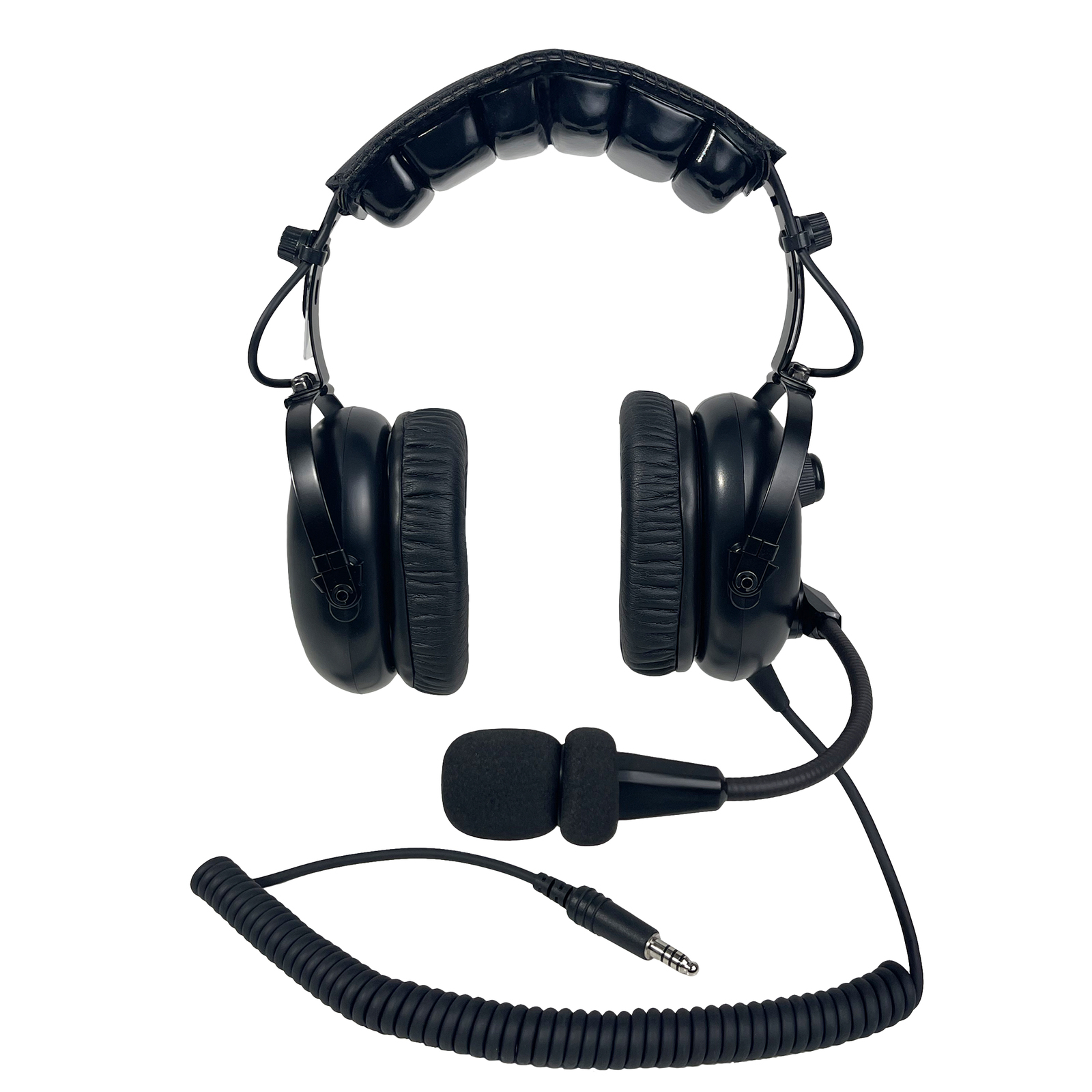

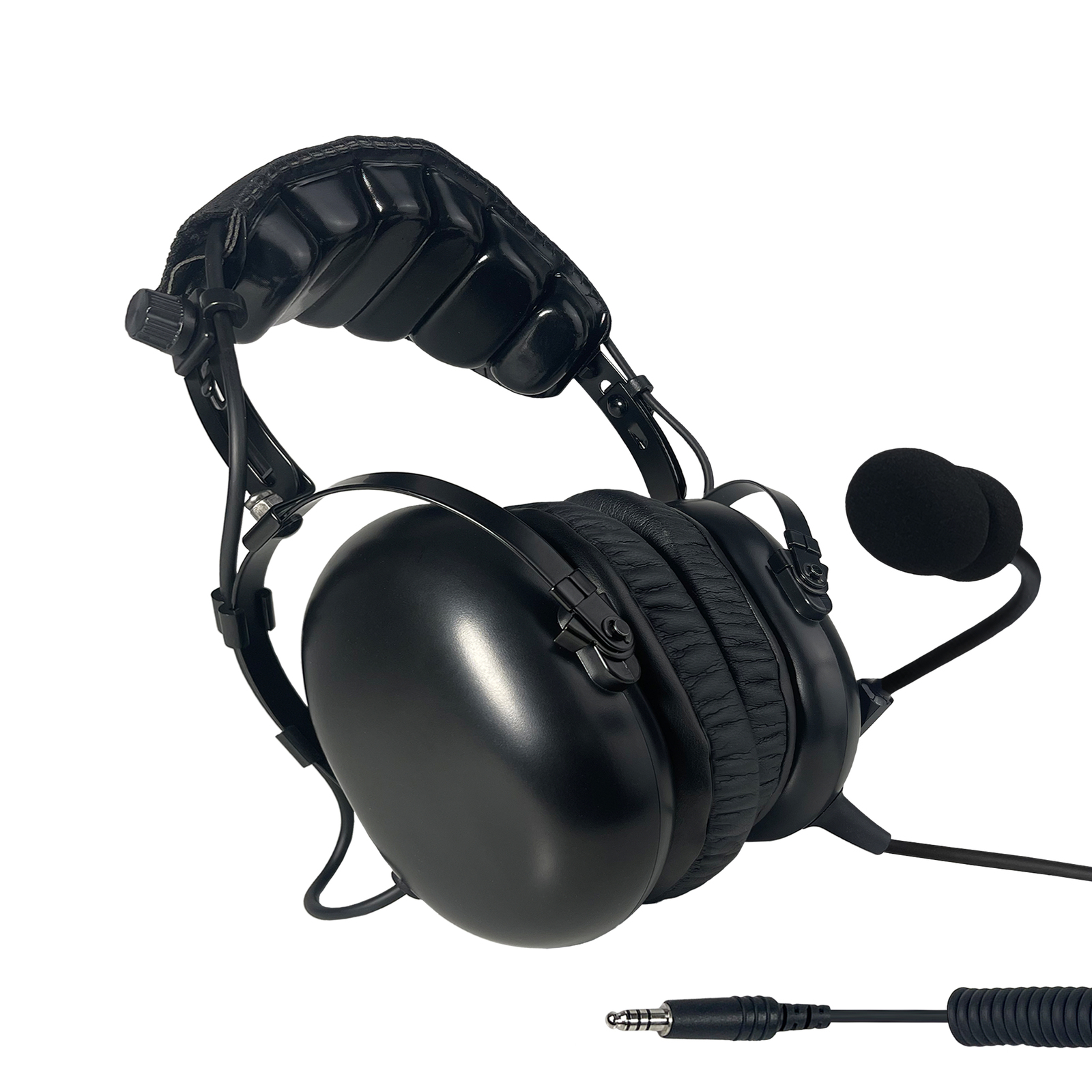

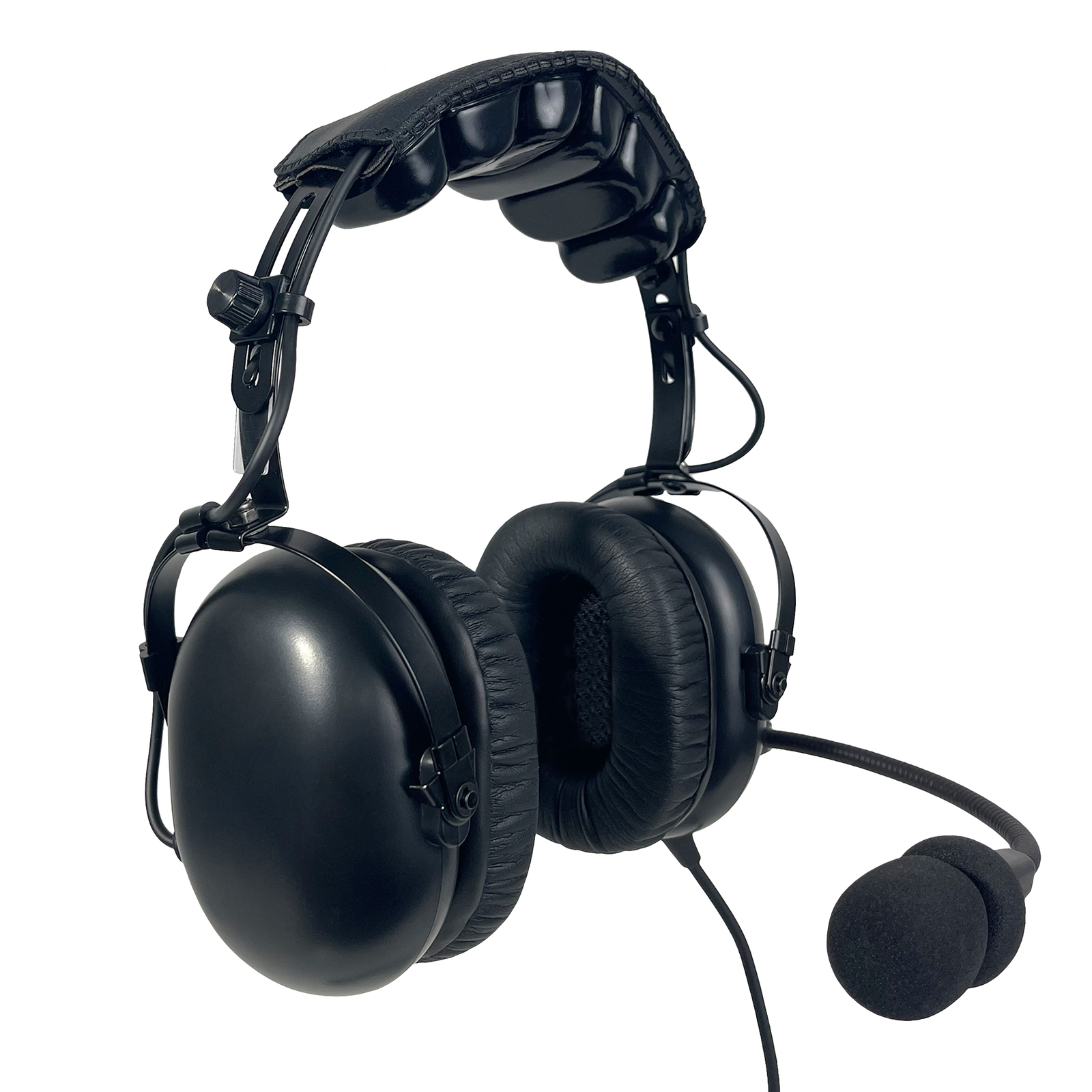

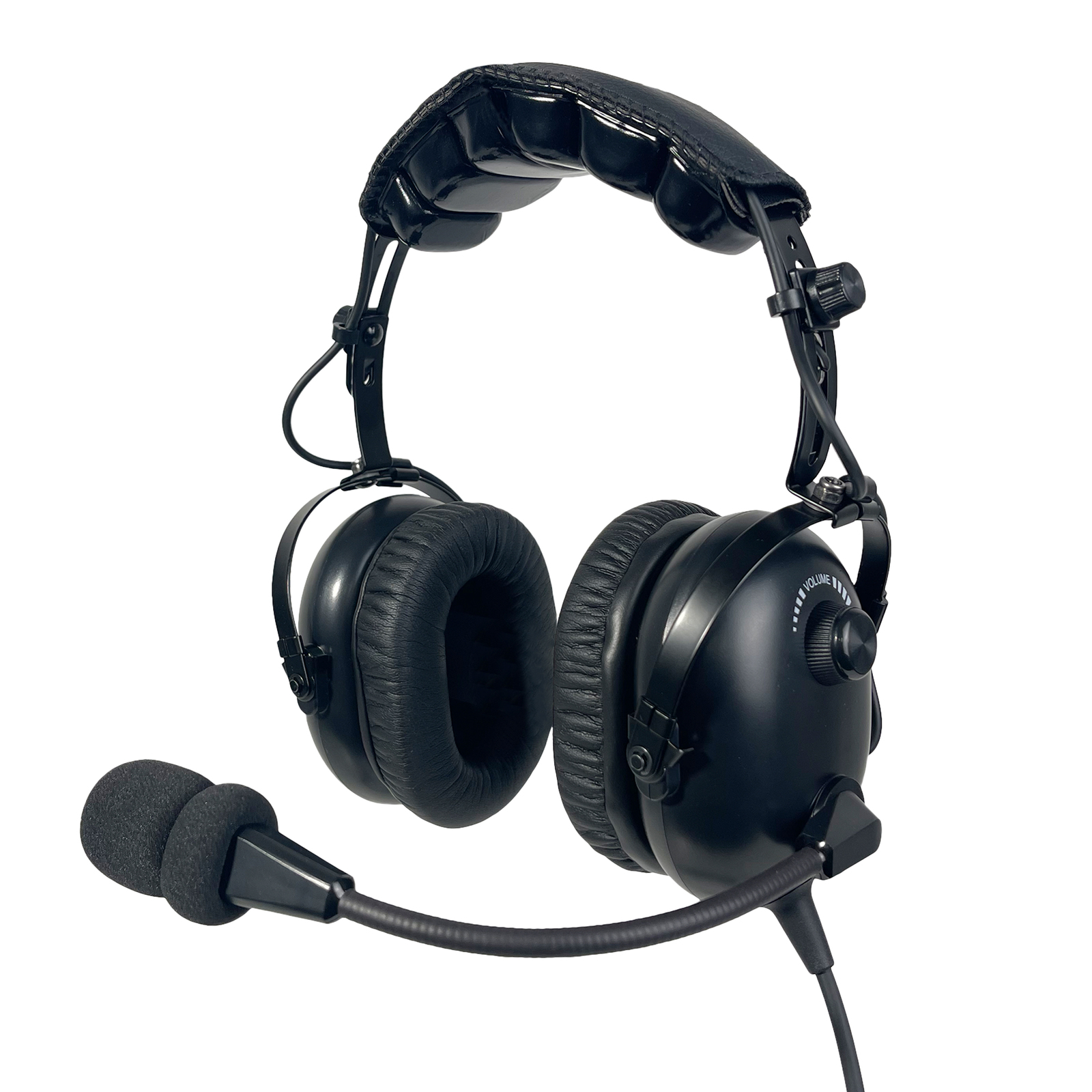

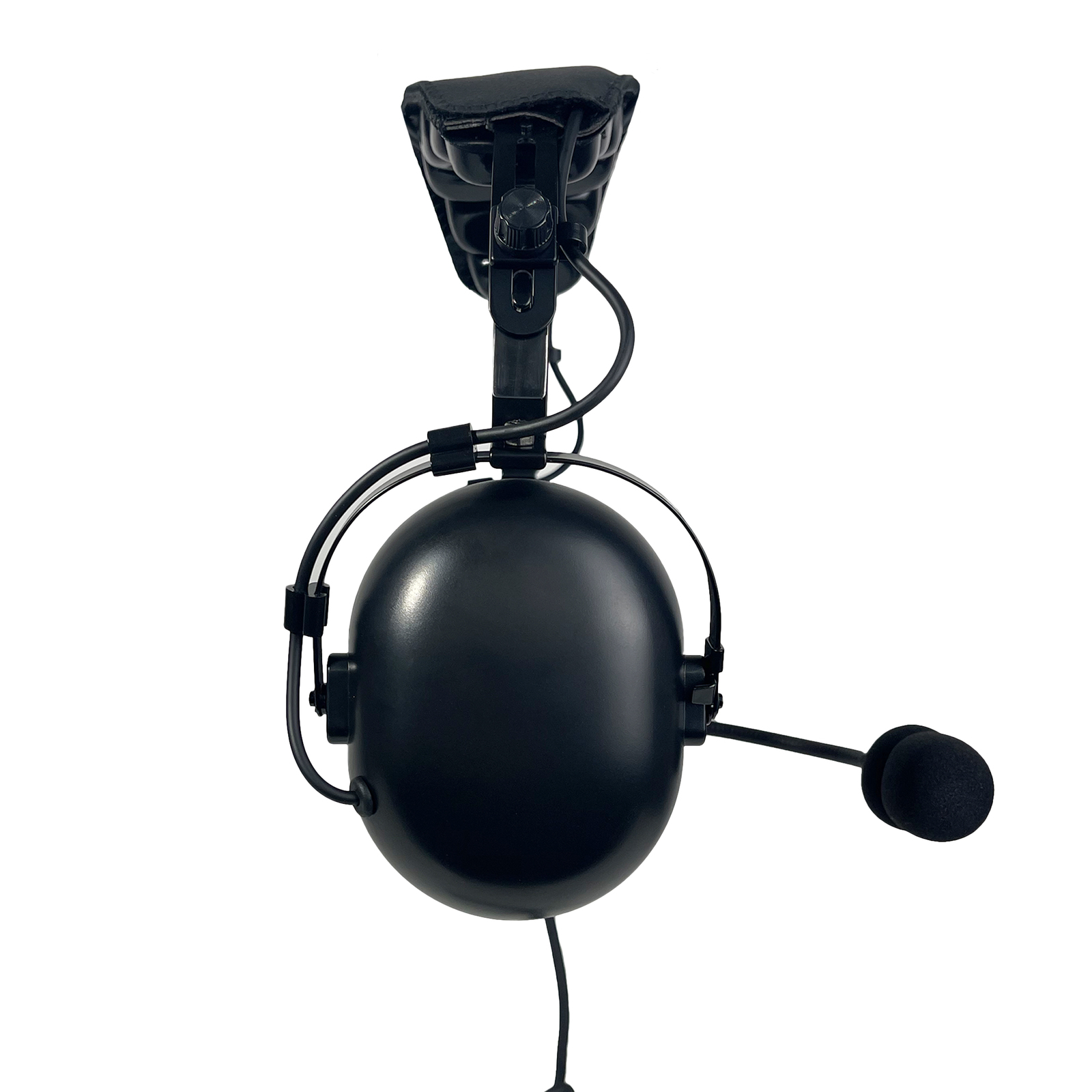

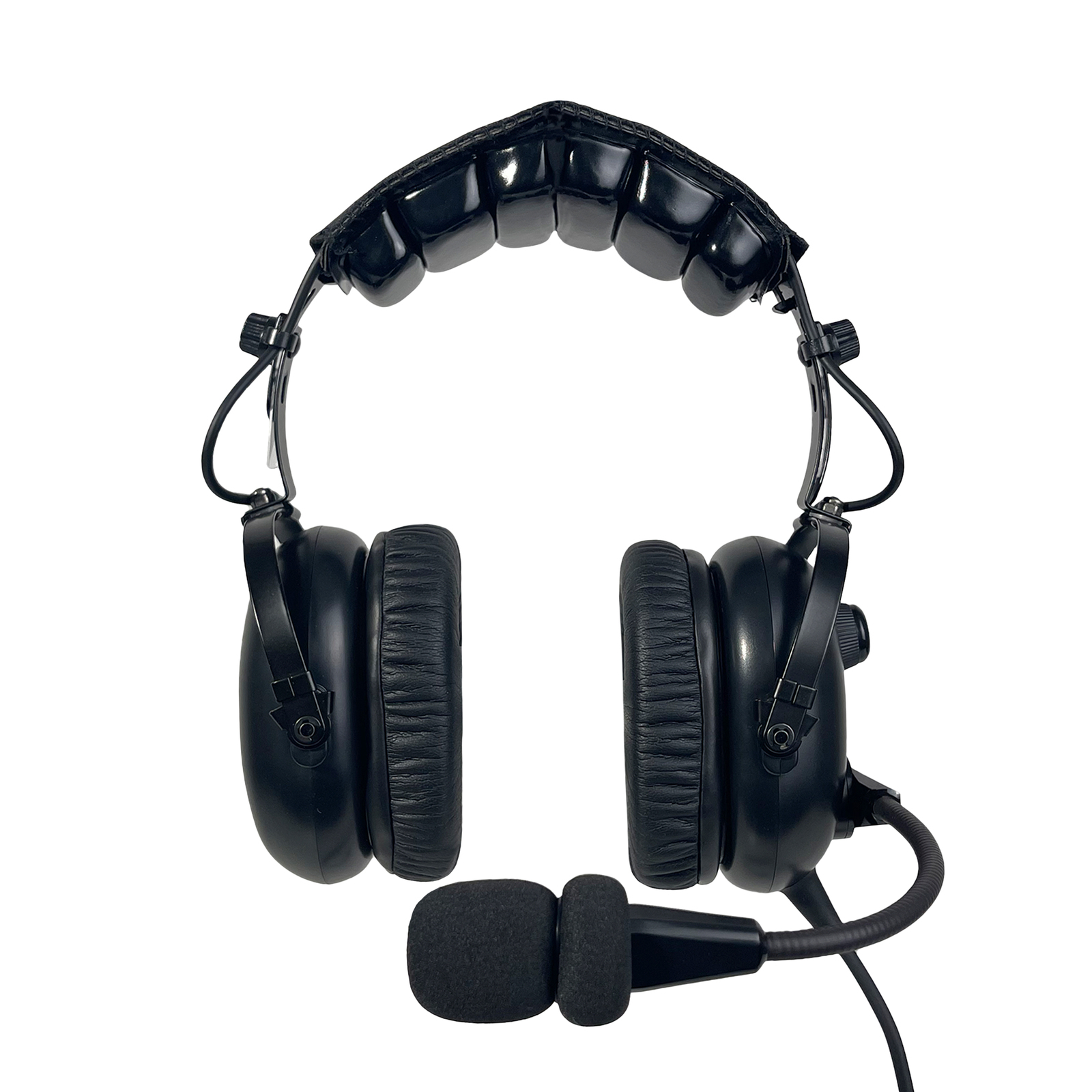

Stealth FAH 200H Aviation Headset - Coiled Cord - U-174 Helicopter Plug

$199.00
In Stock

FAH 200H Aviation Headset - Coiled Cord - U-174 Helicopter Plug

Built to last from premium grade aviation components, the FAH-200H is superb value for money and out performs many headsets worth twice as much. Enjoy all-day comfort and crystal clear audio performance with a full flexible mic boom, noise-cancelling electret microphone and wind blocking foam mic muff. The custom satin black frame adds to the Stealth feel of the headset, featuring an massive -23db of passive noise attenuation.

With a tough durable coil cord, military grade U174 plug and lightweight ABS polymer ear shells the FAH-200H headset is the perfect choice for any pilot. The FAH-200H will exceed your expectations everytime you fly.

This headset makes an ideal starter set for pilots in training that don't want to go all out on a high end headset, and are also great for back seats on aircraft where you have the occassional passenger(s).

KEY FEATURES


  • PNR Passive Noise Reduction Headset with Noise-cancelling Electret Microphone
  • Satin Black over-the-head Stainless Steel Band with dual adjustment
  • Satin Black Stealth ABS Plastic Ear Cups and Stainless Steel Hardware
  • Super Soft Pillow Cushion Headpad
  • Dual Ridge Leatherette Ear Seals

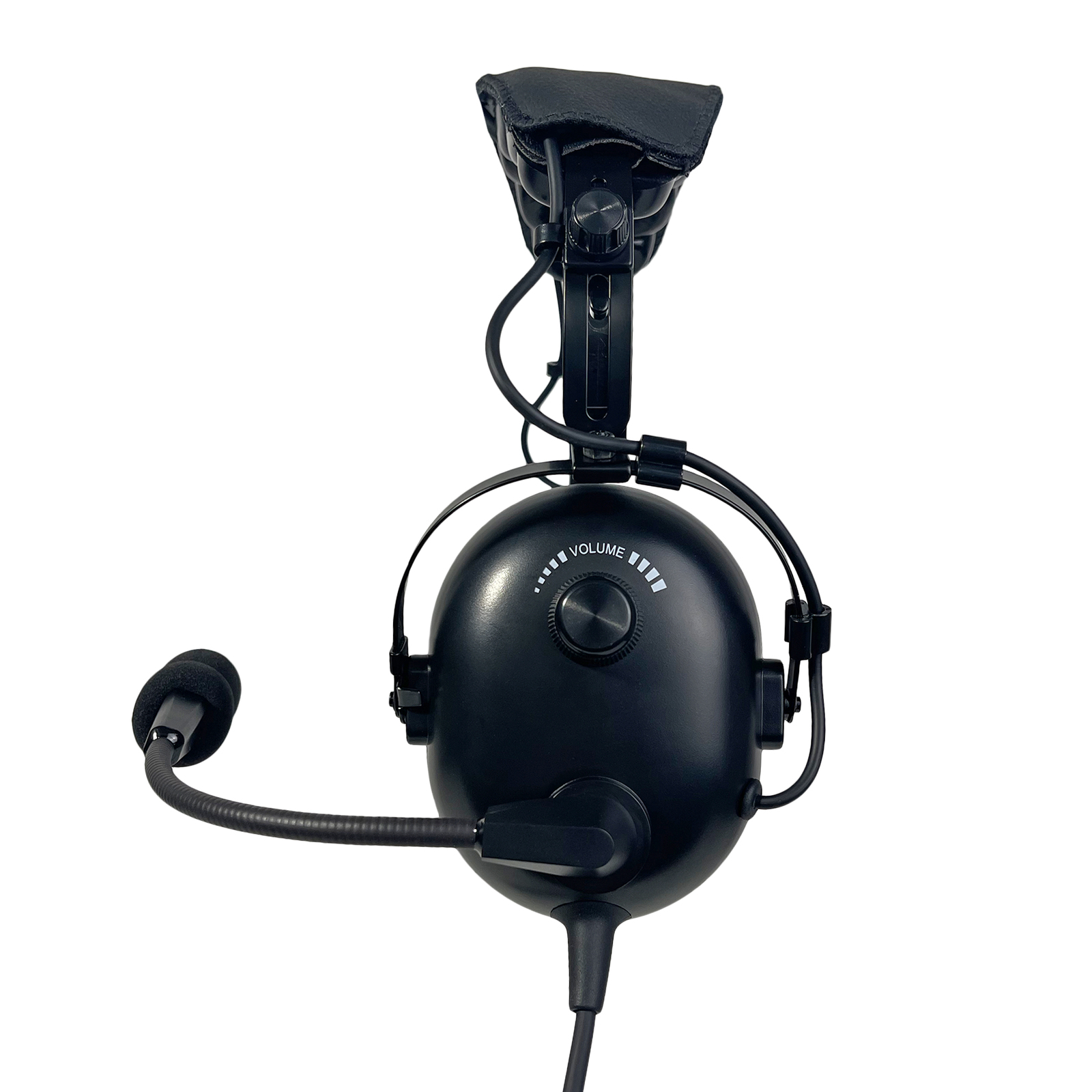

  • Low Profile Volume Contol Knob on Earcup
  • Flexible 270 degree Rotable Mic Boom with Ratchet Adjustment
  • 270 degree Mic Boom position allows the mic to be posiitioned for both left / right side wear
  • ASP-01 Replaceable Electret Microphone
  • Passive NR rating -23db

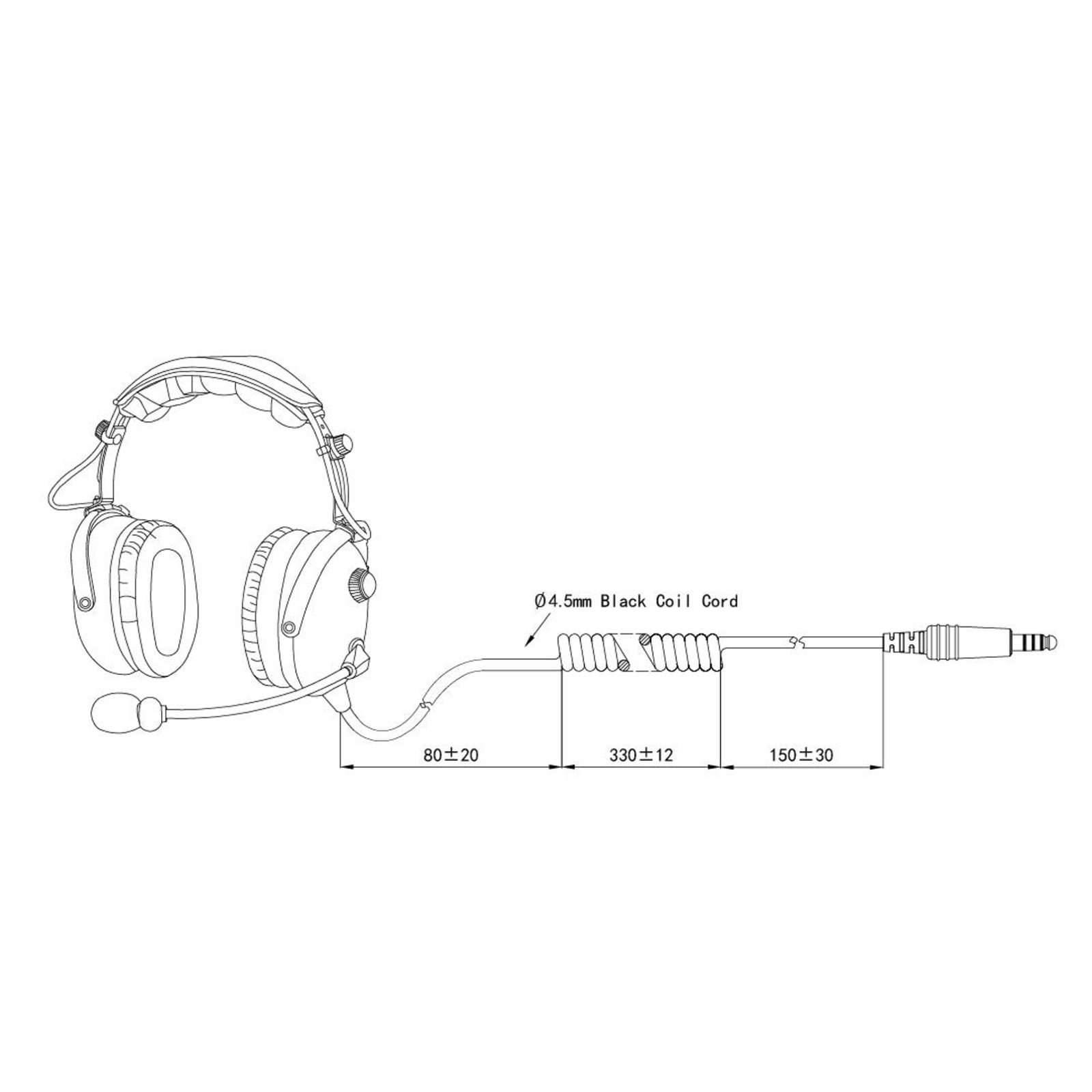

  • 70 cm Coil Cord with U-174 Nato Heli Plug
  • Coil Cord stretches to 1.5m
  • Headset Case included
  • 2 Year Manufacturer Warranty

SPECIFICATIONS


Microphone Specification:

Sensitivity Range:  -46±3dB RL=1.0K Q Vs=2.0V DC 1KHz
Impedance Max:  2.2K2 1kHz (RL=2.2KΩ)
Frequency:  20Hz - 20KHz
Current Consumption Max:  VS=2.0V RL=2.2KΩ MAX:500 µA
Operation Voltage Range:  2.5 - 10V DC
Max Sound Pressure Level:  110dB SPL


Speaker Specification:

Impedance:  300Ω +15%@1KHz
Sensitivity:  119dB +10% /1Watt @ 0.5 Meter
Resonance Frequency:  (FO) 680Hz +20%
Frequency Response:  F-5KHz
Rated Input Power:  1W
Maximum Input Power:  1.5W

Weight:  363g / 470g inc. cord


(FAH-200H)

SPECIFICATIONS


Microphone Specification:

Sensitivity Range:  -46±3dB RL=1.0K Q Vs=2.0V DC 1KHz
Impedance Max:  2.2K2 1kHz (RL=2.2KΩ)
Frequency:  20Hz - 20KHz
Current Consumption Max:  VS=2.0V RL=2.2KΩ MAX:500 µA
Operation Voltage Range:  2.5 - 10V DC
Max Sound Pressure Level:  110dB SPL


Speaker Specification:

Impedance:  300Ω +15%@1KHZ
Sensitivity:  119dB +10% /1Watt @ 0.5 Meter
Resonance Frequency:  (FO) 680HZ +20%
Frequency Response:  F-5KHZ
Rated Input Power:  1W
Maximum Input Power:  1.5W

Weight:  363g / 470g inc. cord

SKU FAH-200H
Brand Stealth Aviation
Shipping Weight 0.7000kg
Unit Of Measure ea

2 Year Manufacturer Warranty
