Avmap EKP V + Cockpit Docking Station OEM + A2 ADAHRS

$3,225.00
In Stock

Select Dock Configuration

Avmap EKP V EFIS System for Light Sport & Experimental Aircraft

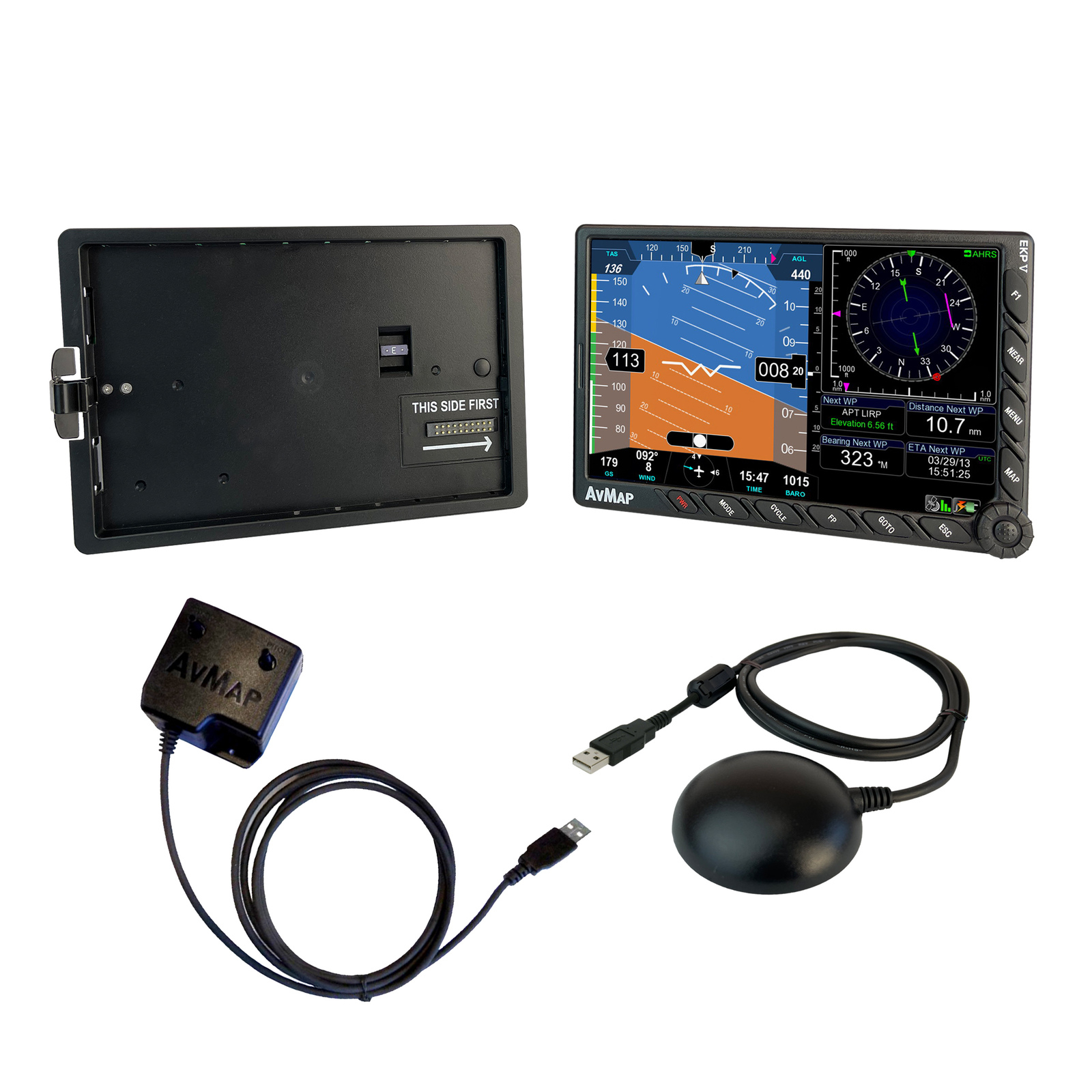

The AvMap EFIS System Includes:

  • AvMap EKP V: GPS navigator, EFB, PFD
  • AvMap Cockpit Docking Station
  • AvMap A2 ADAHRS module

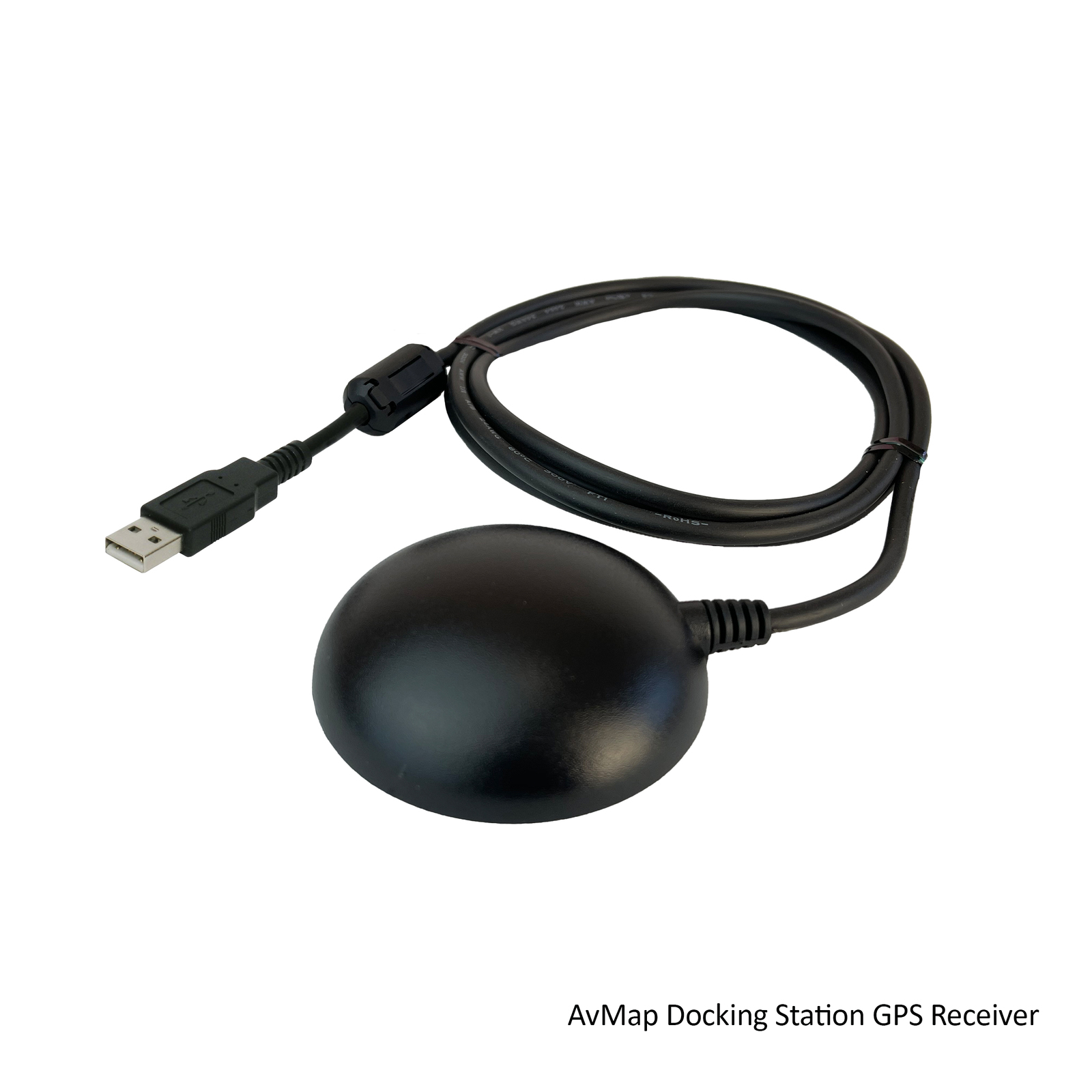

  • AvMap GPS receiver

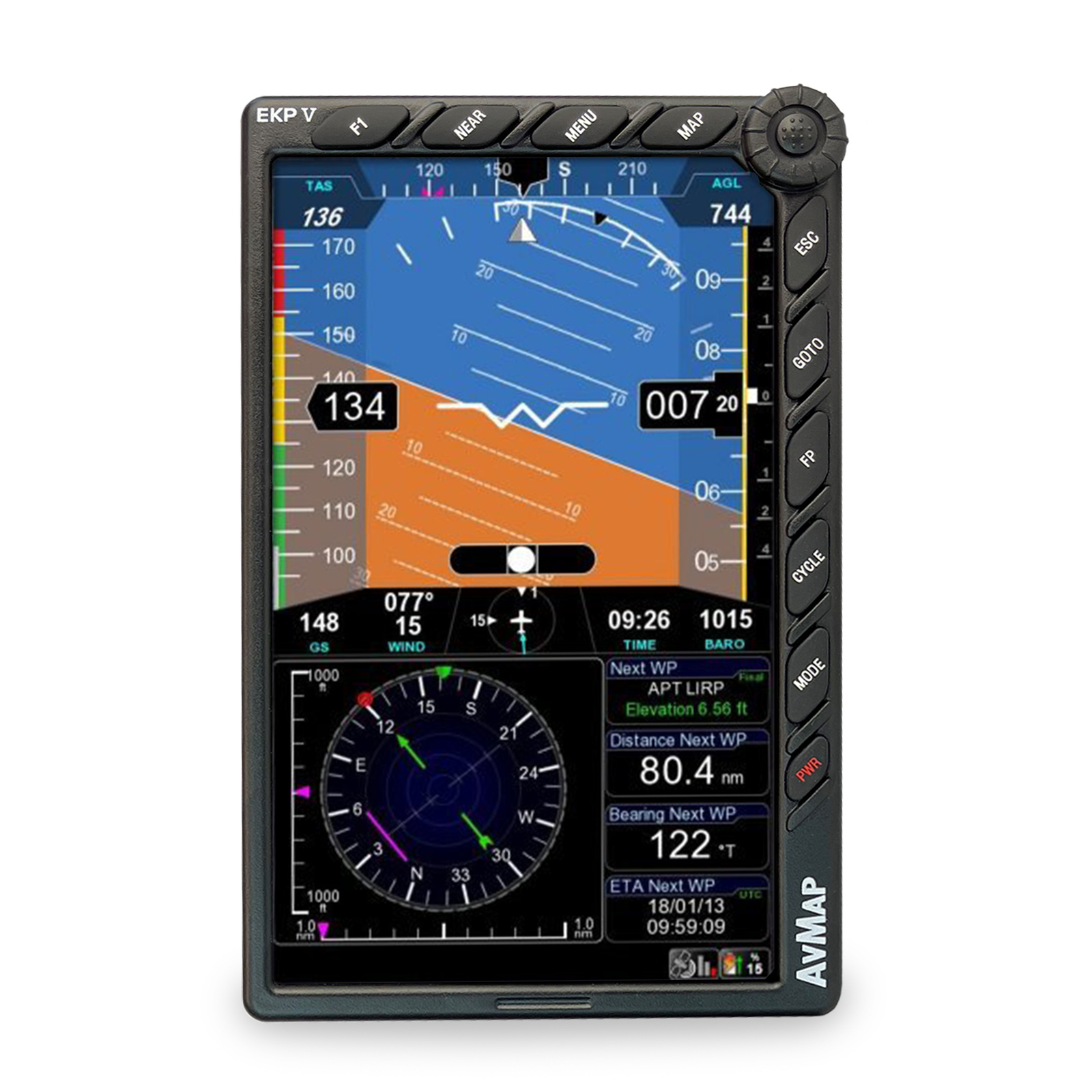

This System allows the EKP V to be used as the EFIS Electronic Flight Instrument Display

Connects to Pitot Static System via A2 Module and Provides

  • Airspeed
  • Altitude
  • Attitude (Roll, Pitch & Heading Angle)
  • Wind Estimation
  • Side Slip Indicator
  • Vertical Speed




The system can be connected with Third Party Instruments and Accessories:

  • Collision avoidance systems
  • Autopilots
  • Video cameras

Two Versions Available

STD: Standard version supplied with quick-release connector for docking station.
OEM: Original Equipment version supplied with solder connector for docking station.

Fully Portable

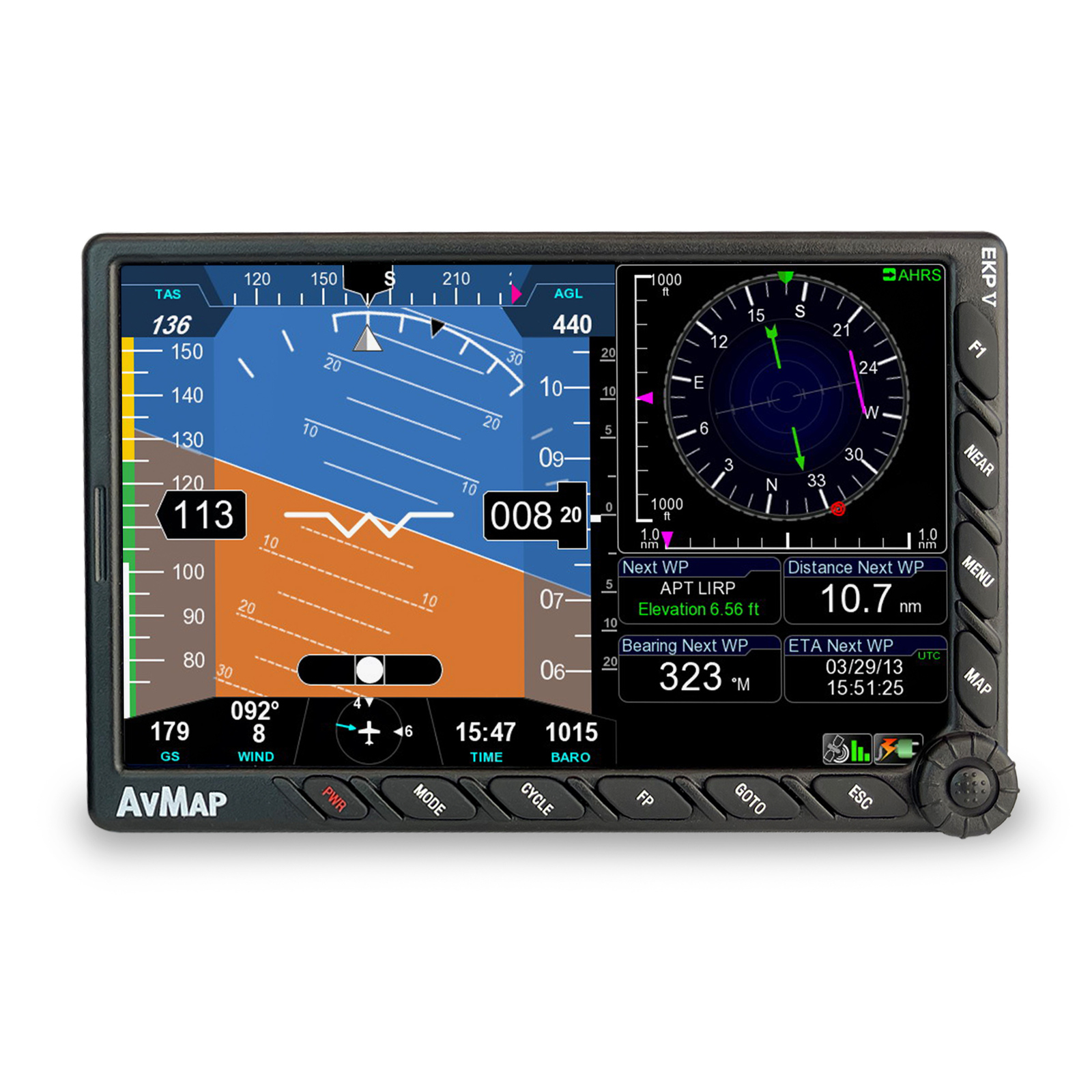

A brilliant 7 inch display, with built-in battery and GPS, only 0.8 inch thick. EKP V is slim and light, yet very powerful: with built in u-blox 5 GPS receiver, built-in battery and speakers.

Offering Full Connectivity

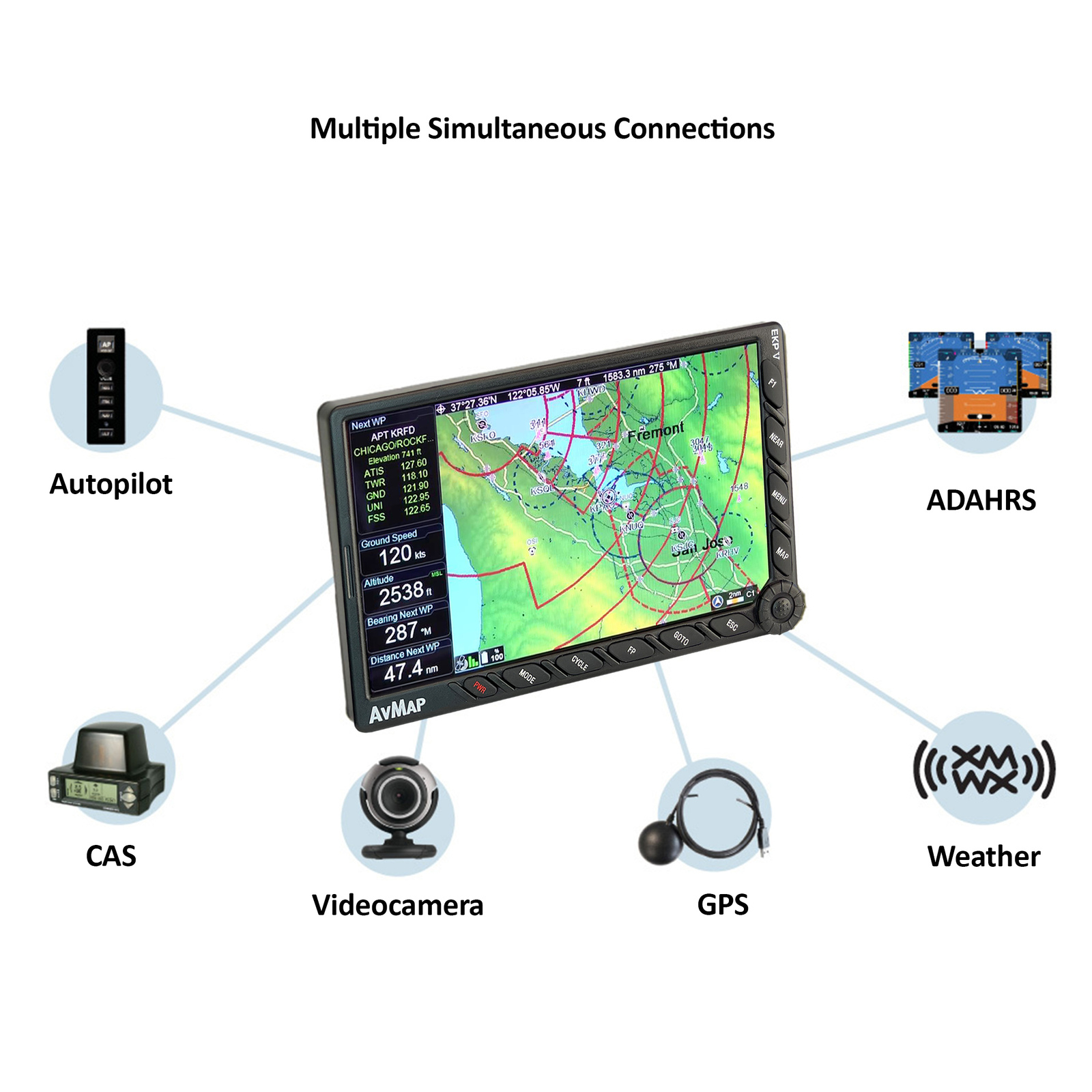

Thanks to the special Docking Station, you can connect EKP V to several on-board devices at the same time (autopilot, XM WX, CAS, EIS, EFIS etc.) so that the large 7 inch LCD becomes multifunctional and capable to display different flight info.

Fully Customizable

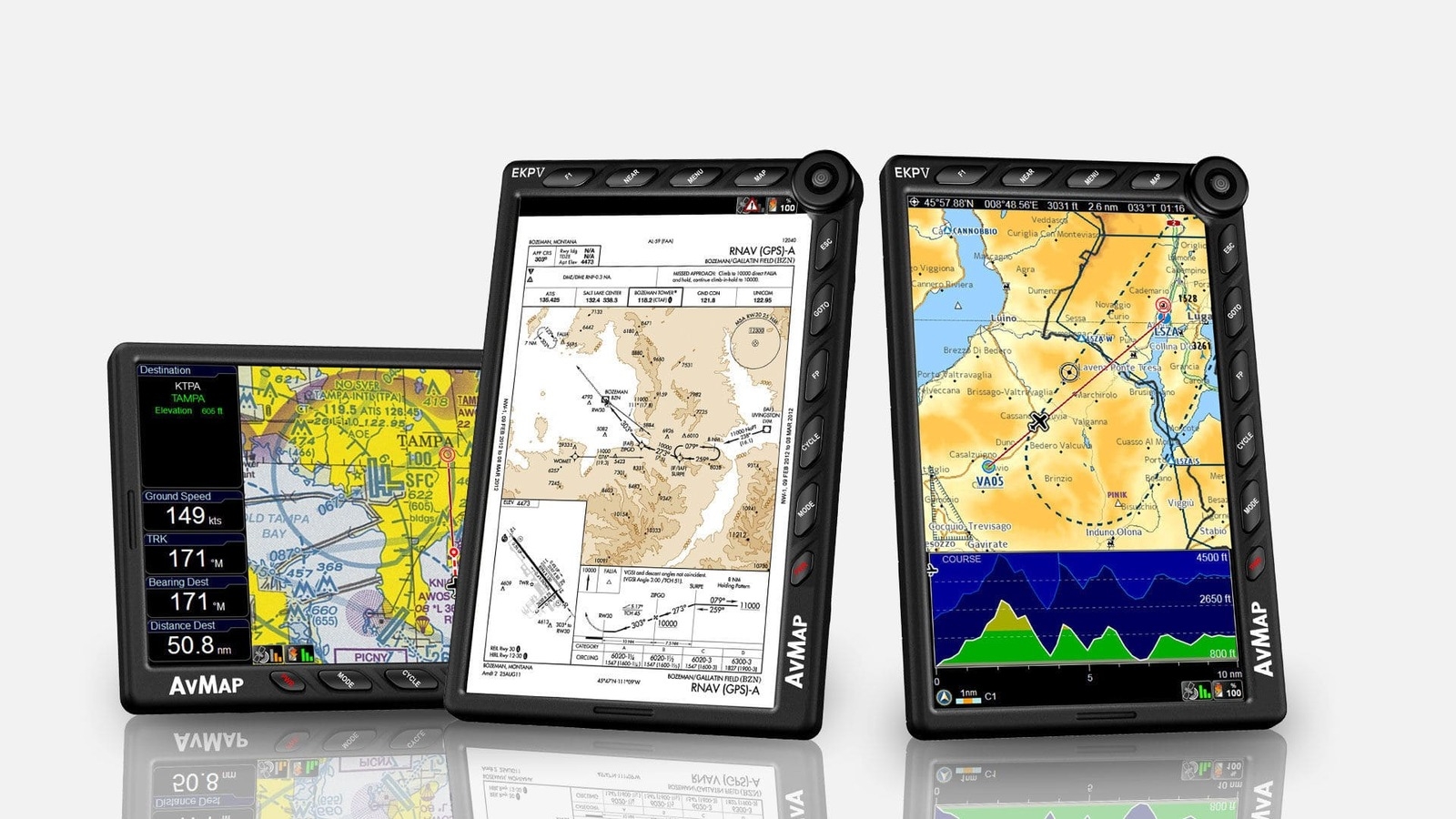

Easily change the layout choosing what to see and where to display it: maps, taws, weather, vertical profile on map, nav data, HSI, EFIS. Set different PROFILES for different aircrafts with different settings for taws, selective display and even different hard keys configurations.

User Friendly

The new practical keyboard includes a configurable key, a progressive jostick and a smart wheel selector. Ease of use is ensured by the new graphic interface and the full qwerty virtual keyboard.

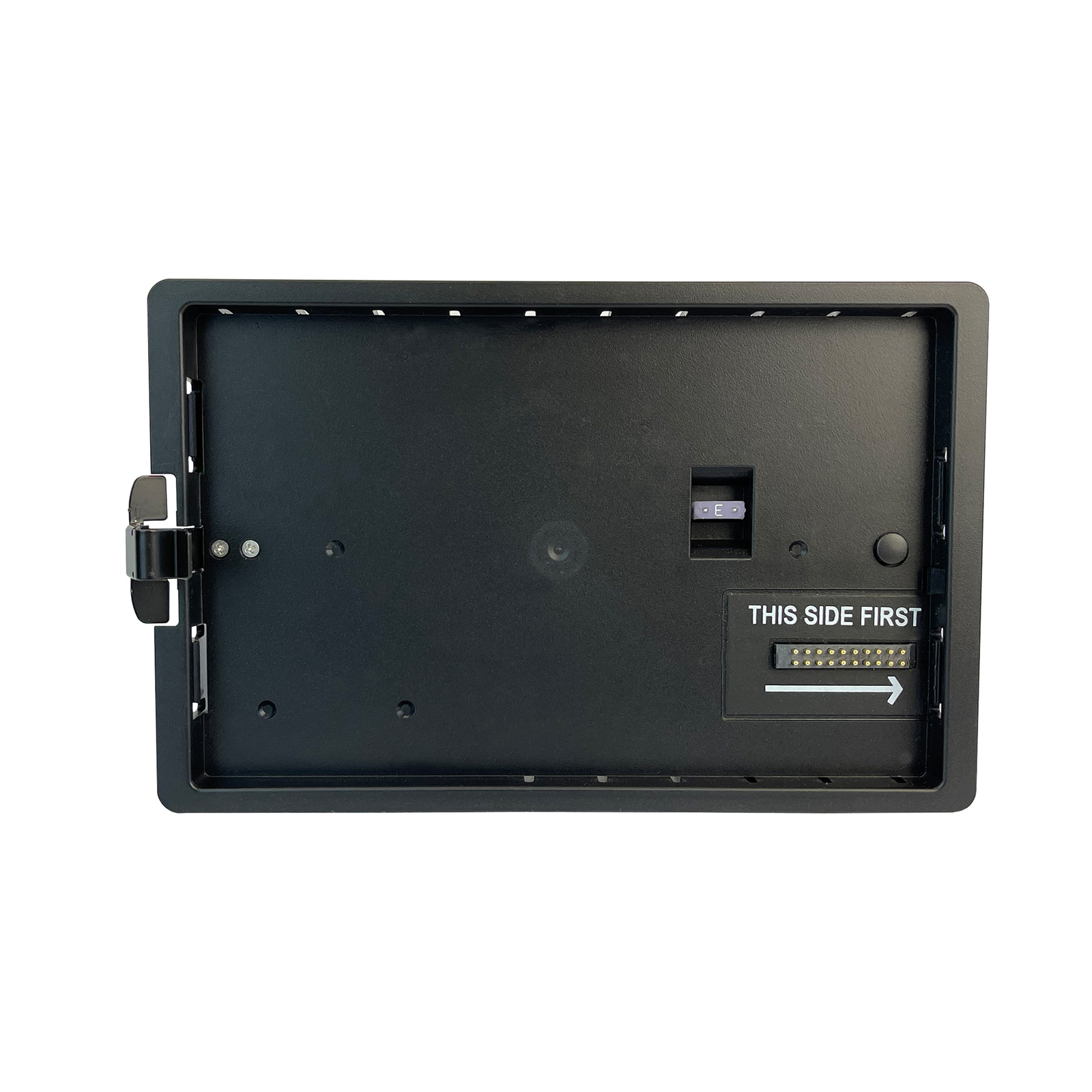

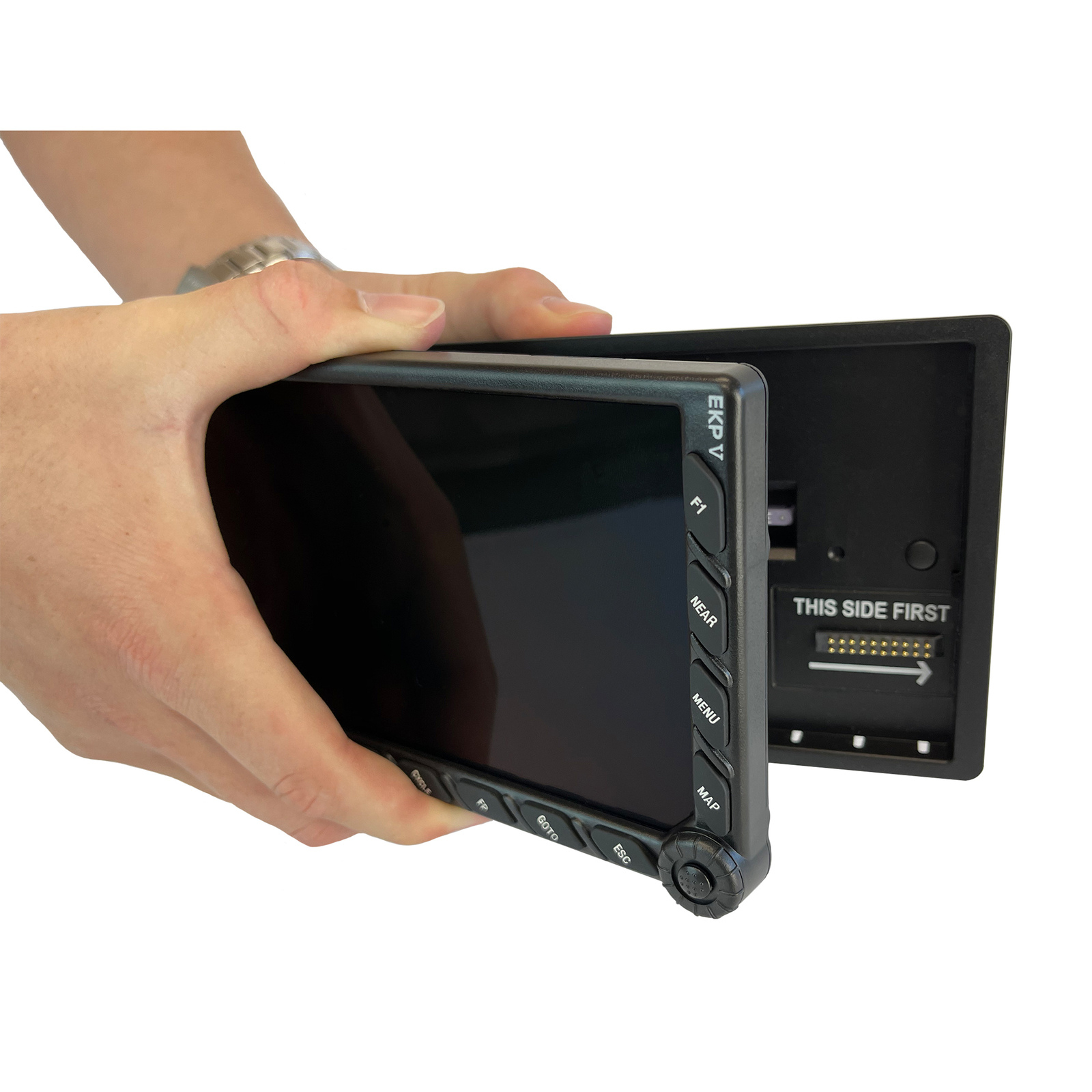

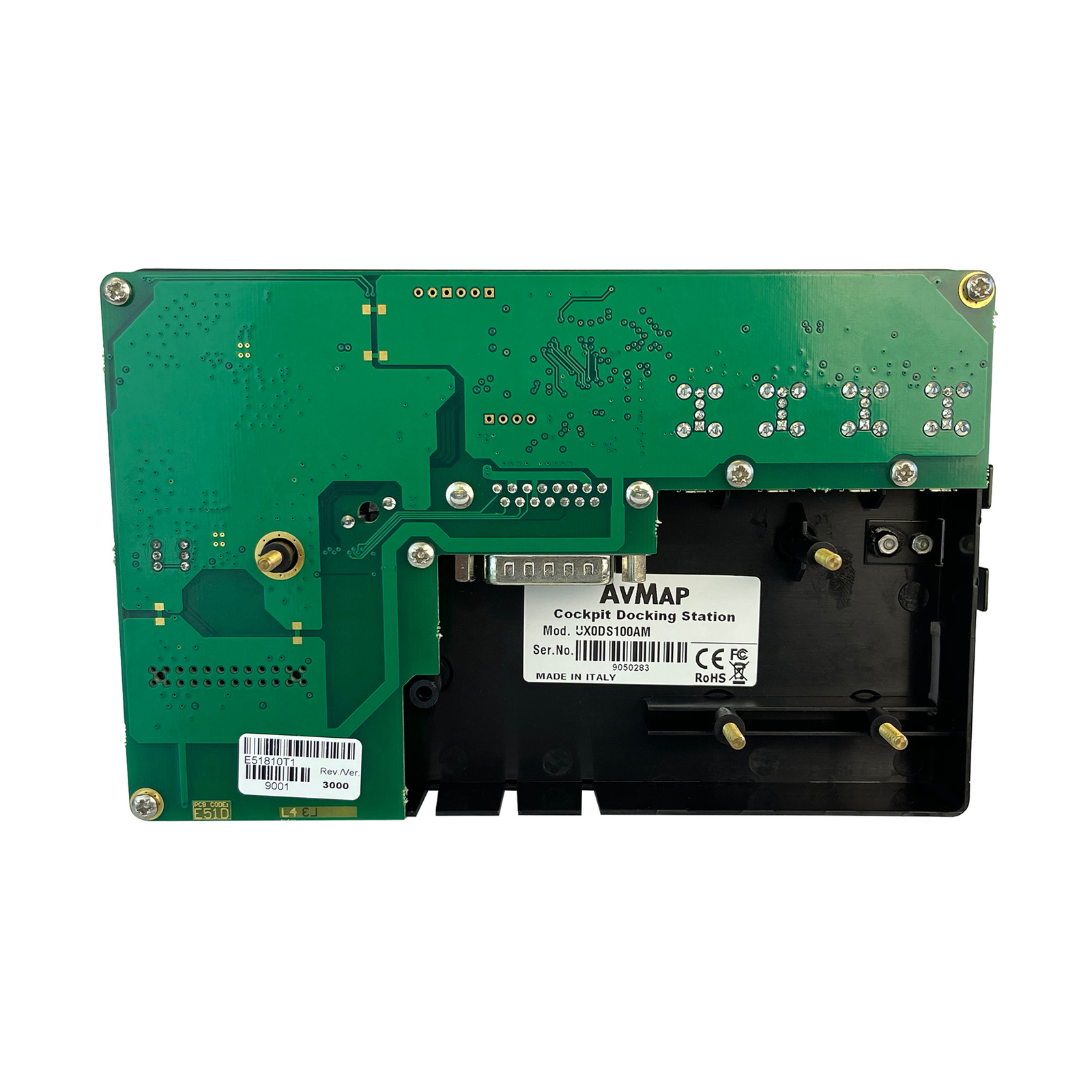

Cockpit Docking Station

  • The Hub of your integrated avionic system.
  • The EKP V Cockpit Docking Station allows the installation of AvMap EKP V Aeronautical Navigator into the cockpit, and enables the unit to interface to multiple external devices at the same time.
  • The Cockpit Docking Station is conceived to host the EKP V when used as part of the basic on board instrumentation, becoming the hub of your integrated avionic system.

A2 ADAHRS Module

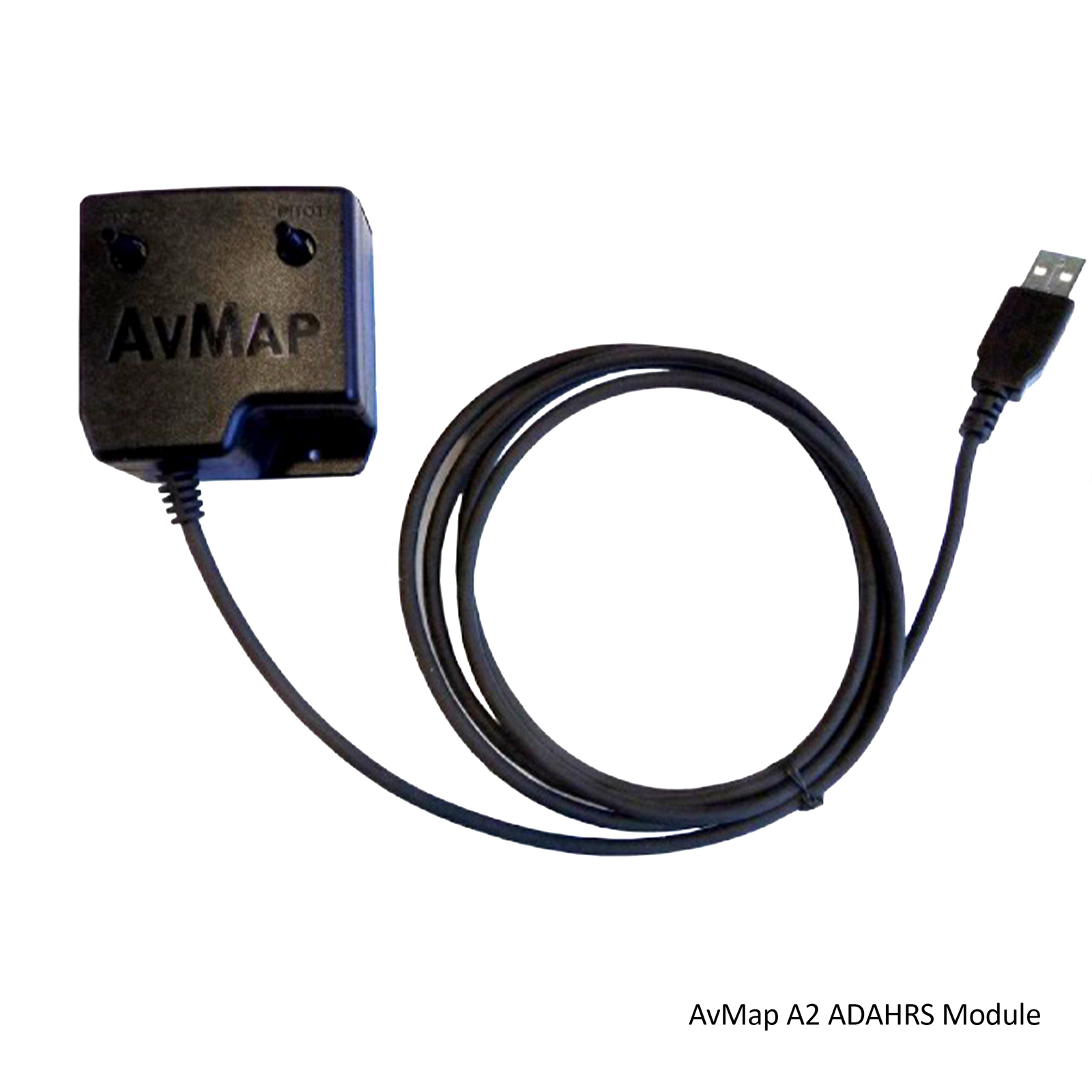

The Avmap A2 ADAHRS module extends the functionality of the EKP V Aeronautical Navigator and turns it into Avmap EFIS (Electronic Flight Instrumentation System), a centralised display for both navigation and primary flight information.

Multiple Connections

The Docking Station transforms the EKP V large 7” LCD into a true multifunctional display and fight information system.
When docked the EKP V is powered by the aircraft electrical system and it can connect to several on-board devices at the same time such as: AvMap’s IMU, third-party autopilots, XM WX, Zaon XRX.
The CDS includes 4 USB ports, 2 serial ports, Audio video input (NTSC and PAL) , Audio output. The external GPS antenna is included in the box.

Video on your EKP V

The Cockpit Docking Station includes an Audio video input (NTSC and PAL) that allows connecting the EKP V to video cameras with very useful applications for tail-draggers, or monitoring flights.

Safe Connections

When docked, the EKP V is powered/charged by the aircraft electrical system (through a socket vibration proof for power supply AVG 16).
One of the USB ports is powered by the EKP V internal battery to ensure functionality even in case of aircraft electrical power failure.

DB 15 Connections

  • 4 x USB 2.0 ports (1 x battery powered by EKP V internal)
  • 2x Serials ports (1 x RS-232, 1 x TTL levels)
  • Audio IN
  • Audio OUT
  • Video IN (video composite signal PAL or NTSC)
  • Push-To-Talk

EKP V COCKPIT DOCKING STATION offers Two Mounting Solutions:

The two models are the same size - 164.4 x 106.8 mm cut in the panel is required - external frame measures 172 x 110 mm.

1. Cockpit Docking Station Standard featuring 4 USB connection, 2 serial connections, audio input and output, video input.
  • The Standard Version connects bare wires via a sping loaded clamp board for easy installation without the need for soldering

2. Cockpit Docking Station OEM featuring 4 USB connection, 2 serial connections, audio input and output, video input.
  • The OEM Version connects via a DB-15 pin D-Sub connector that requires soldering bare wires onto the D-Sub plug connector.



(P1MK3903AM-KIT)

SKU P1MK3903AM-KIT
Brand Avmap
Shipping Weight 5.0000kg
Unit Of Measure ea
