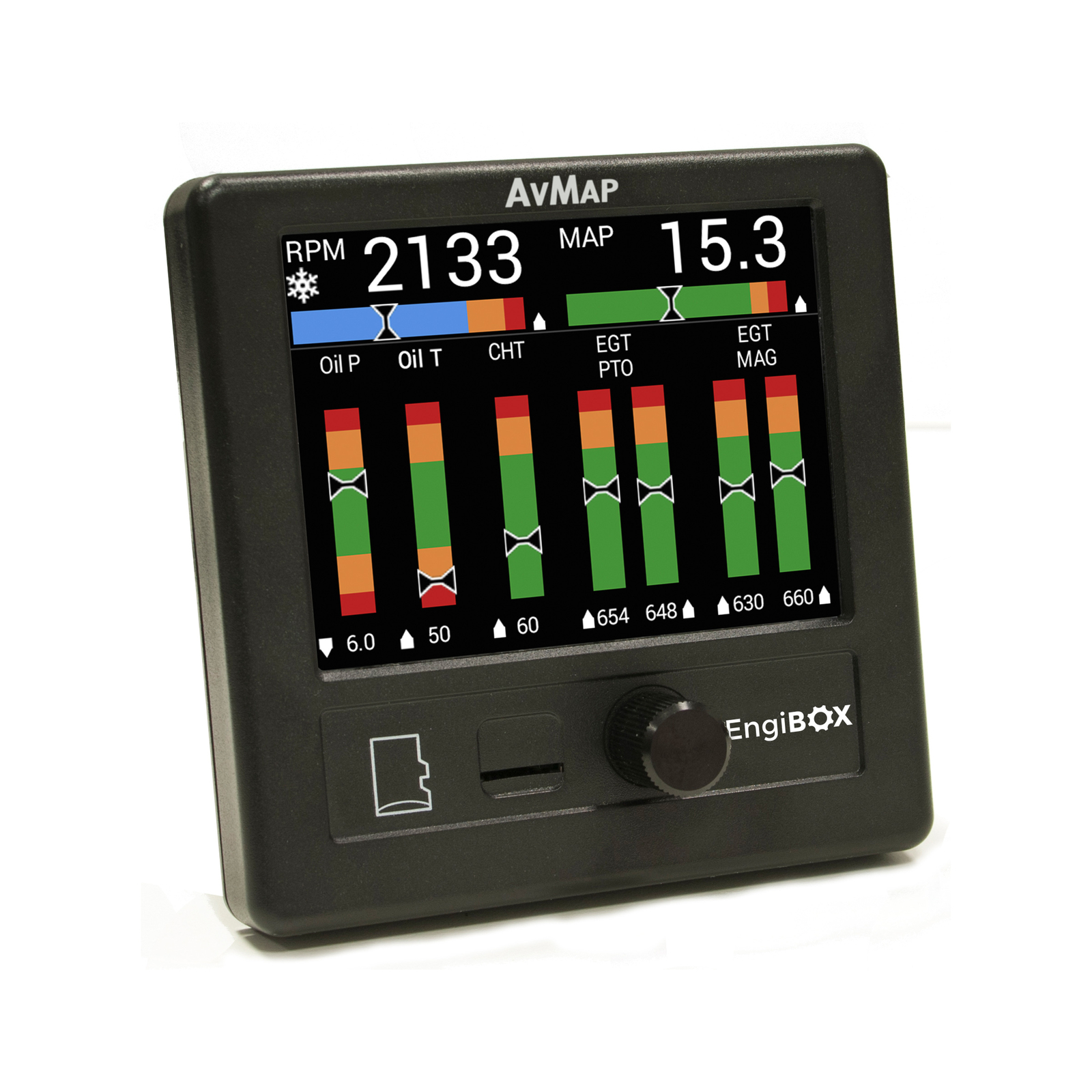

Avmap EngiBox for Rotax + 4 EGT Probe Kit

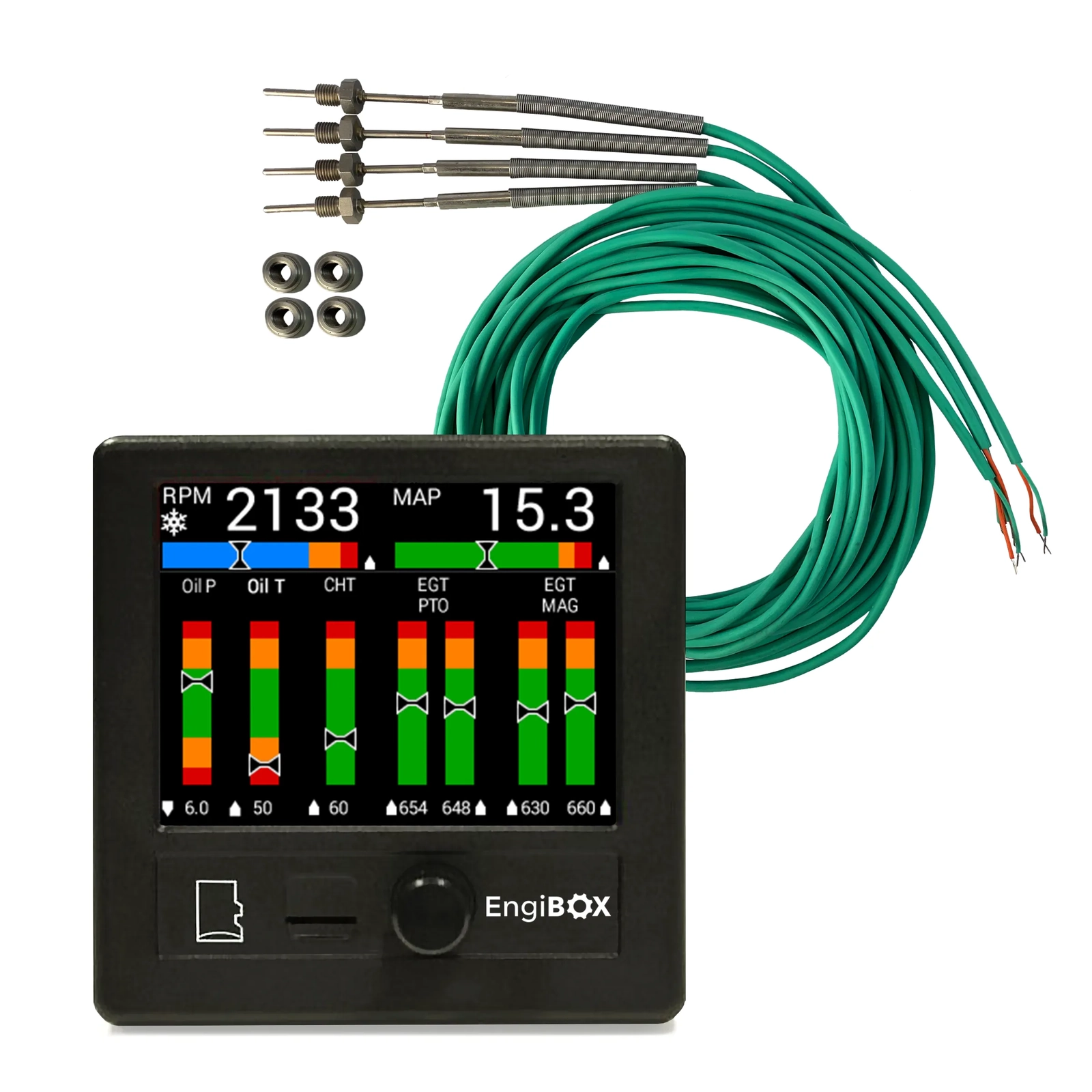

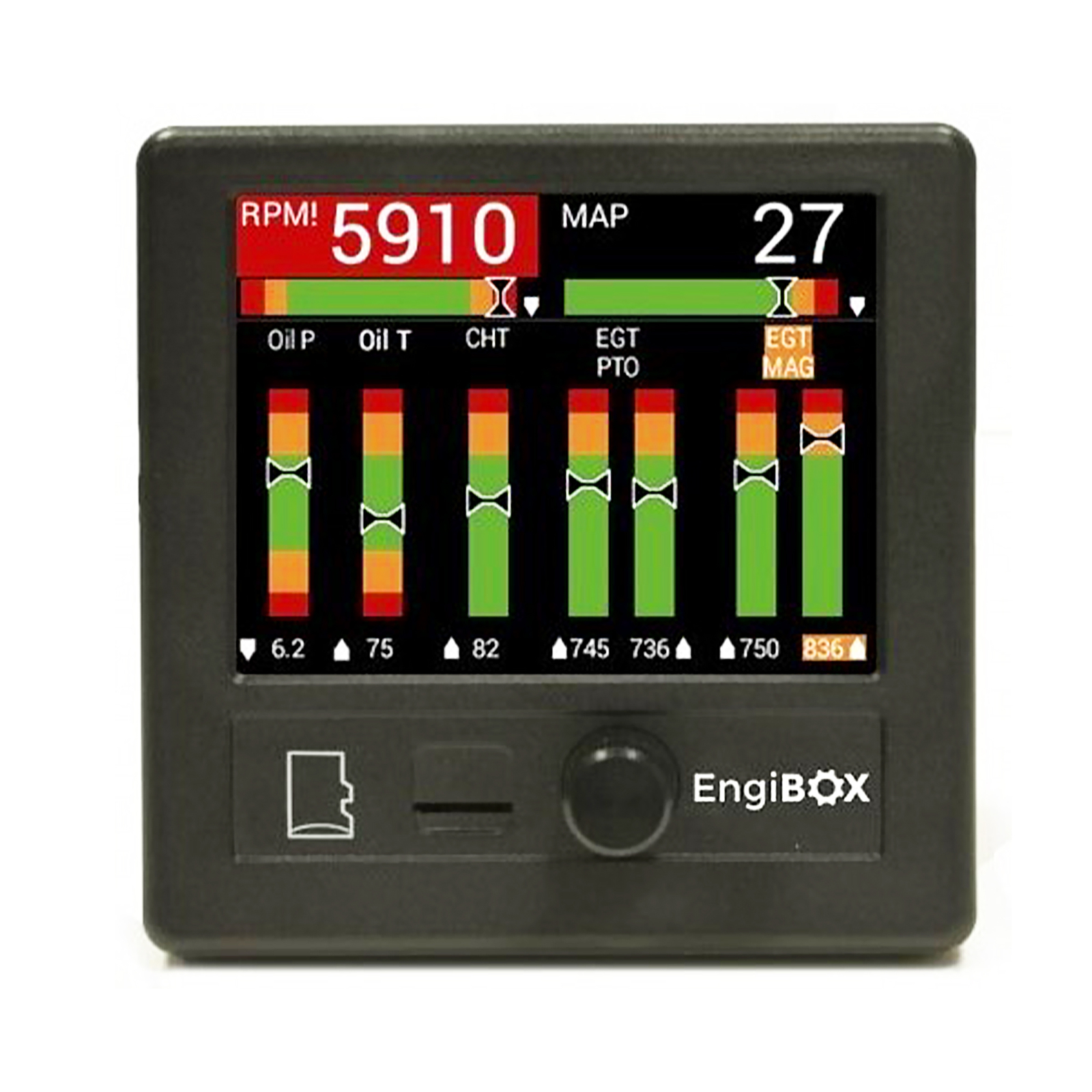

EngiBOX is a low cost EMS designed for Light Sport & Experimental Aircraft. With an update rate of five times per second, EngiBOX measures and displays the engine parameters to warn you instantly if any measurement exceeds the engine limits.
Data is recorded and stored in the internal memory (up to 160 hours). Monitor your engine in real time. EngiBOX is a light and compact engine monitor displaying:
-
Oil Pressure
-
Oil Temperature / Air Temperature
-
Revolutions per Minute (RPM)
-
Cylinder Head Temperature (CHT) / Coolant Temperature (CT)
-
Manifold Pressure (MAP)
-
Exhaust Gas Temperature (EGT)
-
Hobbs meter
Save, Share and Analyze your Engine Data
EngiBOX is the first integrated engine management system with mobile App and web portal:
- Monitor your Engine in real-time during the flight
- Use the EngiBOX App to download your engine performance data and share them with your Rotax Service Center to get instant support

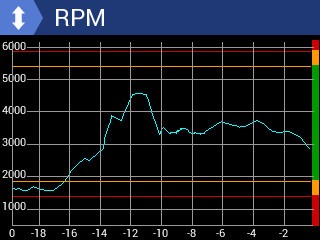

- Analyze your engine performance graphs for each parameter on the EngiBOX Portal
EngiBOX Portal
- Analyze your engine data anywhere, anytime
- Safely store your engine data: always available on your EngiBOX Portal account
- Always in control: check your engine performance graphs for each parameter from any platform
- Share your data with your Rotax Service Center for an optimal support service
Compatible Engines:
2 Stroke Air Cooled
-
Rotax 447 UL SCDI
-
Rotax 503 UL DCDI
2 Stroke Liquid Cooled
-
Rotax 582 UL DCDI
-
Rotax 618 UL DCDI
4 Stroke Liquid Cooled
-
Rotax 912 DCDI series
-
Rotax 912S DCDI series
-
Rotax 914 DCDI series
Compatible Sensors:
4 x INPUT Thermocouple ungrounded (type K and J)

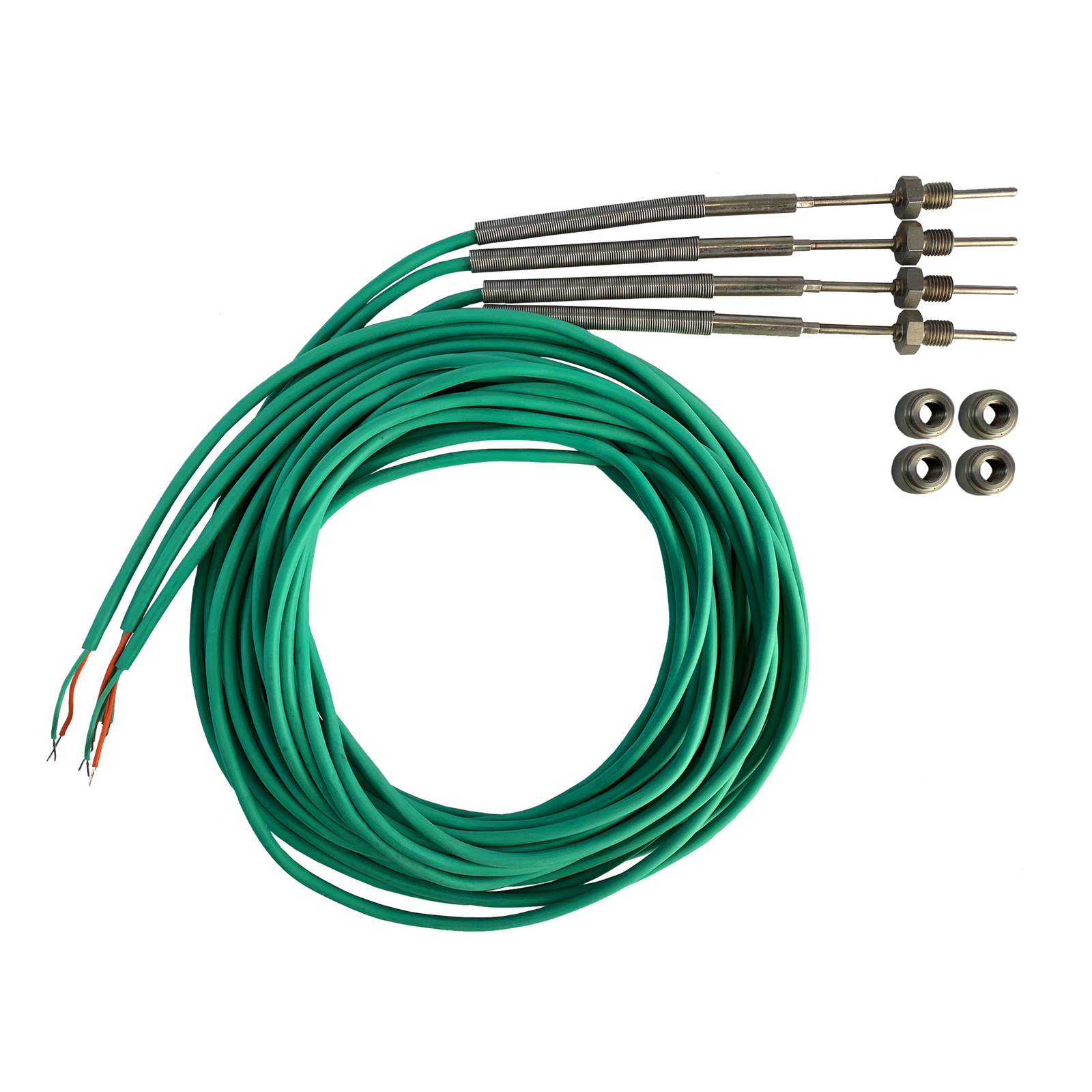

- Thermocouple ungrounded type K Rotax P/N: 966370
- Thermocouple ungrounded type J Rotax P/N: NA
- Application: Exhaust Gas Temperature (EGT) (2 Stroke / 4 Stroke)
Cylinder Head Temperature (CHT) (2 Stroke)
- 2 x INPUT Resistance thermometer (type: NTC and PT-100)
- NTC: Rotax P/N 965530 and 965531
- PT-100: Rotax P/N 966385
- Application: Air Temperature, Coolant Temperature (2 Stroke)
Oil Temperature, Cylinder Head Temperature / Coolant Temperature (4 Stroke)
- 1 x INPUT Oil Pressure pick-up (Keller 4-20 mA and VDO resistive 10 bar/150 psi)
- Keller 4-20 mA Rotax P/N: 456180
- VDO resistive Rotax P/N: 956357 / 956415
- Measuring range: 0 to 10 bar / 0 to 150 psi
- Application: Oil Pressure (4 Stroke)
1 x RPM pick-up
- Measuring range: 0 to 9990 rpm
- 1 x INPUT Manifold Pressure
- Measuring range: 0 to 70 inHgNote: Sensor probes are not included in the EngiBOX package
Note: Thermocouple sensors must be ungrounded, not be referred to GND or negative external power
Usage of Other Instruments in Parallel
Thermocouple sensors (for EGT and CHT) and Manifold pressure input can be used in parallel with other measurement instruments.
To use EngiBOX RPM input in parallel with another RPM instrument depends on capacity of the other instrument. EngiBOX applies a 100 ohm load on RPM. Verify if the other RPM instrument is able to correctly measure RPM with a 100 ohm load applied between RPM input and instrument ground. This is equivalent to EngiBOX RPM usage in parallel with another RPM instrument.
Note: Thermoresistance sensors (for OIL T, CHT, CT and Air T) and Oil pressure sensors can not be used in parallel with other measurement instruments.
Downloads
Specifications

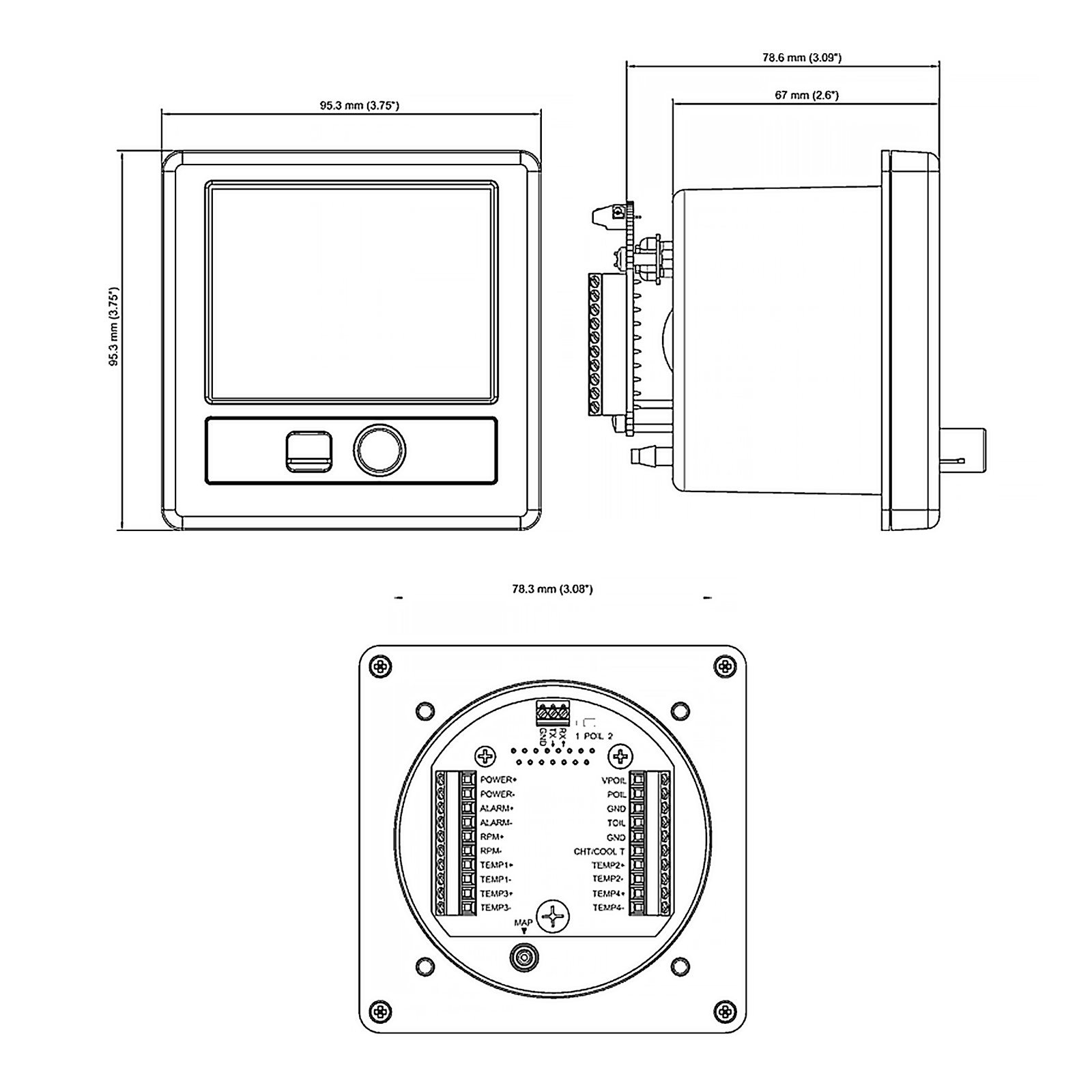

| Dimensions: | 95 x 95 x 88 mm (3.75" x 3.75 x 3.46") |
| Fitting: | standard 3-1/8" panel hole |
| Weight: | 250 g (8.8 Oz) |
| Display: | 3.5” colour LCD, with anti reflective coat 320x240 pixels, 500 cm/m2 |
| Micro SD slot: | ✓ |
| Real Time Clock: | ✓ |
|

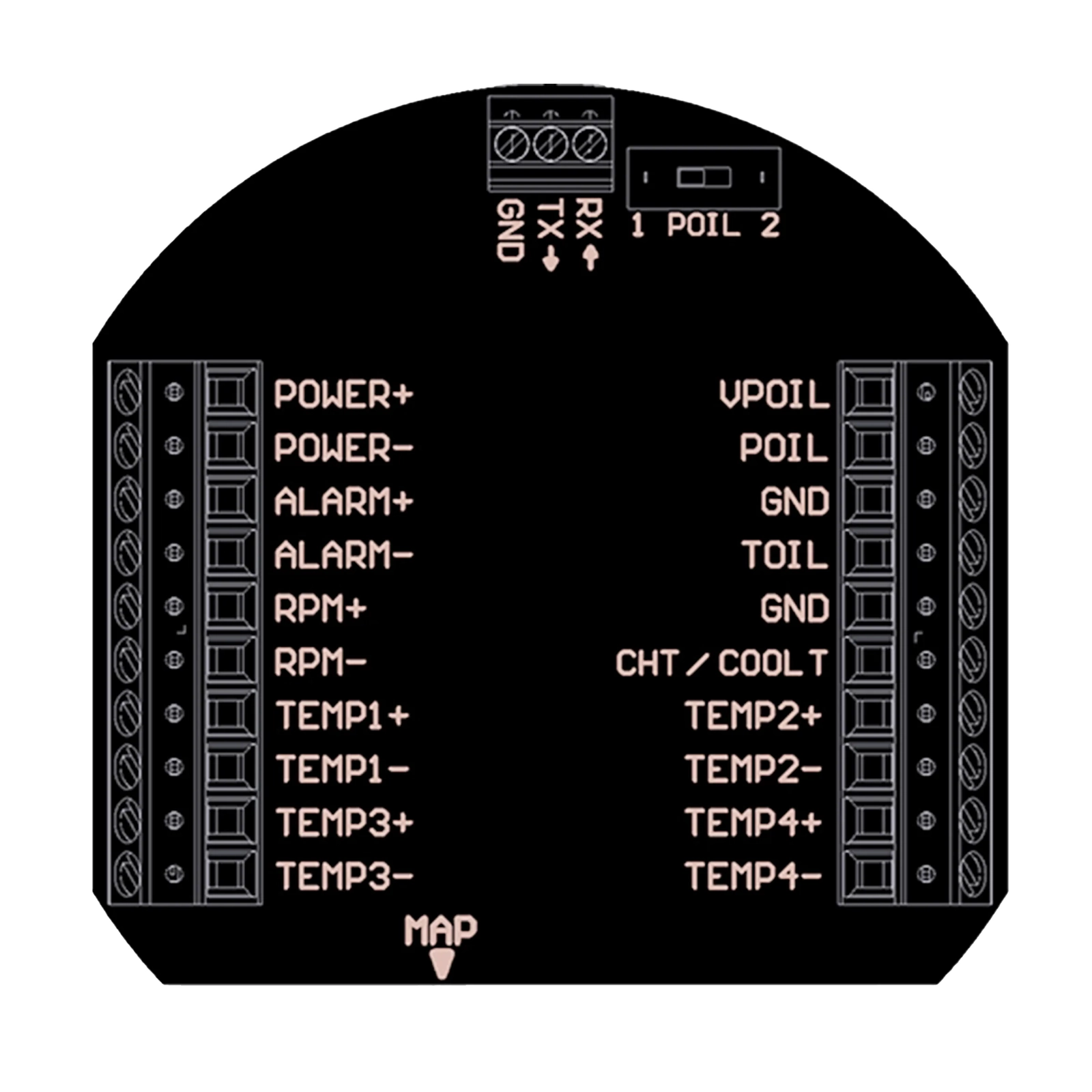

Sensor probe connection board :
|
4 x Thermocouple sensor input (ungrounded)
2 x Resistance thermometer sensor input 1 x Oil pressure sensor input 1 x RPM pick-up 1 x Serial connection Note: Sensor probes are not included in the EngiBOX package
|
| Compatible Sensors: |
Thermocouple sensor:
• Thermocouple Type K, Rotax P/N: 966370 • Thermocouple Type J, Rotax P/N: NA Resistance thermometer sensor:
• Standard Rotax NTC sensor, Rotax P/N 965530 and 965531 • Optional Rotax PT100 sensor, Rotax P/N 966385 Oil pressure sender:
• Standard Keller type 4-20 mA pressure sender, Rotax P/N 456180 • Resistive 10 Bar/150 psi VDO type pressure sender, Rotax P/N 956357 and 956415 |
| Manifold pressure sensor: | ✓ |
| Bluetooth Low Energy: | ✓ |
|
Power Input range:
|
10-35 VDC
|
|
Current consumption @ 12VDC:
|
150 mA MAX
|
|
Operating Temperature range:
|
-20°C / +70°C (-4°F / +158°F )
|
| Data Management | |
|---|---|

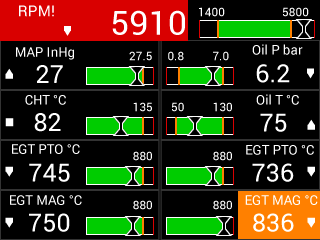

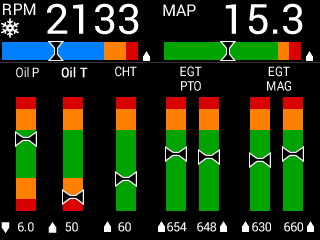

| Engine data displayed in two alternative views: | ✓ |
| Warn you instantly if any measurement exceeds the engine limits: | ✓ |
| Update rate of five times per second: | ✓ |
| Data are recorded and stored in the internal memory : | up to 160h |
| Data export to Micro SD or EngiBOX Mobile App: | ✓ |
| Download free EngiBOX smartphone App to get Instant Support Service: | ✓ |
| Graph page for each engine parameter: | ✓ |

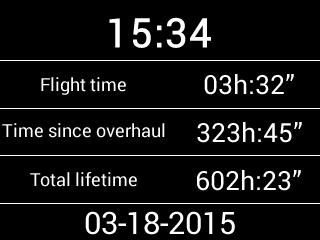

| Clock page including flight time, total lifetime, time since overhaul: | ✓ |
| SKU | UX0EMS1XAM |
| Brand | Avmap |
| Shipping Weight | 3.5000kg |
| Unit Of Measure | ea |
