Product Description

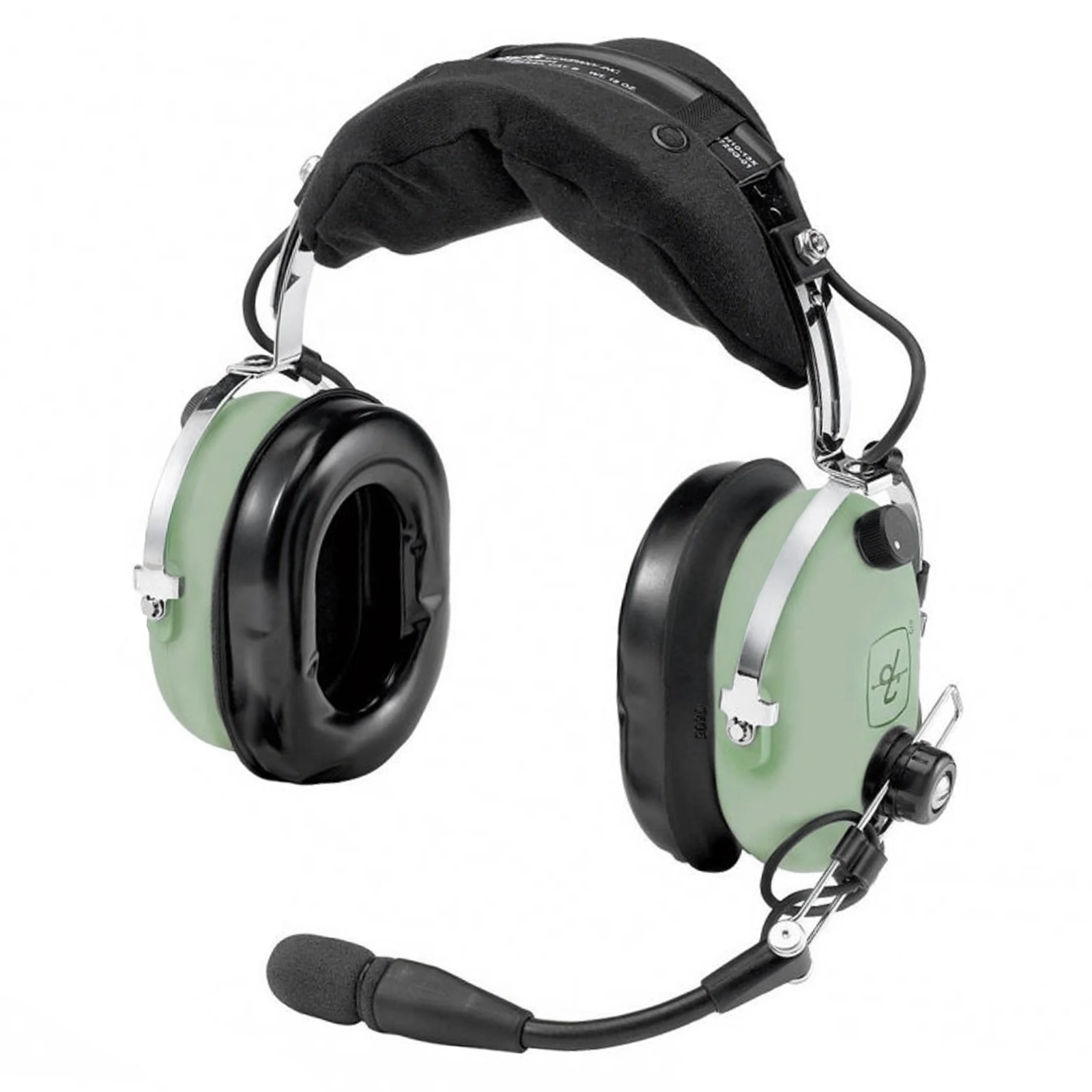

David Clark H10-13XP Panel Mount ENC Headset
ENC Performance in a Panel-Mount Configuration.
Enjoy the added quiet and clarity of Electronic Noise-Cancelling technology. Headset can be plugged either to a portable battery module or with Permanent Panel Mount Module.
KEY FEATURES
- For use with Permanent Panel Mount module - utilizes aircraft power supply
- Expanded, super-soft, double foam head pad
- Larger, yet lighter, Comfort Gel, undercut ear seals

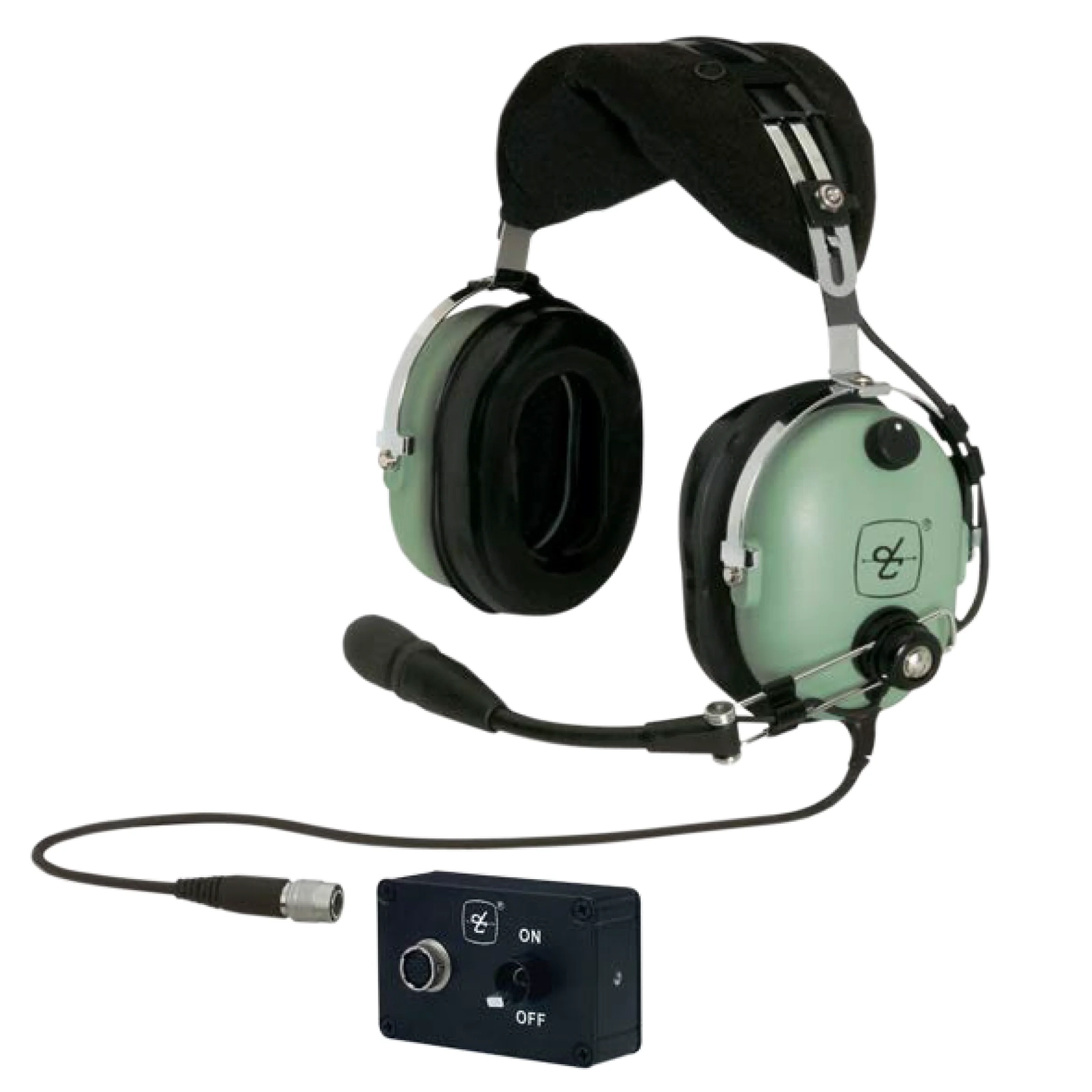

- Straight cord assembly connects to Permanent Panel-Mount Module - utilizes aircraft power supply
- Pilot selectable automatic Shut-Off feature
- Dual volume controls let you adjust the listening level for each ear
- Exclusive, patented flex/wire boom for easy, precise microphone placement
- NRR - 23 dB passive noise reduction. Additional 17 - 22 dB low-frequency noise attenuation when ENC is activated
- Weight (without cord assembly): 22 oz.
- FAA TSO Approved C-57b, C58a
DOWNLOADS
Specifications
| Ear coupling | Around-the-ear |
| Hardware | Steel |
| Connection Cable | ~ 5 ft. (1.5 m) straight cord |
| Weight w/o cable | ~ 18 oz. (532 g) |
| Dome type | ABS |
| Characteristic SPL | ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal |
| Contact Pressure | ~0.6 lb. (2.7 N) |
| Total harmonic distortion (THD) | < 1% - 110 dB SPL (300 - 3,000 Hz) |
| Transducer principle | Dynamic (ENC) |
| Ear Impedance | Monaural, 150Ω nominal, stereo, 300Ω nominal per side |
| Ear Freq Response | 100 - 5,500 Hz |
| Microphone principle | M-7A Amplified Electret |
| Mic Impedance | 50Ω +/- 20% |
| Mic Sensitivity | 400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input |
| Mic Freq Response | 300Hz – 3.5KHz per RTCA DO 214 |
| Mic DC Supply V. | 8-16V, not polarity sensitive |
| Source Resistance | 470Ω |
| SKU | 40600G-02 |
| Brand | David Clark |
| Shipping Weight | 1.8000kg |
| Unit Of Measure | ea |
