Product Description

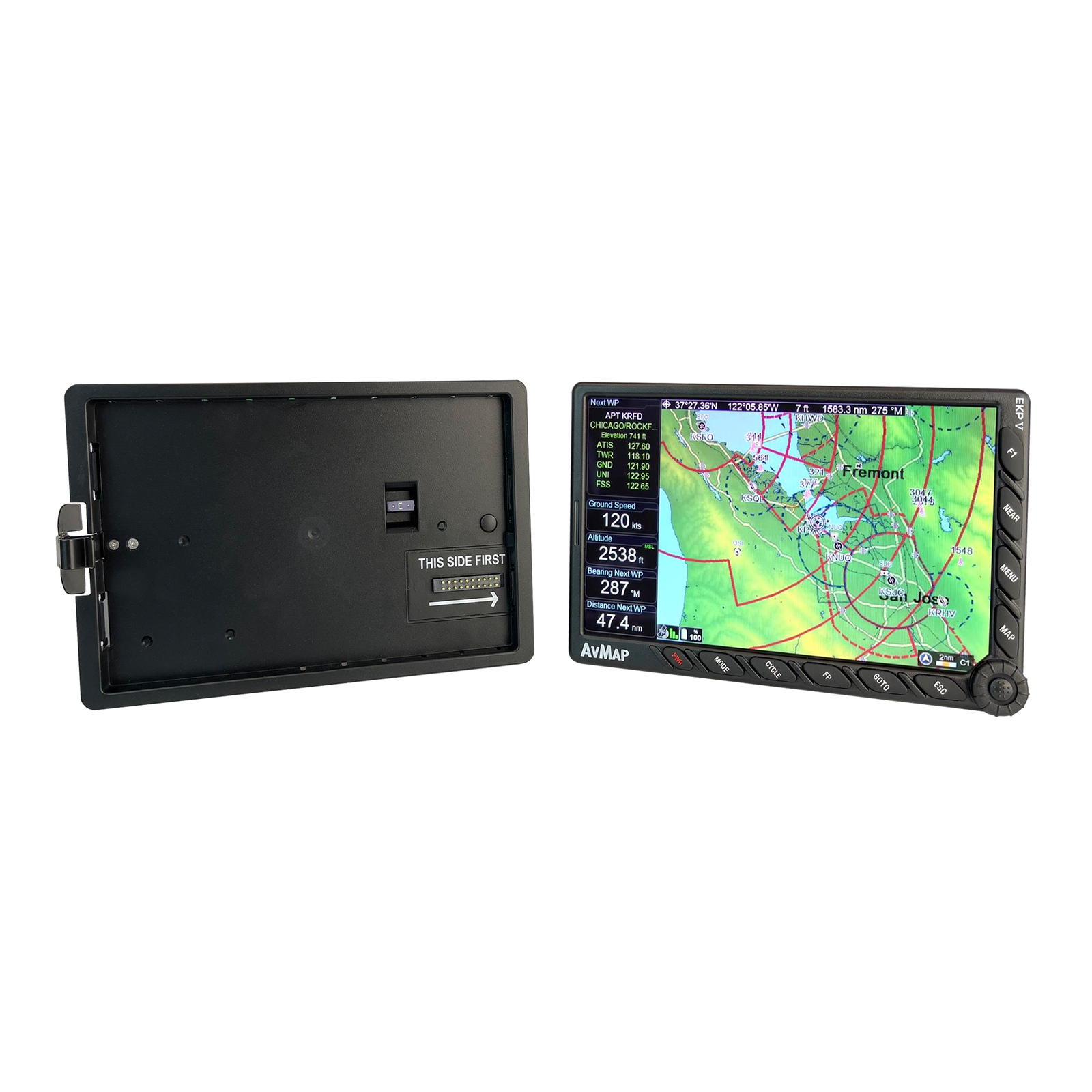

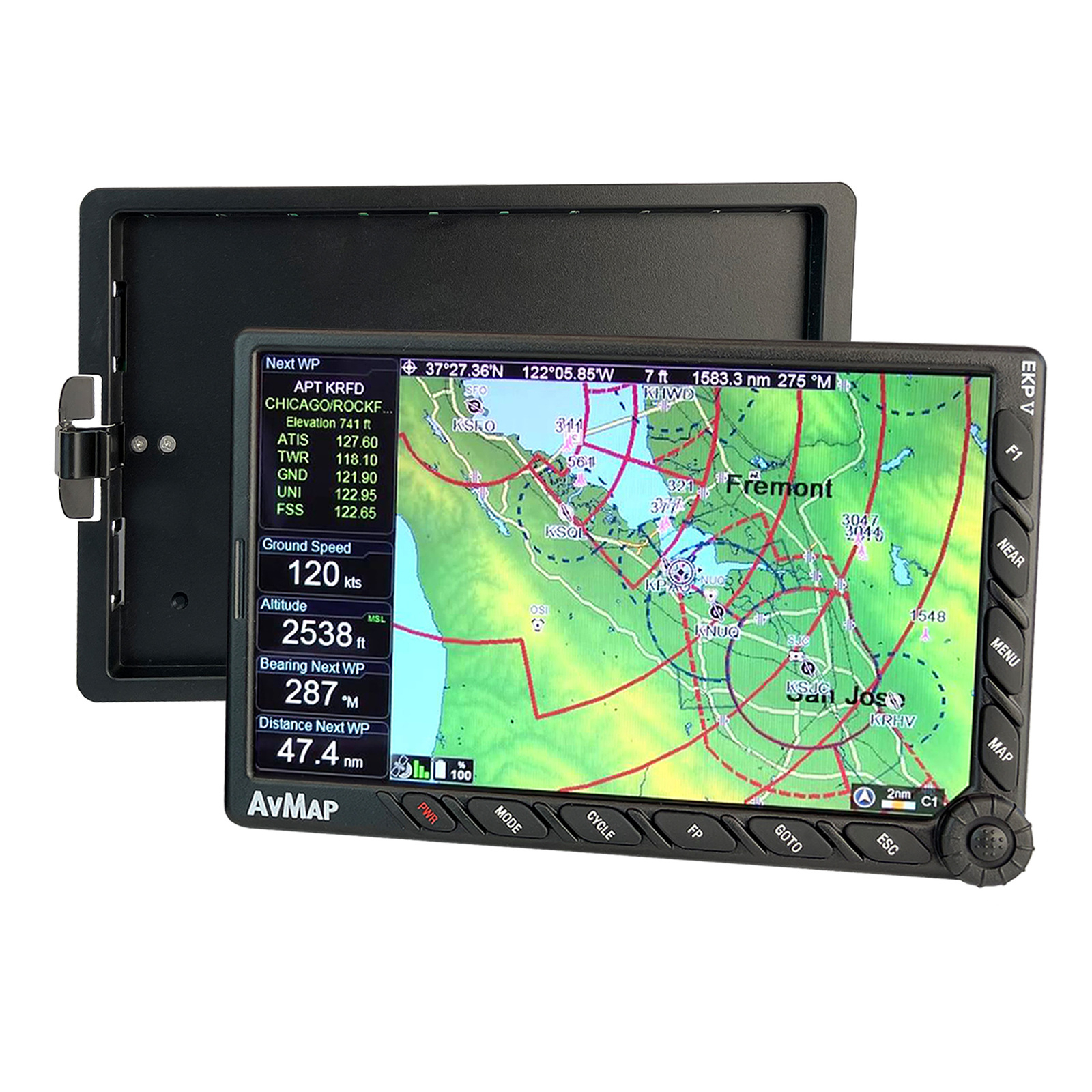

The EKP V Cockpit Docking Station allows the installation of AvMap EKP V Aeronautical Navigator into the cockpit panel, and enables the unit to interface to multiple external devices at the same time.
The Docking Station transforms the EKP V large 7” LCD into a true multifunctional display and flight information system. Create your AvMap Avionics System connecting instruments and accessories to EKP V:
AvMap EKP V - Cockpit Docking Station
The Hub of Your Integrated Avionics System
The EKP V Cockpit Docking Station allows the installation of AvMap EKP V Aeronautical Navigator into the cockpit panel, and enables the unit to interface to multiple external devices at the same time.
The Cockpit Docking Station includes 4 USB ports, 2 serial ports, Audio video input (NTSC and PAL) , Audio output. The external GPS antenna is included in the box.

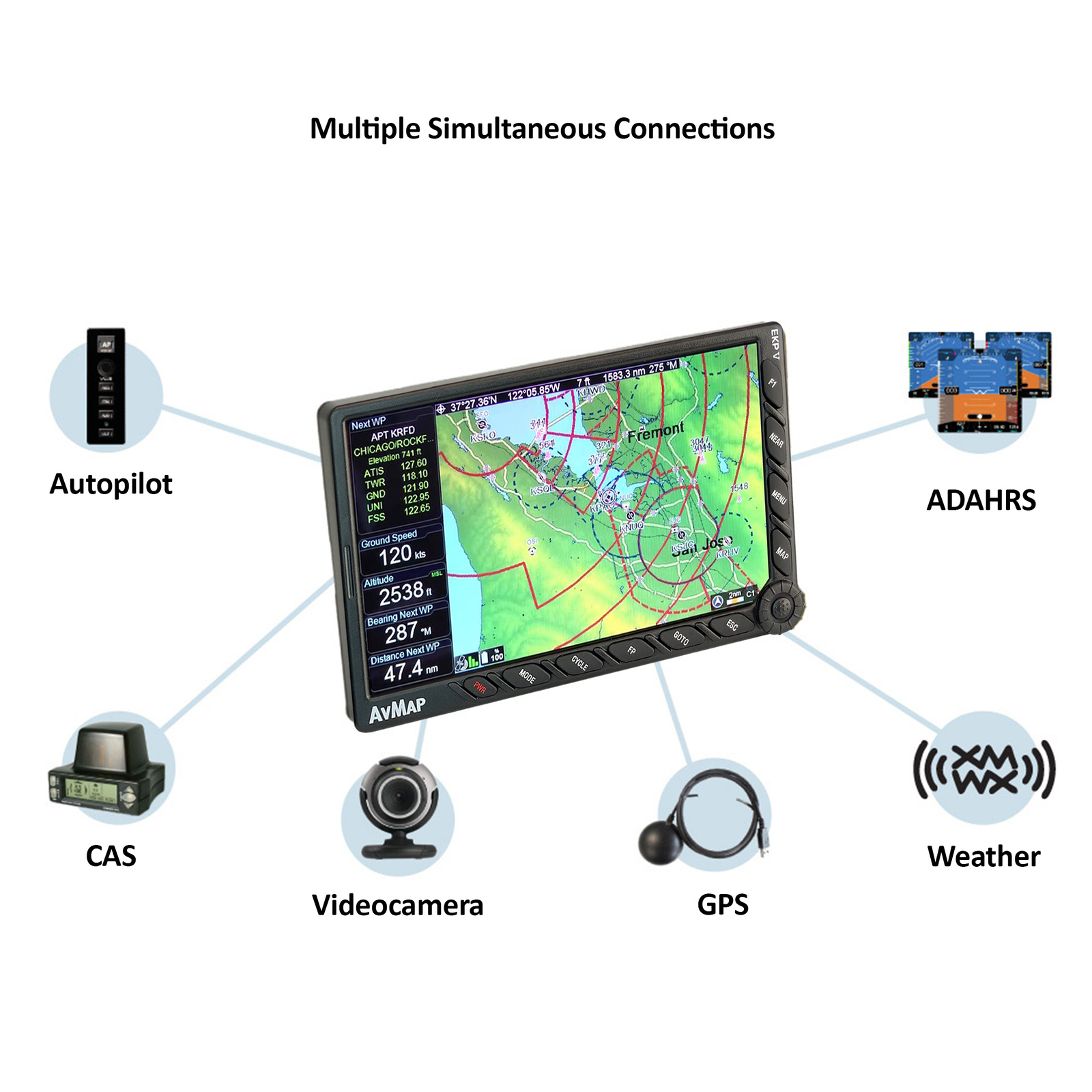

Multiple Simultaneous Connections
The Docking Station transforms the EKP V large 7” LCD into a true multifunctional display and flight information system. Create your AvMap Avionics System connecting instruments and accessories to EKP V:
- GPS receiver
- ADAHRS
- Autopilot
- Traffic Receiver
- Video Cameras or enhanced vision systems
- Weather receiver
- Other instruments
- Safe connections
When docked, the EKP V is powered/charged by the aircraft electrical system through a socket vibration proof for power supply AVG 16. One of the USB ports is powered by the EKP V internal battery to ensure functionality even in case of aircraft electrical power failure.

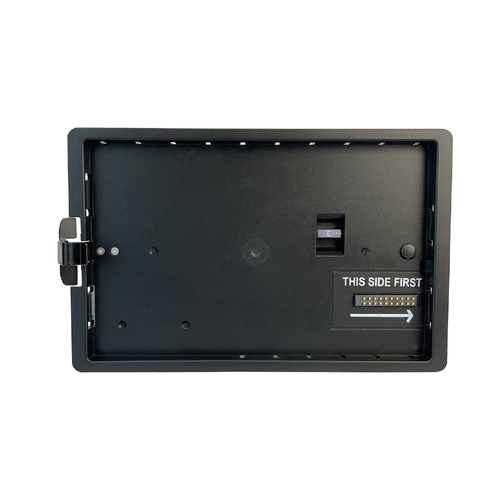

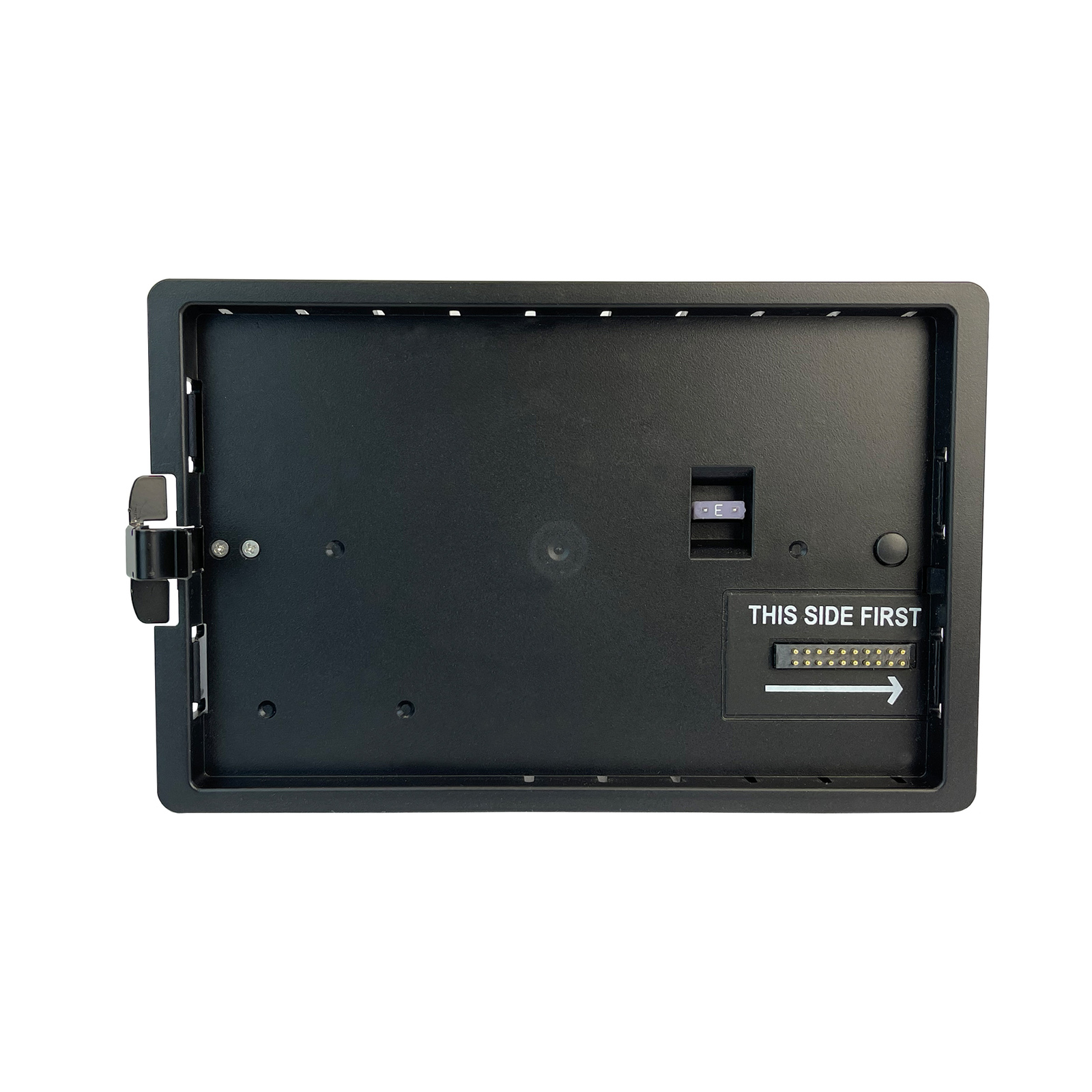

EKP V COCKPIT DOCKING STATION offers Two Mounting Solutions:
The two models are the same size - 164.4 x 106.8 mm cut in the panel is required - external frame measures 172 x 110 mm.
1. Cockpit Docking Station Standard featuring 4 USB connection, 2 serial connections, audio input and output, video input.
- The Standard Version connects bare wires via a sping loaded clamp board for easy installation without the need for soldering
2. Cockpit Docking Station OEM featuring 4 USB connection, 2 serial connections, audio input and output, video input.

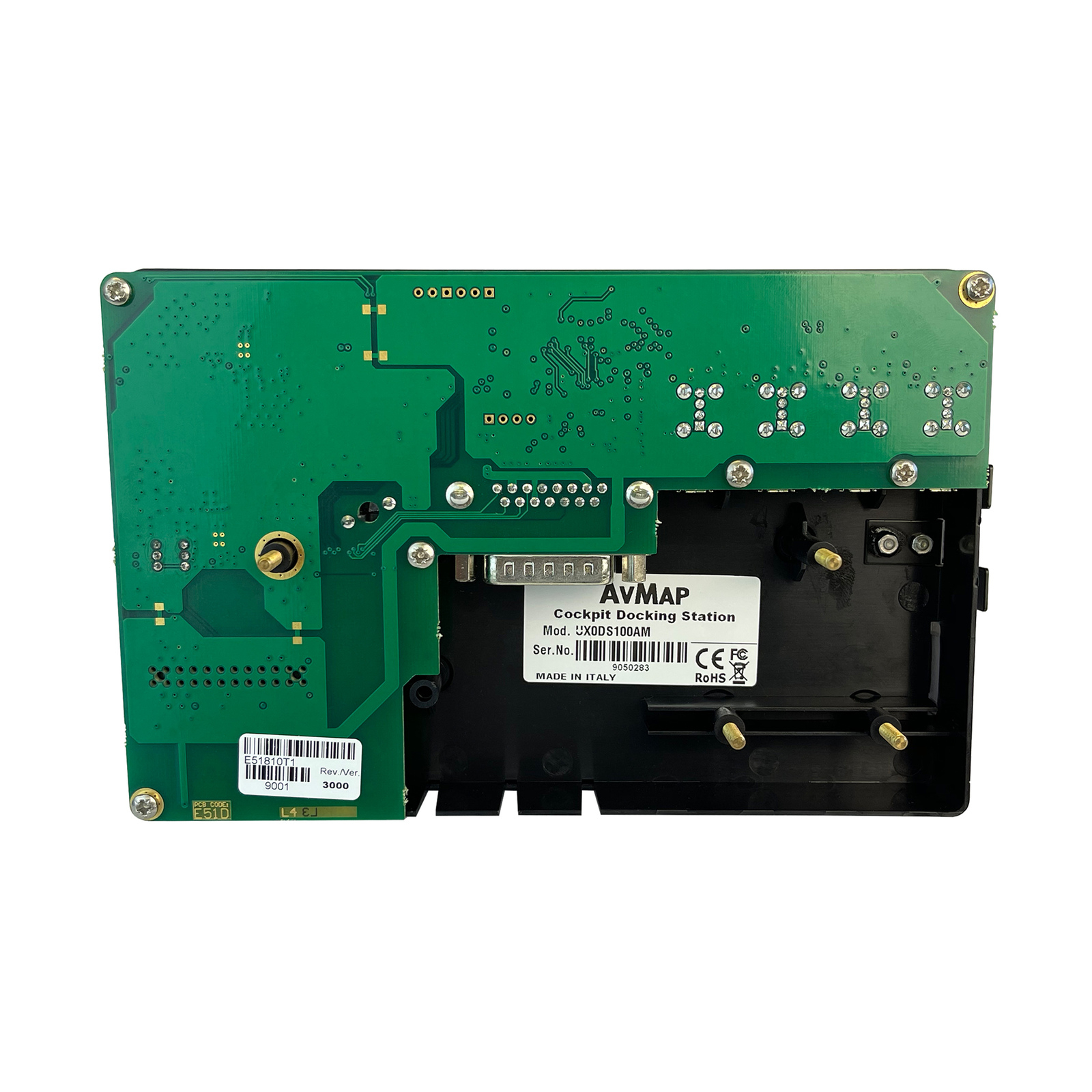

- The OEM Version connects via a DB-15 pin D-Sub connector that requires soldering bare wires onto the D-Sub plug connector.
Specifications
| SKU | UX0DS000AM-A |
| Brand | Avmap |
| Shipping Weight | 0.6000kg |
| Unit Of Measure | ea |
Reviews
Be The First To Review This Product!
Help other Flight Store Pty Ltd users shop smarter by writing reviews for products you have purchased.
Write a product review
AvMap EKP V - Cockpit Docking Station

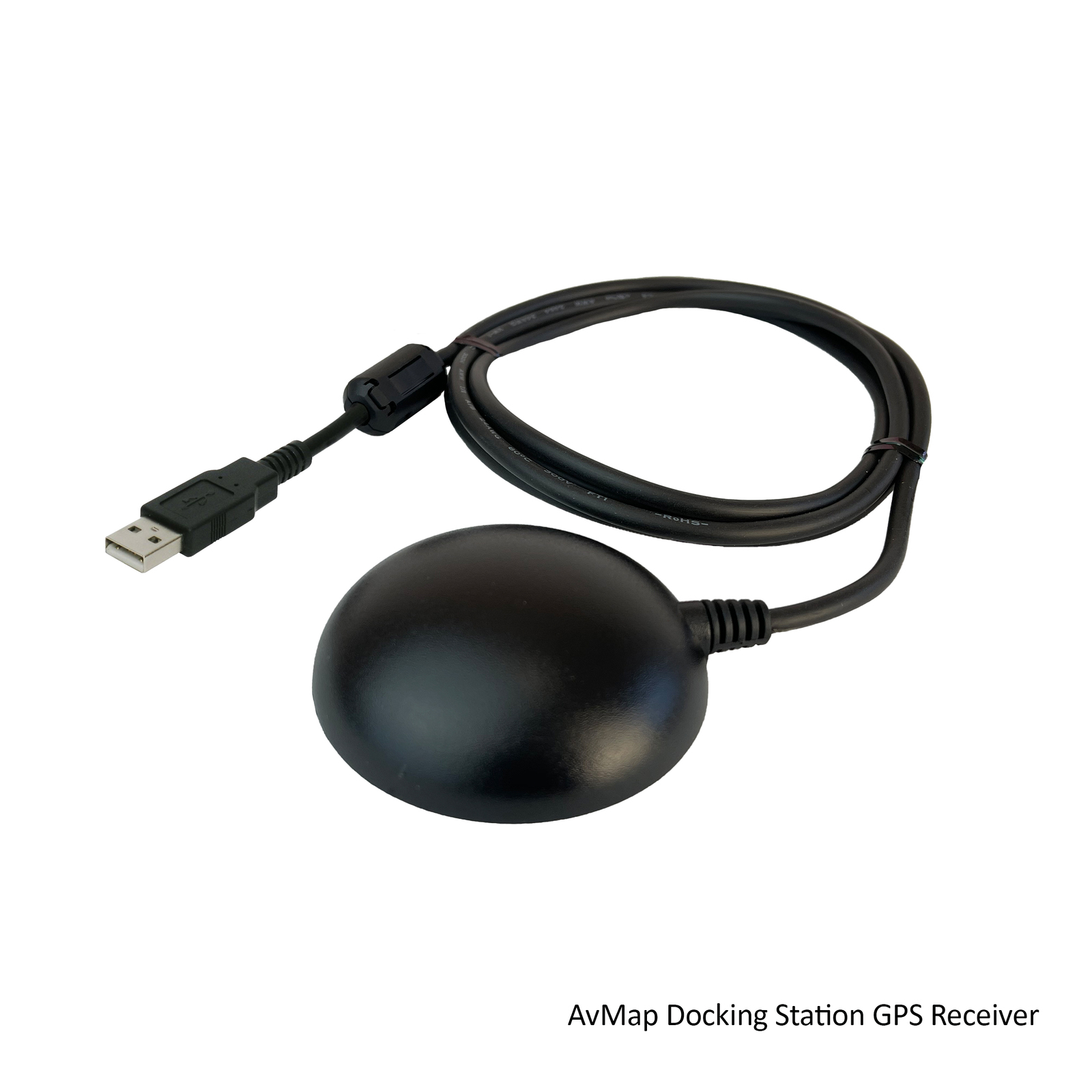

GPS Antenna Included in Kit
AvMap EKP V - Cockpit Docking Station
$495.00
inc GST
Product Description
The EKP V Cockpit Docking Station allows the installation of AvMap EKP V Aeronautical Navigator into the cockpit panel, and enables the unit to interface to multiple external devices at the same time.
The Docking Station transforms the EKP V large 7” LCD into a true multifunctional display and flight information system. Create your AvMap Avionics System connecting instruments and accessories to EKP V:
AvMap EKP V - Cockpit Docking Station
The Hub of Your Integrated Avionics System
The EKP V Cockpit Docking Station allows the installation of AvMap EKP V Aeronautical Navigator into the cockpit panel, and enables the unit to interface to multiple external devices at the same time.
The Cockpit Docking Station includes 4 USB ports, 2 serial ports, Audio video input (NTSC and PAL) , Audio output. The external GPS antenna is included in the box.
Multiple Simultaneous Connections
The Docking Station transforms the EKP V large 7” LCD into a true multifunctional display and flight information system. Create your AvMap Avionics System connecting instruments and accessories to EKP V:
- GPS receiver
- ADAHRS
- Autopilot
- Traffic Receiver
- Video Cameras or enhanced vision systems
- Weather receiver
- Other instruments
- Safe connections
When docked, the EKP V is powered/charged by the aircraft electrical system through a socket vibration proof for power supply AVG 16. One of the USB ports is powered by the EKP V internal battery to ensure functionality even in case of aircraft electrical power failure.
EKP V COCKPIT DOCKING STATION offers Two Mounting Solutions:
The two models are the same size - 164.4 x 106.8 mm cut in the panel is required - external frame measures 172 x 110 mm.
1. Cockpit Docking Station Standard featuring 4 USB connection, 2 serial connections, audio input and output, video input.
- The Standard Version connects bare wires via a sping loaded clamp board for easy installation without the need for soldering
2. Cockpit Docking Station OEM featuring 4 USB connection, 2 serial connections, audio input and output, video input.
- The OEM Version connects via a DB-15 pin D-Sub connector that requires soldering bare wires onto the D-Sub plug connector.
Specifications
| SKU | UX0DS000AM-A |
| Brand | Avmap |
| Shipping Weight | 0.6000kg |
| Unit Of Measure | ea |
